Бренд Mean Well представляет 120W 230W 300W 360W 600W 1000W 12V 24v 48v с PFC PB-120-12 PB-600-12 PB-1000-12 seriesbattery зарядное
- Категория: Аксессуары и запчасти >>>
- Поставщик: Hangzhou,Jiang,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 3406.32 $* | 3576.72 $* |
| Aug-16-2025 | 3377.14 $* | 3546.94 $* |
| Jul-16-2025 | 2833.45 $* | 2975.8 $* |
| Jun-16-2025 | 3320.36 $* | 3486.76 $* |
| May-16-2025 | 2891.74 $* | 3036.33 $* |
| Apr-16-2025 | 3263.9 $* | 3426.92 $* |
| Mar-16-2025 | 3234.41 $* | 3396.74 $* |
| Feb-16-2025 | 3205.44 $* | 3365.95 $* |
| Jan-16-2025 | 3177.60 $* | 3336.89 $* |
Характеристики
Meanwell 120W 230W 300W 360W 600W 1000W 12V Battery Charger

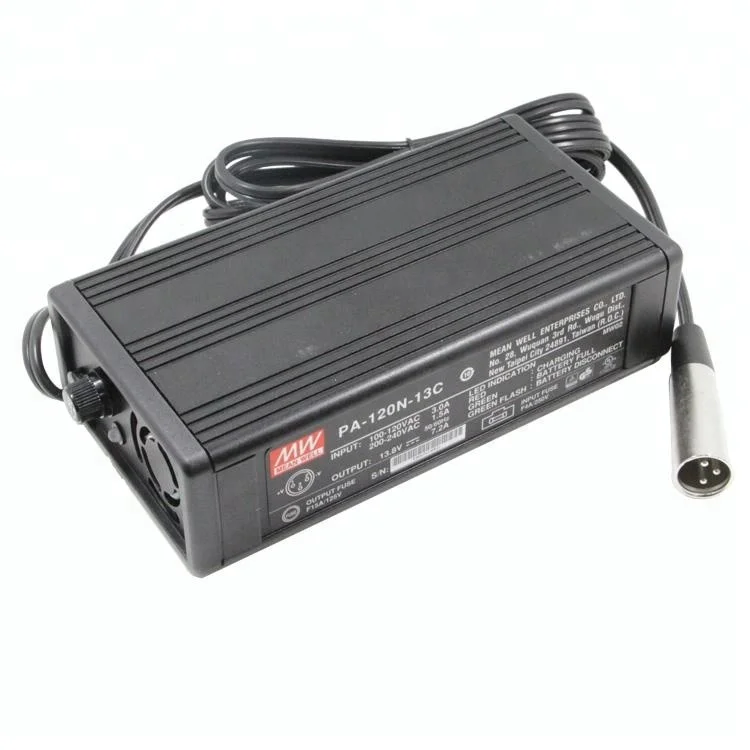

| MODEL NO. | PA/PB-120(P)-13C |
| RATED POWER | 99.36W |
| INPUT VOLTAGE RANGE | 88~132VAC/ 176~264VAC |
| INPUT INRUSH CURRENT | COLD START 25A/115VAC 50A/230VAC |
| DC OUTPUT VOLTAGE | 13.8V |
| CURRENT RANGE | 0 ~ 7.2A |
| LED INDICATED | PA series voltage 105%±1%↓: RED / 105%±1%↑:GREEN |
| PB series load 46%±10%↓: GREEN / 46%±10%↑:RED | |
| DIMENSION (LxWxH) |
PCB Type:144*90*33mm External case type:180*96*49mm (L*W*H) |

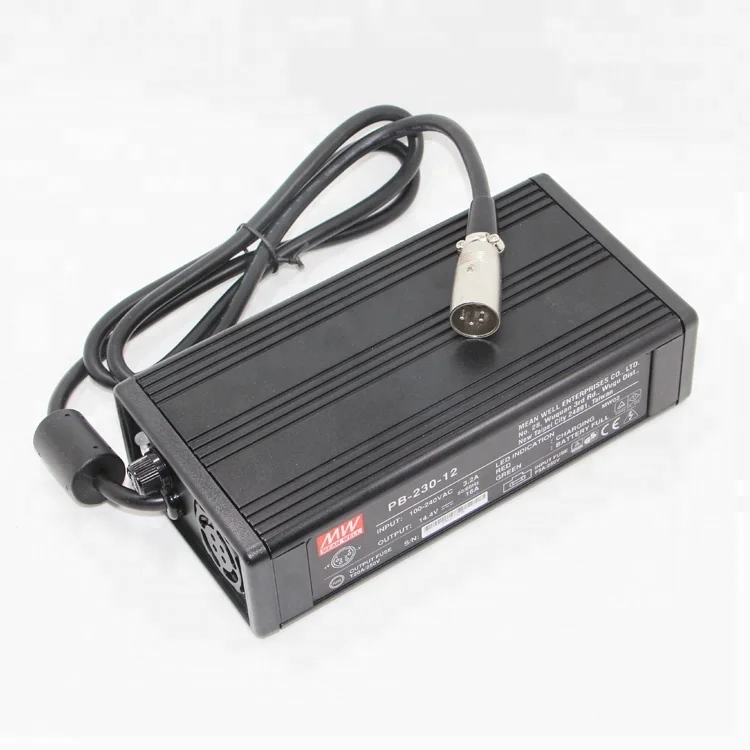

| MODEL NO. | PB-230-12 |
| INPUT VOLTAGE RANGE | 90 ~ 264VAC |
| INPUT INRUSH CURRENT | Cold start, 50A at 230VAC |
| BOOST CHARGE VOLTAGE | 14.4V |
| FLOAT CHARGE VOLTAGE | 13.6V |
| RECOMMENDED BATTERY CAPACITY(AMP HOURS) |
50 ~ 160Ah |
| BATTERY TYPE | Open & Sealed Lead Acid |
| MAX. OUTPUT CURRENT | 16A |
| DIMENSION (LxWxH) | 190x96x49mm |
Send us inquiry for more details>>>>>
| MODEL NO. | PB-300(P)-12 | PB-360(P)-12 | PB-600-12 | PB-1000-12 |
| INPUT VOLTAGE RANGE | 90~132VAC / 180~264VAC | 90~264VAC | ||
| INPUT INRUSH CURRENT | Cold start, 60A at 230VAC | Cold start, 50A at 230VAC | ||
| BOOST CHARGE VOLTAGE | 14.4V | 14.4V | 14.4V | 14.4V |
| FLOAT CHARGE VOLTAGE | 13.6V | 13.6V | 13.8V | 13.8V |
| RECOMMENDED BATTERY CAPACITY(AMP HOURS) |
60 ~ 200Ah | 80 ~ 240Ah | 135 ~ 400AH | 200 ~ 600Ah |
| BATTERY TYPE | Open & Sealed Lead Acid | |||
| MAX. OUTPUT CURRENT | 20.85A | 24.3A | 40A | 60A |
| CONTINUOUS OUTPUT CURRENT | 12.5A | / | / | / |
| DIMENSION (LxWxH) | 253x135x48.5mm | 230x158x67mm | 300x184x70mm | |
Send us inquiry for more details>>>>>
| MODEL NO. | GC120A12-R7B | GC160A12-R7B | G220A12-R7B |
| INPUT VOLTAGE RANGE | 85 ~ 264VAC | 90~264VAC | |
| INPUT INRUSH CURRENT | 70A / 230VAC | 120A / 230VAC | 120A / 230VAC |
| RATED POWER | 102W | 136W | 183.6W |
| DC VOLTAGE | 13.6V | 13.6V | 13.6V |
| RECOMMENDED BATTERY CAPACITY | 40 ~ 100Ah | 60 ~160Ah | 80 ~ 200Ah |
| CONTINUOUS OUTPUT CURRENT | 7.5A | 10A | 13.5A |
| LED INDICATOR | Charging(CC) : RED Floating charging(CV) : GREEN | ||
| OUTPUT CONNECTOR | 4pin power din | ||
| DIMENSION (LxWxH) | 167*67*35mm | 175*72*35mm | 210*85*46mm |
Send us inquiry for more details>>>>>
Scan the QR code below to download our Catalog
About us
Certifications
Kindly reminder :
All our certifications are REAL ONE.
NOT FAKE , NOT FAKE , NOT FAKE !!!
PLEASE CONTACT US TO SHOW YOU!!!
More Products
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
FAQ
Q1. Are you original Mean Well Power Supply?
A: Yes, We sell 100% Genuine Mean Well.
Q2: What is the Warranty?
A: 2~7 years.
Q3. What is the MOQ?
A: Small order welcome, MOQ=1PC. Welcome to inquiry.
Q4. What about the lead time and shippment?
A: Standard ( popular model ) can be ship within 2 day, bulk order can be delivered within 10~35 days.
For shipping, we often use DHL, FedEx, UPS, and TNT. For bulk order, we recommend to send goods by Air or by Sea to save your transportation cost.
Q5: What is your payment terms?
A: We accept pay via Bank Transfer, Paypal, Western Union and Trade Assurance
