Heavy load ZWY-60 tunnel mucking loader/underground mine backhoe



Main features:

1.  With electric hydraulic transimission,acquisition, transmission, hydraulic walking,

   mining loading four kinds of functions,compact structure, propulsive force is big, pick area is wide.

   Can full loaded rock, with no left angle,do not need artificial auxiliary clean coal face.

2.  Dumping height can be designed according to user needs.

3. Using manual valve control, flexible operation, work smoothly with no impact, reliable performance,

   with seat, with cab,Greatly reduce the labor intensity of the workers, lightweight.



Technical parameters:

product model		Wide rubber-tyred models
overall weight		3850kg
loading capacity		60 m3/h
drive mode		electric/diesel(4 wheel drive)
digging width		3030mm
digging height		3000mm
Digging distance (from the shovel)		1500mm
digging depth		500mm
dumping height		1500mm
dumping distance		1430mm
walking speed		1.03/0.58 m/s
grade ability		≤15°(hardstand)
roadway slope		≤8°
min. turning radius		≤4.8m
belt speed		48m/min
max.working pressure		16mpa
min. ground clearance		≤170mm
total power		30kw
wheel base		1550mm
tire distance		1450mm
max. material size(width*height)		500*400mm
max. arm swing angle		±30°
overall dimension(work)	length	6500mm
	width	1500mm
	height	1810mm
roadway work face(width*height)	≥2.0×2.2

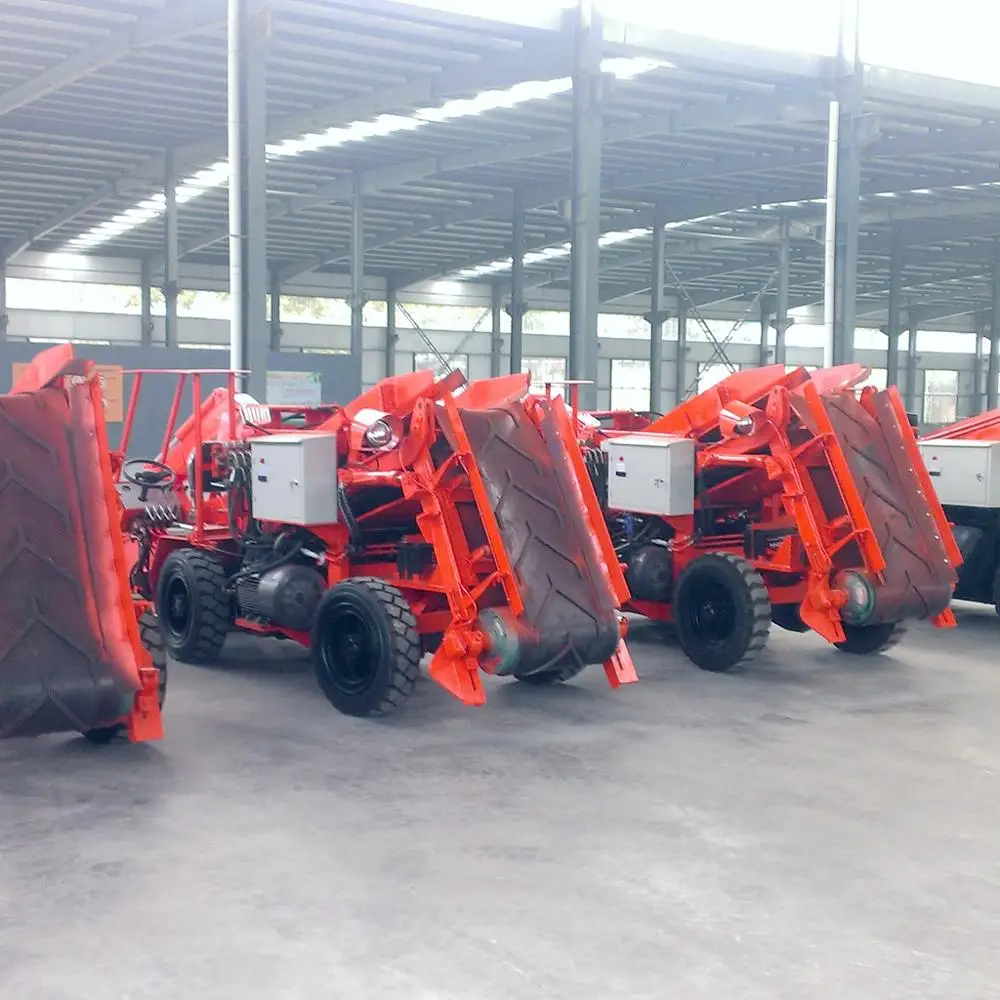

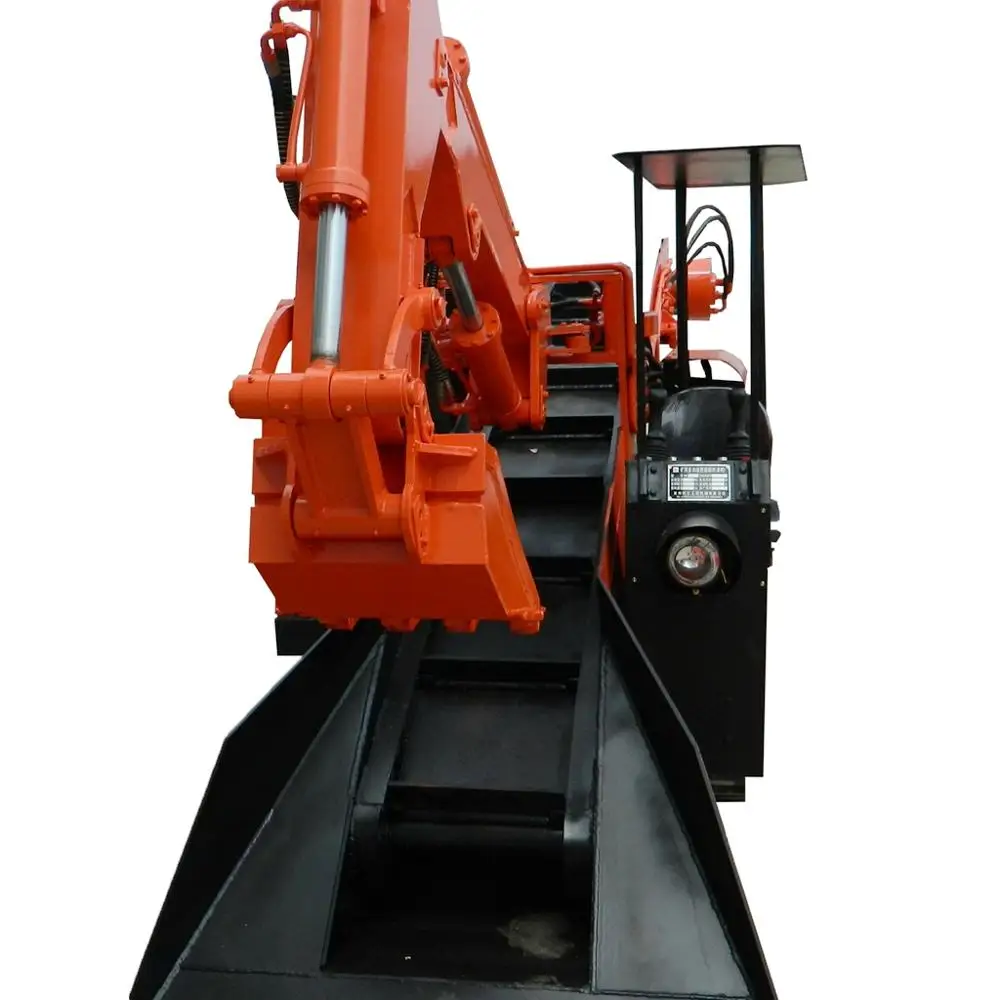

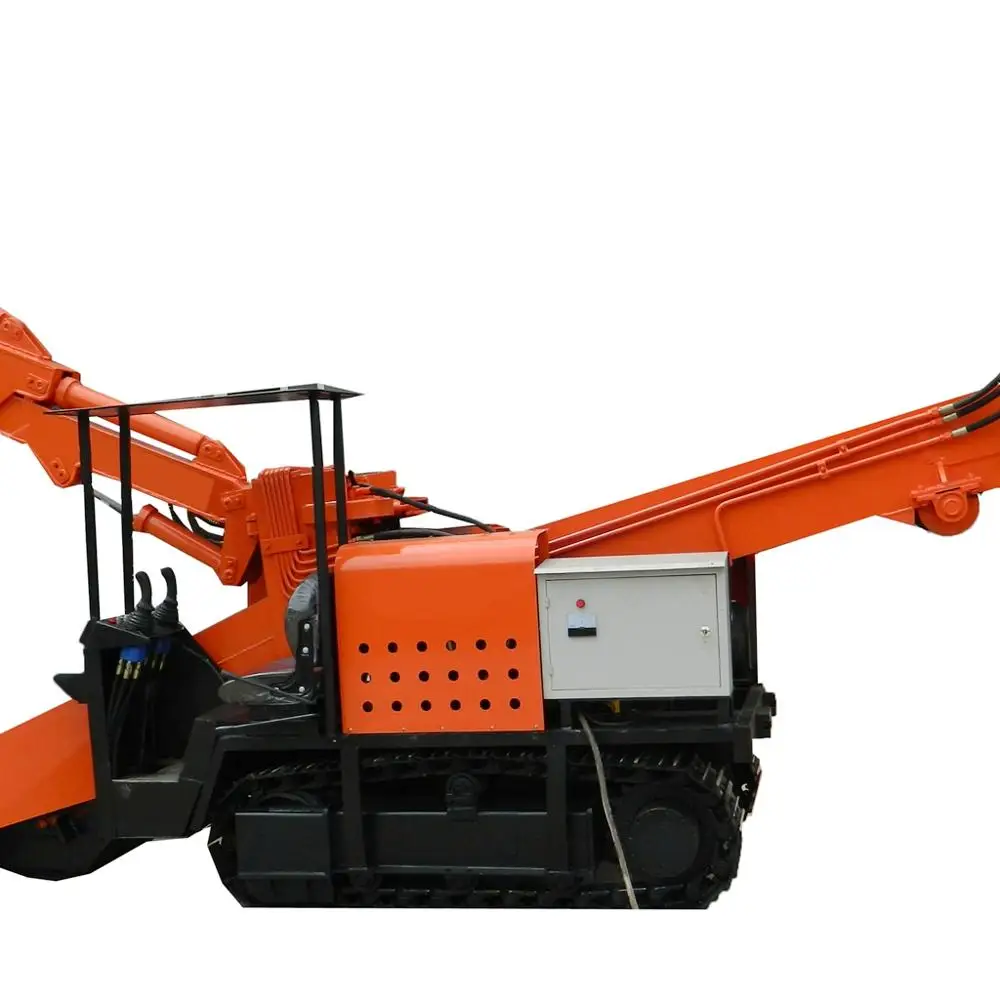

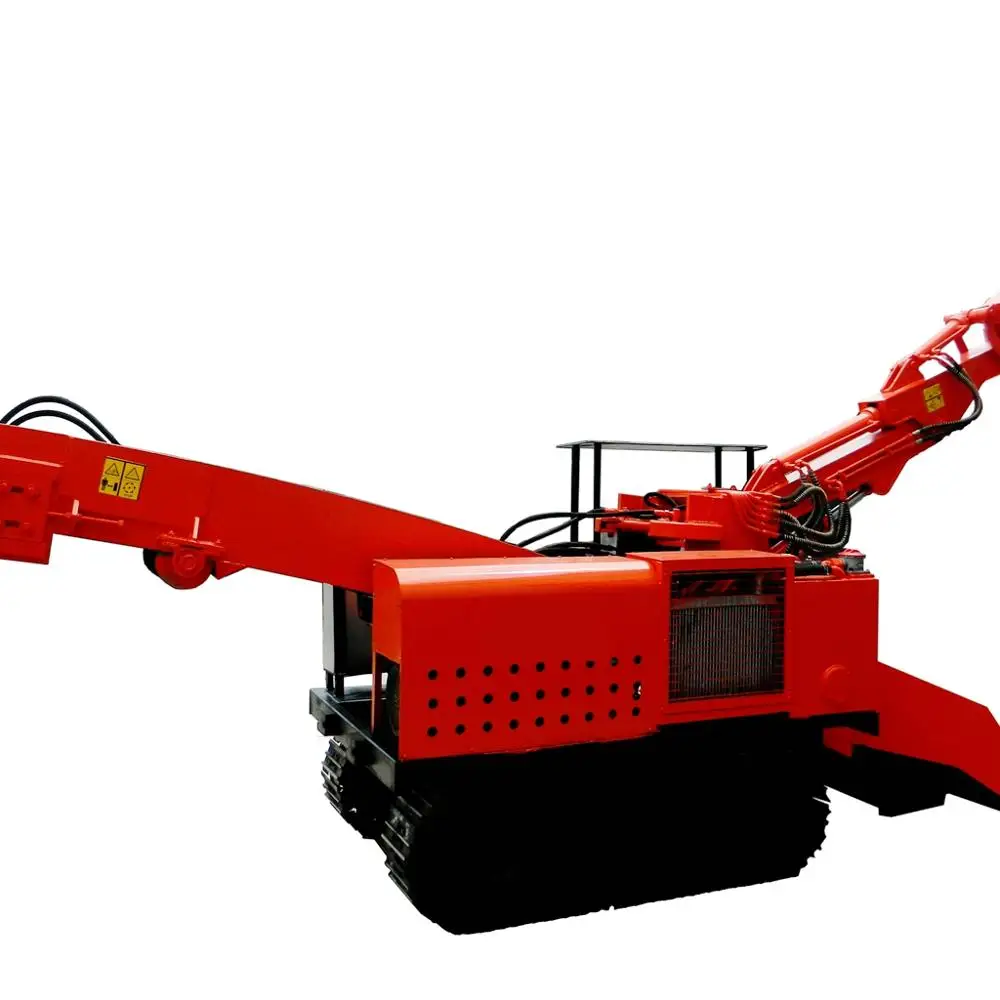

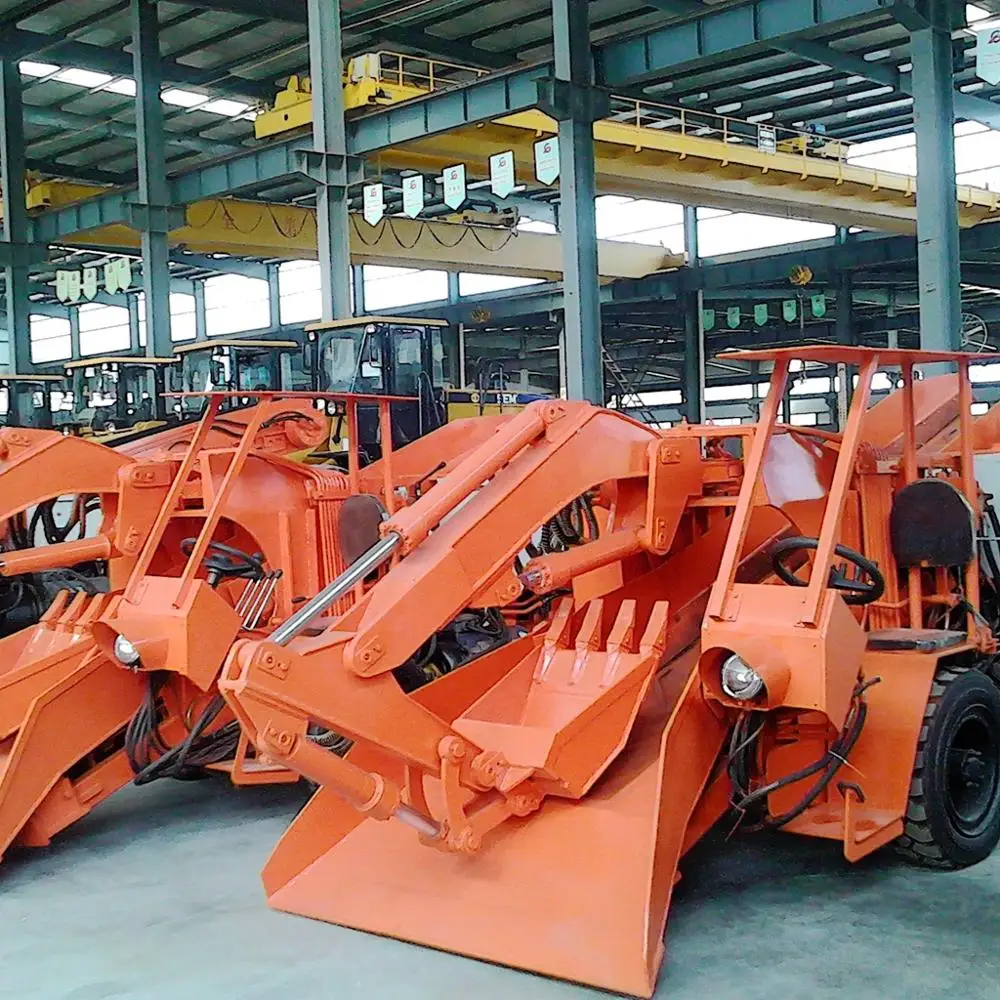

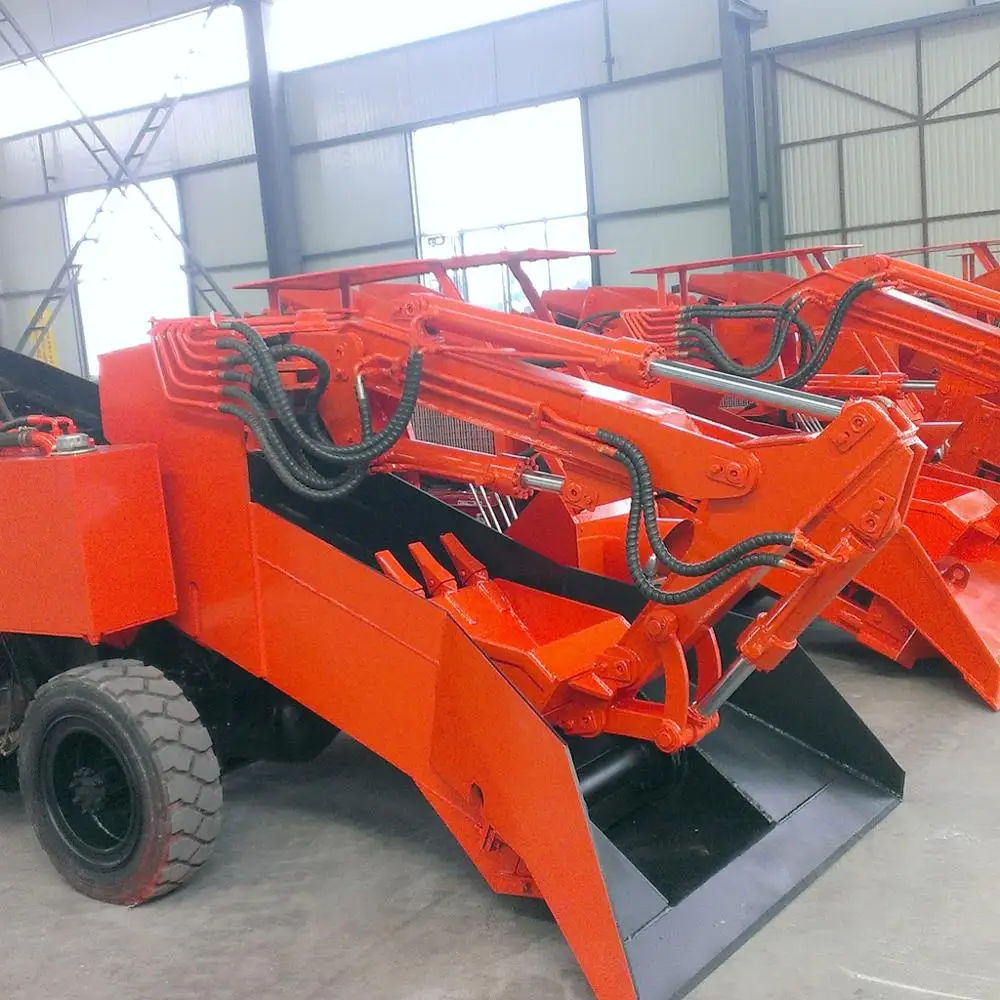

Details:
