FMUSER FSN-80T 80W FM радио передатчик с сенсорным экраном + DP100 1/2 волны дипольная антенна 15 м кабель

Описание и отзывы

Трекер стоимости

Характеристики

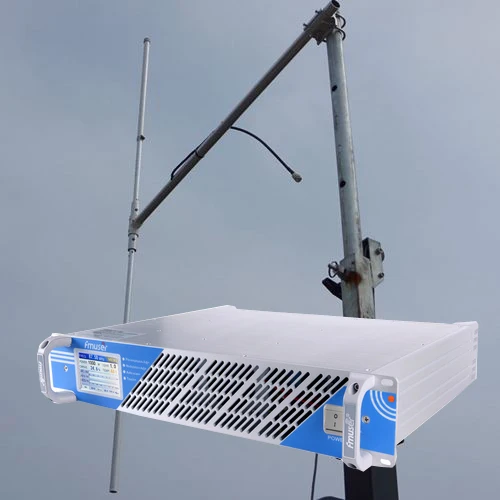

 FMUSER FSN-80T 80W FM Radio Broadcast Transmitter With Touch Screen + DP100 1/2 wave dipole antenna + 15meters cable KIT







OVERVIEW:





FMUSER hereby presents newly innovated FSN-80T 80W FM transmitter with touch screen to all FM broadcast fans with due respect. Exclusively from other 80W transmitter in the market, FMUSER 80W radio FM transmitter features by its human-friendly touch screen operation interface, highly stable and reliable performance and near CD quality stereo sound effect, which make it a remarkable improvement in the whole market, and leads to its high popularity in using for the most of FM radio stations.

This 80W FM broadcast transmitter is designed in a compact 19 inch 2U chassis by integrating all modules inside, small in size and easy in operation and maintenance. It adopts the most advanced RF transistor of BL188 OR MRFE6VP61K25H, which ensures a high working efficiency of 72%, the power loss is reduced to the minimum value ever.

The DSP(Digital Sound Processing) technology makes the FSN-80T 80W FM transmitter an enjoyable sound broadcasting device for all music lovers, you’ll no longer be bothered by the noises or distortions.

As quality assurance, FMUSER Provides 5 YEAR warranty for this FMUSER FSN-80T 80W Professional FM transmitter. , you’ll have no worries to use it for the radio station.



FREQUENTLY APPLICABLE USES:

1). Community Radio stations
2). LPFM radio stations
3). City radio stations
4). Christian Church radio stations



OUTSTANDING FEATURES:





1) OVERHEAT PROTECTION:

The transmitter will switch to auto-protection with alarm message and a beep sound once the working temperature gets higher than normal range.





2) OVER SWR PROTECTION:

SWR is the indication of antenna system connection with transmitter. Once the connection is bad and causing a high SWR Value, the transmitter will switch to automatic protection mode by showing alarm message on the screen with a beeping sound meanwhile.





3) FAN ERROR ALARM

When the fan stopped running, there will be alarming message showing on the screen like the following:



4) FREQUENCY AUTO MATCHING:
The 80W FM transmitter auto scans the best matching frequency on antenna to maximize the broadcasting efficiency at minimum SWR ratio, this ensures the best performance from both the transmitter and antenna.



5) MODULATION ADJUSTABLE:

When audio mixers are connected with the 80W FM transmitter through the XLR Balanced audio input interface, the transmitter will provide plenty of options for the modulation to best match with the mixer.



6) ONE TOUCH OPERATION:

This FSN-80T 80W FM transmitter is designed with a precisely sensitive touch screen in replace of the control buttons on previous transmitters. With all information displayed clearly on the screen, users can control and configure all parameters very easily.

7) FLEXIBLE AUDIO OPTIONS
The pre-emphasis of 80W FM transmitter are flexible to choose among 0US / 50US/ 75US, users can choose the best match mode according to their own needs.



9) LONG COVERING RADIUS









TECHNICAL SPECIFICATION:



RF Part:

Frequency: 87.5-108MHz,
Frequency step value: 10KHz
Modulation: FM, peak deviation ± 75KHz
Frequency stability: <± 100Hz
Frequency stabilization method: PLL frequency synthesizer
RF output power: 0~80 watts ± 0.5dB
Residual wave: <- 70dB
Higher harmonics: <- 65dB
Parasitic AM: <- 50dB
RF output impedance: 50Ω

RF output connector: L29 female

Audio Part:
Audio input connector: XLR female
AUX input connector: BNC female
Pre-emphasis: 0us, 50us, 75us (user setting)
S / N ratio mono:> 70 dB (20 to 20KHz)
S / N ratio stereo:> 65 dB (20 to 15KHz)
Stereo resolution: -50dB
Audio frequency response: 30 ~ 15000Hz
Audio distortion: <0.3%
Audio level gain: -12dB ~ 12dB step 3dB

Audio input: -19dB ~ 5dB

General Features:
Power supply voltage range: 110V ~ 260V
Operating temperature range: -10 to 45 ℃
Work mode: continuous work
Cooling method: air cooling
Cooling efficiency: <95%
Work Altitude: <4500M
Power consumption: 1500VA
Dimensions: 483 x 320 x 88 mm without handles and protrusions, 19 "2U standard rack.
Weight: 12Kg









The package include :

1pc 80W FM Transmitter ( power supply already include inside )

1pc Dipole 88Mhz to 108Mhz continue adustable antenna

1pc 15 Meters feeder cable with connector
