Термоусадочная трубка для защиты от погодных условий Cell tower кабель 3/8 или 1/2 дюйма антенны N 4 3-10 DIN антенна RRU BBU
- Категория: Electronic Accessories & Supplies >>>
- Поставщик: Xiamen,Dianchang,Communication,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.4 $* | 0.28 $* |
| Aug-18-2025 | 0.85 $* | 0.29 $* |
| Jul-18-2025 | 0.59 $* | 0.28 $* |
| Jun-18-2025 | 0.67 $* | 0.61 $* |
| May-18-2025 | 0.49 $* | 0.46 $* |
| Apr-18-2025 | 0.41 $* | 0.11 $* |
| Mar-18-2025 | 0.59 $* | 0.70 $* |
| Feb-18-2025 | 0.56 $* | 0.40 $* |
| Jan-18-2025 | 0.26 $* | 0.56 $* |
Характеристики
Product Description

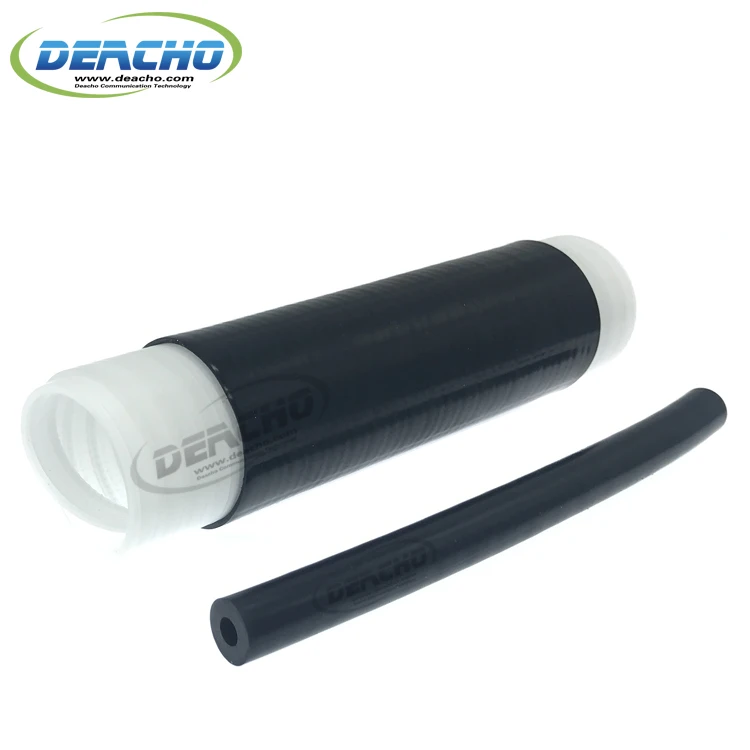

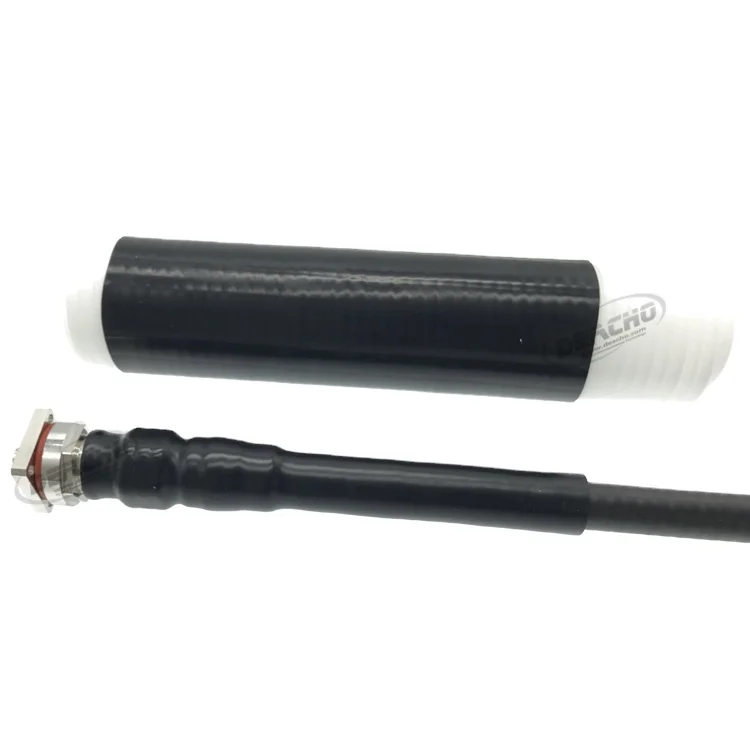

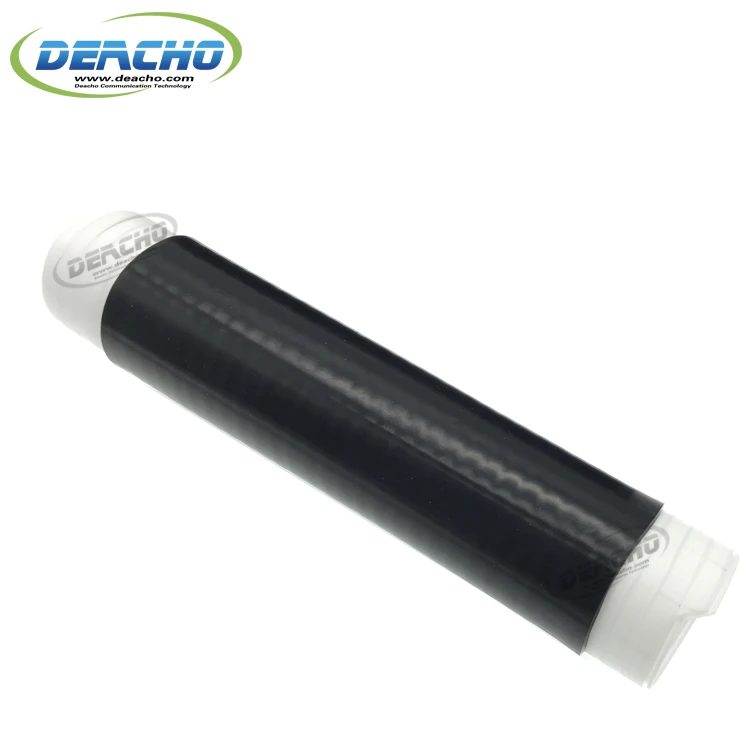

Cell tower weather proofing cold shrink tubing for 3/8" or 1/2" cable to antenna N 4.3-10 RRU BBU antenna cold shrink tube
Description.
SCS series is silicone cold shrink tubes, provide a quick and easy method for protecting and sealing for an inline connection, terminal lug, etc., cold shrink tubing is an open-ended tubular rubber sleeve , pre-expanded on a removable core for easy installation.Silicone cold shrink tube are made from silicone rubber which does not contain chlorides or sulfur.
The core is removed after the tube has been positioned for installation, allowing the tube to shrink and form a water-resistant seal. In applications where the different cable diameter cannot be covered with the tube range, a
foam tape is included in the package. The foam tape is used to increase the smallest cable diameter and assure the sealing of the clod shrink tube.
Feature & Advantages.
• Simple installation; requires no tools, no torches or heat required.
• Accommodates a wide range of cable sizes
• Good thermal stability
• Seals tight; retains its resiliency and pressure even after prolonged years of aging and exposure
• Excellent wet electrical properties
• No mastic or tape required to seal
• Resists acids and alkalis; resists ozone
• UV resistant, Ozone-resistant, RoHS compliant
Structure.
Item No.: SCS40X152-MD10
Material: Solid silicone rubber
Inner diameter of plastic core as supplied: 40 mm
Length after full shrink (nothing inside)-L: 152 mm
Length as supplied-L1: 135 ±10 mm
Application range: 10-34 mm

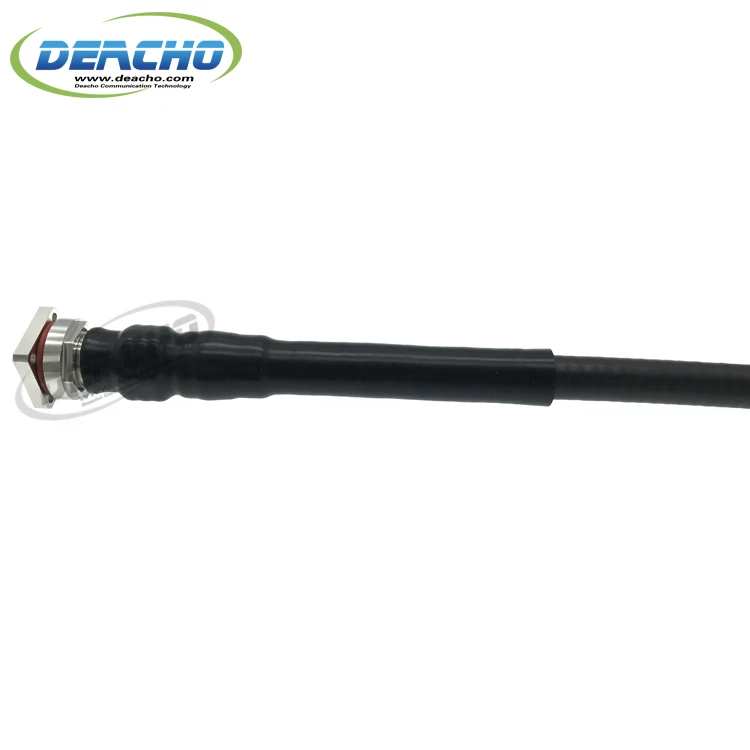

Application: use for 3/8" or 1/2" cable to device (antenna, RRU, etc.), via N or 4.3-10
Application.
•\tPrimary electrical insulation for all solid dielectric
insulated wire and cable splices rated to 1000 volts.
•\tPhysical protection connectors and lugs.
•\tmoisture sealing for connectors and lugs.
•\tInsulation of secondary splices, copper and aluminum conductors.
•\tSheath repairs.
•\tInsulation for inline conductor transition connector.

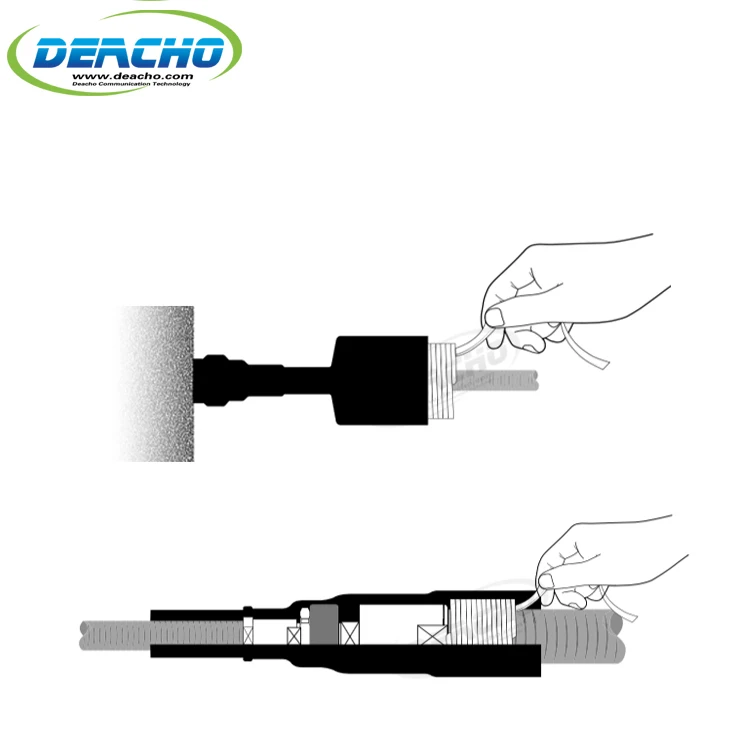

Installation instructions.
Technical Datas.
Test item | Test Standard | Unit | Value |
Dielectric Strength | ASTM D149-75 @1.75 | KV/mm | 21 |
Volume Resistivity | ASTM D257 | Ohm.cm | 3.4×10^15 |
Waterproof Rate | ISO 20653:2013 | ------ | IP68 |
Shore Hardness | GB/T 531.1-2008 | Shore A | 44 |
Tear Strength | ASTM D624C-73 | KN/m | 35 |
Tensile strength | ASTM D412-75 | Mpa | 10.8 |
Elongation at Break | ASTM D412-75 | % | 750 |
Bacteria resistance | ASTM G21 / expose 28 days | ---- | No bacteria |
Ozone-Resistance | ASTM D1149-07 | ---- | PASS |
UV-Resistance | ASTM G154-06 | ---- | PASS |
Flame-Retardance | UL 94 | ---- | HB |
Working temperature | ℃ | -60 to 200 |
Selection Table.
* If you need other size, please feel free let us know.
