Односторонний плунжерный гидравлический цилиндр для

Односторонний плунжерный гидравлический цилиндр для

Категория: Пневматические и гидравлические системы >>>
Поставщик: Wuxi,Boli,Hydraulic,&,Pneumatic,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	0.38 $*	0.91 $*
Aug-18-2025	0.74 $*	0.90 $*
Jul-18-2025	0.67 $*	0.14 $*
Jun-18-2025	0.31 $*	0.4 $*
May-18-2025	0.98 $*	0.61 $*
Apr-18-2025	0.16 $*	0.4 $*
Mar-18-2025	0.41 $*	0.21 $*
Feb-18-2025	0.92 $*	0.31 $*
Jan-18-2025	0.64 $*	0.0 $*

Характеристики

Product Image

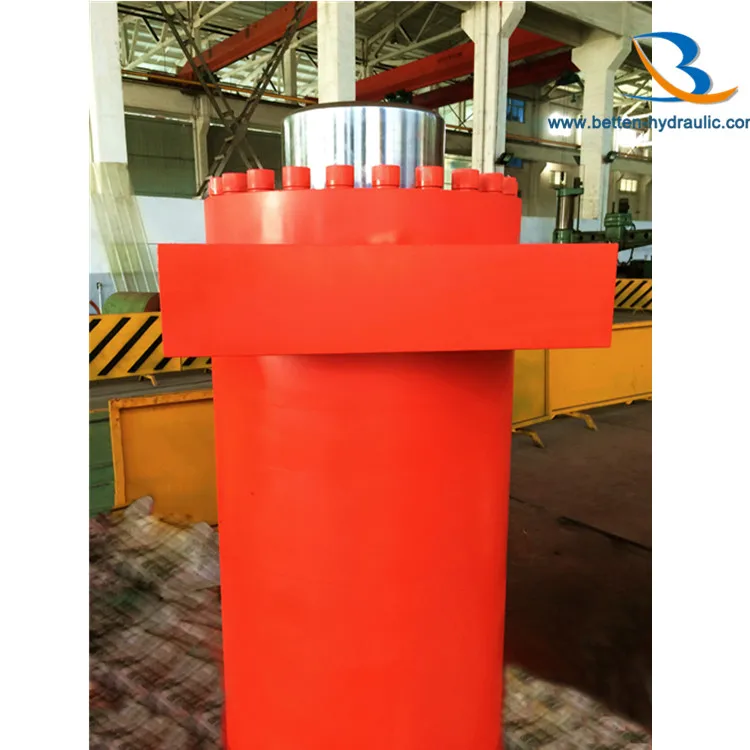

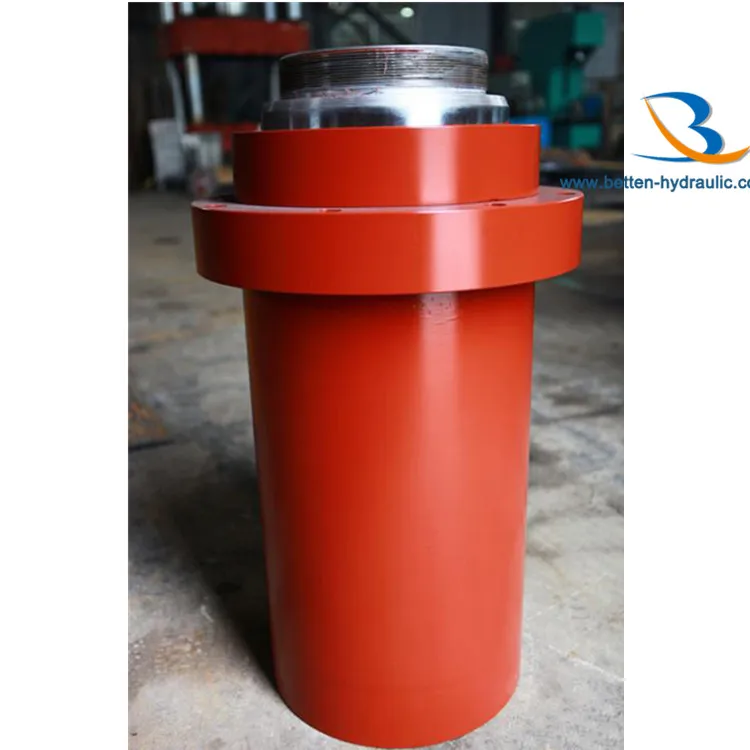

Betten hydraulic press cylinder plunger type cylinder

Custom hydraulic cylinders to fit your need.

For hydraulic cylinders used in the hydraulic hot press machines, the forging press cylinders always work in high speed and large shock condition,which is a big challenge for seals part and guiding mechanism structure.

Thanks to the unique design of cooper alloy guide ring device, the cylinder can move smoothly and have a longer service life under large lateral load. Betten hydraulic products' reasonable structure design could reduces the stress substantially so that to be more reliable.

The largest press cylinder made by Betten-hydraulic has a amazing bore diameter of 1800mm,which is based on Betten Hydraulic's extremely strong manufacturing and testing capability and experienced technical team.

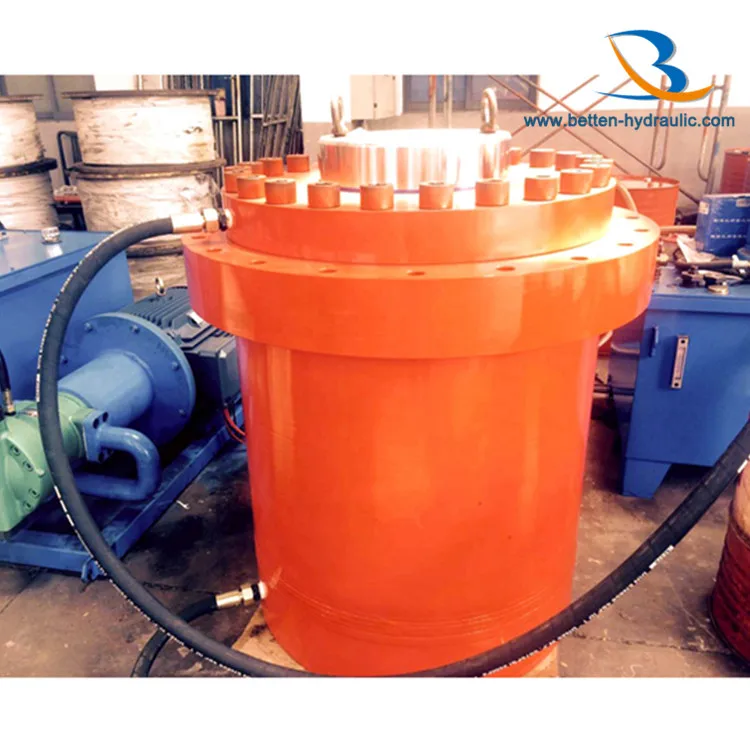

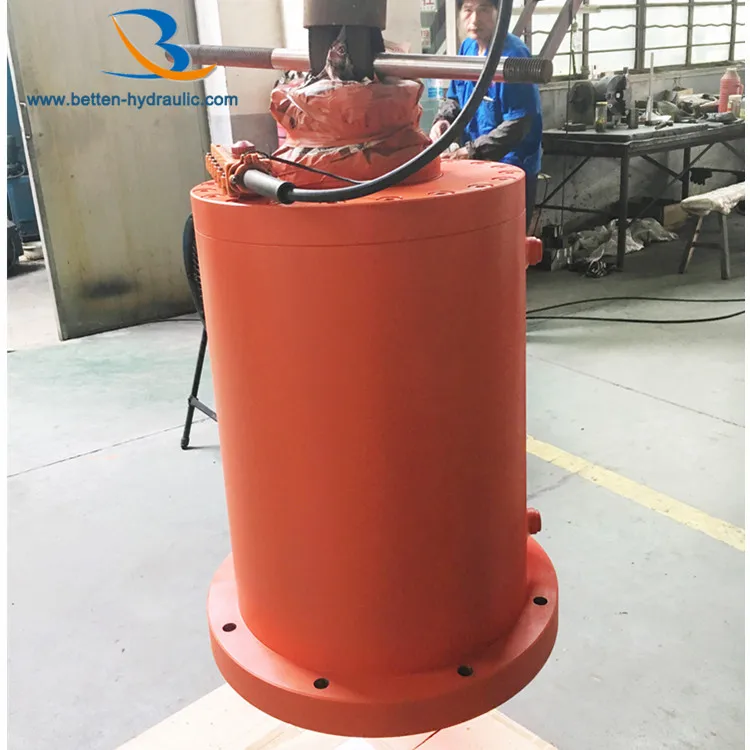

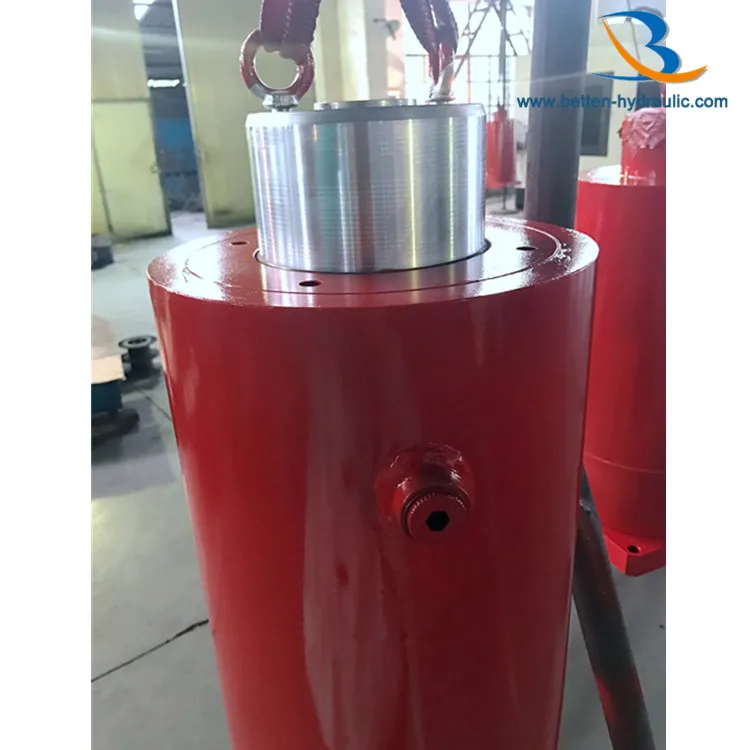

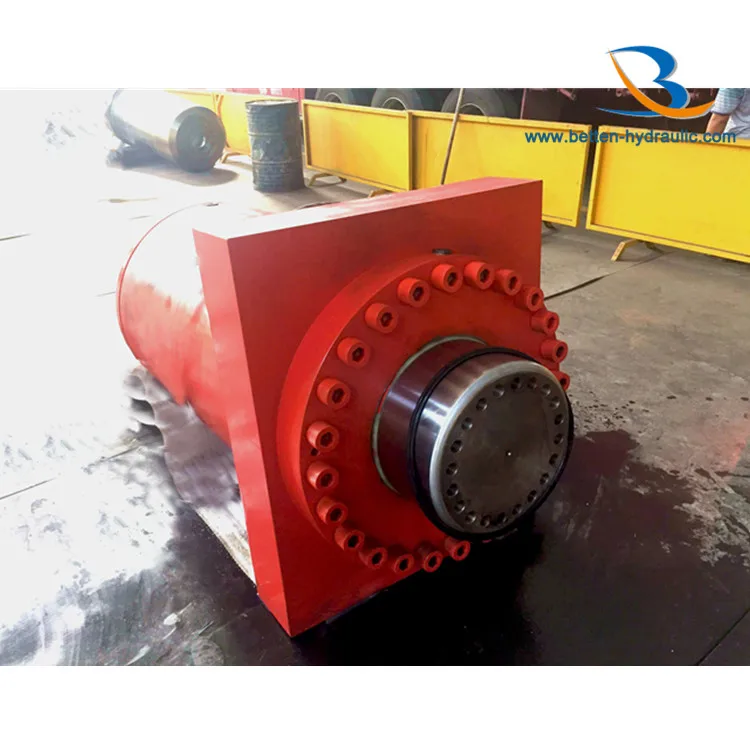

Betten Cases of Press Hydraulic Cylinder

Technical Data

Product	double acting single acting hydraulic press cylinder
Stroke for hydraulic actuator	50mm-16000mm
Inside Cylinder Tube Dia.	40 – 1000 mm (1.5 – 40 inch)
Liner material	copper (prolongs the life cycle of cylinder)
Hydraulic cylinder tube material	Carbon steel, Alloy steel, Stainless steel
Piston Rod Dia	:12 – 500 mm (1/2 – 20 inch) Hydraulic Cylinder Piston Rod should be hard chrome plated to minimum thickness of 35-55 microns and polished to 0.15 um Ra
Chome Plated	Cr, Ni or Ceramic
Design Pressure	Max 700 bar (10150 PSI)
Weight	Max 60 tons
Valves	SUN (USA),or famous Chinese brand with same quality to PARKER
Seals Type	PARKER (USA), MERKEL (Germany) or NOK (Japan)
Liner material	copper (prolongs the life cycle of cylinder)
Bearings	LONGXI (China) or SKF
Painting	follow with customer requirement or 3-coat marine painting
Certificate	DNV, ABS, Lloyds, BV, GL, KR, NK, RINA, RS and CCS
Application	Engineering machinery (Excavator/ Forklift/ Cranes/ Tipper truck,etc), mine, metallurgy, shipping, water conservancy, etc.

Betten Hydraulic Cylinder

Production line

\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t

1. How to customize hydraulic cylinders ?
Please provide the details below:

Cylinder bore

Rod diameter

Stroke
Mounting style
Working pressure and test pressure
Seals brand
Special modifications.
Ports

2. What is your hydraulic cylinder application?

Construction Machinery
Metallurgy Machinery
Mining machinery
Hydraulic power project
Hydraulic Press Machinery
Marine Industry

Our Factory

Our factory cover an area of over 8000 square meters and have around 100 stuff including a technical team with more than 20 engineers. Our workshop equipped with over 30 sets of manufacturing and testing machines including machining center, numerical control machine, argon welding machine, plasma cutter etc. Betten has gained the certification of ISO 9001:2008 and certification of Product Quality Supervision and Inspection Center of Wuxi City. Meanwhile, Betten also got customers' satisfaction for reasonable price, timely delivery and good after-sale service.

With the fast development in the past 20 years, we have gained much experience and technology in making various types of hydraulic system and cylinders with our expert team. Our products are widely used in equipment such as machine tool, metallurgical equipment, forging machine, kiln equipment, brick machine, plastic machine, car manufacturing machine, construction equipment for road and bridge, wielding machine, port facilities, test machine, fully auto line and we have gained a lot of world famous customer like XCMG, LIUGONG Machinery, Chalco, BOSCH, Haier, SAINT-GOBAIN, Shanghai Boiler, HTC etc.
