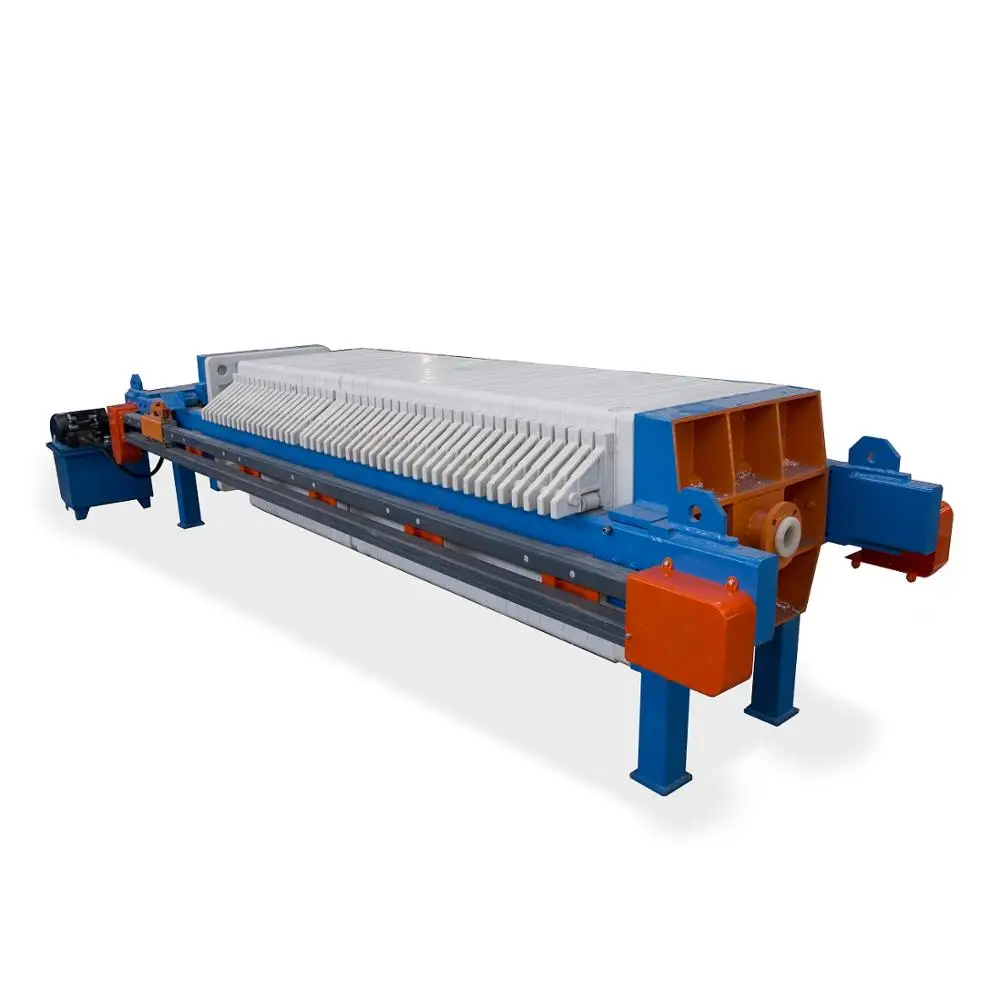

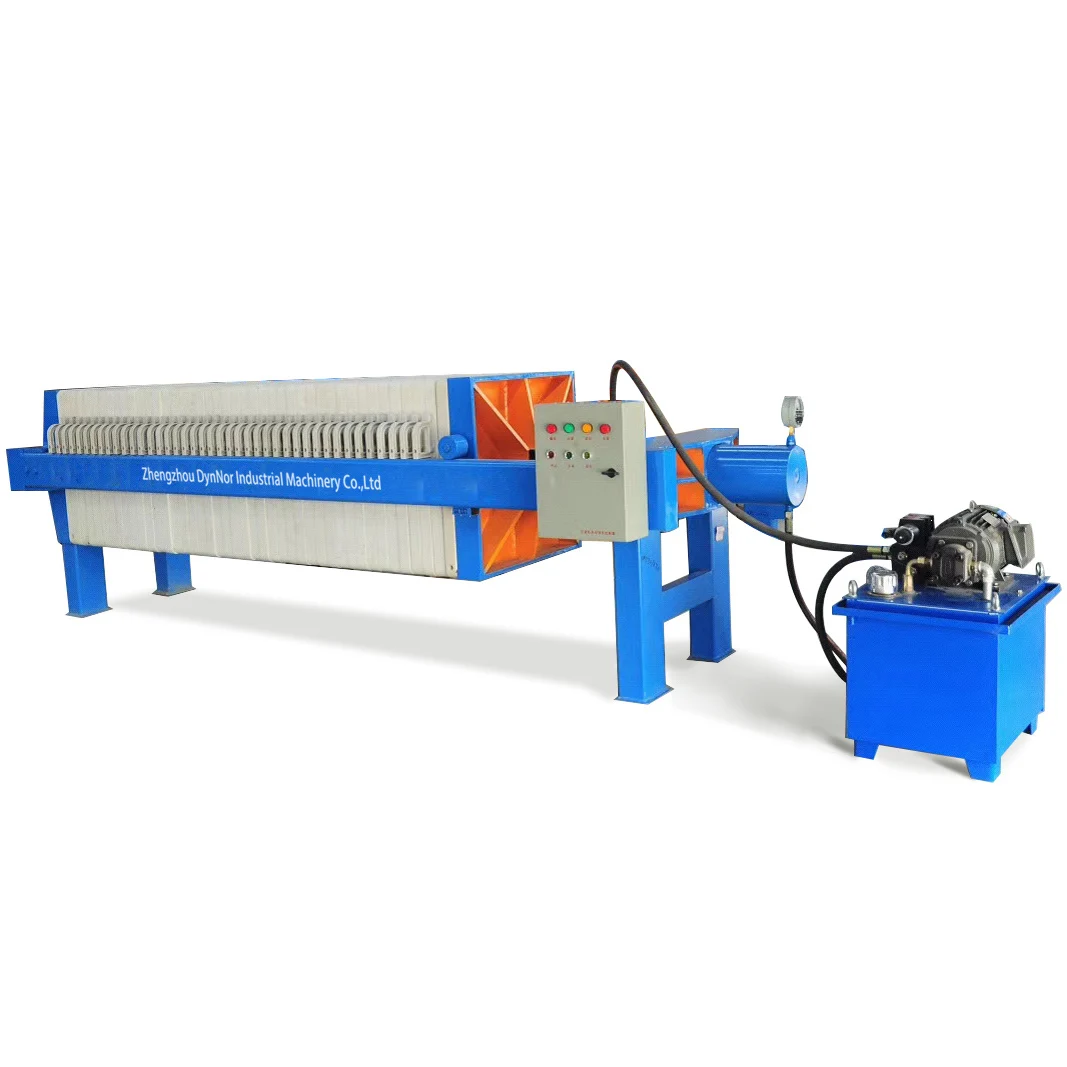

Hydraulic Filter Press (Manual Cake discharge)



Our company supply various series of filter presses, including chamber filter press, plate and frame filter press, stainless steel filter press, lab type filter press, automatic filter press, water washing filter press, cast iron filter press, vertical filter press, etc.



Introduction of  Filter Press:

Filter press is a kind of intermittent pressure filtration machine equipment, applied to various suspension of solid-liquid separation. The separation effect is good, easy to use, suitable for large filtration industry, requires a high degree of automation or centralized control, with filter pressure of 0.6 Mpa. The whole machine is designed with integration of machine, electricity and liquid, can realize automatic pressing, filtering, draining, squeezing, loosening, drawing board, and so on, with a high degree of automation, large production capacity, low liquid content in filter cake, the unit output is high, cover an area of an area small features. Widely used in petroleum, chemical industry, dye, metallurgy, pharmacy, food, paper making, coal washing and sewage treatment and so on all kinds of solid-liquid separation is required.

Filter press is on the basis of the pressure filter, according to user's different requirements for filter press equipment automation degree, choose to increase automatic plate system, auxiliary varicose arm of discharging slag system, single lever water flushing system, flap hydraulic system, PLC control system and other auxiliary facilities, in order to reduce the workers labor intensity, improve production efficiency.



Technical Data

Model	Filter area (m2)	Plate size (mm)	Cake thickness (mm)	Filter chamber volume (L)	Number of plates (pcs)	Filtration pressure (MPa)	Motor power (Kw)	Total weight (kgs)	Overall dimension LxWxH(mm)
XY4/450-30U	4	500 x 500	30	60	9	>=0.6	2.2	860	1950*700*900
XY6/450-30U	6			91	14			910	2200*700*900
XY8/450-30U	8			121	19			960	2450*700*900
XY10/450-30U	10			151	24			1010	2700*700*900
XY12/450-30U	12			182	29			1060	2950*700*900
XY15/450-30U	15			225	36			1130	3300*700*900
XY16/450-30U	16			243	39			1160	3450*700*900
XY15/630-30U	15	700 x 700	30	226	18	>=0.6	2.2	1725	2640*900*1100
XY20/630-30U	20			297	24			1993	2940*900*1100
XY30/630-30U	30			452	37			2360	3590*900*1100
XY40/630-30U	40			595	49			2788	4300*900*1100
XY30/800-30U	30	800 x 800	30	460	28	>=0.6	2.2	2170	3700*1200*1200
XY40/800-30U	40			595	38			2450	4300*1200*1200
XY50/800-30U	50			749	47			2700	4840*1200*1200
XY60/800-30U	60			902	57			2980	5440*1200*1200
XY70/800-30U	70			1056	67			3250	6040*1200*1200
