Характеристики


Product Features

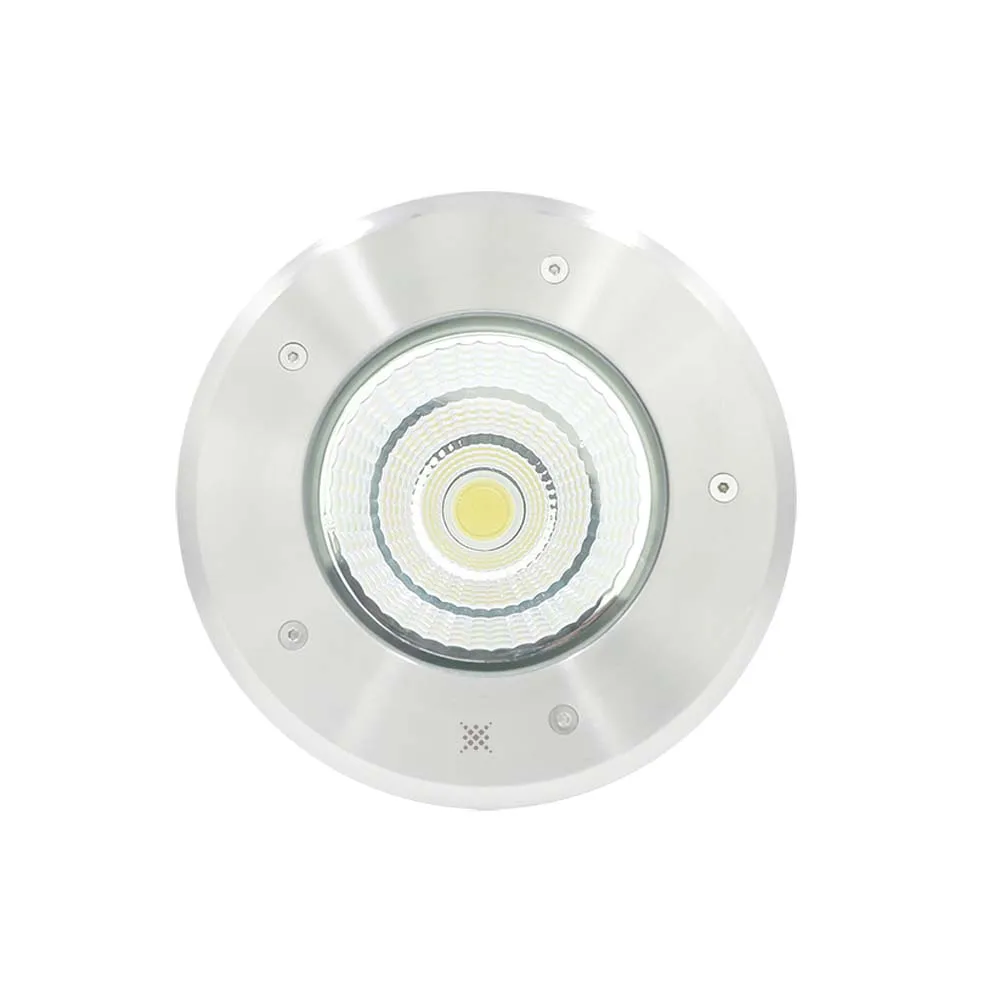

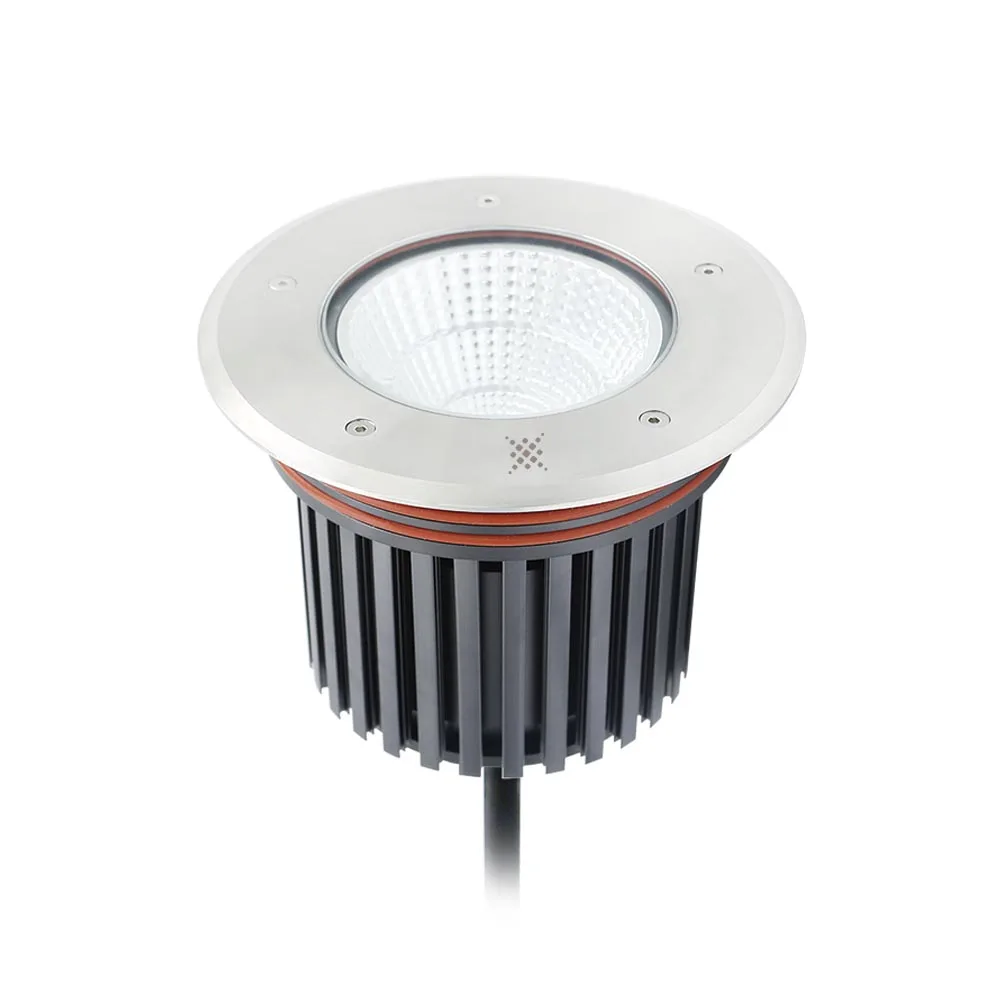

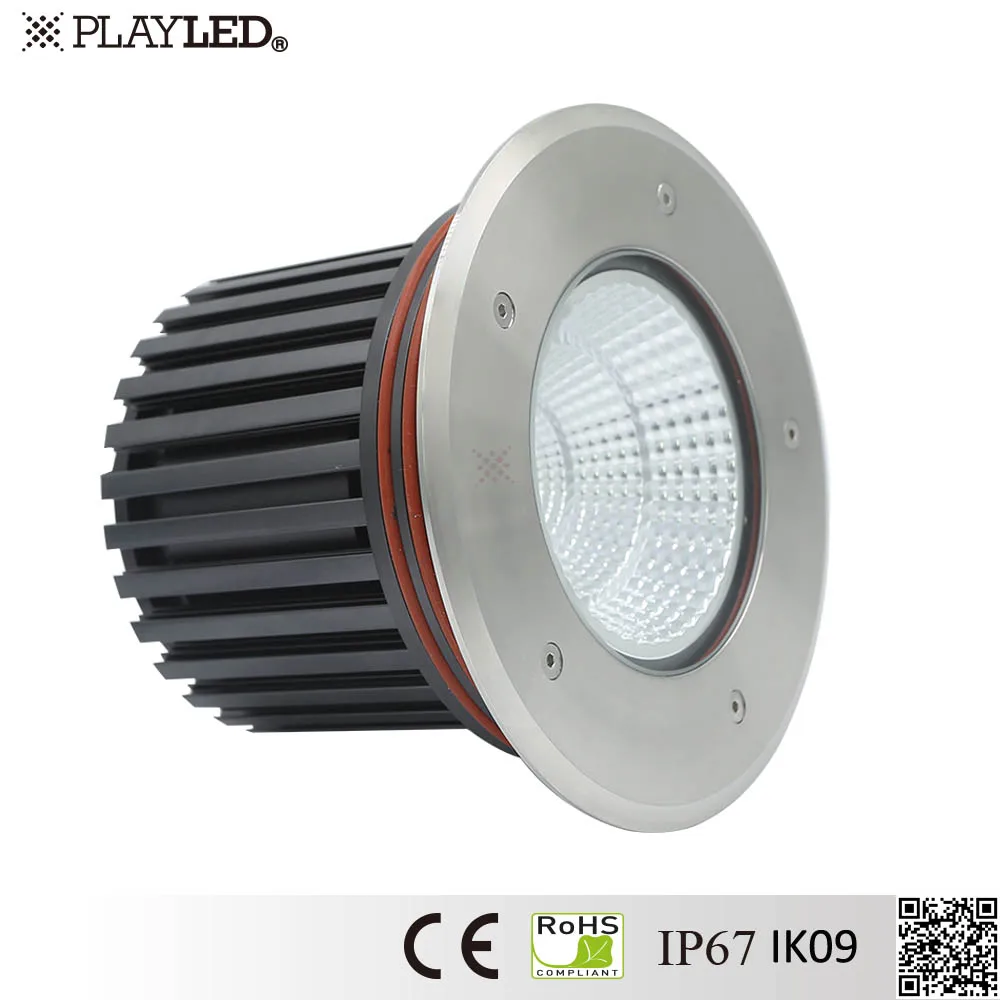

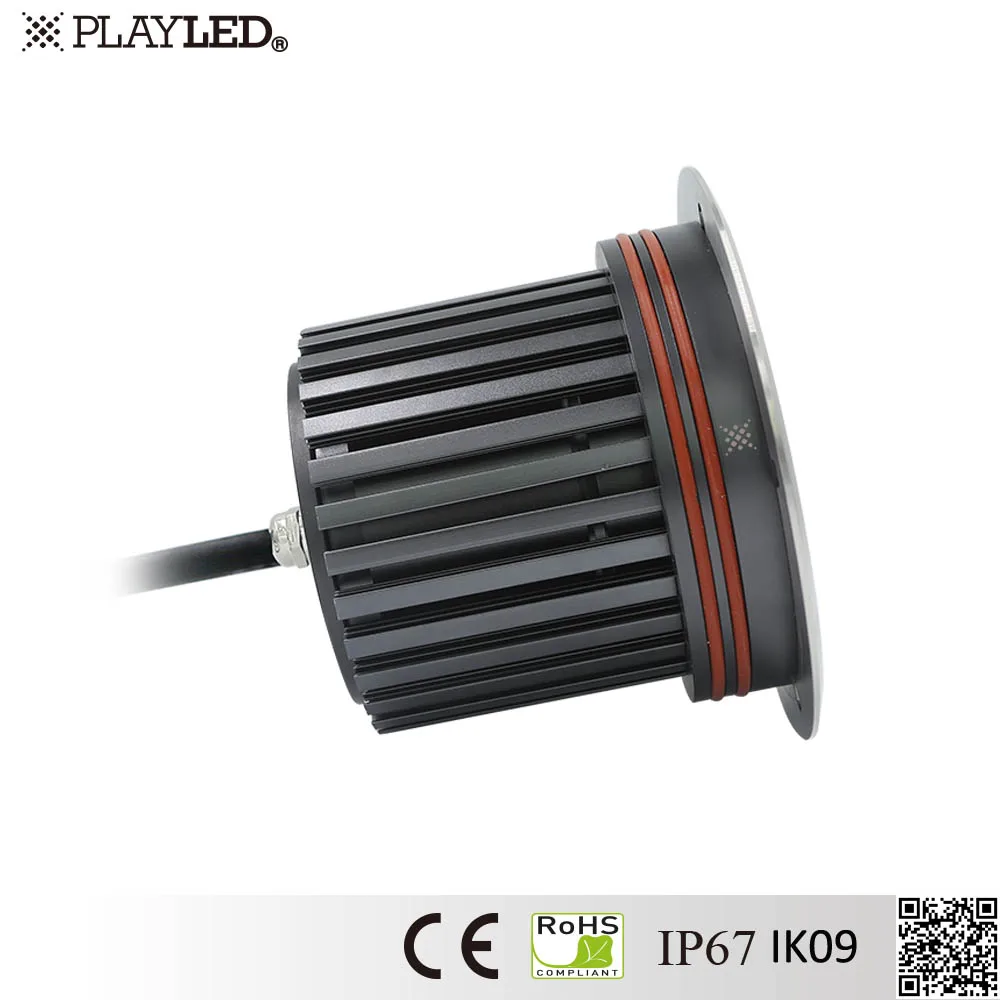

36W High power floor recessed concrete lights under ground light

. Beautiful appearance.
. Excellent design of heat-conducting housing ensure long life time of LED.
· Aluminum housing made by CNC machine.
· 20~25 um thickness of anti-crossion protective Passivated film for housing.
· Waterproof IP67.
. 1PC 36W CREE COB LED.
· 3 years warranty.
· PG7+Silicone seal
· Professional sales and technicians to serve you.

Data Sheet
\t
General Data
\t
Item No.
\t
UL-36W-COB-AH
\t
Power
\t
36 Watts
\t
LED type
\t
1PC CREE COB LED
\t
Luminous flux
\t
2880~3060lm
\t
CCT
\t
2700K,3000K, 4000K, 6000K
\t
CRI
\t
80+
\t
Beam angle
\t
15°,24°,38°,60°
\t
Dimension
\t
170 x 131  mm ( Diameter x Height)
\t
Cut out
\t
110 mm
\t
Net weight
\t
3.5 kgs
\t
Warranty
\t
3 years
\t
Certifications
\t
CE, RoHS
\t
Electrical Data
\t
Input voltage
\t
AC96~265V
\t
Insulation class
\t
Class I
\t
Cable
\t
1PC rubber cable 1M H05RN-F 3x1.0mm square
\t
Driver
\t
Built-in high voltage constant current driver with transformer
\t
Construction Data
\t
IP rating
\t
IP67 Waterproof
\t
IK rating
\t
IK09
\t
Housing
\t
Solid Passivated (Anodizing) Aluminum CNC machined
\t
Protection finishing
\t
20~25μm thickness anodized film for housing .Dark grey standard.
\t
Trim
\t
Stainless still 316
\t
Glass
\t
Step Tempered Glass.T=10mm.
\t
Accessories
\t
Mounting box
\t
Solid Passivated (Anodizing) Aluminum CNC machined
Detailed Pictures
SS316 front cover and waterproof IP67 instead of IP65 deign, High loading capacity IK09,and 3 years warranty.

It's with imported high quality CREE COB LED for long life.

Passivated (Anodizing) Alumnium housing CNC machine that won't be fading even after 2 to 3 years.


It's High quality anti-corrosive housing..

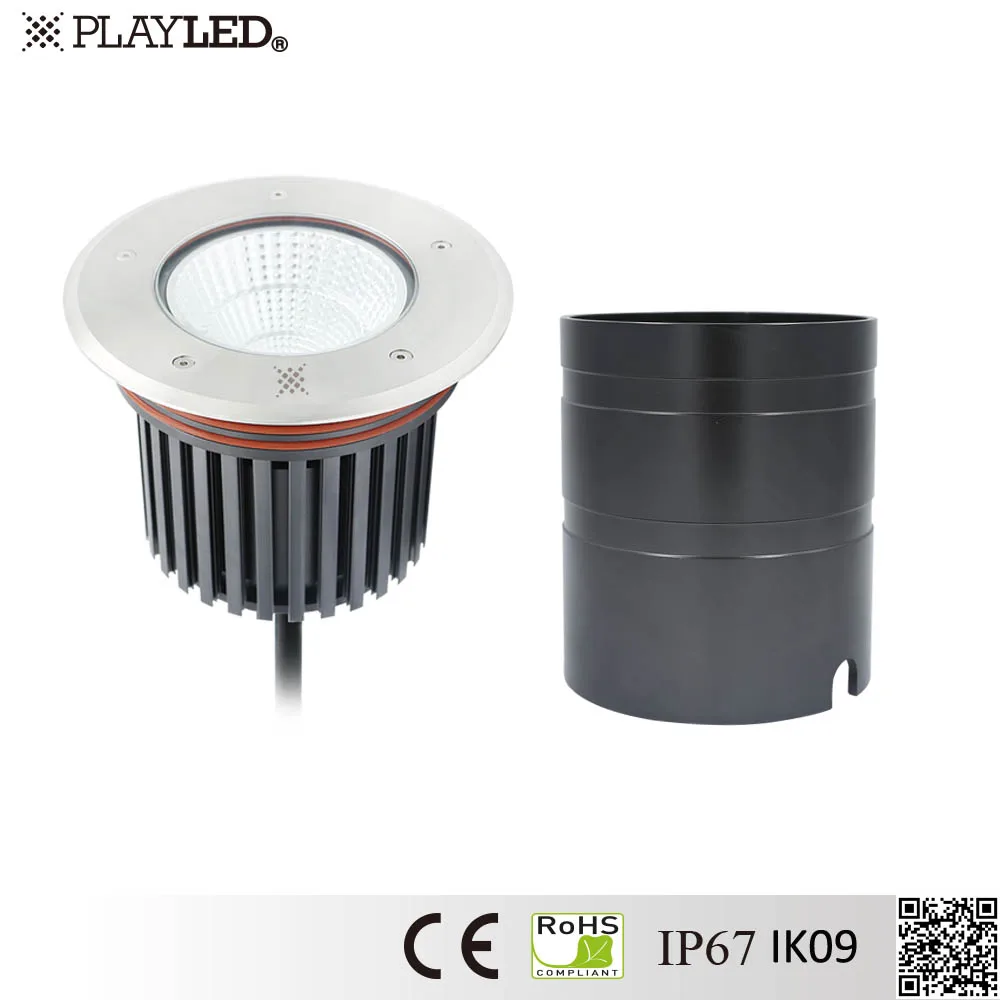

Passivated (Anodizing) Aluminum CNC machined mounting sleeve.




Illumination picture showcase

It's with CCT 3000K,and 38 degrees beam angle.

We have our own IES photometrical machine to make the IES test.

                   Light distribution cureve

                               Lux distance curve


Dimension
Related products
Please click the picture to check this inground light series !

Please click the below picture to check our main products series or send me the Email info4(@)pyledlight.com for the PDF file E-catalogue to check our whole range products . (Pls remove "()")

Application Pictures

Exterior inground lighting application.

Company Introduction

Puyuan Electronic Illumination Co., Ltd. with registed brand PLAYLED is a professional LED lighting manufacturer in China,established in 2007 years.

It is specialized in producing Exterior LED lights, such as LED inground light, LED deck lights, Spike spot lights, step lights, underwater pool lights,LED flood lights,wall washer etc.. We not only pay much attention on quality but also on the details such as design ,finishing optics etc..

We adhere to quality standards of operation and is compliant with ISO9001:2008 for quality management operations system and ISO14001:2004 for environmental system certification.Our products have varying quality certifications such as CE,RoHS,TUV and cUL assure reliability,particularly those which are exported to Europe, North America,South America,Australia,Iceland,Malaysia,Indonesia and Philippines,UAE,Saudi Arabia etc.

We usually attended Guangzhou Fair, HongKong International Lighting Fair ( Autumn Edition),HongKong International Lighting Fair ( Spring Edition),Japan Light Fair,LED Expo Thailand,Light Middle East in DUBAI etc.

Contact Us

1.Are you a trade company or a manufacturer?

We are an ISO approved manufacturer that's specialized in exterior LED lighting Products. OEM & ODM service are available.

2.What is your delivery date?

 The delivery date is around 7-15 days for samples,and 15~25 days  for regular orders after receipt of payment.

3.What is your payment terms?

For samples: 100% deposit.

For regular order:30% deposit in advance and 70% balance before shipment.

The payment method can be Paypal,western union bank, bank for TT .

4.What's your delivery terms ?

We can provide EX-WORKS ,CIF or FOB JIANGMEN,FOB HESHAN,FOB SHENZHEN delivery terms.

5.What's your warranty ?

We are confident on our quality of design,and the warranty is 3 years.

6.Can I buy the quantity below MOQ ?

Yes,please contact us for the detailed prices based on your detailed quantity requirement.

Please Click picture to return our home page to view more of our LED lighting fixtures series.
