NDT X-RAY дуплексный проволочный тип изображения индикаторы качества пенетраметр для
- Категория: Instrument Parts & Accessories >>>
- Поставщик: Huatec,Group,Corporation
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.66 $* | 0.48 $* |
| Aug-19-2025 | 0.54 $* | 0.10 $* |
| Jul-19-2025 | 0.89 $* | 0.29 $* |
| Jun-19-2025 | 0.86 $* | 0.32 $* |
| May-19-2025 | 0.49 $* | 0.61 $* |
| Apr-19-2025 | 0.28 $* | 0.85 $* |
| Mar-19-2025 | 0.51 $* | 0.24 $* |
| Feb-19-2025 | 0.44 $* | 0.21 $* |
| Jan-19-2025 | 0.32 $* | 0.20 $* |
Характеристики

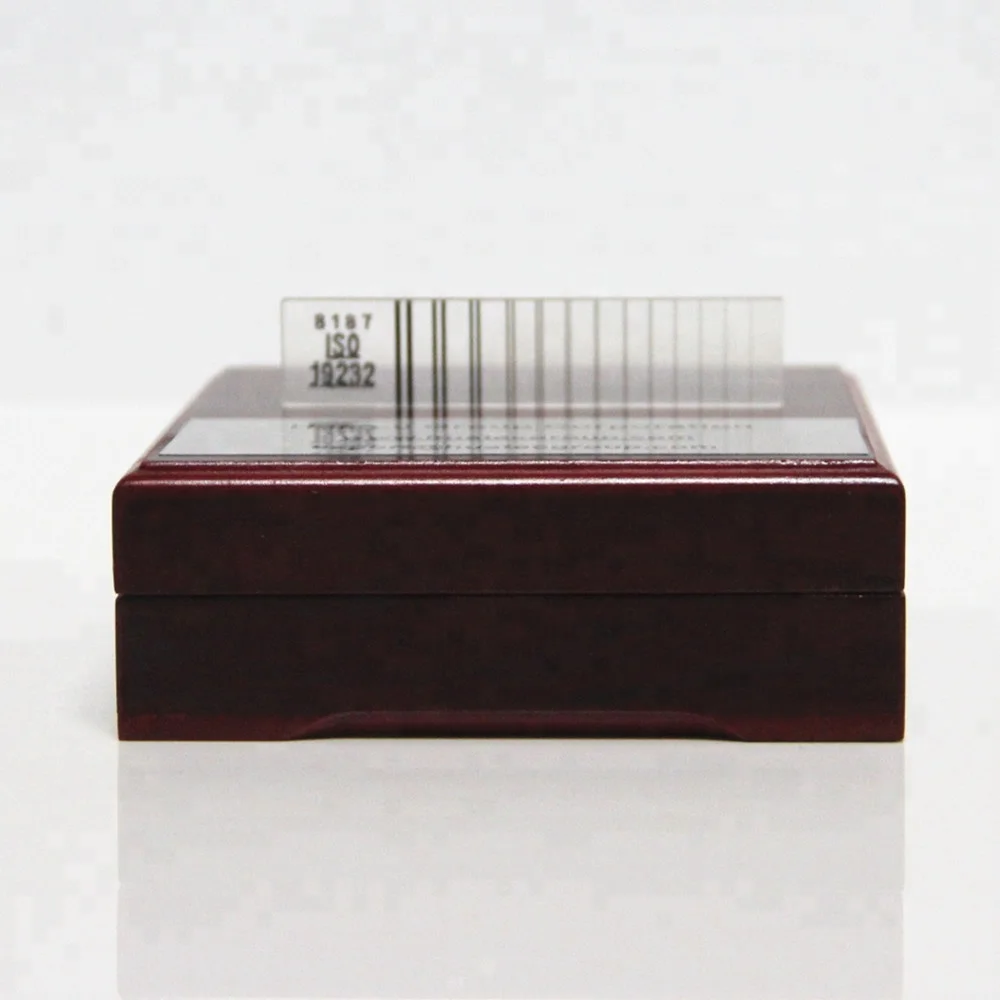

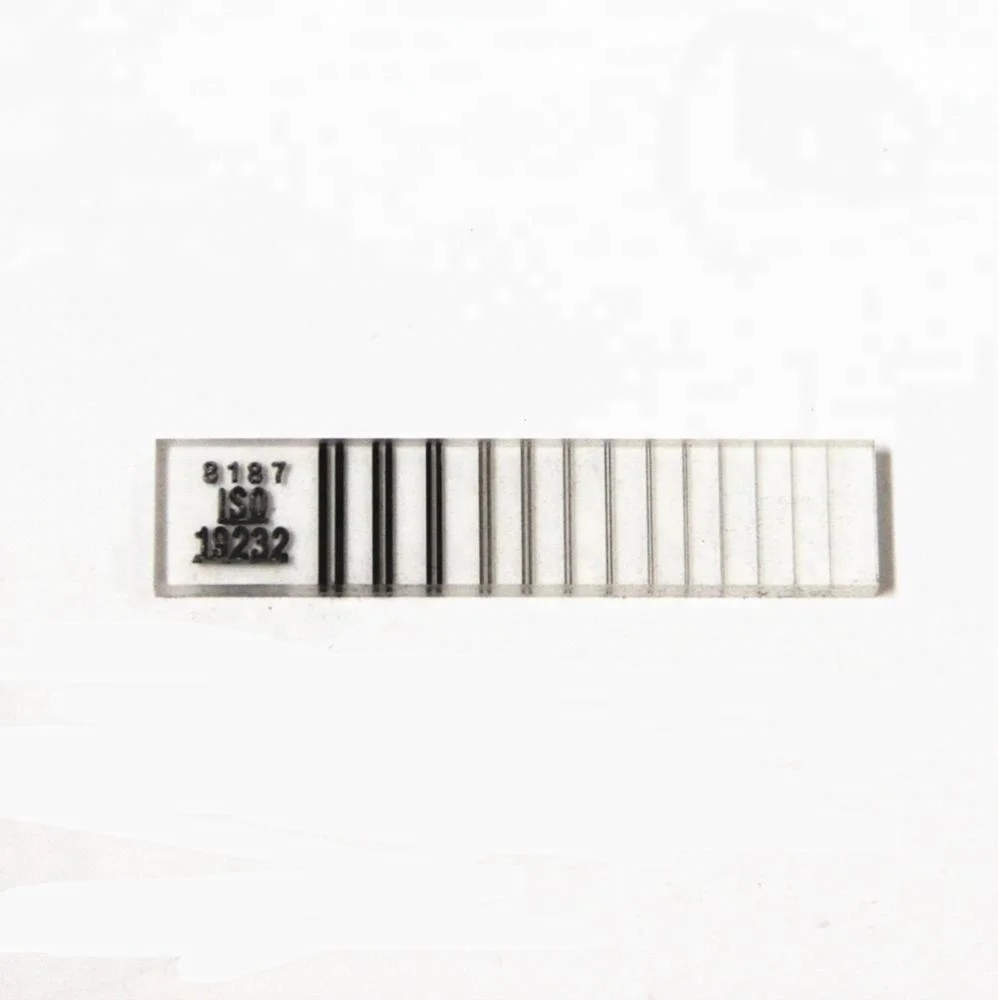

X-RAY Penetrameter, IQI
DUPLEX WIRE TYPE IMAGE QUALITY INDICATORS WIRE PENETRAMETER
Standards: EN462-5 and ASTM E2002 optional
Specifications:
Wire | Nominal Wire Dia. | Wire Dia. left | Distance | Wire Dia. right |
1D | 0.800 ± 0.020 | 0.800 | 0.798 | 0.804 |
2D | 0.630 ± 0.020 | 0.632 | 0.635 | 0.633 |
3D | 0.500 ± 0.020 | 0.502 | 0.506 | 0.504 |
4D | 0.400 ± 0.010 | 0.401 | 0.403 | 0.401 |
5D | 0.320 ± 0.010 | 0.323 | 0.321 | 0.320 |
6D | 0.250 ± 0.010 | 0.252 | 0.255 | 0.253 |
7D | 0.200 ± 0.010 | 0.200 | 0.199 | 0.202 |
8D | 0.160 ± 0.010 | 0.163 | 0.161 | 0.164 |
9D | 0.130 ± 0.005 | 0.130 | 0.134 | 0.128 |
10D | 0.100 ± 0.005 | 0.097 | 0.102 | 0.099 |
11D | 0.080 ± 0.005 | 0.080 | 0.082 | 0.079 |
12D | 0.063 ± 0.005 | 0.064 | 0.062 | 0.065 |
13D | 0.050 ± 0.005 | 0.049 | 0.052 | 0.051 |

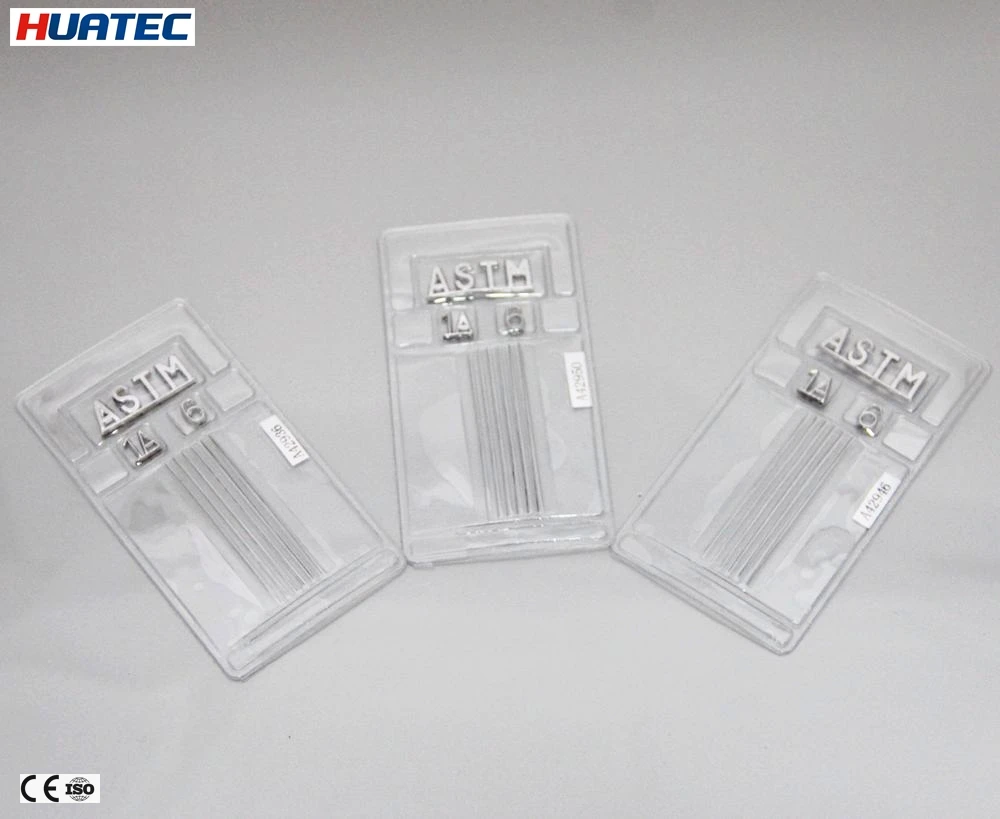

Other types IQI
Product Description
EN 462-1 Wire Type were introduced as a EUROPEAN STANDARD to supersede the German Standards
(DIN 54.109) and the British Standards Institute (BS3971:1980 type 1) Image Quality Indicators. Each
indicator consists of a series of seven parallel wires of different thichkness mounted and encapsulated
between two thin sheets of transparent, flexible PVC. A lead monogram indicates the number of the thickest
wire, the material and the EN symbol.
Indicator Sizes:
There are four sizes of EN Image Quality Indicators.
Size 1 – contains wire numbers 1 to 7 and used for material thicknesses in
the range of 40 t 160mm
Size 6 – contains wire numbers 6 to 12 and used for material thicknesses in
the range of 12.5 to 50mm
Size 10 – contains wire numbers 10 to 16 and used for material thicknesses
in the range of 5 to 20mm
Size 13 – contains wire numbers 13 to 19 and used for material thicknesses
in the range 2.5 to 10mm
All sizes are available in Steel(Fe), Aluminium(Al), and Stainless Steel(SS). Copper(Cu), Zirconium(ZR) Image
Quality Indicators are only available in sizes 6 and 10. Nickel(Ni) Image Quality Indicators are only available in
sizes 6, 10 and 13.
As an illustration the identification (i.e. lead monogram) for, say Size 10 (Wire numbers 10 to 16) in steel(Fe)
would be 10 FE EN.
Packaging & Shipping
- Packaging Details

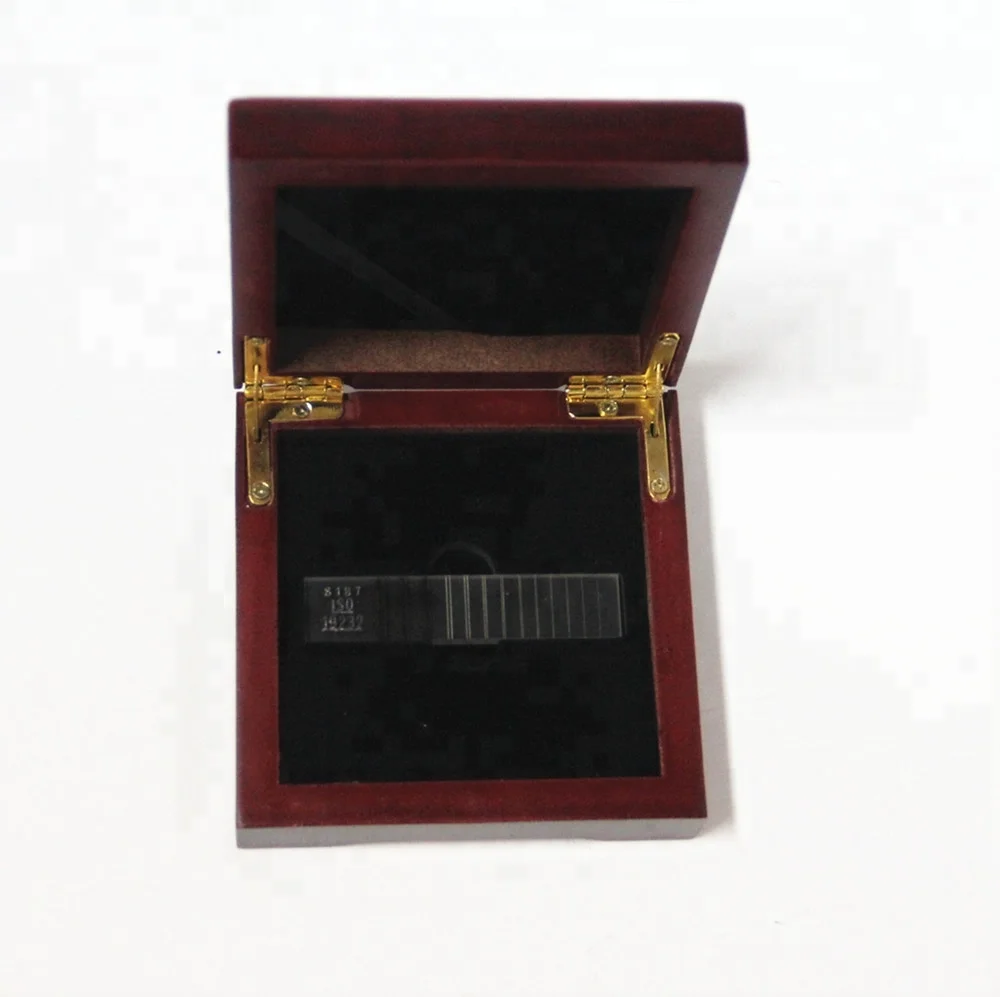

- High quality level industry travel use suit case
- Delivery Time
- 3~6 working days after confirm payment
Our Services
HUATEC Group employees include a highly trained staff of engineers for sales and service, that are committed to offer satisfactory products and prompt service to all home and abroad customers.
HUATEC Group, based on most advanced technology in China, is an China famous industry group, focus on development & research and precision production of various testing equipment. The group has two own factories and two sister factories located in area of Beijing, Liaoning, Shandong and Guangzhou. All the products are produced following ISO9001 regulations and the products have been exported to most of world markets in passed years.
Our promise: Reliable quality, competitive price, fast delivery, satisfactory service.
Company Information
HUATEC Group is a reliable manufacturer and supplier of testing instruments in Beijing China. HUATEC Group combines all the R/D and production advantage of all its own subsidiaries, takes advantage of its years marketing and sales experience in global market, contributes to offering most qualified competitive products and service to international markets.
HUATEC Group products are composed of all kinds of metal and non-metal testing equipments, such as portable hardness tester, micro hardness tester, shore durometer, vickers hardness tester, Rockwell hardness tester, Brinell hardness tester, portable X-ray flaw detector, mobile X-ray flaw detector, Real-time X-ray image flaw system, holiday detector, digital portable eddy current electrical conductivity meter, digital ultrasonic flaw detector, coating/painting thickness gauge, ultrasonic thickness gauge, vibration tester, surface roughness tester, profile projector, etc, and all of their accessories such as ultrasonic transducer, test block, IQI, lead screen, densimeter, film viewer etc.
FAQ
Q:What’s your after-sales service and warranty?
A: We promise to bear the following responsibility when defective product is found:
1.12 months warranty from the first day of receiving goods;
2. Replacements would be sent with goods of your next order;
3. Refund for defective products if customers require.
Q:Do you accept OEM orders?
A: Yes, we provide OEM services to worldwide customers.
Q:What’s the MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.
Q:How long is the lead time?
A: The lead time for single order is 1-3 days, for bulk orders is 3-10 days.
Q:How to place orders?
A: 1. Email us the model and quantity, consignee information, shipping way and payment terms;
2. Proforma Invoice made and sent to you;
3. Complete Payment after confirming the PI;
4. Confirm Payment and arrange production.
