Водонепроницаемый велосипедный gps-трекер KINGNEED T19 скрытая задняя фара с кнопкой sos и защитой от кражи длительным сроком

Описание и отзывы

Трекер стоимости

Характеристики

KINGNEED T19 anti lost theft sos button hidden taillight long battery life rechargeable waterproof bike gps tracker for bicycle

Product Highlights:

- High Camouflage Effect, looks and works as a regular taillight.

- Bright RED LED,visible from the rear and sides.

- 2600mAh rechargeable Lithium-ion battery, just need charge once a month

- IPX7 Waterproof

- Easy installation





Product Description:



-  Build-in GPS/GPRS and Antenna

- Web based tracking and replay

- Instant call alert for anti-theft feature

- on AUTOMATICALLY with motion

- BRIGHT LED, visible from any angle

- 2600mAh rechargeable Lithium-polymer battery

- IPX7 Water-Proof Design

- Built-in watchdog CPU to avoid system crash

- GSM 850/900/1800/1900 quad band,can be used on every country.

-  Built-in motion sensor to save power.

Product Specification:

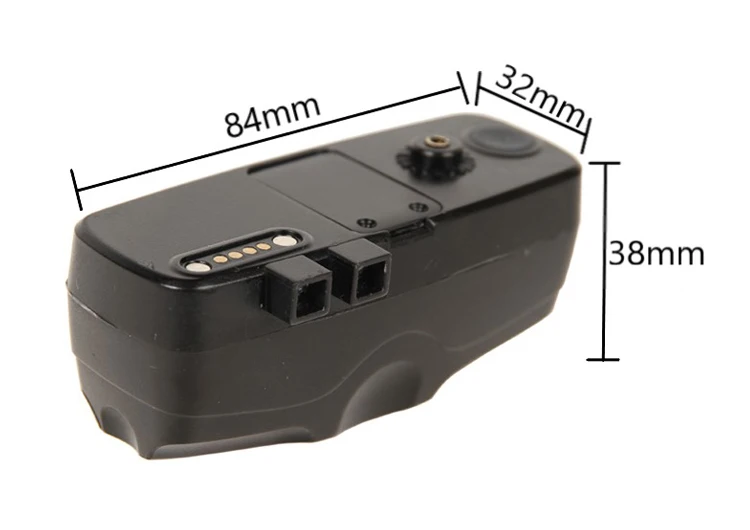

- Size: 84*32*38 (mm)
- GPRS:MTK 6260D
- Quad band; 850/900/1800/1900 MHz
- Antenna: Internal, GPRS Class 12
- Power:Rechargeable, 10000 mAh, Lithium-Polymer Battery
- Built-in Vibration/motion sensing
- GPS: G7020-ST, 50 channel
- Position Accuracy: <5m
- Sensitivity: Tracking: (R)C161 dB, Cold
starts: (R)C148 dB, Hot starts: (R)C156 dB
- Cold start:<27s, Warm Start: <5s, Hot
Start: 1s
- A-GPS: AssistNow Online and AssistNow
Offline services
- Web based Real-time tracking and replay or
locate via SMS
- Built-in watchdog CPU to avoid system crash
- Built-in motion sensor to save power





Battery performance & function list:

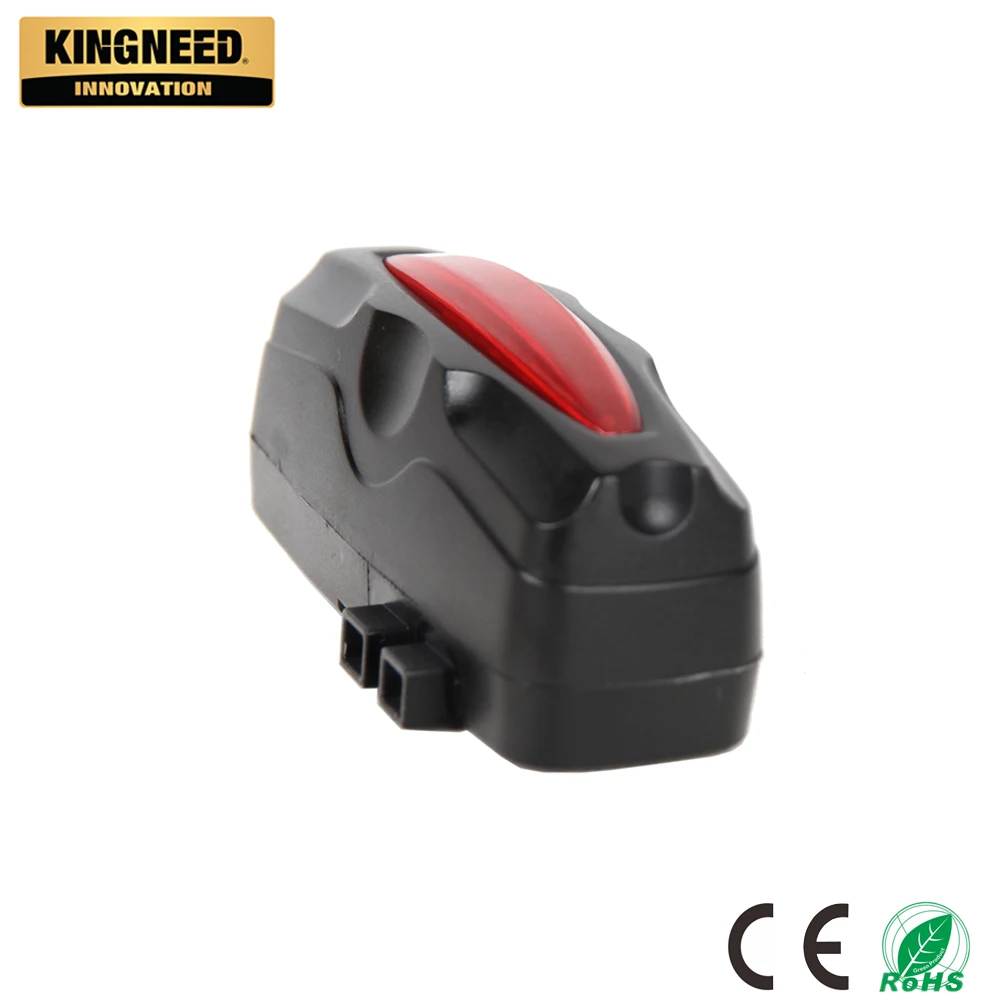

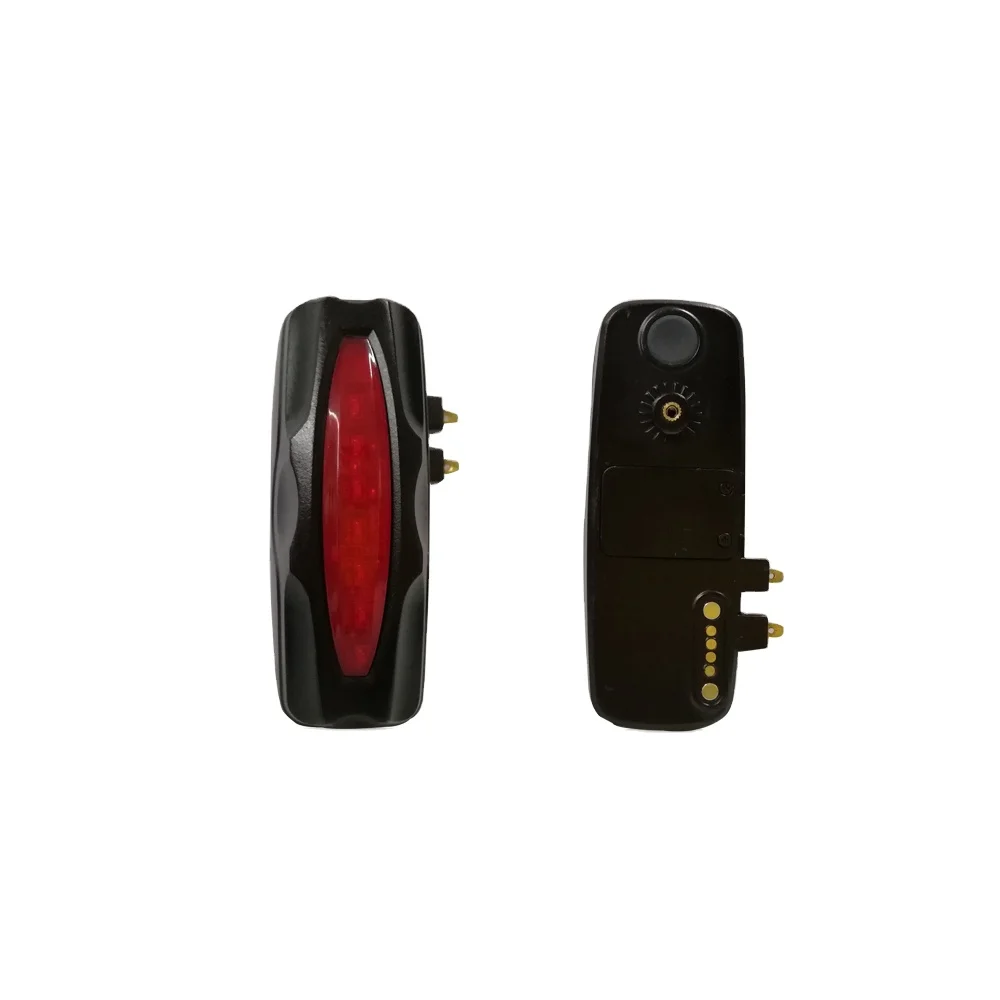

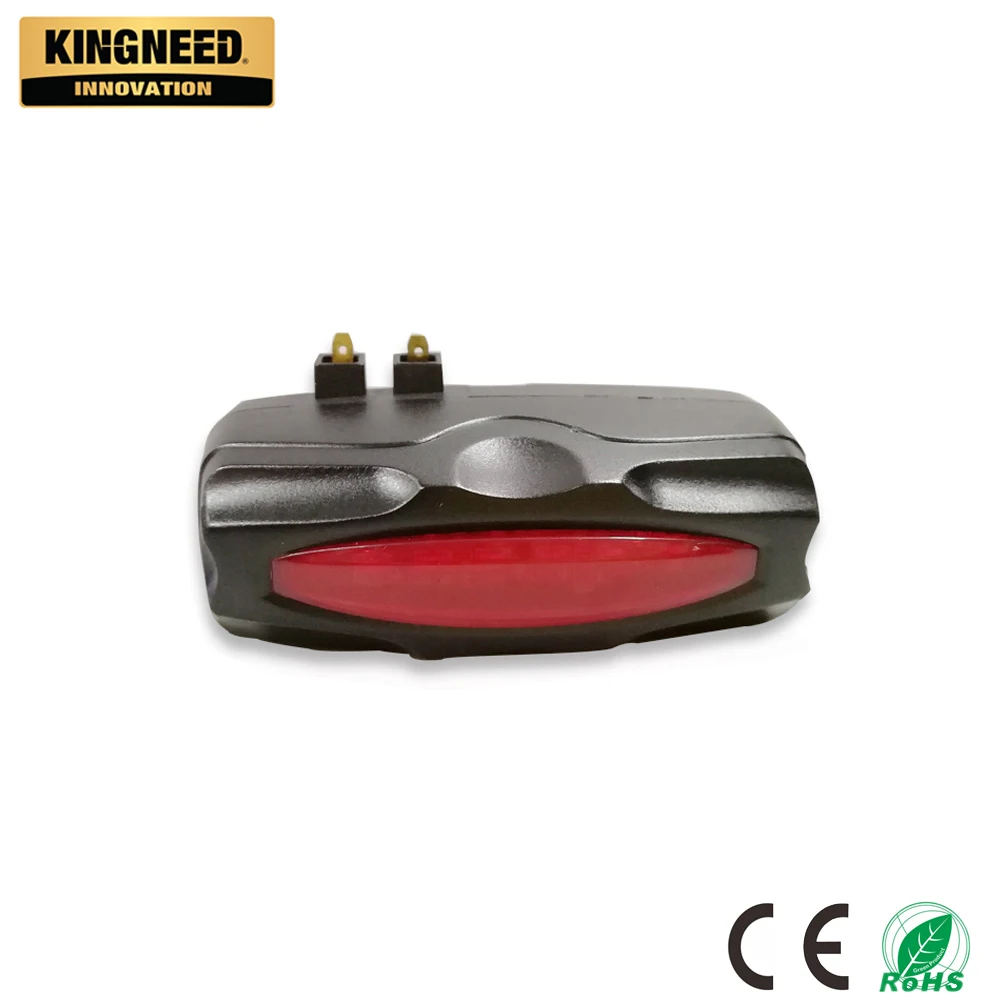

Product Images:

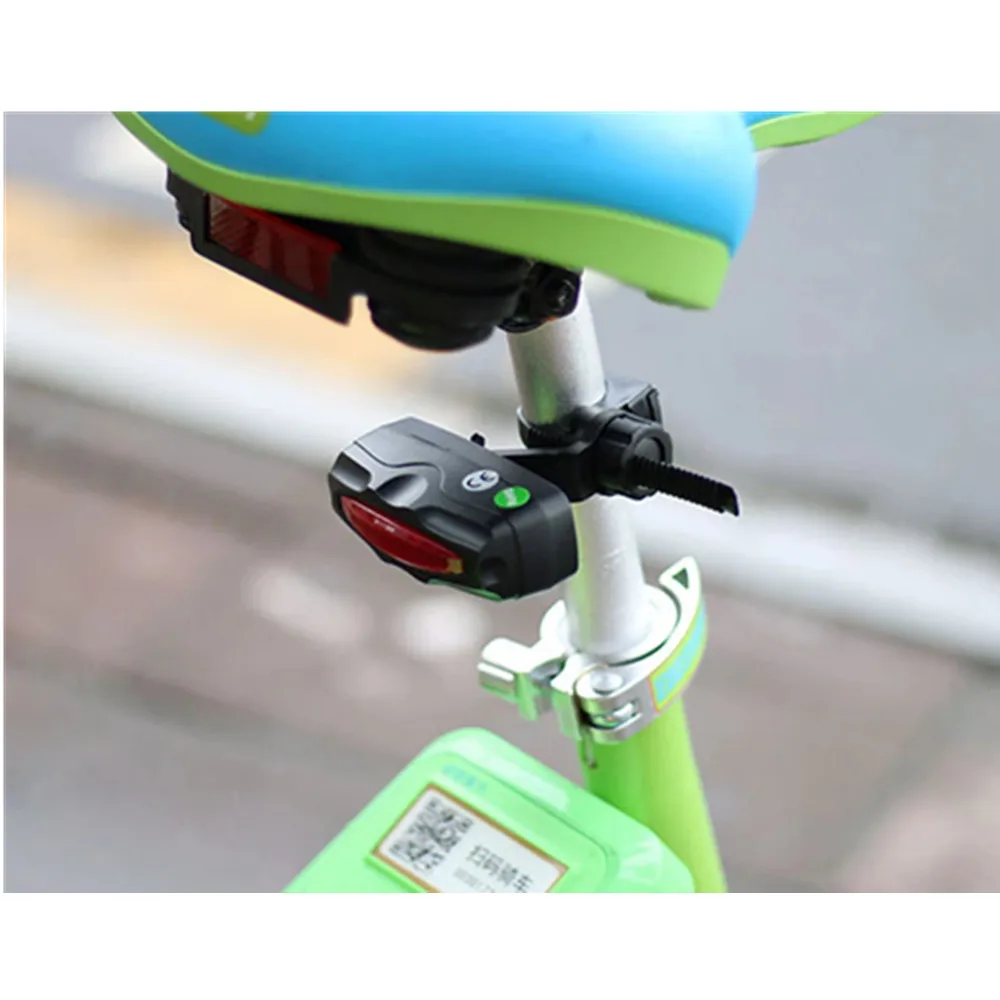

Installation Guide:



 FREE Web& IOS & Andriod APP tracking system:



 Compatible with third party platform:







Package Accessories:

*GPS tracking unit*1

*USB cable*1

*English user manual *1

*Black gift box*1



Package Photo:

Fast guide to test the tracker

Step 1. Get an active SIM card with both GSM, SMS and GPRS data service.
Make sure the SIM card can send SMS and have GPRS function;

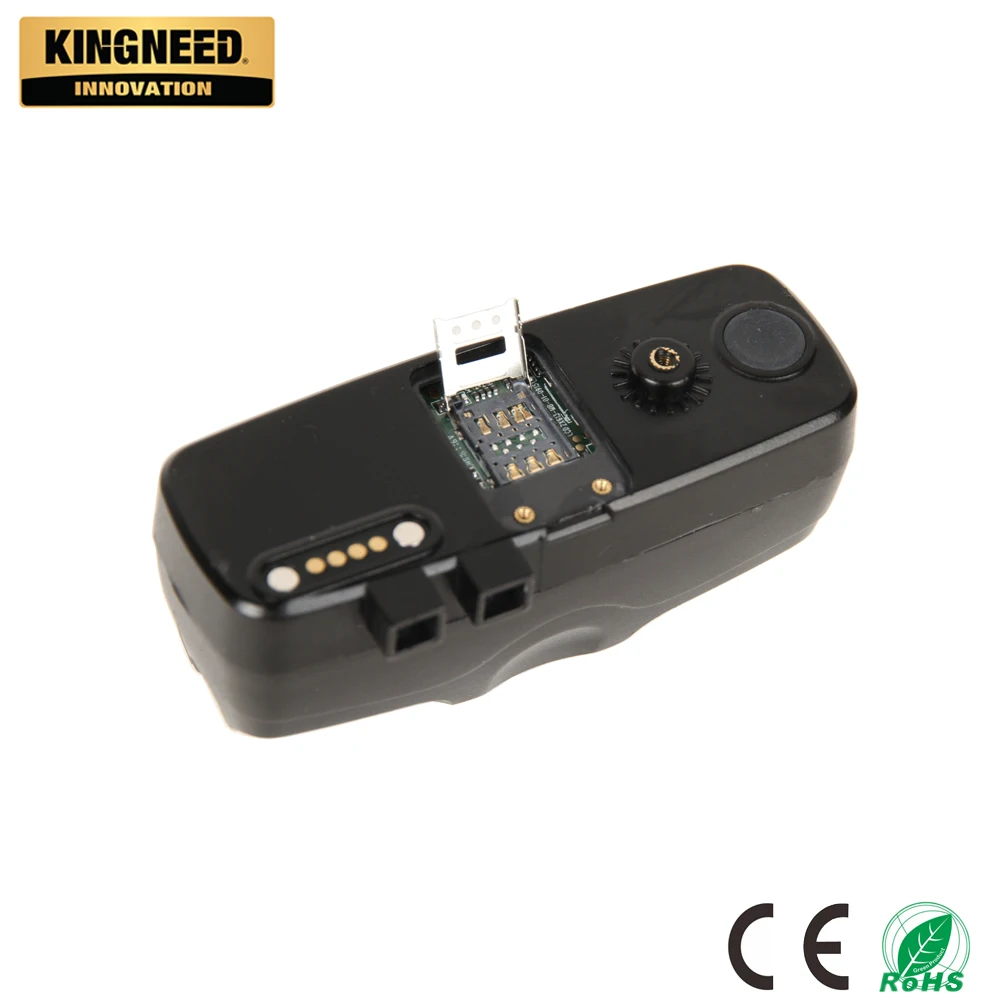

Step 2. Insert the SIM card, and make sure install the cover properly.
Because only when you install the cover, then the screw will be fit strongly and the device will have power supply.

Step 3. Check Installation.
Call the tracker SIM card, and see whether it's with signal. If it can ring, but won't pick up the phone, it means the SIM card is with signal, and you can go next.

Step 4. Set the APN.
It's very important for this step.  E.g. your APN is internet, and no login user and password, then you just need send *APN*internet* (don't allow cap letter here!), it will reply to you whenever the APN is wrong or correct. However, only when you set the right APN, it can be combined with our web platform. Therefore, if you didn't get any reply, then please kindly check whether your SIM card is with active GPRS or GSM SMS service, or whether your SIM card is fit well.

Step 5. Set the master number.
It's very important also. The right command is *master*123456*+45XXXXXXXX*,eg, if you use your own mobile phone is 004511111111,then the master command will be: *master*123456*+4511111111*

Step 6. Login into web tracking platform or APP(both IOS and Android are supported)
After set the right apn and master number, then you can go to our web platform: www.miitown.com, input the master number and default password 123456 to login in.

You could download IOS and Android APP by the QR code in the home page of our tracking website www.miitown.com, the login user name is your master number and default password is 123456

Please pay attention, default password is 123456, user name start with country code 00.Eg,00451111111, not +4511111111 . after this step, then you could see your gps device location now.

AT the same time, you can send *locateaddress* and your phone will receive the detailed address include street name.
