Светодиодный источник питания rohs 24 Вт 12 в В с сертификатом CE

Описание и отзывы

Трекер стоимости

Характеристики

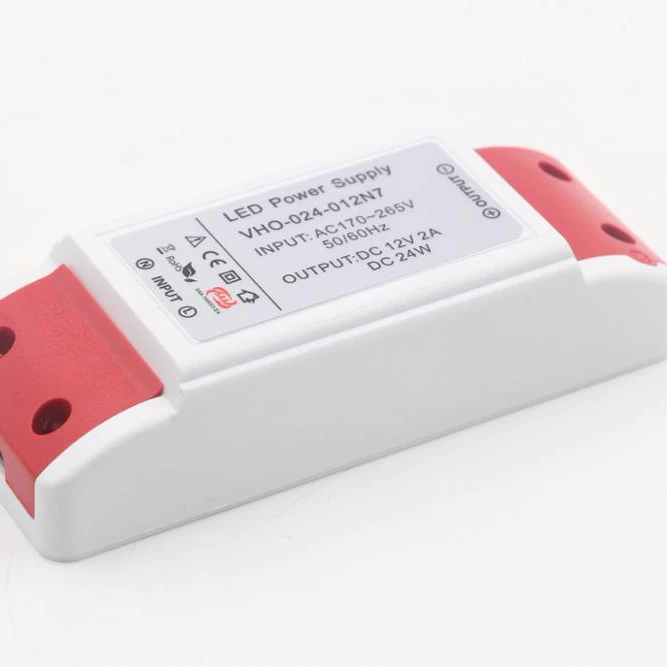

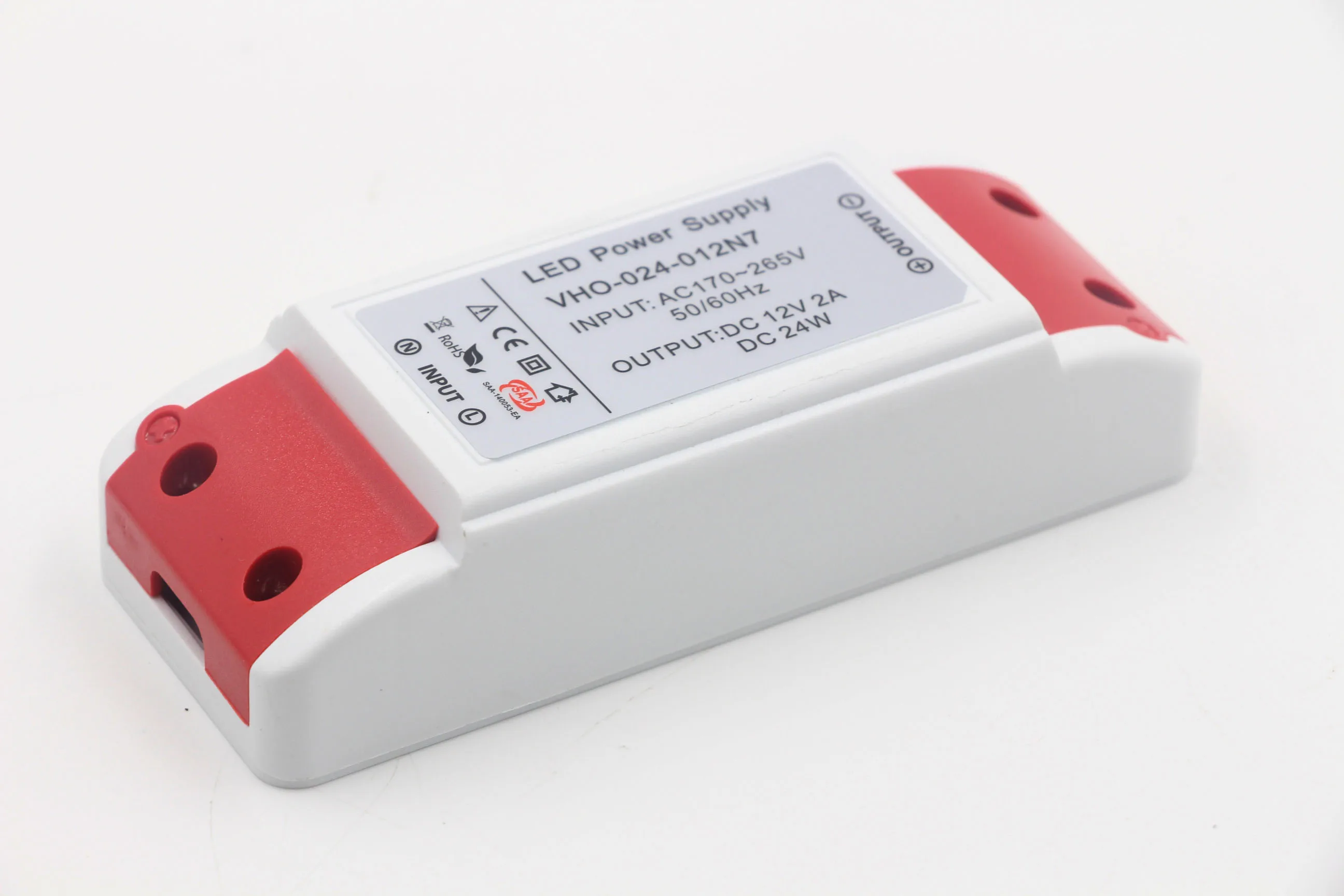

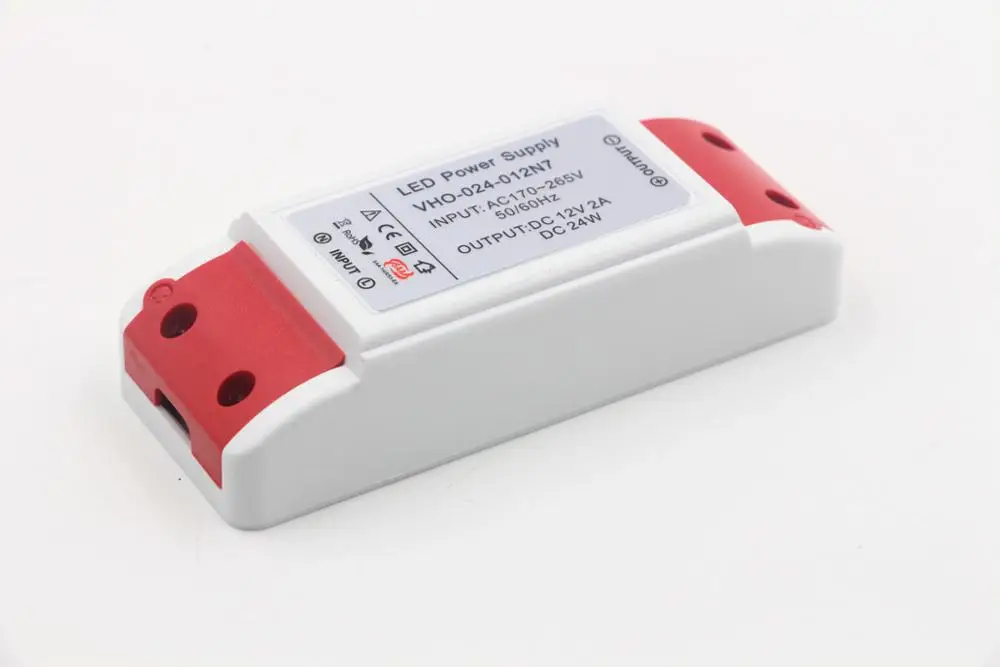

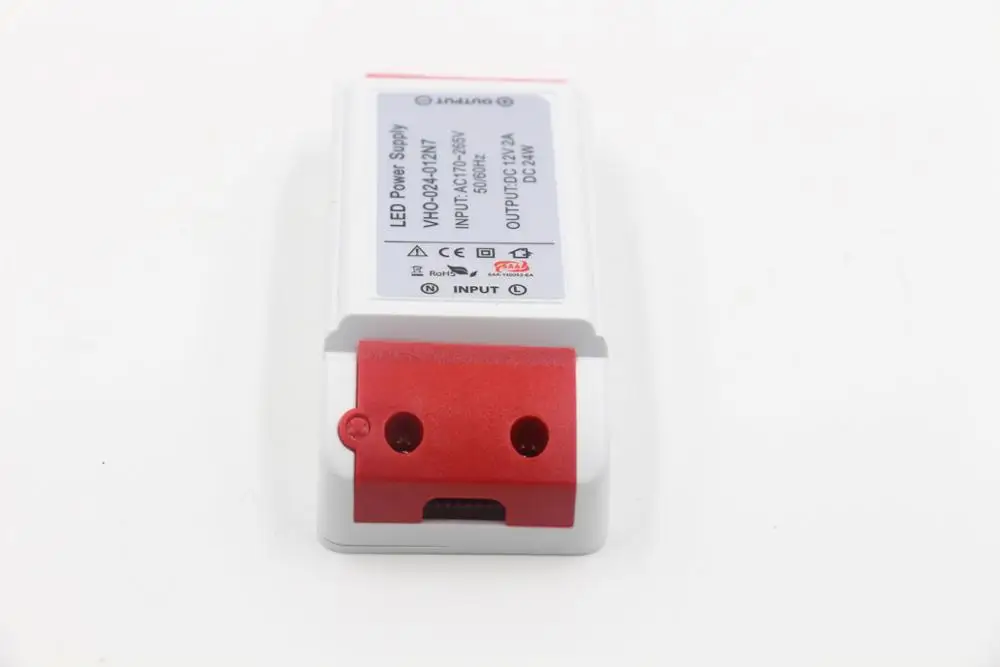

Constant Voltage power supply 2A 24W 12V Led Driver

Model		VUO-024-012N7
Output	DC voltage	led driver 12V
	Rated current	2A
	Current range	0-2A
	rated power	24W
	Ripple & Noise (peak to peak)	<300mV
	No-load voltage	±0.5V
Input	voltage range	100~265VAC
	Current	47~63Hz
	Power factor	0.5-0.7
	effectiveness(Typ.)	0.85
	Alternating current(Typ.)	0.33A/220VAC
Protection	Short circuit	Protection mode: hiccup mode, abnormal conditions can be automatically restored after removal
	overload	100-108%
environment	Operating temperature	-10~+40℃ (Please refer to the load reduction curve)
	Storage temperature	-40~+80℃
Safety&EMC	Safety standards	Suitable for EN61347-1;EN61347-2-13;SELV;IP67
	Pressure	Input - Output: 3.75KVAC Input - Enclosure, Ground: 2KVAC Output - Enclosure, Ground: 0.5KVAC
Tips	1.If without specia explanation, all specifications are measured at an input of 220VAC, rated load, ambient temperature of 25 ° C .                                                                                         2.Ripple & Noise Measurement Method: Use a 12 '' twisted pair, and the terminals are connected in parallel with 0.1uF and 47uF capacitors and tested at 20MHz bandwidth.

Products descriptions



Applications

· LED Strip/Module

· LED Signage/Channel Letter/Wallwasher

· LED Architectural Lighting

· LED Commercial Industrial Lighting

· LED General luminaire



Why choose us?

*All products complete CE, RoHS approval, some products have got TUV, GS, CB certificates.



*Made by our own factory, for control the quality also for the power supply is stable and reliable.



* Focus on the LED Power Supply research and development, production more than 10 years.



*All products are widely used in Domestic government projects not only, but also Office space, Shopping malls, Star hotel, home lights etc. In all over the world.



*OEM, ODM are all welcome, unchanged quality and competitive price.
