HF330 гусеничная роторная буровая установка/30 м
- Категория: Сваебойная установка >>>
- Поставщик: Zhengzhou,Hanfa,Imp,&,Exp,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 130900.7 $* | 137445.7 $* |
| Aug-18-2025 | 129800.22 $* | 136290.23 $* |
| Jul-18-2025 | 108900.91 $* | 114345.57 $* |
| Jun-18-2025 | 127600.91 $* | 133980.51 $* |
| May-18-2025 | 111100.10 $* | 116655.78 $* |
| Apr-18-2025 | 125400.93 $* | 131670.14 $* |
| Mar-18-2025 | 124300.50 $* | 130515.65 $* |
| Feb-18-2025 | 123200.29 $* | 129360.11 $* |
| Jan-18-2025 | 122100.85 $* | 128205.9 $* |
Характеристики
Products Description
HF330 piling driver for road construction
●mini piling rig
●used rotary piling rig for sale
●piling rig
It has high drilling efficiency, and after construction, it can quickly move to next working site . flexible, convenient and
efficient, is a national high-speed rail construction-specific piling machinery equipment.
This machine is applicable to soil, clay, fill soil, silt, silt layer, and some strata contain pebbles, gravel; widely used in
high-speed rail trestle piles, slop shield piles, photovoltaic power station foundation pile, power grids, civil construction, new rural construction, municipal construction, landscaping and other projects.
●piling rig

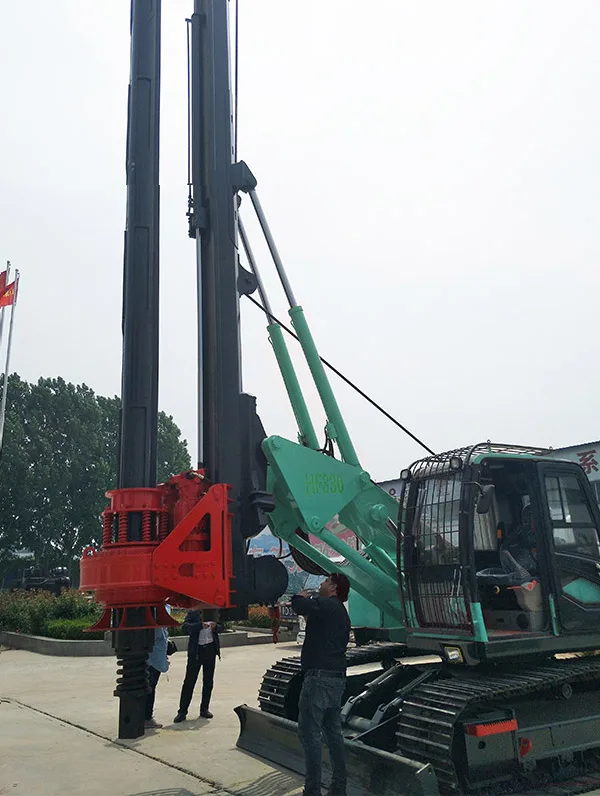

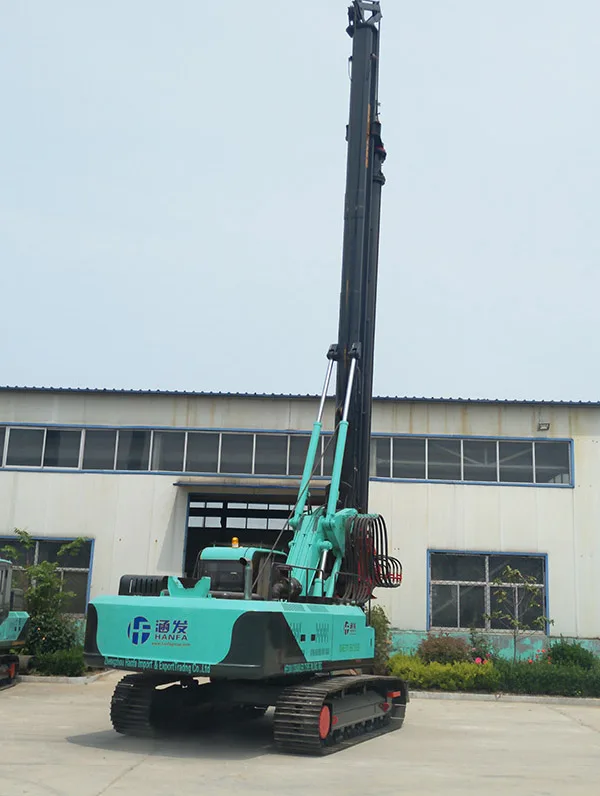

HF330 crawler type rotary drilling rig adopt pressurized drilling mode, enabling rotary drilling depth is 30m. matching the different specifications of drilling tools, pile hole diameter range up to 500-1600mm.
It has high drilling efficiency, and after construction, it can quickly move to next working site . flexible, convenient and
efficient, is a national high-speed rail construction-specific piling machinery equipment.
This machine is applicable to soil, clay, fill soil, silt, silt layer, and some strata contain pebbles, gravel; widely used in
high-speed rail trestle piles, slop shield piles, photovoltaic power station foundation pile, power grids, civil construction, new rural construction, municipal construction, landscaping and other projects.
Feature
●Flexible: the whole tonnage is small, simple operating, moving fast, convenient transition, etc features.
● High returns: small investment, quick gains, economic advantages can not be replaced.
● Technology patents: patent uses a unique technology to achieve a small torque but big power characteristics, thus achieve a small
machine to drill big piling hole .
● High returns: small investment, quick gains, economic advantages can not be replaced.
● Technology patents: patent uses a unique technology to achieve a small torque but big power characteristics, thus achieve a small
machine to drill big piling hole .
Detailed Images
Drilling depth | 30m | ||
Hole diameter | 500-1600 mm | ||
Brand | Cummins | ||
Power | 210HP (154KW) | ||
Torque | 130 KN ·m | ||
Rotating speed | 10-50 r/min | ||
Maximum lifting force | 150 KN | ||
Lifting speed | 70 m/ min | ||
Wire rope diameter | 24 mm | ||
Maximum lifting force | 30 KN | ||
Lifting speed | 55 m/ min | ||
Wire rope diameter | 14 mm | ||
Maximum pressure | 120 KN | ||
Max lifting speed | 120 KN | ||
stroke | 2500 mm | ||
Walk speed | 5 km/h | ||
Maximum grade | 30 ° | ||
System pressure | 32 Mpa | ||
Weight | 28 / 30 T | ||
Working Radius | 4.3 m | ||
Dimensions (L * W * H) | 11.5 m*3 (2.8-3.6)m*3.55m | ||

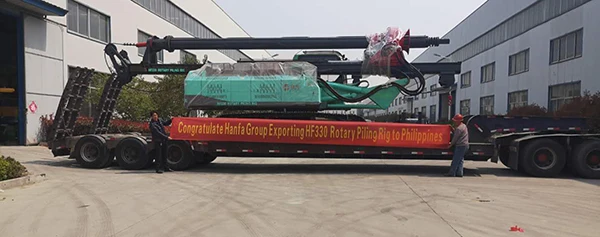

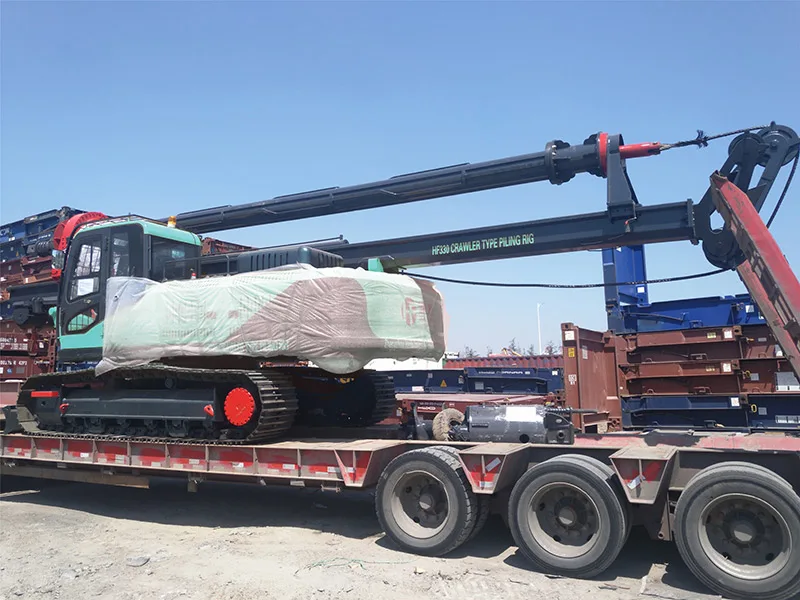

Packing&Shipping
Construction Site
Related Products
Company Introduction
Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research,manufacture and market. Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig, core drilling rig, engineering drilling rig, DTH drilling rig,
horizontaldirectional drilling rig, etc. These machines are mainly used in geological prospecting, exploration of railway andhighway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.
1. More than 20 years of experience
The factory is located in Henan Province, China. We are very welcome to visit our factory. If
you need it, we will arrange a pick-up.
2.Top production team
The transportation and packaging will be packaged in international standards. If you have special packaging requirements, we will give you the most suitable solution.
3.Our Service
- New machine provides technical trair.
- Once anything goes wrong with the machine by normal using, our technical person must appear at the first time no matter where you are.
- When the machine should be maintained, you will receive the reminding from us.
- According to different geological conditions, we will recommend different construction plans for you
- Remind you which are wearing parts, so you can prepare enough.
- 24 hours respond to your quality problem.
you need it, we will arrange a pick-up.
2.Top production team
The transportation and packaging will be packaged in international standards. If you have special packaging requirements, we will give you the most suitable solution.
3.Our Service
- New machine provides technical trair.
- Once anything goes wrong with the machine by normal using, our technical person must appear at the first time no matter where you are.
- When the machine should be maintained, you will receive the reminding from us.
- According to different geological conditions, we will recommend different construction plans for you
- Remind you which are wearing parts, so you can prepare enough.
- 24 hours respond to your quality problem.
Workshop
Our Customers
Service
Service Concept:
About the machine：
1.Product quality: All machines have passed strict quality inspections to ensure that they will be shipped only after they are
qualified.
1.Product quality: All machines have passed strict quality inspections to ensure that they will be shipped only after they are
qualified.
2. Product accessories: In order to ensure the reliability and advancement of the products, we use internationally renowned brand accessories.
3. Product price: Under the same competitive conditions, our company will sincerely provide customer with the most favorable price on the basis of not reducing product quality.
After-sales Service:
1.Respond to any questions you have within 24 hours.
2.You will receive a reminder when the machine needs maintenance
3.According to different geological conditions, we will recommend different construction plans for you.
4.Remind you of wearing parts so that you can make adequate preparations.
5.Product operation manual and operation video are attached to the machine upon delivery.
Technical Support:
Experienced engineers and after-sales team will be ready to solve any problems you may have.
1. Provide technical training for new
machine.
machine.
2. If there is any problem in the normal use of the machine, no matter where you are, our technicians will show up at the
first time.
first time.
3. According to the requirements of customer, to provide users with on-site installation, commissioning and other guidance technical services.
Accessories Supply:
In the long run, using the original spare parts of Culvert always brings the best value experience to the users. All the
accessories in our machines are designed in strict dimensions to extend the service life of spare parts and obtain the best
performance and reliability.Make the most of your investment!
accessories in our machines are designed in strict dimensions to extend the service life of spare parts and obtain the best
performance and reliability.Make the most of your investment!
Recruiting Overseas Agents:
Hanfa Group has multiple industrial bases in Jiaozuo, Quzhou, Hebei, Shandong, etc., with more than 100 sales outlets around the
world, the products are exported to all over the world.
world, the products are exported to all over the world.
Service has become the starting point and destination of Hanfa Group's business activities. In the eyes of Hanfa people, product qualification is not the standard, but customer satisfaction is the goal. There is no perfect product, but 100% service.
Hanfa Group sincerely invites you to join us.
Our Honor
FAQ
1. Are you trading company or manufacturer?
We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2.Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3.How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4. Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
5. What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6.How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
2.Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3.How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4. Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
5. What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6.How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
