Мобильная рентгенографическая система используемая медицинскими единицами для рентгеновского обследования груди живота костей и мягких
- Категория: Other Radiology Equipment & Accessories >>>
- Поставщик: Chengdu,Kenid,Medical,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.55 $* | 0.19 $* |
| Aug-18-2025 | 0.71 $* | 0.75 $* |
| Jul-18-2025 | 0.52 $* | 0.68 $* |
| Jun-18-2025 | 0.15 $* | 0.81 $* |
| May-18-2025 | 0.96 $* | 0.61 $* |
| Apr-18-2025 | 0.42 $* | 0.57 $* |
| Mar-18-2025 | 0.40 $* | 0.8 $* |
| Feb-18-2025 | 0.21 $* | 0.78 $* |
| Jan-18-2025 | 0.71 $* | 0.94 $* |
Характеристики
Product Description
Specification

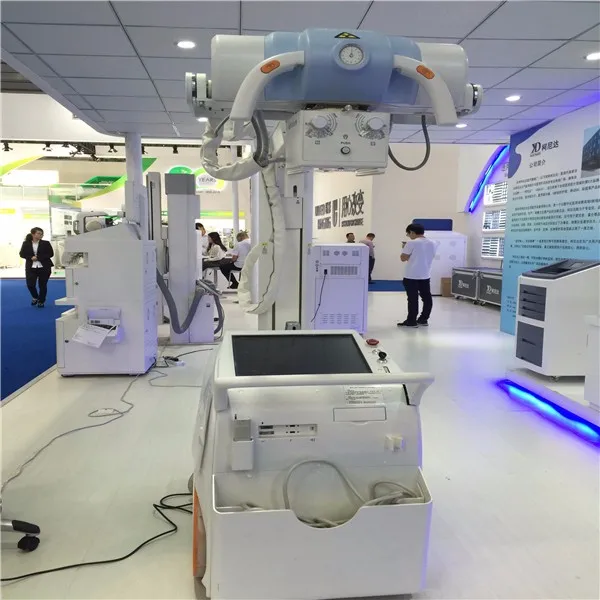

A portable digital medical diagnosis of high frequency X-ray machine main parts
No | component | parameters |
1. | High voltage range | |
Nominal power | 32KW | |
Tube voltage range | 40~150kv,step length 1kv | |
Tube current range | 10mA~320Ma/400Ma | |
Maximum ma | 400mA | |
Load time | 0.001s~6.3s | |
Current time product | 0.1mAs~320 mAs/400mAs | |
2. | X-ray tube assembly | |
Focal point | 0.6/1.2 mm | |
Target angle | 12° | |
Power | 32/77KW | |
Rotating anode | High speed | |
Anode heat capacity | 300Khu | |
3. | Beam limiter | |
Type | ||
4. | Flat Panel Detector | |
Scanning area size | 14×17 inch | |
Pixel pitch | 139μm | |
A/D Change: | 14bits | |
The total pixel matrix | 3,072(h)×3,072(v) | |
Pixel region | 43×36cm(16.8×14.0”) | |
Image preview time | ≤1s | |
5. | Battery energy storage | |
Charging time | 10 hours | |
Exposure | 240times(70kvp,100mA,0.5S) | |
Storage capacity | 12,000mAs@100KVp | |
6. | Mechanical arm | |
Type | Cross arm | |
7. | Workstation | |
Computer type | Professional IPC | |
Operating platform | Windwows | |
Main memory capacity | 4G | |
8. | System monitor | |
Size | 19in | |
Support for touch operation | Yes | |
Operation mode | Touch operation | |
9. | External interface | |
CD drive | Yes | |
USB | Yes | |
DVI/VGA | Yes | |
Ethernet port | Yes | |
10. | Others | |
Power boost | Yes | |
Battery energy storage exposure | Yes | |
A key release function | Yes | |
Mobility Function | Excellent | |
ARP | 140 kinds | |
WIFI | Yes | |
Anti-collision function (mechanical) | Yes | |
