Характеристики
cnc control hydraulic universal Horizontal rotary table DRC GXA series double force air pressure rotary table for lathe
Product Description
What Is The rotary table DRC GXA Series?
model | GXA-125S | GXA-170S | GXA-210S/SL | GXA-250S-170P/PL |
Rotary table diameter (mm) | Ø125 | Ø170 | Ø210 | Ø255 |
Center hole diameter (mm) | Ø30H7 | Ø40H7 | Ø40H7 | Ø40H7 |
Center through hole diameter (mm) | Ø25 | Ø40 | Ø65 | Ø65 |
Workbench height (horizontal position) (mm) | 155 | 175 | 175 | 190 |
Center height (vertical position) (mm) | 110 | 135 | 160 | 160 |
Workbench T-slot width (mm) | 12H7 | 12H7 | 12H7 | 12H7 |
Guide block width (mm) | 18
| |||
Drive mode / drive pressure (MPa) | 0.55-0.7
| |||
Tightening torque (N.m) | 140 | 300 | 400 | 400 |
Servo motor model FANUC | α2iF / β8iS | α4iF / β8iS
| ||
Reduction ratio | 1/40 | 1 / 60 | 1 / 72 | 1 / 72 |
Maximum disk speed (min-1) | 66.6 | 53.3 | ||
Allowable load inertia capacity (Kg.m2) | 0.2 | 0.72 | 1.38 | 1.38 |
Minimum setting unit (deg) | 0.001
| |||
Indexing accuracy (sec) | 40 | 20 | 20 | 20 |
Rotary table weight (kg) | 32 | 52 | 60 | 67 |

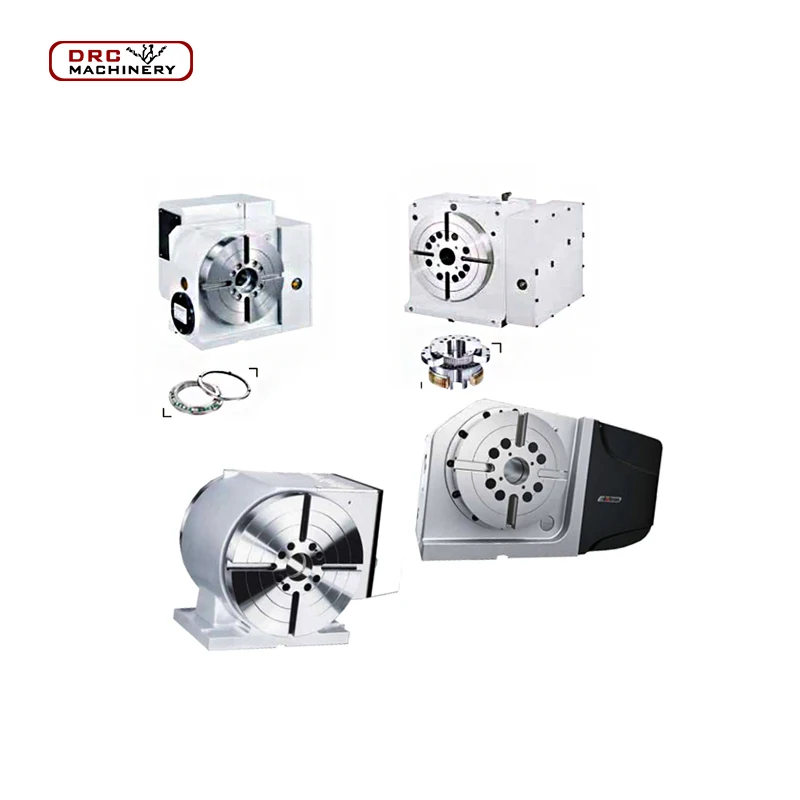

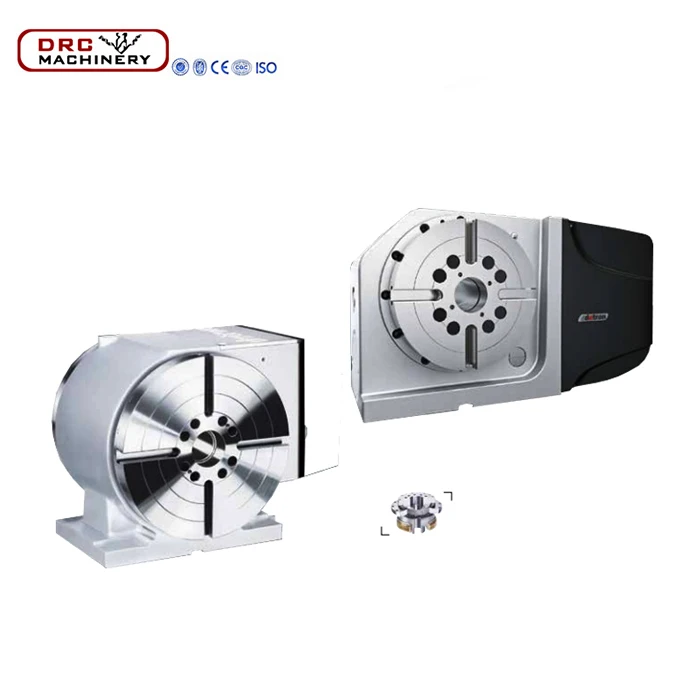

DRC rotary table Features?
High quanlity CNC rotary table
Rotary table diameter Ø125, Ø170, Ø210, Ø255.
Exclusive patented double force double piston brake mechanism.
Use large, high precision crossed roller bearings.
High efficiency, high tooth depth double lead worm drive.
CHARACTERISTICS:
The 5th axis can be operated synchronously with mechine tools .Also can be operating as double axis control with double axis controller.
cnc penumatic index rotary table
Table diameter provides a choice of Ø210mm.
Employs high rigidity, extra large radial and axial bearing.
Upon request, models with table diameter of Ø170, Ø210 and Ø250mm can be equipped with Japanese made worm/worm gear.
Equipped with special labyrinth type multi-piece disk brake that provides multi-surface braking. Big area design effectively increases clamping force. The table structure eliminates table surface floating problem.
Big hole design makes machining more convenient. Manufactured from high quality, durable cast iron. Increased body thickness increases load resistance capability. Large through-hole diameter. High strength, heavy cutting resistance as well as high precision.
Upon request, models with table diameter of Ø170, Ø210 and Ø250mm are available with hydraulic brake.
Various sheet metal guards are available to suit various brands of motors. Contact us for detail.
DRC has many models of rotary table to meet your needs, welcome to send an inquiry for more product information.
Related Products
Our customer
What Is The Historical Order Of DRC?
Below are some orders , click the photo to get more information.
Send Inquiry Here to Get a Free Work-piece Sample!
Why Choose DRC?
Who Is DRC?
DRC is a group company ,which is professional in products and sales of advanced CNC machine tools . Acting full operation of the six machine tool production company's overseas sales.
DRC is located in Dalian, which is one of the largest seaport cities of China.Our products exported to Russia, Dubai, Hungary, Italy, Argentina, the Philippines, India more than 50 countries.

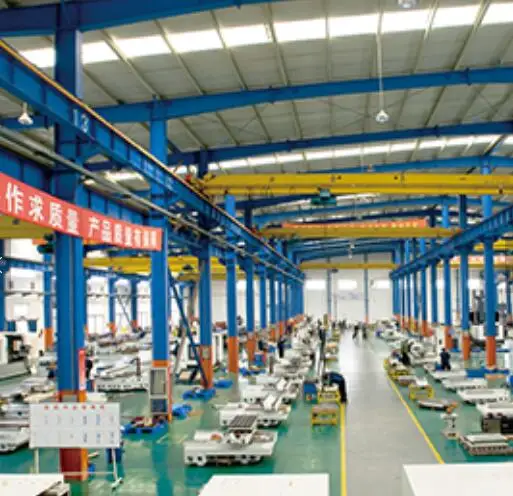

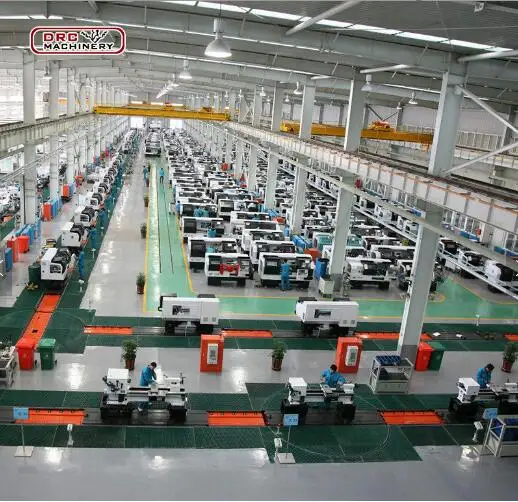

DRC has six factories in China, which covers many kinds of mechanical equipment.
