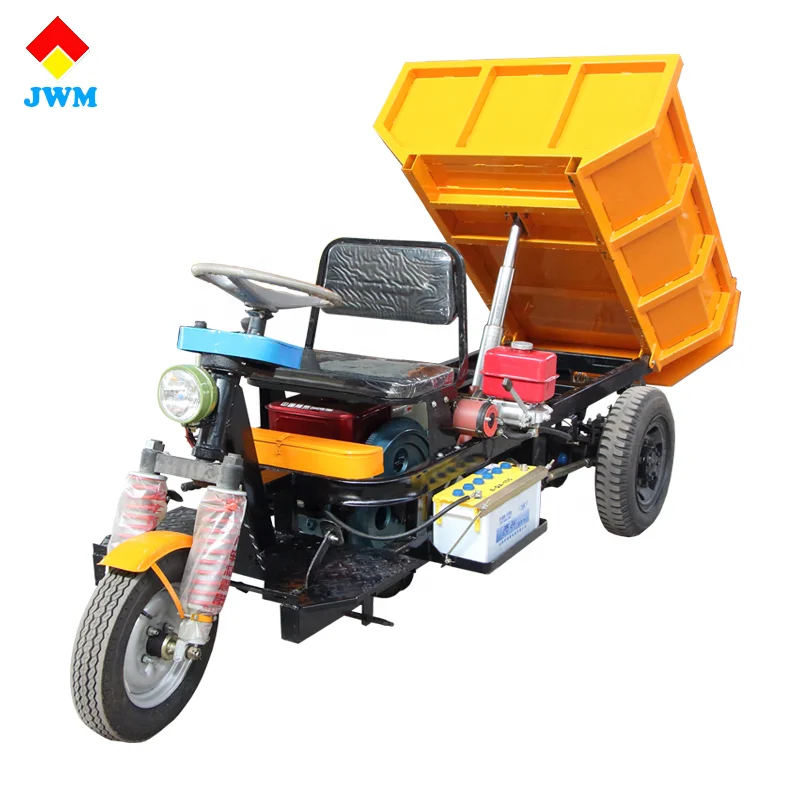

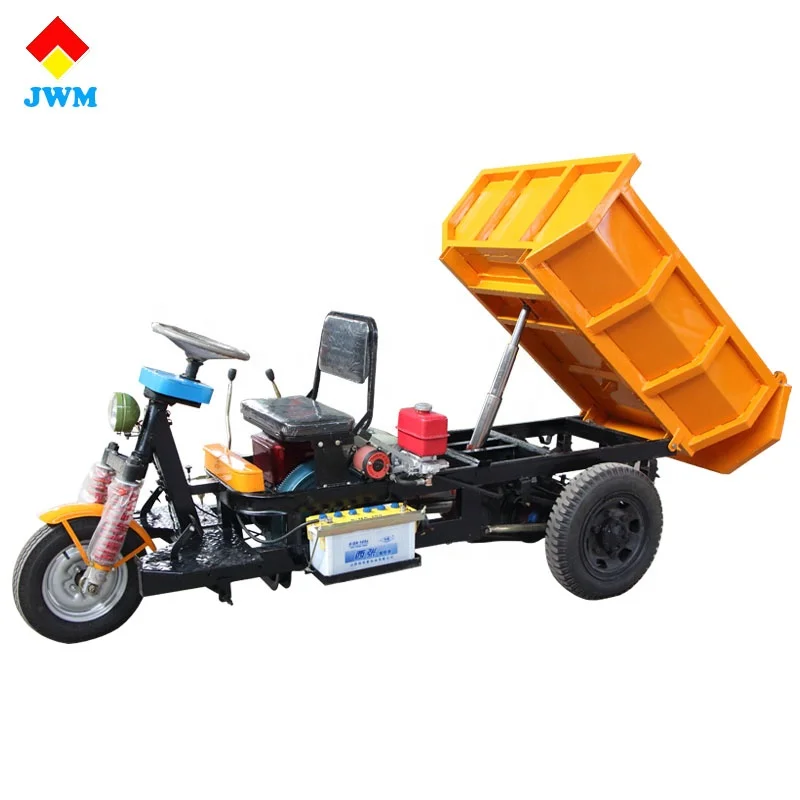

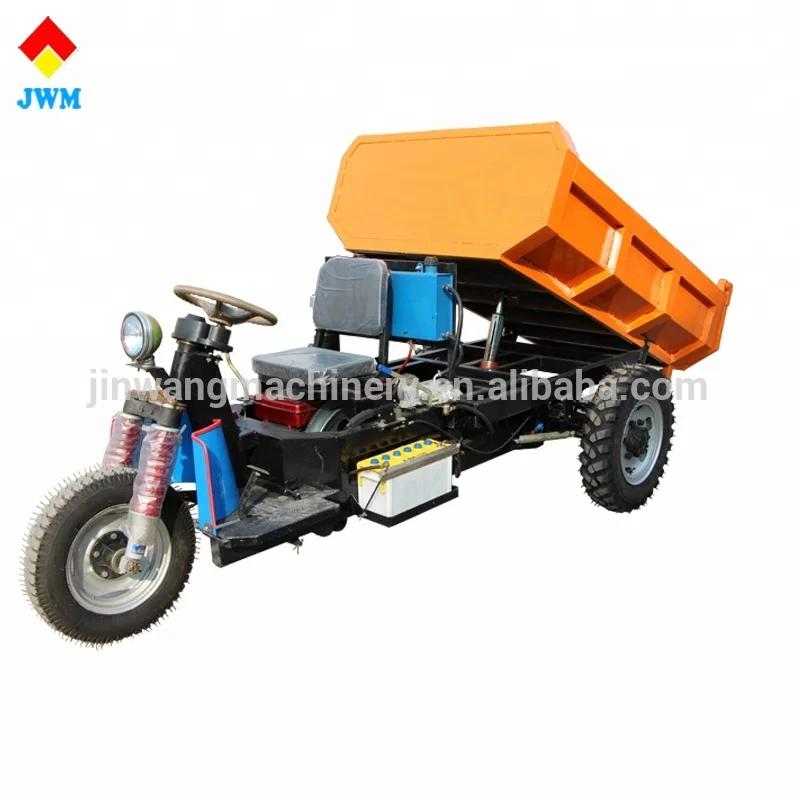

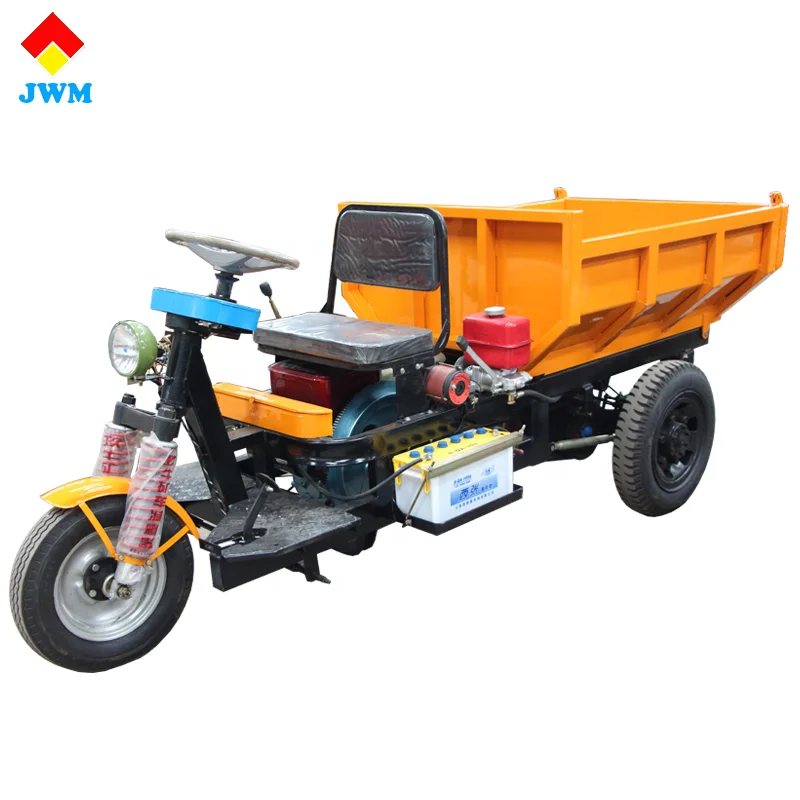

Простой в эксплуатации дизельный трехколесный велосипед мини самосвал прочный низкий уровень звука
- Категория: Другие трициклы >>>
- Поставщик: Gongyi,Xiaoyi,Jinwang,Machinery,Factory
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 3332.44 $* | 3499.81 $* |
| Aug-16-2025 | 3304.1 $* | 3469.49 $* |
| Jul-16-2025 | 2772.21 $* | 2911.1 $* |
| Jun-16-2025 | 3248.8 $* | 3410.40 $* |
| May-16-2025 | 2828.9 $* | 2969.10 $* |
| Apr-16-2025 | 3192.3 $* | 3352.77 $* |
| Mar-16-2025 | 3164.89 $* | 3322.77 $* |
| Feb-16-2025 | 3136.90 $* | 3293.10 $* |
| Jan-16-2025 | 3108.36 $* | 3263.93 $* |
Характеристики
Product Description
three wheel tricycle is our main product, using diesel as power source in mining, brickyard, sanitation and cleaning. We company has many years of scientific research and experience of production. We always focus on high efficiency, easy operation , first-class quality and reasonable price.Welcome new and old customers buy our three wheel tricycle
SPECIFICATIONS FOR 3 WHEELS ELECTRIC TRICYCLE CAR | ||||||
Model | ZY155II | ZY165II | ZY180II | |||
Diesel engine | 190/195 | ZS1110 | ZS1115 | |||
Loading capacity | 1000kg | 1500kg | 2000kg | |||
Horse power | 10/12HP | 15HP | 18HP | |||
Overall sizes | 2600*900*1200mm | 3000*1100*1200mm | 3600*1200*1400mm | |||
Cargo box sizes | 1400*900*400mm | 1700*1100*500mm | 2000*1200*500mm | |||
Weight | 520kg | 850kg | 1000kg | |||
Tire size(F/R) | 400-12/450-14 | 450-14/500-14 | 450-14/650-16 | |||
Work platform height | 600mm | 700mm | 720mm | |||
Brake system | Oil brake | |||||
Operating speed | 40-60km/h | |||||
Maximum gradeability | 35 degrees | |||||
Maximum tilt angle of car bucket | 45 degrees | |||||
Main Features
1) No pollution, high performance, low loss and energy saving.
2) Easy to operate and maintain without technical training.3) Heavy load,wide applying.
4) Sturdiness and durability.
Detailed Images
1--Diesel oil tank 2--Gear handle 3--Brake pedal 4--Accelerator pedal
5--Air filter 6--Pipe of adding water 7--Handle of changing speed 8-- Water tank
9-- Hydraulic oil tank 10--Lifting handle 11--Battery 12--Clutch pedal 13--Shock absorption
*Tire: Our factory adopts the high quality tire of chaoyang brand, which is used by pneumatic tire 500-14 types of tires before and after 650-16 types of tire collocation. It can support body, buffer external shocks, deformation under various load force and the function of the high and low temperature, ensure the security and stability of vehicle.
* Hydraulic ram: It can be tilted up to three quarter, the largest Angle of 45 degrees.
* Steel spring plate: It adopts special steel with a higher strength and toughness.When pavement make press to wheel,the steel spring plate produce distortion for playing a buffer, damping effect.
* Lighting system: The ahead and rear of tricycle both have the light to ensure it run safely and fluently.
* The cargo box sizes: Length: 2000mm Width: 1300mm Height: 500mm
Packing & Delivery
Up to present, our products are sold in Canada, Mexico, Peru, Kenya, Tanzania and so on Southeast Asian countries. And our high quality products and thoughtful after-sale service have won their praise. Welcome new and old customers buy our products.
Less than Container Load
Full Container Load
Load without knock down
Load with SKD ( Semi Knock Down )
About Us
It is located in the zone of Gongyi city ,Henan province,China. Gongyi Xiaoyi Jinwang Machinery was established in 1996,and cover an area of 80,000 square meters. After 20 years' development,our factory is very professional and specialized in the field of machinery.Our main products are building materials & construction equipment, three wheel tricycle food processing machinery and so on.We offer high quality products and best services.You can feel free to contact us anytime.
Our Service
Pre-sale service
We will introduce our products detailedly and according to customers' needs, providing them with the most suitable products. Besides, we also answer our customers' questions patiently.
During the sales service
We will ensure the quality of our products so that making customers 100% rest assured.
After-sale service
For our products, we will provide 12 months warranty to ensure you use the rest assured.(Not including in any damages caused by human factor, traffic accident and other accident.)
Related Products
Mucking Loader
Mucking Loader is applicable to the tunnel excavation, mining engineering, water conservancy projects and other projects of construction machinery and small section water diversion hole, mining slag machine, the machine is mainly used for some working space narrow and small scale of phosphate rock, metal, non-metallic mineral of gravel soils of explosion in dangerous mines.
Electric mini dumper tricycle use diesel as power source in mining, brickyard, sanitation and cleaning. it has the advantages of heavy load,wide applying, high performance and low loss.
Our electric mini dumper tricycles and mucking loaders have been being promoted in Peru.
Our mini dumper tricycle is being used in Lake Titicaca, which is the highest lake in the world.
