Индивидуальная полиимидная медная гибкая печатная плата fpc pcb
- Категория: ГПП >>>
- Поставщик: Shenzhen,Sienta,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.19 $* | 0.32 $* |
| Aug-19-2025 | 0.27 $* | 0.23 $* |
| Jul-19-2025 | 0.84 $* | 0.36 $* |
| Jun-19-2025 | 0.55 $* | 0.40 $* |
| May-19-2025 | 0.9 $* | 0.20 $* |
| Apr-19-2025 | 0.30 $* | 0.10 $* |
| Mar-19-2025 | 0.52 $* | 0.92 $* |
| Feb-19-2025 | 0.79 $* | 0.74 $* |
| Jan-19-2025 | 0.5 $* | 0.62 $* |
Характеристики

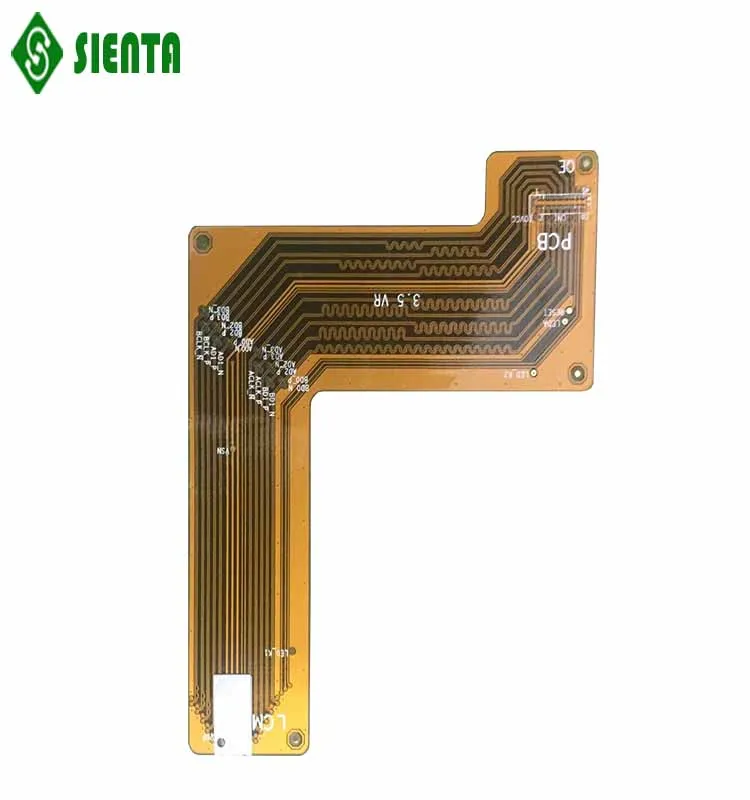

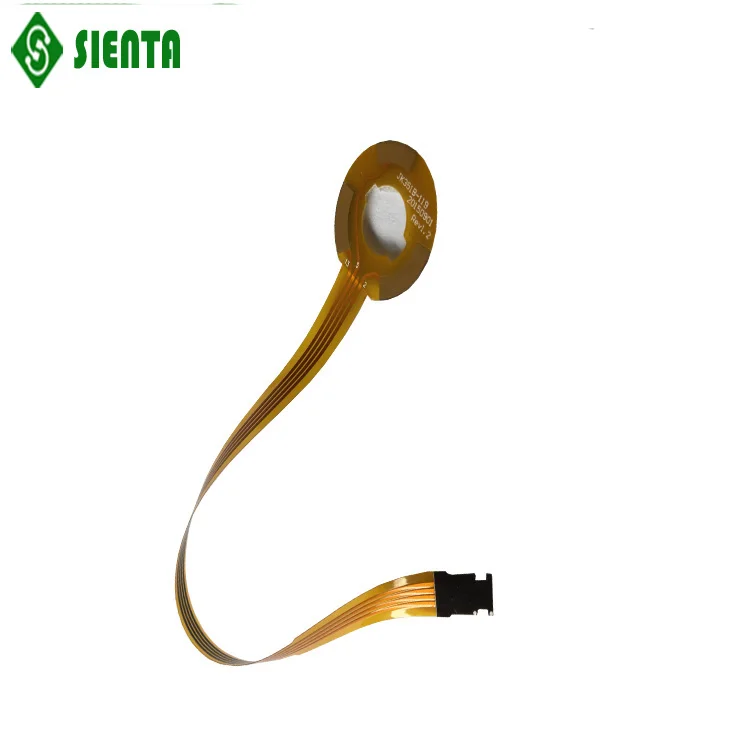

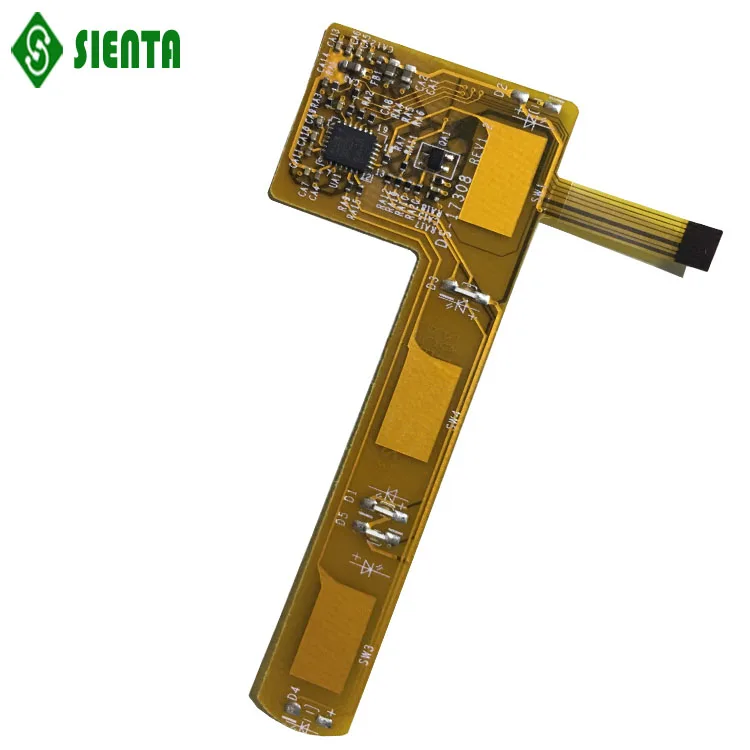

Products Show
FPC Capacity
PROCESS | Item | Unit | Limit Tolerance | Normal tolerance |
Board cutting & thickness | Layer | / | 1-6 layer | 1-6 layer |
/ | 2-layer(rigid flex) | 2-layer(rigid flex) | ||
cutting size: 250mm | mm | 250*1000mm | 250*500mm | |
Min. thickness | mm | 0.075mm(FPC) | 0.10mm(FPC) | |
mm | 0.3mm(rigid flex) | 0.3mm(rigid flex) | ||
um | PSA:50um | PSA:50um | ||
hot setting adhesive | um | 12.5/25/40um | 12.5/25/40um | |
PI stiffener | um | PI: 1.0-13mil | PI: 1.0-13mil | |
Other stiffener type | / | steel, Al, silicon steel sheet | ||
Min. drilling hole size | mm | 0.1 | 0.2 | |
hole diameter tolerance | mm | ±0.075 | ±0.1 | |
PTH | hole wall copper thickness | um | 8/15/25 | 8/15/25 |
Min line width/space | mm | 0.05/0.05 | 0.075/0.075 | |
hole ring | mm | 0.125 | 0.2 | |
offset tolerance | mm | 0.1 | 0.15 | |
Line width tolerance | mm | ±0.03 | ±0.04 | |
Distance between hole edge to outline | mm | ≥0.4 | ≥0.5 | |
Lamination | Coverlay tolerance | mm | 0.15 | 0.2 |
PI stiffener with outline | mm | ±0.3 | ±0.3 | |
Sensitive PSA | mm | ±0.3 | ±0.3 | |
FR4 location tolerance | mm | ±0.3 | ±0.3 | |
Soler mask thickness | um | 8 | 15 | |
Silk screen thickness | um | 8 | 15 | |
R angle for etching cutting die | mm | 0.5 | 0.5 | |
mm | LS: ±0.075 | LS: ±0.075 | ||
mm | HS: ±0.01 | HS: ±0.01 | ||
mm | Etching: ± 0.20 | Etching: ± 0.30 | ||
mm | Wooden: ± 0.30 | Wooden: ± 0.50 | ||
Laser tol. | mm | ± 0.05 | ± 0.05 | |
Offset tol. for fingers | mm | ± 0.10 | ± 0.10 | |
um | Ni: 2.0~5.0 | Ni: 2.0~5.0 | ||
um | Au: 0.03~0.08 | Au: 0.03~0.08 | ||
Plating tin | um | 8~20 | 8~20 |
Equipments
Application
Mobile Phone
FPC will more thiner and more portable, can save product volume, easily connect battery,voice tube and keyboard together
Computer
By flexible circuit board configuration, the digital signal is transformed into a picture through the LCD screen.
Solar cells
FPC used in solar cells, which can easily deployable
Packing & Delivery
Packing Details : Vacuum packing, PET bag,antistatic bag or per customer's request
Delivery Details : 3-20 days after order placed
Our Certifications
FAQ
Q: How long is your delivery time?
A: As FPC belong to customized products,generally it is 5-7 days for samples and 10-20 days for mass products.The actual delivery date according to difficulty of the products, the quantity and etc.
Q: Which files do you accept for offer ?
A: We accept Gerber file, CAD file, brd file, PCB file, pdf file and etc.
Q: What is your terms of payment ?
A: Samples: 100% T/T in advance
Mass: According to actual amount.
