Разъем BNC «папа»-гнездо SMA «мама» обжимный Электрический адаптер разъемы преобразователь

• RF coaxial cable assembly (7/16 DIN/N/TNC/BNC/FME/U.FL/IPEX/L9/SMA/SMB/MMCX/MCX/OEM)
• We focus on coaxial assemblies
• Our custom RF cable assemblies are built-in and shipped worldwide
• RF cable assemblies in 50 ohms can be ordered using the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB
• RF cable assemblies includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/ RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58/U
• RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications
• If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department

•  Series of SMA products one application extensive small-scale coaxial person who join that whorl join, it has a reliable characteristic with long life-span that the width, performance are excellent, high frequently. Suitable for the microwave equipment and body of the digital communication system and join the body in the cable or the micro-strip line frequently in the loop frequently.

• Temperature range	-40~+85°C
  Vibration	100m/s2 (10~500Hz)
  Impedance	50 OHM
  Frequency Range	DC – 11GHz
  Working Voltage	2700V max
  Break-down Voltage	4000V rms @ sea level
  Contact resistance	≤0.4  OHM @ inner contact ≤1.5  OHM @ outer contact
  Average power	3KW  max
  Insulation resistance	≥10000M OHM
  VSWR	≤ 1.10
  Durability (mating)	≥500 (cycles)

• Material & Plating

  Body	Brass	Nickel plated / Alloy plated
  Inner Pin	Brass	Gold plated
  Resilient Contact	Beryllium Copper	Gold plated
  Socket Contact	Beryllium or tin bronze	Gold plated
  Insulator	PTFE
  Crimp Ferrule	Copper alloy	Nickel / Gold plated
  O-ring sealing	Silicone Rubber

  APPLICABLE STANDARD
  MIL-C-39012;
  CECC 22110;
  IEC 60169-15.

Q:what's your company MOQ?
A: In generally, if use customer brand, we will ask at least 500-800pcs, this we can negotiate.
Q: What's your delivery time?

A: This please ask our stock in first, products can send out once receive your deposit.

If use customer brands, we will take a 3-5days to prepare materials and mass production.

Q: Can your company accept customize?

A: Welcome OEM & ODM.

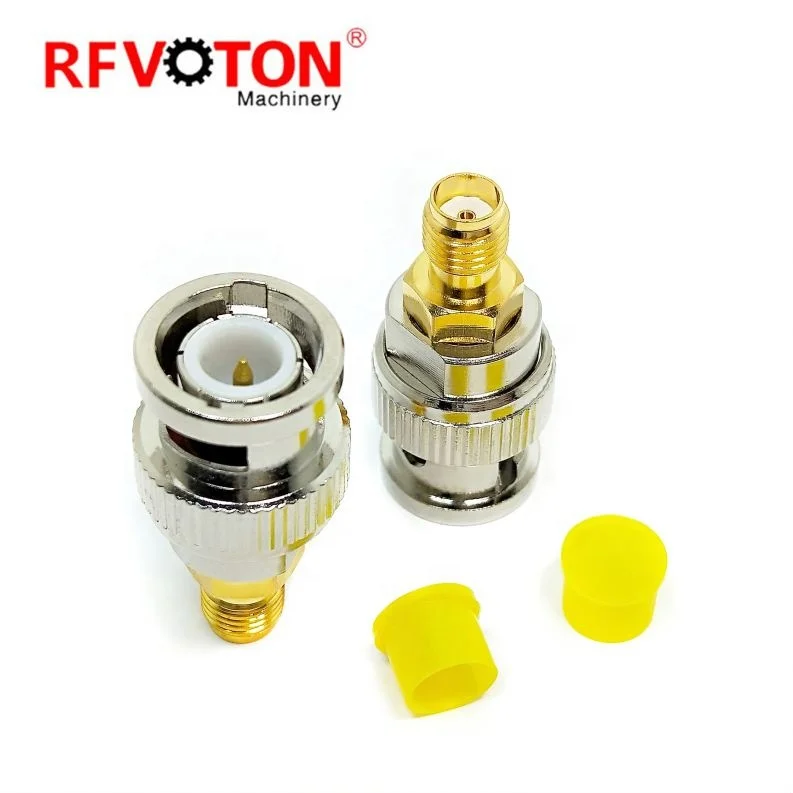

BNC male to SMA female adapter

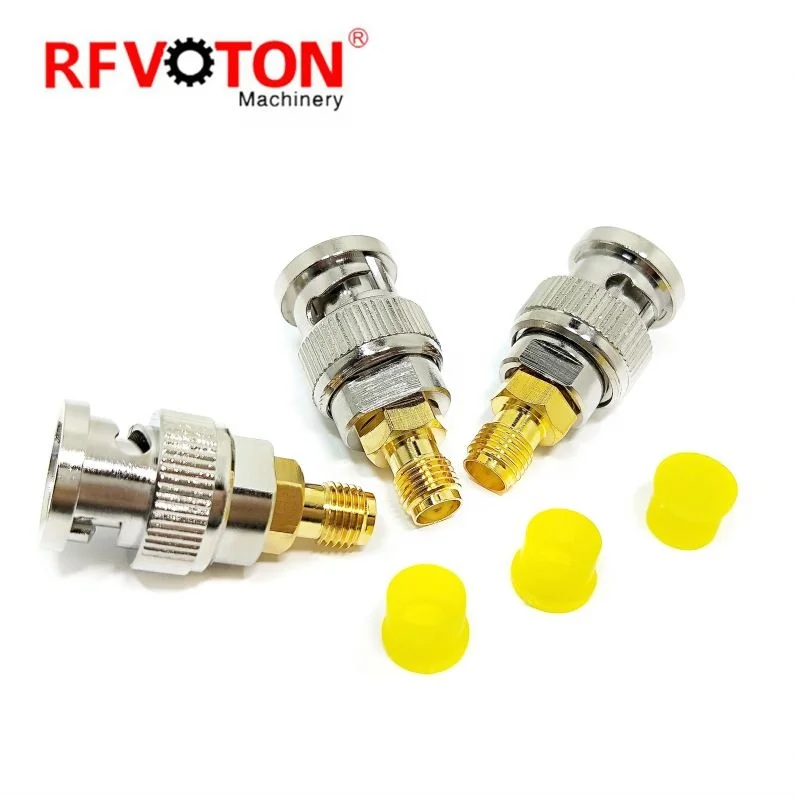

 BNC male to SMA female adapter

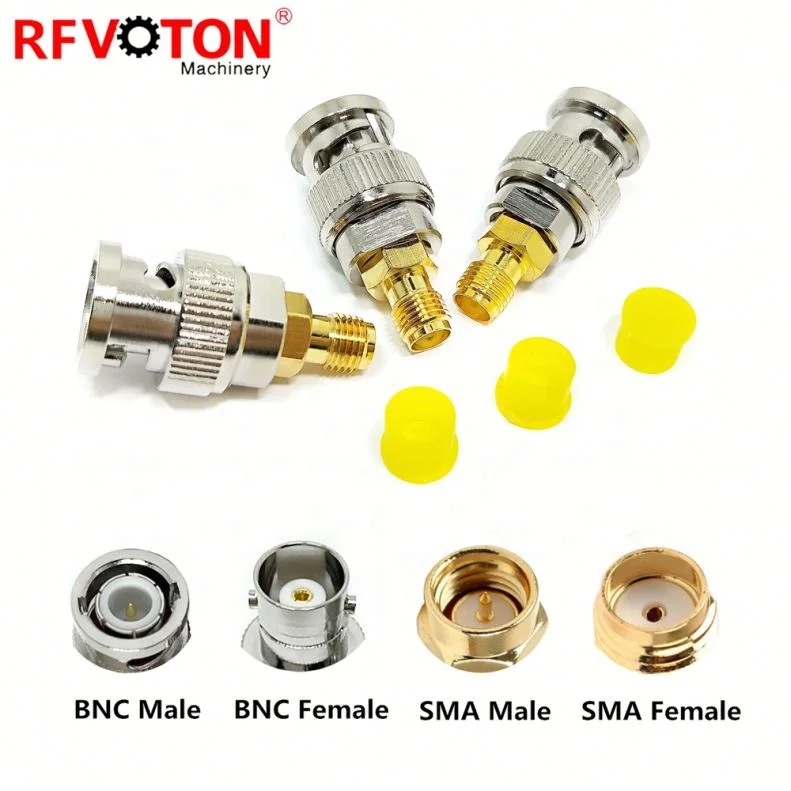

 BNC male to SMA female adapter

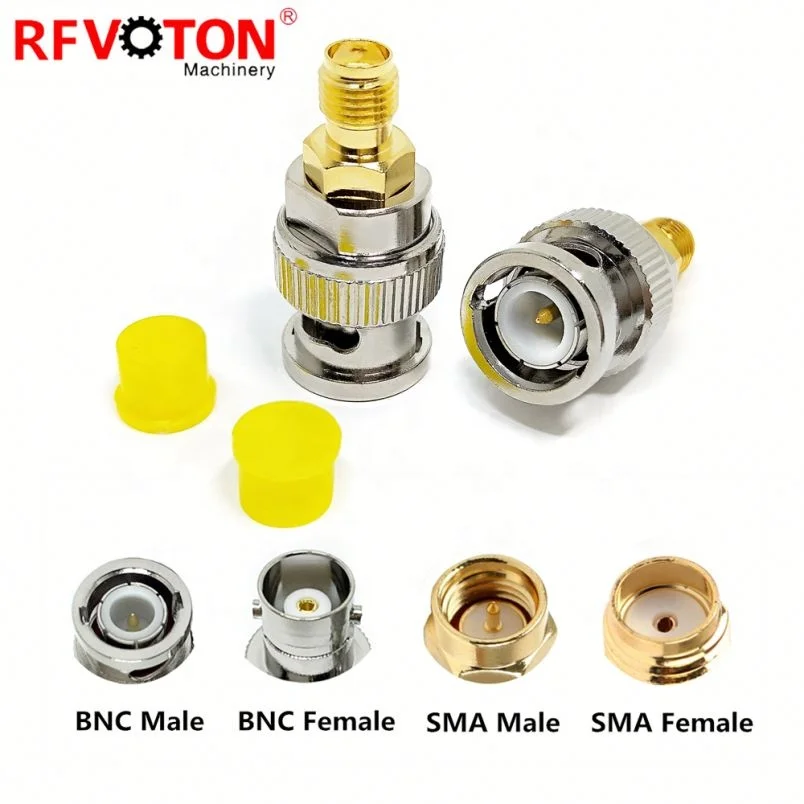

 BNC male to SMA female adapter

 What we could do for you are:
1) factory sell directly
2) long-term,strong and steady supplying ability
3) delivery time: 1-2 working days
4) do as your requirements on package,brand or other designs
5) strong sales promotion policy
6) ex-factory price and competitive price
7) we can provide you a good survice
8) replying you asap.(will reply you 10-20 mins on the basis of getting your require.)

Customization advantages Reliable performance Perfect production management system(ISO9001,ISO14001) we have experience about RF components more than ten years Experienced R&D staff. All Goods will be tested before shipping OEM/ODM service available.

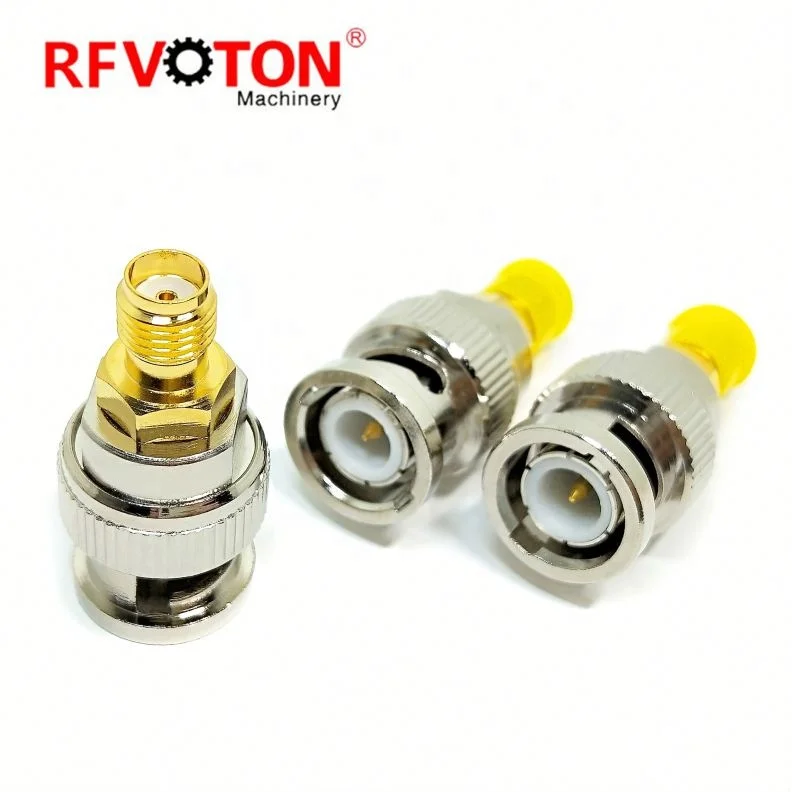

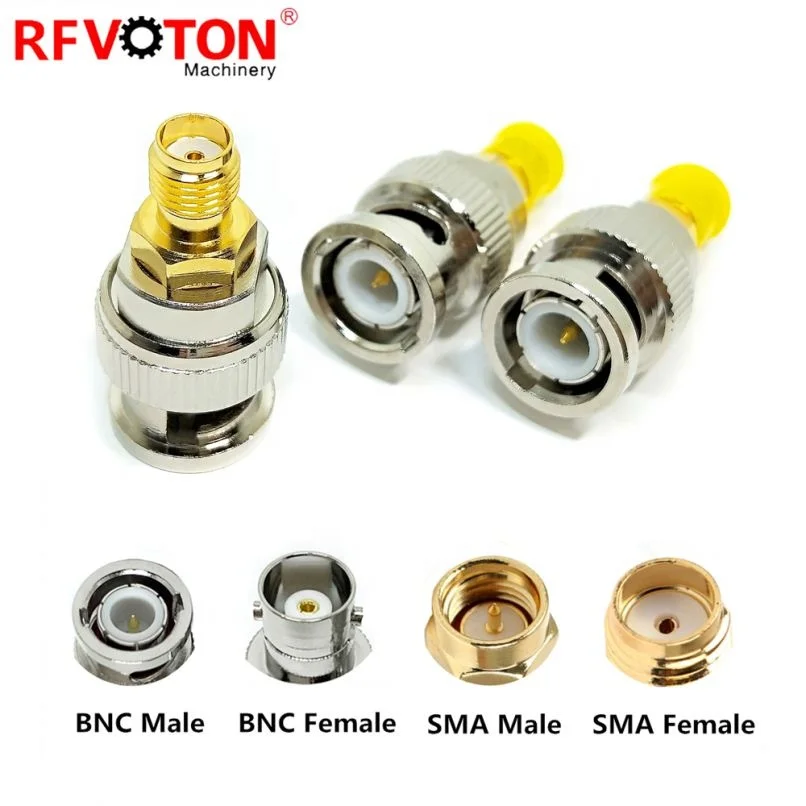

BNC male to SMA female adapter
