Irrigation Barbed Elbow Connector Agricultural Garden Drip Irrigation Fittings

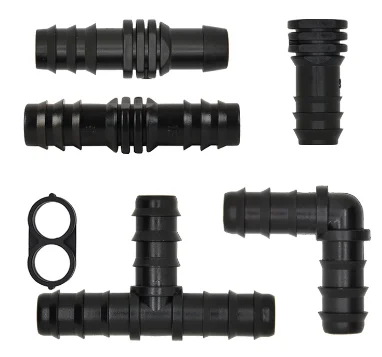

LDPE Pipe Fittings, Barbed Fittings, Connectors:

The barbed fittings & connectors are easily installing and very economically for connecting sub-line in irrigation system, especially in fitting LDPE Pipe and Drip Line/Pipe. The size is available in 12, 16, 17, 20, 25mm. All of the connectors are made from high quality plastic material and good at Anti-UV, stress cracking. So that could ensure that your irrigation system working very well, as well as the crops growing.



Specification:
a. Straight Connector, Coupling
b. Size: Dn16mm
c. For fitting 16mm OD PE PIPE



Every drip irrigation system depends on reliable, leak-free connection fittings to keep the system together.

Product Specifications:
1. Compatible with all 1/2" 16mm tubing or drip lines.
2. One-piece construction.
3. Made from linear, low-density polyethylene.
4. Secure and easy installation without glue, tools, or clamps.
5. Recommended for 0 to 50 PSI operating pressure.
6. Barbed ends grab tubing for a secure leak-proof connection.

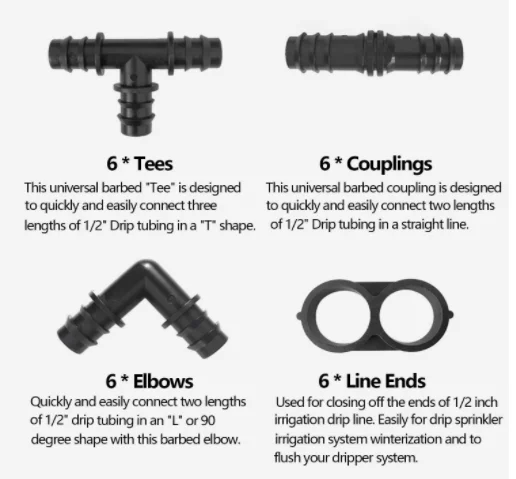

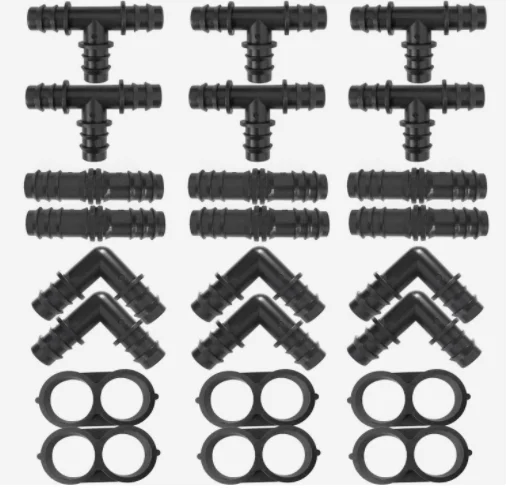

Package includes:
6 Tees - Designed to quickly and easily connect three lengths of 1/2" Drip tubing in a "T" shape.
6 Couplings - Designed to quickly and easily connect two lengths of 1/2" Drip tubing in a straight
line.

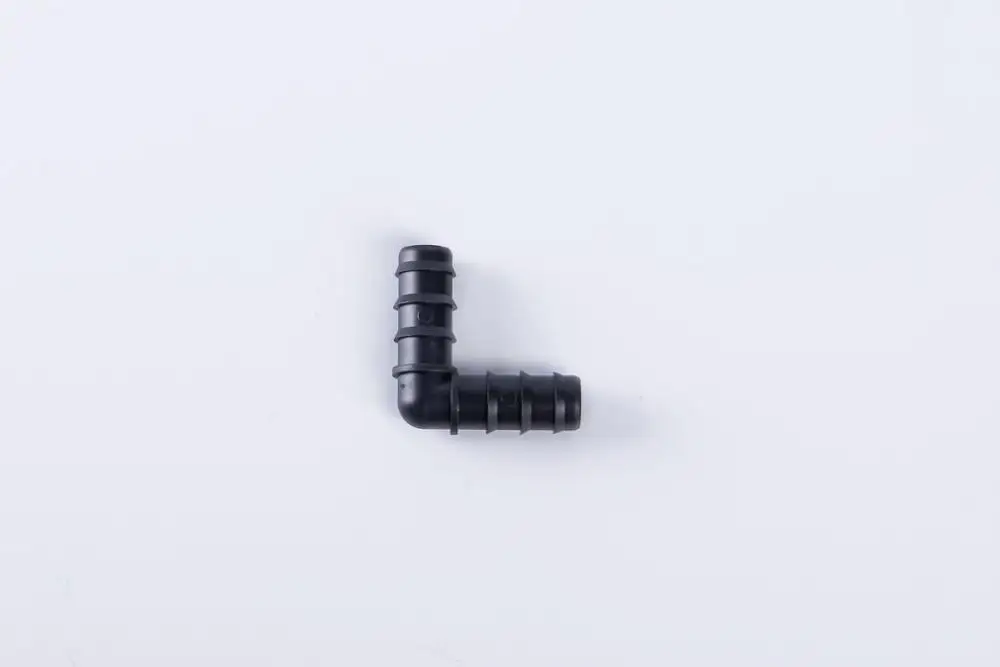

6 Elbows - Designed to connect two lengths of 1/2" drip tubing in an "L" or 90 degree shape
6 Figure Eight Line End Closures - Designed for closing off the ends of 1/2 inch irrigation drip line.

Installation Tips:
1.To its brightest effect, you can also soak the tubing inside hot water for 10s before you insert
2.Then simply push the tubing firmly over the barbs for a secure leak-proof connection.
3. Leave aside for 30 minutes - Job done !
3. If desired you may use a heat gun or blow dryer to soften the end of the tubing before
inserting.



Pic	Description	Size	Packing (pcs/bag)
	socket bypass connector	Dn12	100
		Dn16	100
		Dn20	100
	Socket Bypass with Rubber Ring	Dn12	100
		Dn16	100
		Dn20	100
	Socket pass-through	Dn12	100
		Dn16	100
		Dn20	100
		Dn25	100
	Socket male thread connection	Dn16*1/2"	100
		Dn16*3/4"	100
		Dn20*1/2"	100
		Dn20*3/4"	100
		Dn25*3/4"	100
	Lock male thread connector	Dn20*3/4"	100
