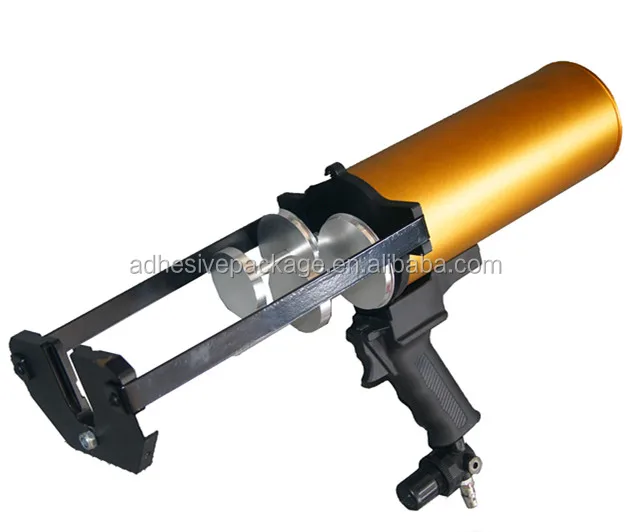

1500 мл 1:1 пистолет для герметизации с двойным

Capacity : 1500ml

Ratio : 1:1

Material: Aluminum & Iron materials
Net Weight: 3.2kgs / piece

Material: Reinforced Nylon Handle

Aluminum Cartridge Holder

Thrust: 625kg ~ 800kg

Air supply: 6.8 bar (100 PSI) ~ 10 bar (145 PSI)

Male: 1/4” BSP Air Supply Fitting (EU)

1/4” NPT Air Supply Fitting (US

Step1: Insert cartridge. Push the cartridge into the cartridge sleeve and press it down until it clicks into position.

Step 2: Assemble static mixer. After cartridge is well installed, remove the cartridge stopper and cap nut, and fasten static mixer using the cap nut on the cartridge outlet thread.

Step3: Connect pneumatic caulking gun to the compressed air supply6.

     Connect the compressed air hose to the compressed air inlet via the quick-release coupling, and then connect this compressed air hose to air compressor. Please make sure that there is no air released in the connector.

Step 4: Dispensing the adhesives.

     Open the switch of air compressor, and press the trigger7of Pneumatic caulking gun. Dispensing is started, and the piston rod will move forward. The dispense volume can be controlled by means of the pressure regulating valve 8. When the trigger is released, dispensing stops.

a) Pull the pressure regulating valve.

b) Adjust the dispense volume by turning the adjuster in the “+”or “-”direction.

c) Press the pressure regulating valve to confirm the set value.

Step 4: Removing the cartridge

       Release the trigger and press the red button--- Retract piston rod9 until the piston rod have retracted to the back end-stop, and then remove the cartridge from the cartridge sleeve.

Packing : 1pc/ctn
Ctn Size : 40x44x19cm
G.W./N.W. : 4.5/3.8kgs

15-25 days after receiving the payment

T/T in advance (100%, 30%+70% against B/L), PayPal, Western Union, L/C

1,We are manufacturer since 2003 .

2,Specializing in caulking gun,static mixer,dual component cartridge,plastic sleeve,anchor accessory,dental mixing tip,dispensing gun,dental device etc.

3,Passed the international certificate as CE ..

4,Provide OEM and ODM service to overseas customers.

5,Export to more than 50 countries in Europe,the Middle East,Southeast Asia,Africa,South/North America and areas etc.

6,Our mission is to Cultivate high quality clients ,Cultivate excellent staff .

7,Offer worldwide customers reliable and sustainable Chinese solutions for two-component package systems.
