1200*600*10mm Wetroom slip resistant fiberglass mesh reinforced shower floor tile backer

SANYI board (also known as construction board, tile backer board, insulation backer board ,waterproof backer board ,wet room backer board)
Product structure

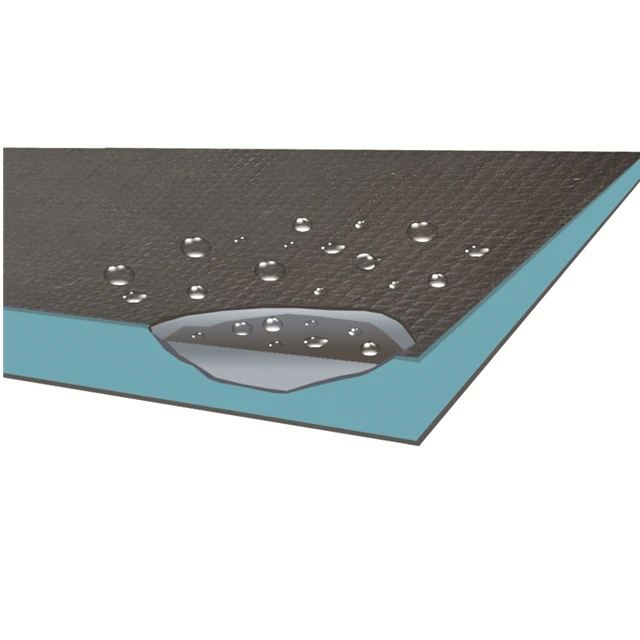

SANYI boards are made of high-performance waterproof extruded polystyrene, it has a 0.75mm coating on either side comprising a glass fiber mesh embedded in a polymer cement mortar.
Outstanding characteristics
Both insulation and waterproof

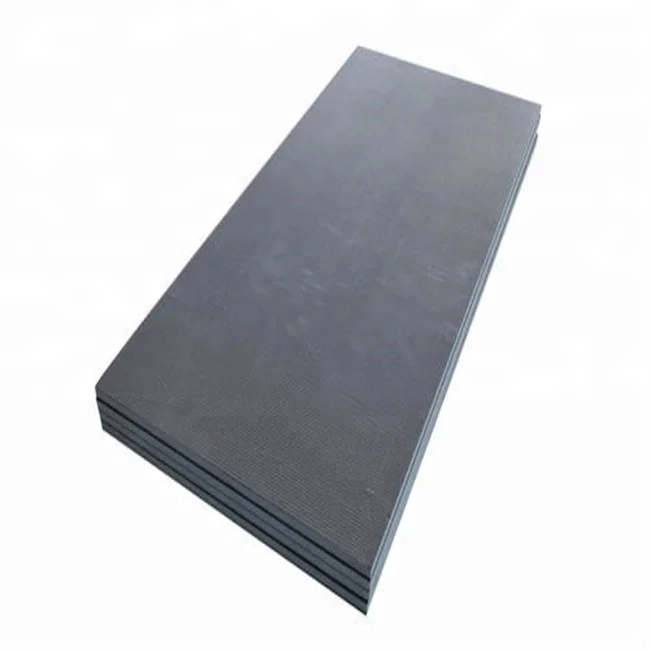

Product appearance
The boards have straight edges. The color of the surface is grey and the core material is light blue
Working temperature range
50 to +80 °C
Reaction to fire
The boards are classified as class E according to EN 13501-1. When the boards are covered with tiles, their fire performance should comply with local construction laws and regulations.
Effect on indoor environment
SANYI board has been assessed as not emitting any particles, gases or radiation that may have a negative effect on the indoor climate or to have any significant effect on health.
Environmental declaration
The product does not contain any substances on the observation list of dangerous substances published by the national environmental authorities.
Main applications
Used as a watertight layer on walls and floors in houses, hotels and other wet areas such as bathroom, shower room.
Other applications
Other places to be insulated and waterproofed.

Xps waterproof tile backer board uk bathroom board Under cement boards

1.\tCould you develop some certain product with tile backer board and shower tray for us?
Answer: Yes, we have strong R&D Capability, we are welcome you to discuss the new idea with us.
2.\tDo you have any product certification for your tile backer board and shower tray ?
Answer: Our Shower system have certain CE Certification, also our certain product tested in USA with good performance in TCNA and IAPMO. If you need the SINTEF OR SONAP, we could apply the certification together.
3.\tHow is your production time ?
Answer: Normally it take 15-25 days and it vary according to the product quantity.
4.\tHow many countries and areas have your product shipped?
Answer: We have shopped our shower system to United States, United Kingdom, Ireland, Canada, Russia, Netherland, Nigeria, Sweden, Republic of Lithuania etc.
5.\tDo you provide OEM/ODM service?
Answer: Yes, we could produce the product with private labeled.

ATTENTION

Fixing
Choose a way to fix our boards according to the substrate to be fixed to. Normally, using modified tile adhesive for solid concrete wall/floor and strengthened by mechanical fixings when necessary while only using mechanical fixings for wood and steel frames.
Reinforcement
1. Dry areas: reinforce all joints between boards, floors and walls by 5cm or 10cm wide self-adhesive tape.
2. Wet areas: reinforce by suitable waterproof tape.
Waterproof strengthen
1. Strengthening all joints between boards, floors, walls and mechanical fixings placements by suitable waterproof tape.
2. Strengthening joints between walls, outside corners and inside corners by special corners.
3. Sealing pipe holes with special waterproof tape.
4. Strengthening once again by waterproof glue, liquid tanking membrane, tanking membrane paint, etc. when necessary.
Coating of panels
Should always be covered by ceramic tiles, mosaics or other equivalent non-fireproof materials after installation.
