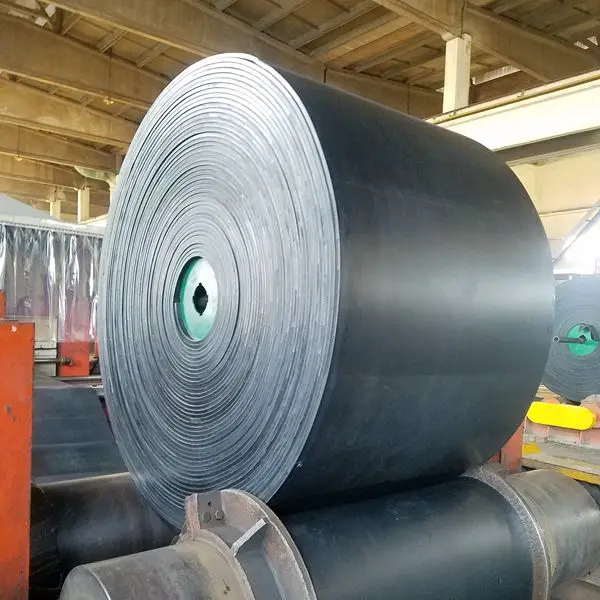

1000mm betl width tear resistant st800 steel cord conveyor belt

uses the new type steel cord as the tear resistant element,  used in the coal, mining, port, metallurgical, electrical and chemical industries, and is applicable for the conveyance of materials with heavy load, long distance and large freight volume.

1.We have three structures of steel cord belt conveyor belt

Three type steel cord conveyor belt

1) general application steel cord conveyor belt

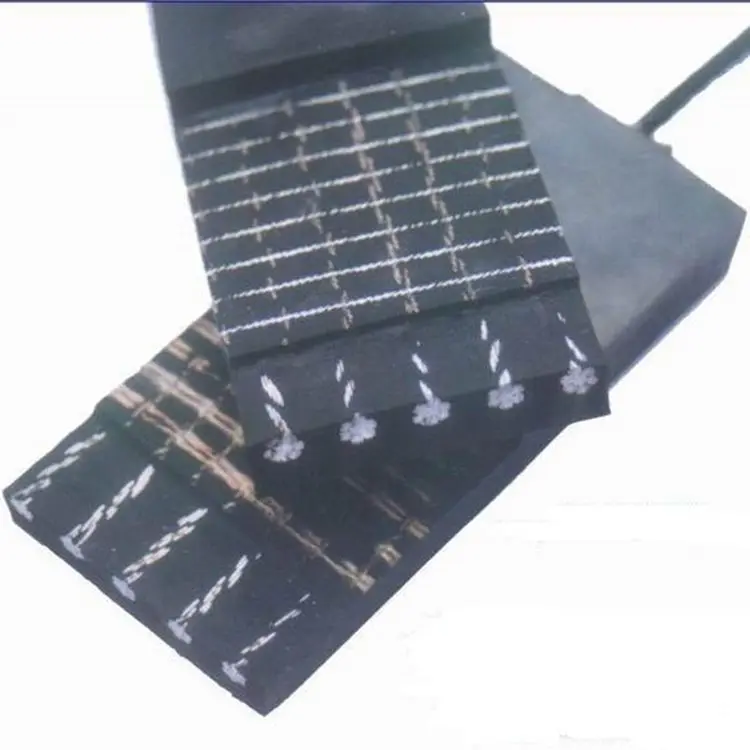

2) tear resistant steel cord conveyor belt

3) tear resistant conveyor with detector

1) Feature

1) High tension strength

2) Small elongation

3) Excellent troughability and high flexibility

4) Impact and tearing resistant

2) Standard

DIN22131, EN ISO 15236, SANS1366 and AS1333

3) Dimension for steel cord belt conveyor belt



Technology Data	Bel tintension
	ST/S 630	ST/S 800	ST/S 1000	ST/S 1250	ST/S 1600	ST/S 2000	ST/S 2500	ST/S 2800	ST/S 3150	ST/S 3500	ST/S 4000	ST 4500	ST/S 5000	ST/S 5400
Longitudinal tensile strength (N/mm)	630	800	1000	1250	1600	2000	2500	2800	3150	3500	4000	4500	5000	5400
Maximum nominal diameter of steel wire rope (mm)	3.0	3.5	4.0	4.5	5.0	6.0	7.2	7.5	8.1	8.6	8.9	9.7	10.9	11.3
Steel cord pitch (mm)	10 ±1.5	10 ±1.5	12 ±1.5	12 ±1.5	12 ±1.5	12 ±1.5	15 ±1.5	15 ±1.5	15 ±1.5	15 ±1.5	15 ±1.5	16 ±1.5	17 ±1.5	17 ±1.5
Width of top cover (mm)	5	5	6	6	6	8	8	8	8	8	8	8	8.5	9
Width of bottom cover (mm)	5	5	6	6	6	8	8	8	8	8	8	8	8.5	9
Belt width (mm)	The amount of steel cord rope
800	75	75	63	63	63	63	50	50	50	50
1000	95	95	79	79	79	79	64	64	64	64	64	59	55	55
1200	113	113	94	94	94	94	76	76	76	77	77	71	66	66
1400	133	133	111	111	111	111	89	89	89	90	90	84	78	78
1600	151	151	126	126	126	126	101	101	101	104	104	96	90	90
1800	171	171	143	143	143	143	114	114	114	117	117	109	102	102
2000	196	196	159	159	159	159	128	128	128	130	130	121	113	113
2200	216	216	176	176	176	176	141	141	141	144	144	134	125	125



2. Manufacturing process for st800 steel cord belt conveyor belt

belt width: 800 1000 1200 1400 1600 1800 2000 2200mm

3. Quality control for steel cord conveyor belt

1) test equipment

2) ISO9001:2008

3) TUV qualified factory for st800 steel cord conveyor belt

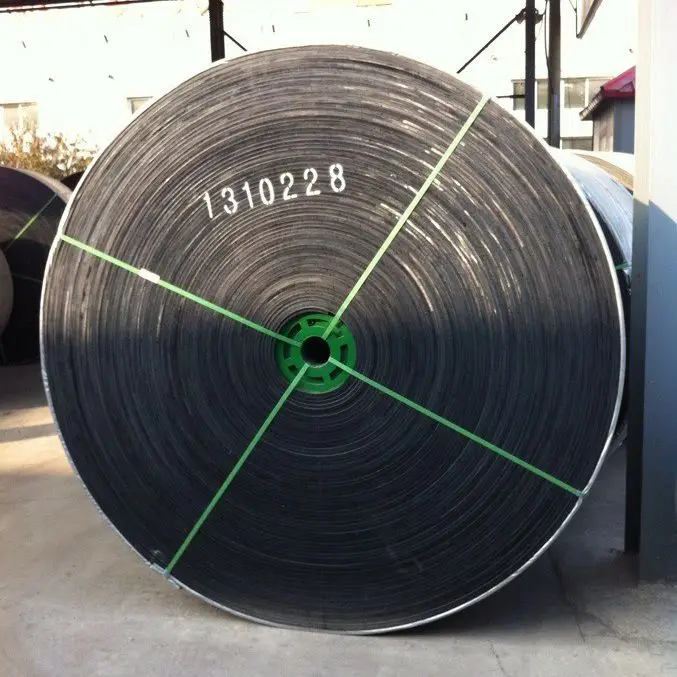

4. Well packed steel cord belt conveyor belt and kinds of belt conveyor belts you can choose

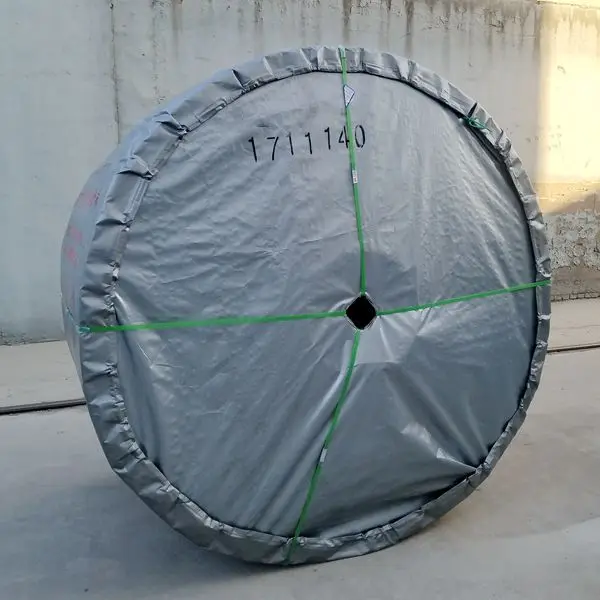

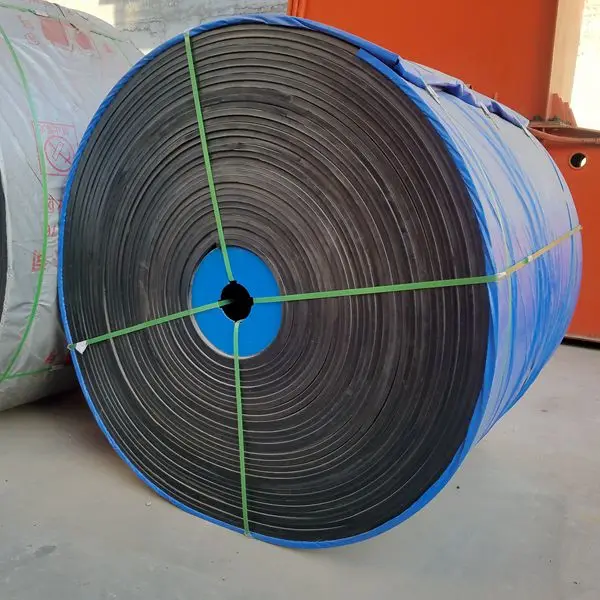

Packed in pvc water proof cloth or as require.

Shipment within 7-15 working days according to the quantity.

5. Other kinds steel cord belt conveyor belt you can choose

1) general type

2) fire-retardant type for coal mines

3) general-purpose fire-retardant type

4) cold resistant type

5) abrasion resistance

6) acid-alkali resistant type

7) oil resistant type

6. About us - Baoding Huayun Conveyor Machinery Co., Ltd.

five reasons to choose us:

1. manufacturer of conveyor idler rollers, conveyor belts, conveyor pulleys, conveyor brackets, etc.;

2.  most advanced production equipment;

3.  exquist craft with CEMA DIN JIS standard;

4.  passed the ISO9001:2008 and Safety of Approval for Mining Products;

5. high quality material purchasing channel and excellent after-sale service.

Know more information about the st800 steel cord conveyor belt, pls contact us via the following ways:
