600 кг электродвигатель вращающегося затвора вверх двери центрального
- Категория: Door & Window Accessories >>>
- Поставщик: Fujian,Anlin,Intelligent,Science,And,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 105.10 $* | 107.30 $* |
| Jul-16-2025 | 85.23 $* | 87.24 $* |
| Jun-16-2025 | 104.26 $* | 106.26 $* |
| May-16-2025 | 103.2 $* | 105.81 $* |
| Apr-16-2025 | 82.27 $* | 84.23 $* |
| Mar-16-2025 | 101.14 $* | 103.21 $* |
| Feb-16-2025 | 100.43 $* | 102.5 $* |
| Jan-16-2025 | 100.91 $* | 102.20 $* |
Характеристики
verified Informatio
Anlin changes the traditional shutter door motor and leads the whole industry. We invite you to join the "blue ocean plan" for win-win development.
click for details-3
 | ||
 |  |  |

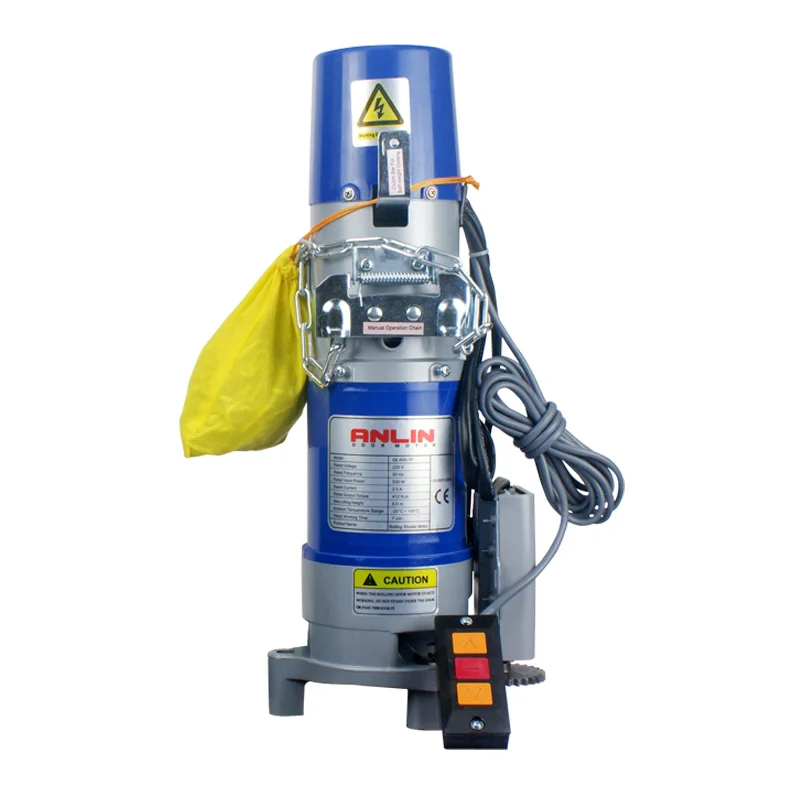

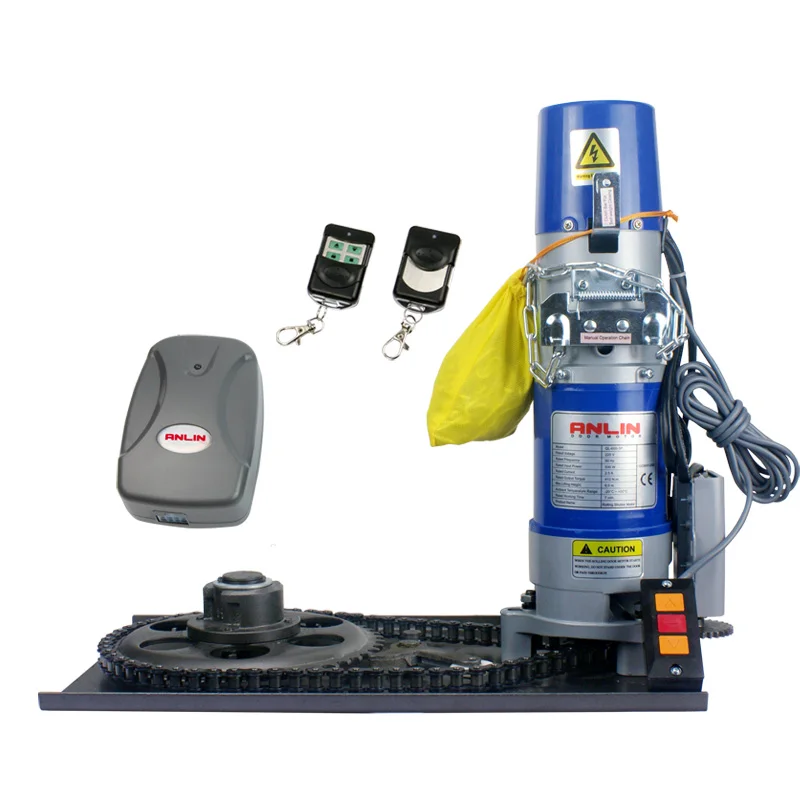

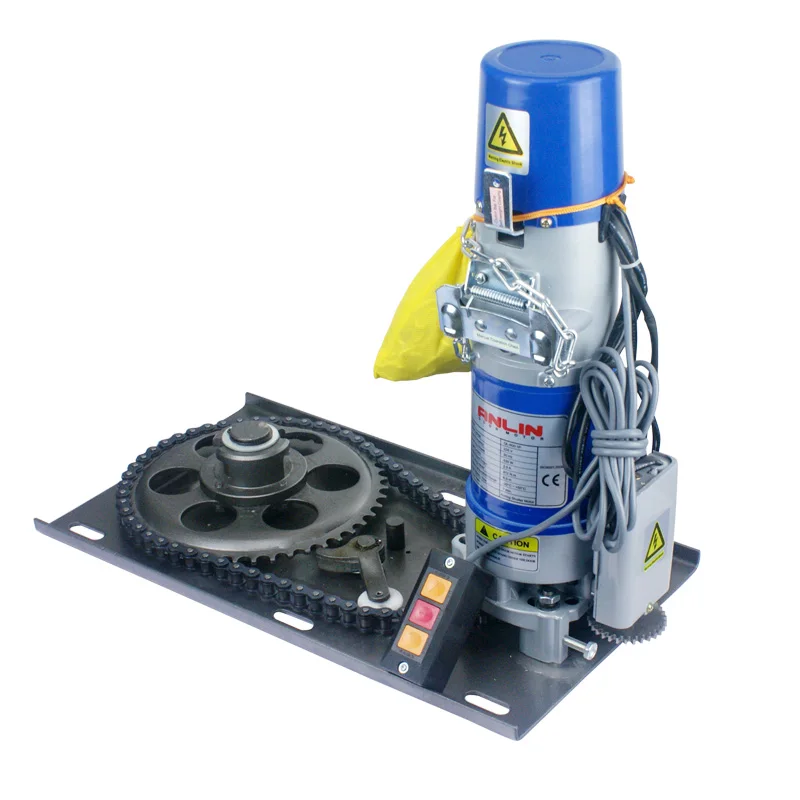

600kg Electric Gear Rolling Shutter up Door Central Operator Motor
| Technical Specifications | |||||||||
| Model | Rated Voltage | Rated Frequency | Rated Power (W) | Rated Current (A) | Lifting Force (kg.f) | Output Torque (N.m) | Rated Output Speed (r/min) | Max Lifting Height (m) | Continued Working Time(min) |
| QL-200-1P(200kg) | 220V/110V | 50Hz | 180 | 2.8 | 200 | 84 | 5 | 4 | 7 |
| QL-300-1P(300kg) | 220V /110V | 50Hz | 250 | 1.9 | 300 | 168 | 5.4 | 6 | 7 |
| QL-400-1P(400kg) | 220V /110V | 50Hz | 300 | 3.2 | 400 | 225 | 5.4 | 6 | 7 |
| QL-500-1P | 220V /110V | 50Hz | 370 | 3.3 | 500 | 343 | 5.7 | 6 | 7 |
| (500kg) | |||||||||
| QL-600-1P(600kg) | 220V /110V | 50Hz | 370 | 3.3 | 600 | 412 | 5.3 | 6 | 7 |
| QL-700-1P(700kg) | 220V/110V | 50Hz | 370 | 3.9 | 700 | 509 | 5.3 | 6 | 7 |
| QL-800-1P(800kg) | 220V /110V | 50Hz | 400 | 4.5 | 800 | 647 | 4.6 | 9 | 7 |
Automatically limiting displacement: The position is accurate and reliable, the adjustment is easy and the limiting displacement is sensitive with the large range of stroke control
This model of CE rolling shutter motors can be operated by electricity and manual. precise limit by the limiter controlled automatically. Operated by manual when out of power. Low noise, small shaking, ow power exhaustion
Braking brake: Selecting high-quality materials, friction coefficient is large and the braking position is accurate, smooth and reliable

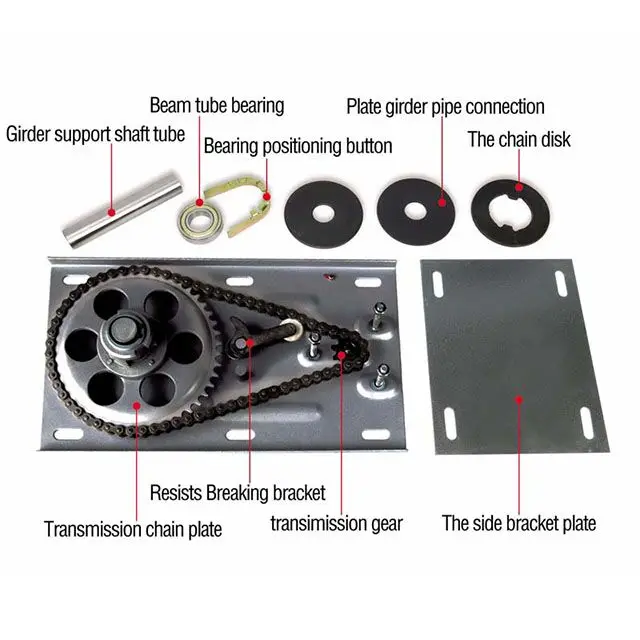

Transmission system: Running with low noise, small vibration and small power consumption.
Optional accessories
1. Add safety edge can rebound when meet obstacle
2. Add infrared sensor can stop when meet obstacle
3. Add safety edge and alarm system can sound when door is opened by thief
4. Add double hook padlock can realize the shutter door lock function
5. Add electronic double side lock can realize the shutter door lock function
