Характеристики


Product Description
\t
Specifications:UB110
\t
Automotive flame retardant wire harness tape with RohS standard
\t
Property
\t
Value
\t
Unit
\t
Test Method
\t
Total thickness
\t
0.11
\t
mm
\t
ASTM-D-1000
\t
Tensile strength
\t
18
\t
N/cm
\t
ASTM-D-1000
\t
Elongation at break
\t
220
\t
%
\t
ASTM-D-1000
\t
Voltage resistance
\t
1kV/min
\t
---
\t
JIS-C2110
\t
PVC backing thickness
\t
95
\t
mic
\t
ASTM-D-1000
\t
Temperature resistance
\t
80
\t
℃
\t
ASTM-D-1000
\t
Flame retardant
\t
B
\t
<2s
\t
ASTM-D-1000
\t
Adhesion strength
\t
\t
\t
\t
-to steel
\t
1.2
\t
N/cm
\t
ASTM-D-1000
\t
-to backing
\t
1.0
\t
N/cm
\t
ASTM-D-1000
\t
Conten of Heavy Metal
\t
\t
\t
\t
·Lead, Cadmium
\t
30
\t
ppm
\t
US EPA3052
\t
·Mercury, Chromium
\t
10
\t
ppm
\t
US EPA3060A
\t
·Polybrominated biphenyl
\t
10
\t
ppm
\t
US EPA3540C
\t
This series wire harness tape is Rohs listed prodcut with B grade flame retardant.
Data in table represent average test results and are not to be used for specification purposes.
The product user should make his/her own tests to determine the product's suitability for the intended use.

Description for Automotive flame retardant wire harness tape with RohS standard.

-Thin premium grade plasticized PVC film backing

-Aggressive rubber based adhesive

-Suitable for continuous use at 80℃

-Good electric resistance

-Soft property

-Chemical substances and humidity resistance

-Complies with RohS requirements

-With flame retardant grade B.

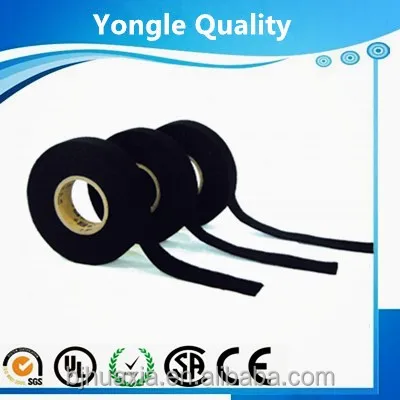

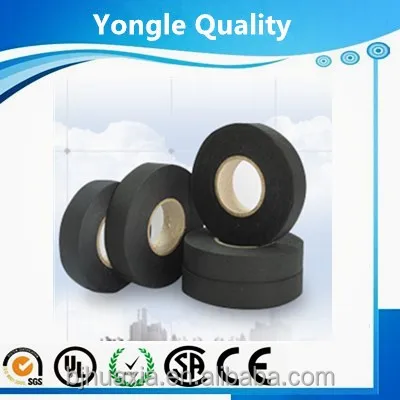

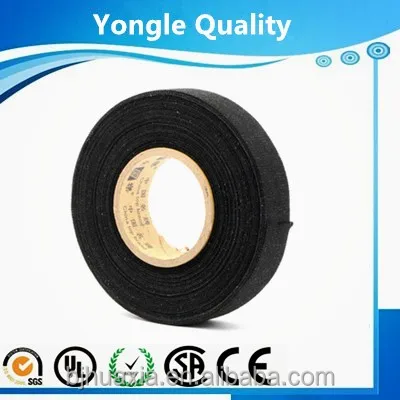

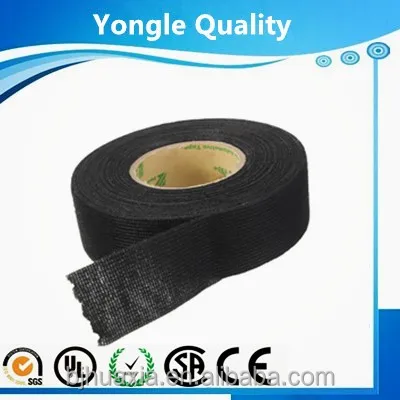

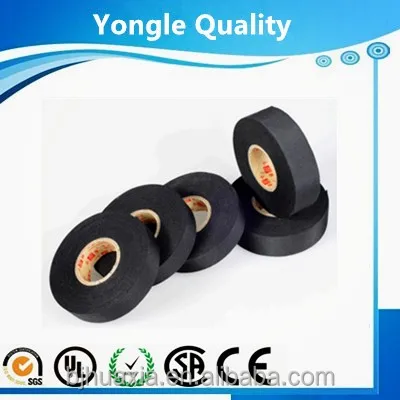

Detailed Images

This series of products are approved by SVW, VOLVO and FAW-VW.

Standard sizes for Automotive flame retartant wire harness tape

Width             Length                Core

19mm            20m                     32mm

19mm            25m                     32mm

Other sizes and cores are available, please contact with us.

Series Products for Automotive flame retardant wire harness tape

\t
Product
code
\t
Total
thickness(μm)
\t
Backing
material
\t
Backing
thickness(μm)
\t
Tensile
strength(N/cm)
\t
Elongation (%)
\t
180° peel of strength
To steel(N/cm)
\t
180° peel of strength
To backing(N/cm)
\t
Voltage
Resistance
\t
Continuous operating
temperature (℃)
\t
UB085
\t
85
\t
PVC
\t
75
\t
16
\t
200
\t
1.2
\t
1.0
\t
1kV/min
\t
80
\t
UB100
\t
100
\t
PVC
\t
85
\t
17
\t
210
\t
1.2
\t
1.0
\t
1kV/min
\t
80
\t
UB110
\t
110
\t
PVC
\t
95
\t
18
\t
220
\t
1.2
\t
1.0
\t
1kV/min
\t
80
\t
UB120
\t
120
\t
PVC
\t
105
\t
19
\t
220
\t
1.2
\t
1.0
\t
1kV/min
\t
80
\t
UB130
\t
130
\t
PVC
\t
115
\t
21
\t
230
\t
1.2
\t
1.0
\t
1kV/min
\t
80
\t
UB150
\t
150
\t
PVC
\t
135
\t
23
\t
250
\t
1.2
\t
1.0
\t
1kV/min
\t
80
\t
UB180
\t
180
\t
PVC
\t
165
\t
28
\t
250
\t
1.2
\t
1.0
\t
1kV/min
\t
80
\t
UB280
\t
280
\t
PVC
\t
265
\t
35
\t
250
\t
1.0
\t
1.0
\t
1kV/min
\t
80
\t
Complies with ROSH requirements and flame retardant grade B.

Recommended uses for Automotive flame retardant wire harness tape

Used as permanent wrapping on cables and wiring harnesses for automobile.

Used in the wrapping and protection of automotive wire harnesses

The recommended application method is with a 50% overlap and don't apply over tension at last layer.

Packing & Delivery

We could provide Individual package with label and 10rolls/shrink, 60roll/ctn

Economical package, 10 or 6 per plastic film coil.

The OEM package is available, please contact with me.
