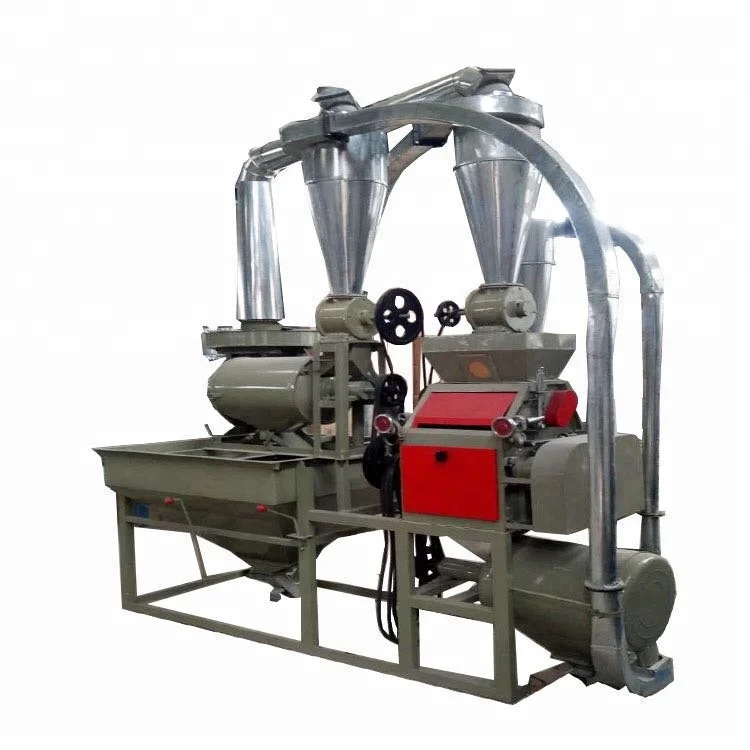

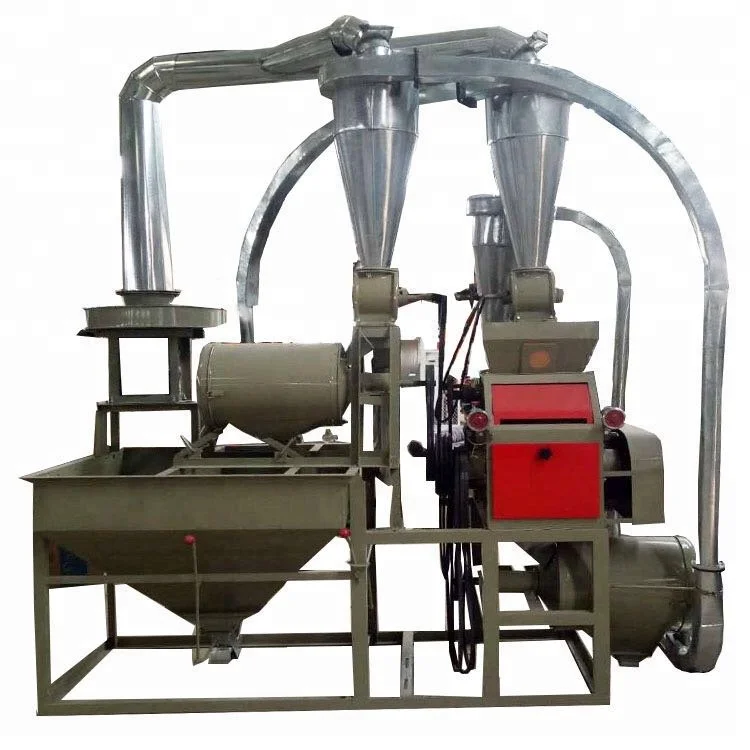

product  presentation

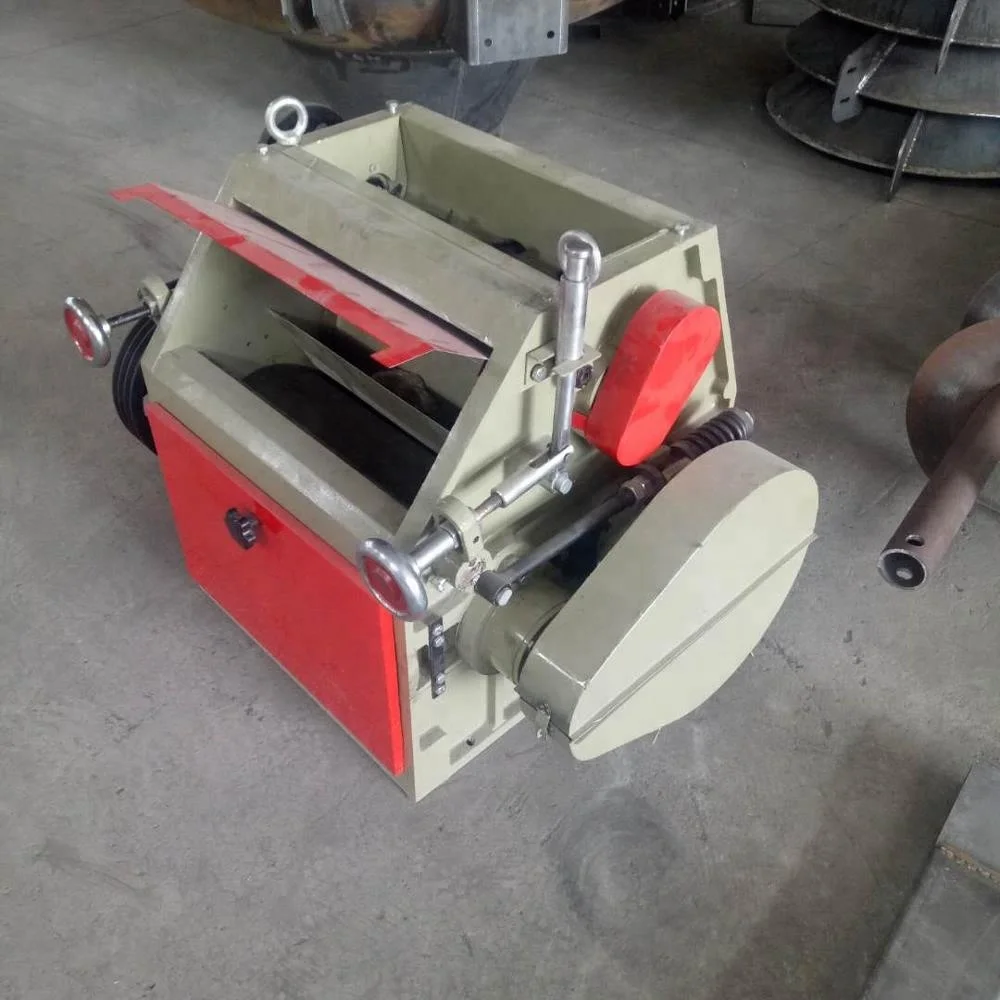

The grinding of wheat is mainly done by grinding machines.Wheat strip away the use of mechanical strength, the endosperm scraped from the dander, and grinding endosperm into ground into a fine powder, this is one of the main coal pulverizing process, flour mill upper and lower, upper part for feeding, the lower is the roller, or by a pair of gear pair gear differential rotation synchronous belt, driving roller, break the supplies, peeling, scraping and research, such as function, achieve the goal of grinding.The degree of grinding of materials can be achieved by adjusting the gap between grinding rollers. At last, the handle is pulled to separate the gate plate to separate the two rollers, and the feeder structure automatically stops feeding.





product structure





Technical parameters

Item	content	data
1	Roller diameter	220mm
2	Roller length	350mm ,400mm,500m
3	Alloy layer hardness	HRC49-54
4	number of  teeth	18-22tooth/25.4mm,The machine is manufactured for 20 teeth
5	the tooth type  angle(fornt/back angle)	35°/65° 40°/70°  The machine is manufactured at 40 °/ 70°
6	Tooth pitch	1:7;1:8;1:10;
7	minimum  roll  diameder	194mm
8	power(kw)	main engineY132M-4-7.5,fan B type  Y905-2-1.5C,D type,TGOL-2-2.2
9	roll speed	≤7.2/s
10	Speed ratio	2.5:1
11	Average productivity(The processing of wheat)	>300kg/n  >400kg/n
12	power consumption(Degree/tons of powder)	<30°/t powder
13	external dimension	3100x1300x2900
14	Round sieve specifications	30x530 standard flour90list



Advantage

1,Energy - saving power, small footprint;

2,Good quality,high efficiency;

3,Easy operation ,long service life;

4,functional diversity ,Smooth and steady operation.





 certificate

About us

Luohe wanyi grain machinery co., LTD., after decades of development, has now become a well-known Chinese grain and oil machinery manufacturing enterprises, now can produce more than 60 series, more than 300 kinds of specifications of the various types of grain and oil processing machinery (including wheat machining, corn processing, pepper, sesame cleaning, garlic grain crushing processing, wine, and oil press, etc.), flour machine, conveying equipment, agricultural machinery, food machinery, construction machinery and mixing machinery, etc.We also undertake the turnkey project of complete sets of 10 ~ 1000 tons/day grain processing and 5 ~ 12 tons/hour seed processing. Our products sell well in more than 30 provinces, cities and districts in China, and are exported to dozens of countries and regions such as southeast Asia, Africa, Europe and America.The company has invested a large sum of money to purchase large and medium-sized imported CNC laser cutting machines, CNC bending machines, CNC machining centers, numerical control lathes, numerical control boring machines, electrostatic spraying production lines and other advanced processing equipment, ensuring the most stable and reliable product quality....



 FAQ

1,The  payment? our company accept L/C,TT;

2,The delivery time ?Generally speaking, the products will be delivered within ten to thirty days;

 3,The quality of our products?Welcome our company to inspect the goods, we will also provide customers with video materials and product pictures;

 4,Equipment warrant? oneyear.
