TK-7Y регулятор солнечного нагрева воды под давлением
US $10.00-$30.00

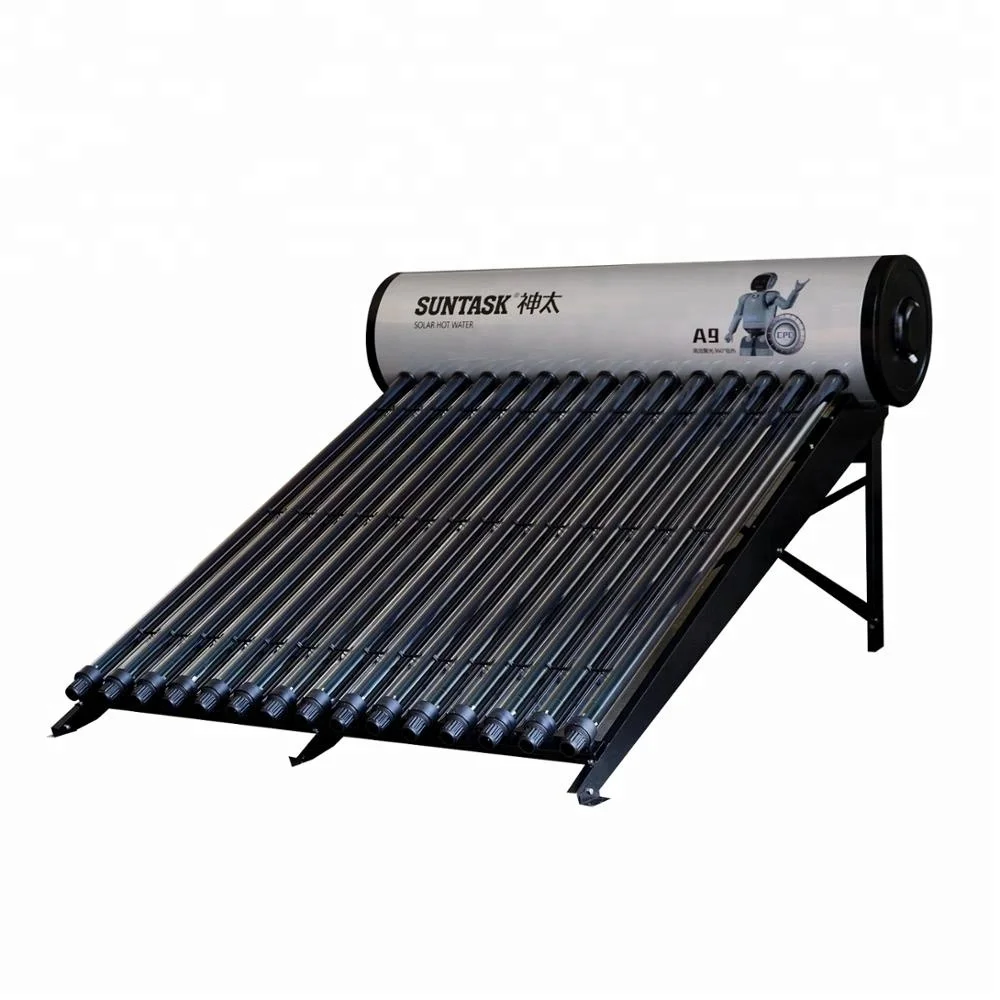

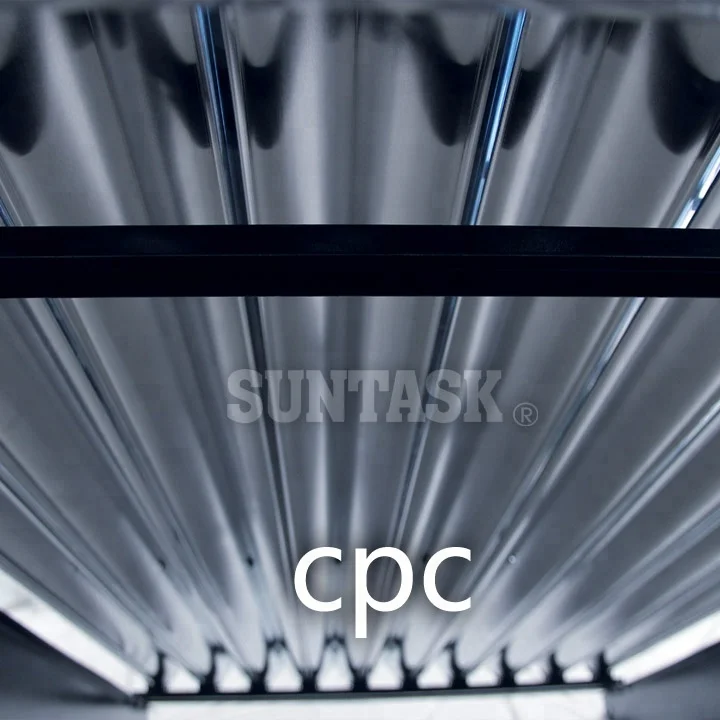

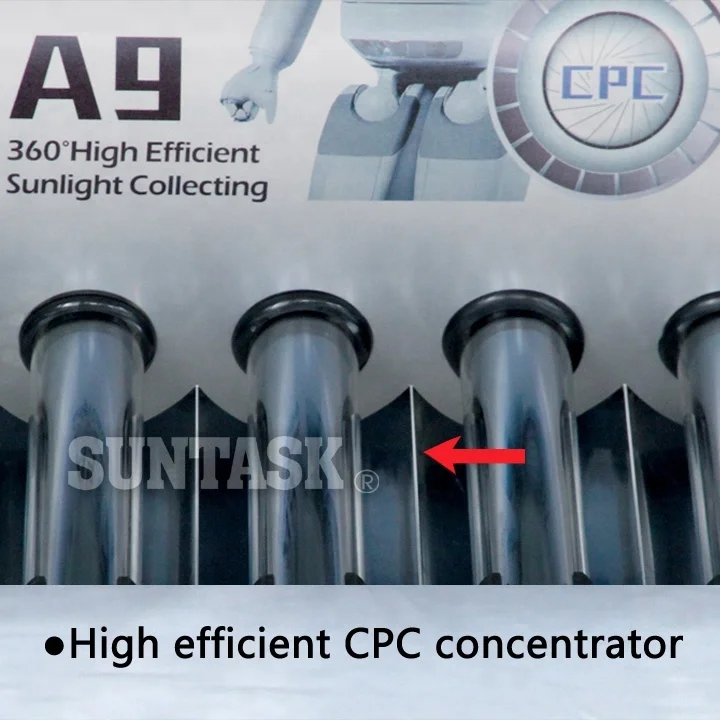

Parabolic Curve Sunlight Concentrator Compact Solar Hot Water Heater with EN12976 Keymark
- Категория: Солнечные водонагреватели >>>
- Поставщик: Zhejiang,Shentai,Solar,Energy,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 24588.8 $* | 25817.63 $* |
| Aug-18-2025 | 24381.51 $* | 25600.44 $* |
| Jul-18-2025 | 20455.33 $* | 21478.51 $* |
| Jun-18-2025 | 23968.45 $* | 25166.10 $* |
| May-18-2025 | 20869.46 $* | 21912.76 $* |
| Apr-18-2025 | 23555.10 $* | 24733.73 $* |
| Mar-18-2025 | 23348.74 $* | 24515.45 $* |
| Feb-18-2025 | 23141.77 $* | 24298.60 $* |
| Jan-18-2025 | 22935.48 $* | 24082.52 $* |
Характеристики
Product Category
Product Show
Specifications
| inner tank | SUS316L stainless steel (1.2mm) |
| outer tank | PVDF 0.4mm which is good at anti corrosion |

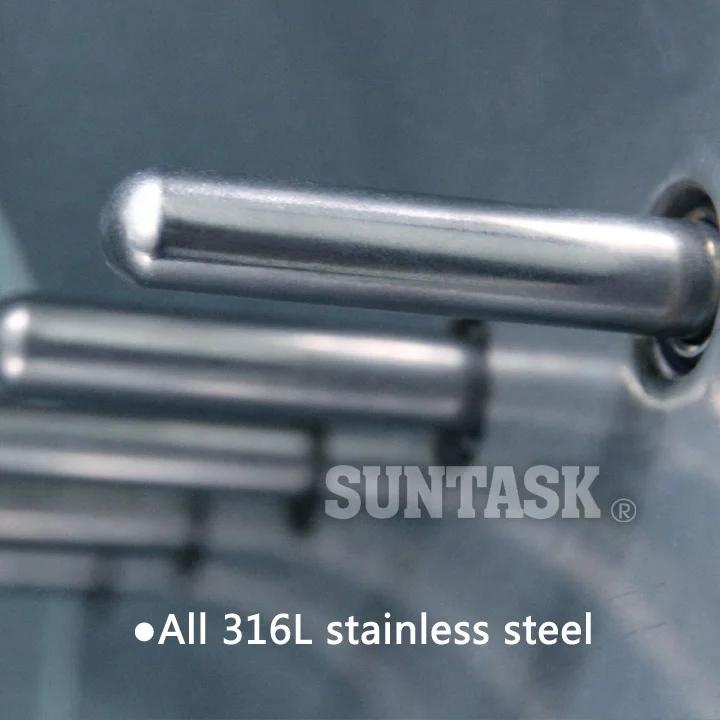

| Socket | Stainless steel 316L |
| insulation | polyurethance Foam 45mm |
| frame | galvanized steel |
| glass tube dimensions | 58mm * 1800mm |
| coating of vacuum tube | ALN/AIN-SS/CU |
| heat pipe | anti-freezing > -35 degree |
| daily efficiency | ≥55% |
| heat preservation | 72 hours |
| hail resistance | 25mm |
| max pressure | 7 bar |
Series Products
| Models | L*W*H mm | Heat Pipe Vacuum Tube | Tank Capacity | Tube distance | Socket | Frame | Inner Tank | Outer Tank | GW (kg) | Qty(set) | |||||||||
| 20'FT | 40'HQ | ||||||||||||||||||
| A9H8 | 1080*1987*1200 | 58*1800*8pcs | 100L | 110mm | 316L | gal. steel | SUS316 1.2mm | PVDF 0.4mm | 55 | 61 | 150 | ||||||||
| A9H10 | 1300*1987*1200 | 58*1800*10pcs | 120L | 110mm | 85 | 50 | 120 | ||||||||||||
| A9H12 | 1520*1987*1200 | 58*1800*12pcs | 150L | 110mm | 100 | 38 | 91 | ||||||||||||
| A9H15 | 1850*1987*1200 | 58*1800*15pcs | 200L | 110mm | 150 | 26 | 64 | ||||||||||||
| A9H20 | 2400*1987*120 | 58*1800*20pcs | 300L | 110mm | |||||||||||||||
Trade Terms
| Payment | T/T with 30% deposit, balance against the copy of B/L 100% T/T in advance for sample |
| MOQ | 1 Set |
| Loading port | Shanghai / Ningbo |
| Package | Standard carton |
| Delivery | 7-10 days after payment for sample 15-20 days after payment for container |
