Профессиональный испытательный стенд двигателя для проверки бензиновых и дизельных
- Категория: Испытательное оборудование >>>
- Поставщик: Jiangsu Lanmec Electromechanical Technology Co., Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 2359885.59 $* | 2407083.49 $* |
| Jul-20-2025 | 1913922.6 $* | 1952200.52 $* |
| Jun-20-2025 | 2322721.7 $* | 2369175.65 $* |
| May-20-2025 | 2304139.96 $* | 2350222.43 $* |
| Apr-20-2025 | 1839595.71 $* | 1876387.86 $* |
| Mar-20-2025 | 2266976.79 $* | 2312316.61 $* |
| Feb-20-2025 | 2248394.35 $* | 2293362.26 $* |
| Jan-20-2025 | 2229812.73 $* | 2274408.27 $* |
Характеристики
Product Categories
Product Description

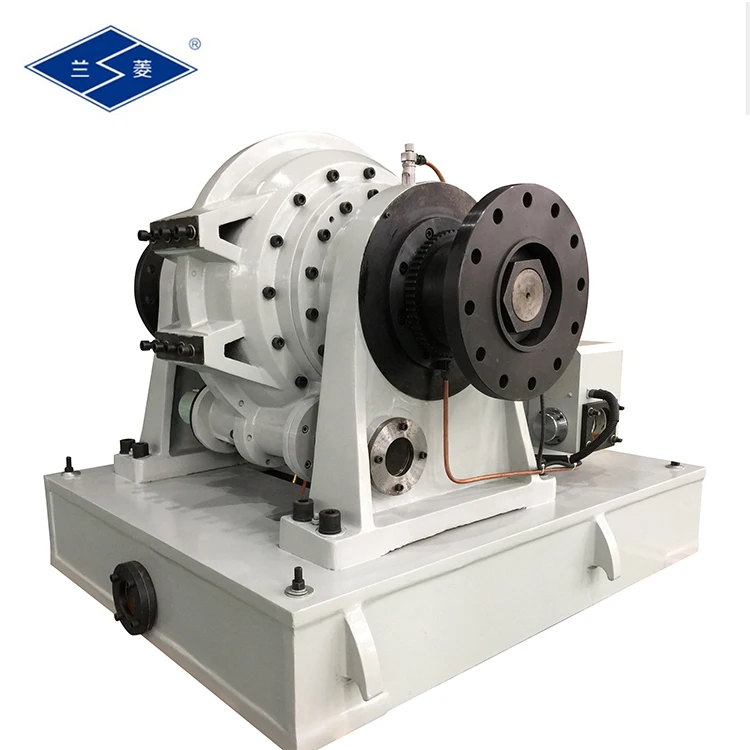

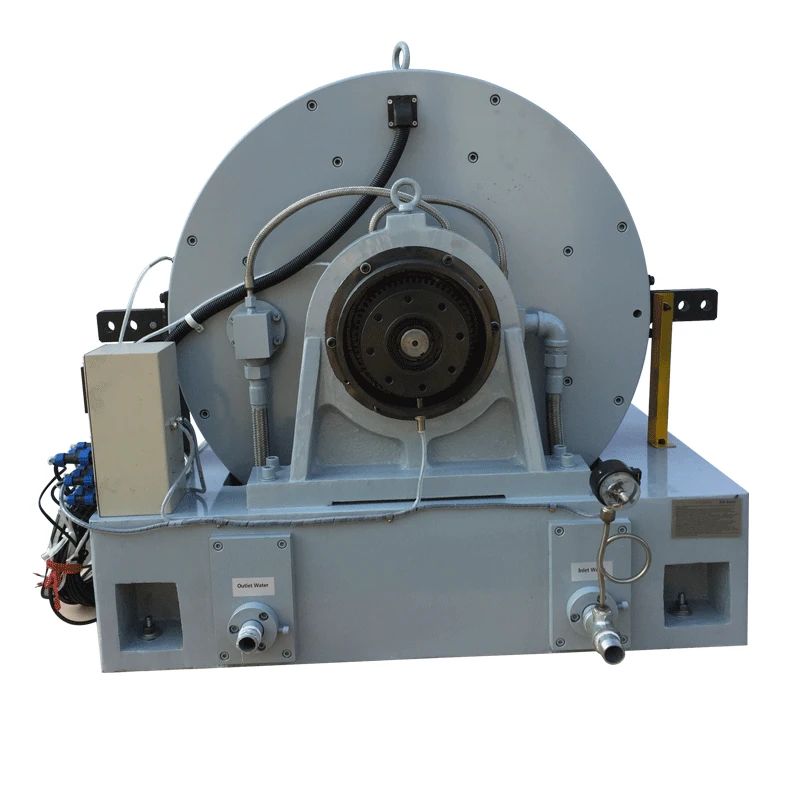

professional test bench engine
Product details
| dynamometer | DW300 |
| Rated power | 300kw |
| Rated torque | 1600N.m |
| Rated speed | 2000-2600r/mn |
| Maximum speed | 6000r/min |
| turning inertia | 2.7kgm2 |
| Maximum excitation voltage | 150V DC |
| Maximum excitation current | 5A DC |
| Cooling water pressure | 0.2~0.4MPa |
| Cooling water flow | 210 L/min |
Main features
it has the advantages of simple structure, stable operation, low price, convenient use and maintainance.
water cooling, low noise, small vibration.
input speed wide range (200-3600r/min)
excitation control power is small, adopt single-phase DC power supply.
supporting with dynamometer system, can realize automation control.
used as a brake, has advantages of large braking force and stable performance etc..
![test bench engine]()
![test bench engine]()
![test bench engine]()
![test bench engine]()
Related Products![test bench engine]()
ApplicationMain application
DWZ disc eddy current brake is mainly used as load in loading dynamometer equipment. it is experimental apparatus which can measure the dynamic mechanical properties, especially in dynamic loading test whose power value is small or tiny, also can be treated as suction power devices of other dynamic devices.
DW series disc eddy current dynamometer is, is that add device for measuring torque and rotational speed on DWZ series disc eddy current brake, it is experimental apparatus which can measure the dynamic mechnical properties, especial in dynamic loading test whose power value is small or tiny.
CW eddy current brake as a load is mainly used to measure the mechanical characteristics of inspection equipment, it and other control instrument (including loading apparatus, torque speed sensor and torque power acquisition instrument etc.) can be composed of eddy current dynamometer can be used for performance testing of the internal combustion engine, motor, gas turbine, automobile and its dynamic mechanical components, compared with other power measuring device, the CW series power measuring device has the advantages of reliability, high stability and practicability.
![test bench engine]()
