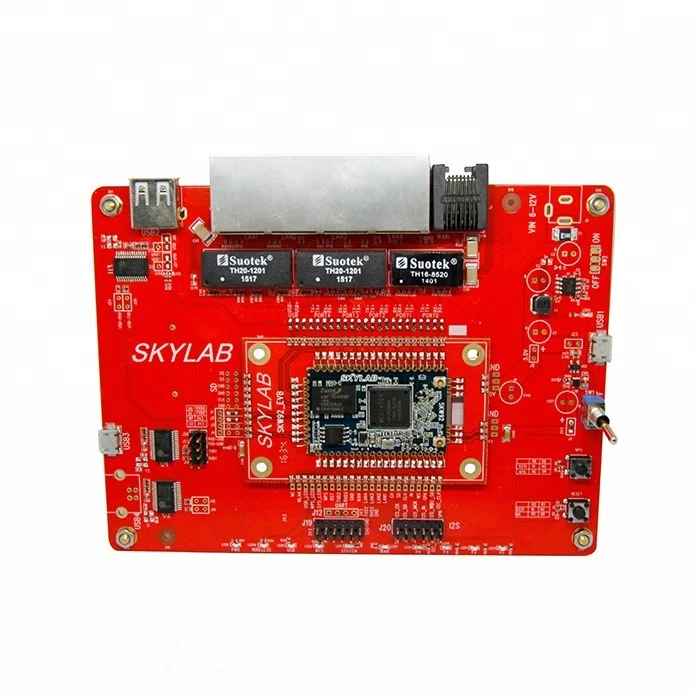

SKYLAB Mt7628N макетные наборы Wifi модуль EVK EVB макетная
- Категория: Интегральные схемы >>>
- Поставщик: Skylab,M&C,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 5.26 $* | 5.6 $* |
| Aug-16-2025 | 5.14 $* | 5.89 $* |
| Jul-16-2025 | 4.29 $* | 4.78 $* |
| Jun-16-2025 | 5.41 $* | 5.0 $* |
| May-16-2025 | 4.60 $* | 4.42 $* |
| Apr-16-2025 | 5.88 $* | 5.98 $* |
| Mar-16-2025 | 5.44 $* | 5.71 $* |
| Feb-16-2025 | 4.75 $* | 4.32 $* |
| Jan-16-2025 | 4.89 $* | 4.16 $* |
Характеристики
Product Description
1 General Description

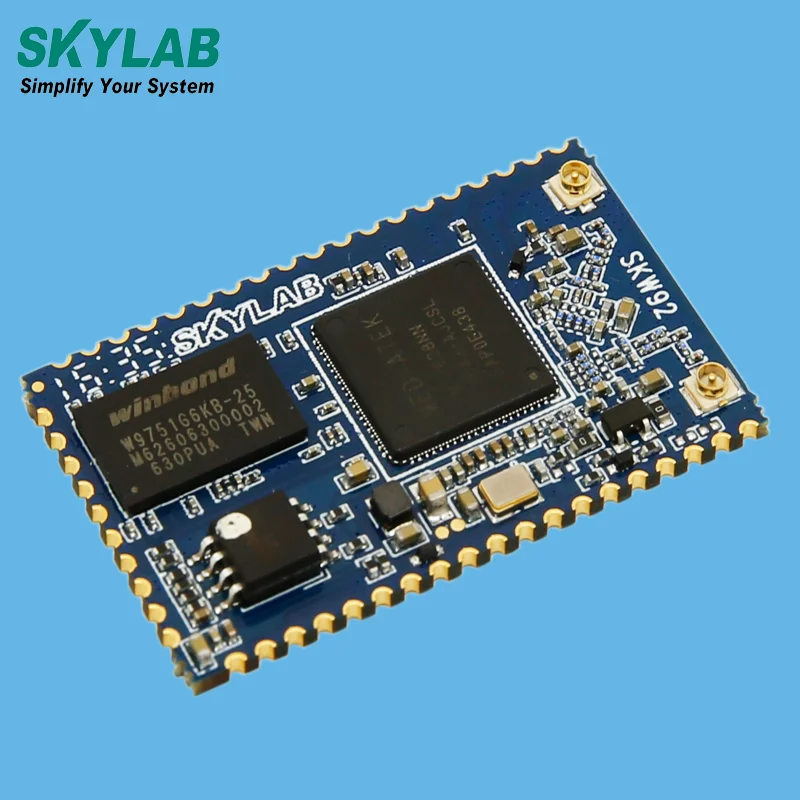

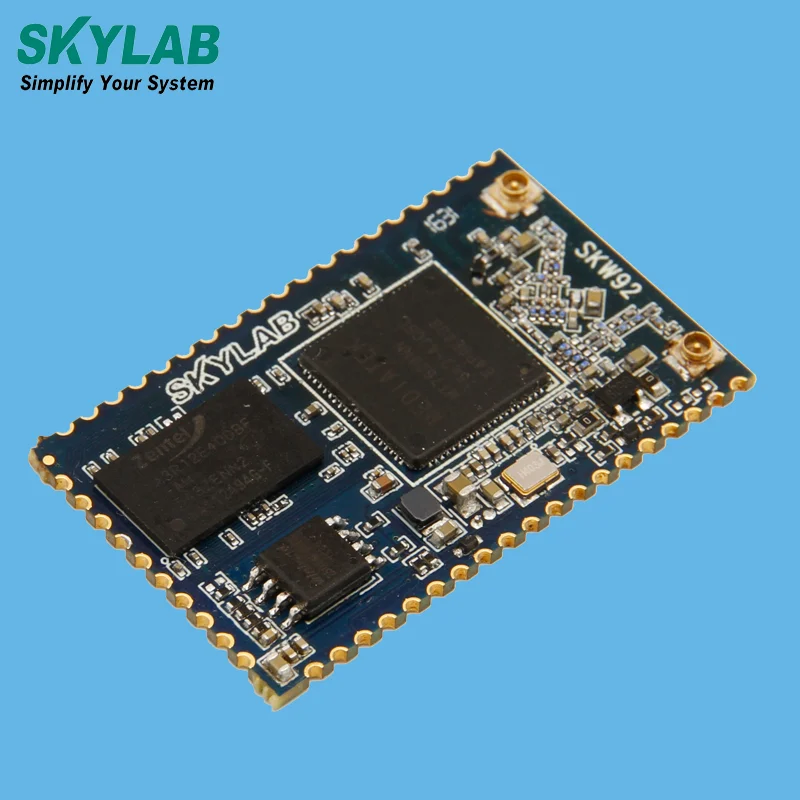

The SKW92A module includes an 802.11n MAC and baseband, a 2.4GHz radio and FEM, a 580MHz MIPS CPU,
a 5-port 10/100 fast Ethernet switch. Solution for low power, low-cost, and highly integrated AP router and
consumer electronic devices, the module requires only an external 3.3V power supply. It supports 802.11n
operating up to 144 Mbps for 20 MHz and 300 Mbps for 40 MHz channel respectively, and IEEE 802.11b/g data
rates.
The module supports bridge mode and AP Client mode and Gateway mode. The high performance Module can
process advanced applications effortlessly, such as routing, security and VoIP. It also includes a selection of
interface to support a variety of applications, such as a USB port for accessing external storage and 3G/TLE
modem. Especially in the IOT, a wide range of applications.
The SKW92A module includes an 802.11n MAC and baseband, a 2.4GHz radio and FEM, a 580MHz MIPS CPU,
a 5-port 10/100 fast Ethernet switch. Solution for low power, low-cost, and highly integrated AP router and
consumer electronic devices, the module requires only an external 3.3V power supply. It supports 802.11n
operating up to 144 Mbps for 20 MHz and 300 Mbps for 40 MHz channel respectively, and IEEE 802.11b/g data
rates.
The module supports bridge mode and AP Client mode and Gateway mode. The high performance Module can
process advanced applications effortlessly, such as routing, security and VoIP. It also includes a selection of
interface to support a variety of applications, such as a USB port for accessing external storage and 3G/TLE
modem. Especially in the IOT, a wide range of applications.
2 Applications
◆ USB WiFi Camera
◆ IOT (internet of things)
◆ WiFi AP
◆ 3G/4G Wi-Fi Router
◆ WiFi Repeater
◆ Building Automation
◆ Home Automation
◆ Smart Home Gateway
◆ Industry Control
◆ USB WiFi Camera
◆ IOT (internet of things)
◆ WiFi AP
◆ 3G/4G Wi-Fi Router
◆ WiFi Repeater
◆ Building Automation
◆ Home Automation
◆ Smart Home Gateway
◆ Industry Control
3 Features
◆ Compliant to IEEE 802.11b/g/n.
◆ 2T2R mode with support for a 300Mbps PHY data rate.
◆ DDR2 memory up to 1024Mb.
◆ Flash memory up to 256Mb.
◆ 4 LAN ports and 1 WAN port.
◆ Support USB 2.0 slave device for USB disk and USB 3G/4G dongle and USB camera.
◆ Support SD card.
◆ Support interface: I2C, PCM, I2S(192K/24bits), PWM, SPI slave, UART lite, GPIO.
◆ Security: WEP64/128, TKIP, AES, WPA, WPA2, WAPI.
◆ Support AP/Client/Router mode.
◆ RoHS compliance meets environment-friendly requirement.
◆Conform to FCC/CE/IC/RoHS certification standards.

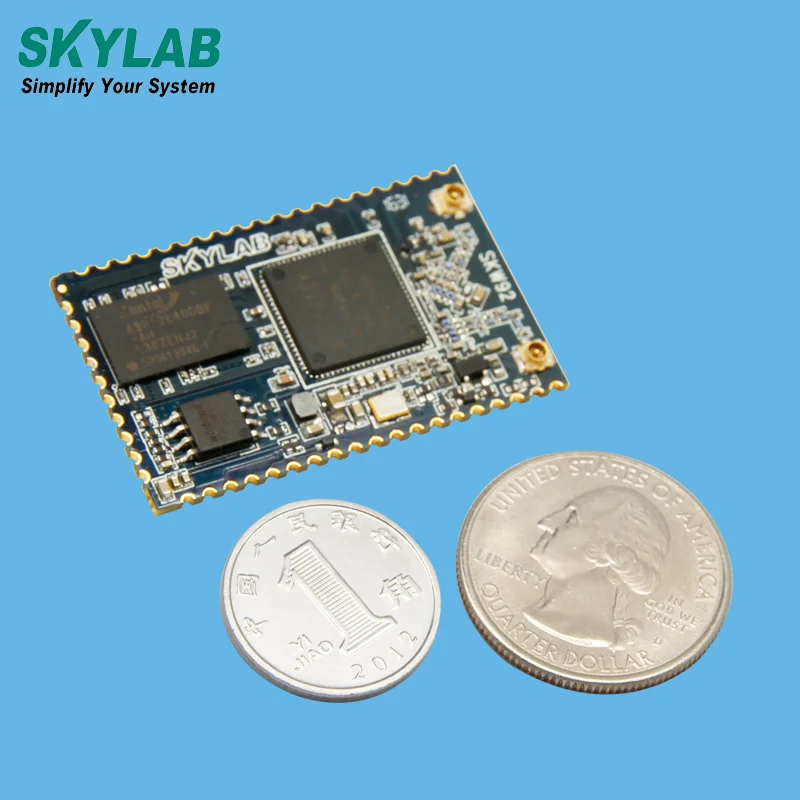

◆ 40.5mm(L) x 25mm(W) x 3.0mm(H) dimension.
◆ Compliant to IEEE 802.11b/g/n.
◆ 2T2R mode with support for a 300Mbps PHY data rate.
◆ DDR2 memory up to 1024Mb.
◆ Flash memory up to 256Mb.
◆ 4 LAN ports and 1 WAN port.
◆ Support USB 2.0 slave device for USB disk and USB 3G/4G dongle and USB camera.
◆ Support SD card.
◆ Support interface: I2C, PCM, I2S(192K/24bits), PWM, SPI slave, UART lite, GPIO.
◆ Security: WEP64/128, TKIP, AES, WPA, WPA2, WAPI.
◆ Support AP/Client/Router mode.
◆ RoHS compliance meets environment-friendly requirement.
◆Conform to FCC/CE/IC/RoHS certification standards.
◆ 40.5mm(L) x 25mm(W) x 3.0mm(H) dimension.
Specification
item | value |
Model Number | SKW92A |
Brand Name | SKYLAB |
Place of Origin | China |
Brand | wifi module |
Type | Development kits |
Power Supply | 3.3V |
Compliant to | IEEE 802.11b/g/n |
Security | WEP64/128, TKIP, AES, WPA, WPA2, WAPI |
OS Support | Windows XP 32/64 2000 Vista 32/64bit Windows 7 32/64bit Linux Android |
Certificate | CE, FCC, RoHS |
Transmission Distance | Up to 150M |
Frequency Range | 2.4Ghz-2.5Ghz |
Function | programming and debugging modules |
