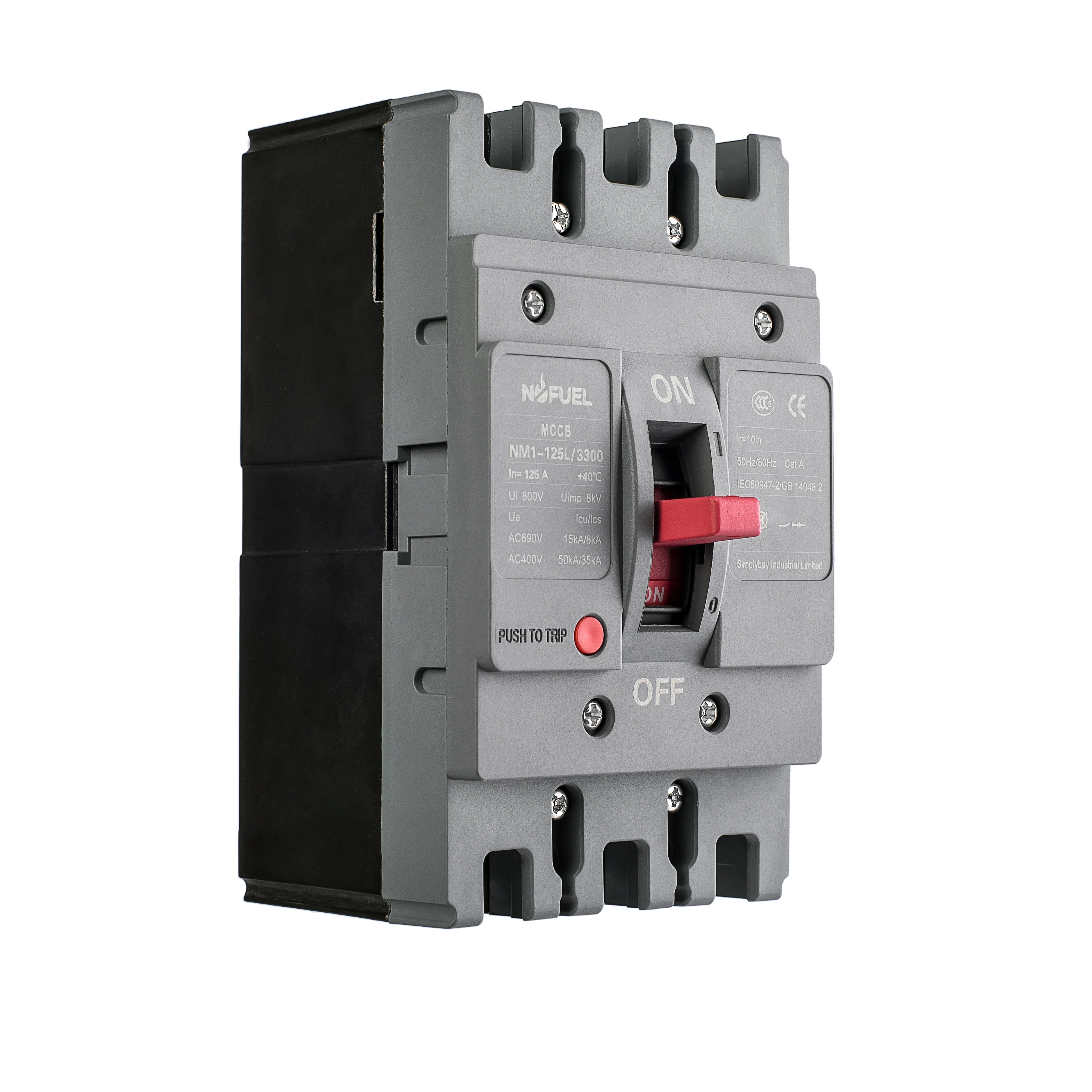

Автоматический выключатель Nofuel в литом корпусе компактный 3P NM1- 125L 125M 125H Номинальный ток 25A 32A 40A 50A 63A 80A 100A
- Категория: Выключатели >>>
- Поставщик: Simplybuy,(shanghai),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.34 $* | 0.55 $* |
| Aug-16-2025 | 0.6 $* | 0.17 $* |
| Jul-16-2025 | 0.94 $* | 0.38 $* |
| Jun-16-2025 | 0.4 $* | 0.86 $* |
| May-16-2025 | 0.74 $* | 0.32 $* |
| Apr-16-2025 | 0.98 $* | 0.39 $* |
| Mar-16-2025 | 0.50 $* | 0.28 $* |
| Feb-16-2025 | 0.32 $* | 0.50 $* |
| Jan-16-2025 | 0.34 $* | 0.29 $* |
Характеристики
SimplyBuy Industrial Supply All original Breakers

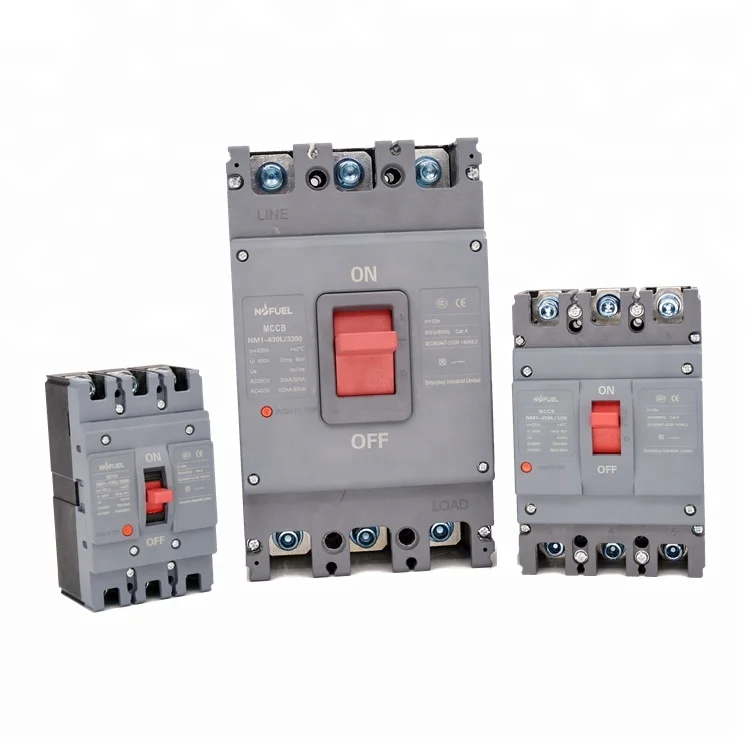

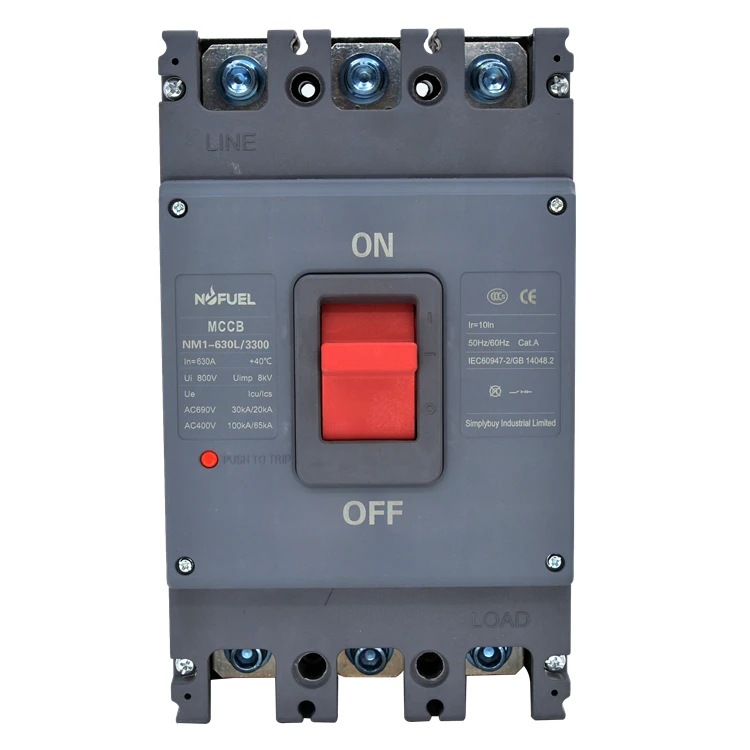

Nofuel NM1 Series Compact Moulded Case Circuit Breaker
Compact NM1 Series Moulded case circuit breaker MCCB
It is supplied with rated insulation voltage 800V andused for circuit of AC 50Hz, rated operation voltage AC 400V or below rated operation current upto 630A for infrequent changing over and starting of the motors. Equipped with the protection devices for over-current, short circuit and under voltage, the product is capable of preventing damage of circuits and supply units. The product conforms to IEC60947-2 standard.
Typpe | NM-125 | NM1-250 | NM1-400 | NM1-630 | |||
Rated current In(A) | 16...100A | 16...225A | 63...400A | 315...630A | |||
Number of poles | 3 | 1 | 3 | 3 | 3 | ||
Rated voltage Ue(V) | AC-380V-690V DC250 | ||||||
Rated insulation Voltage Ui(V) | AC690V | ||||||
Short-circuit Interrupting capacity Icu/Ics |
AC | 690V | - | 14/7 | 35/18 | 35/18 | |
500V | - | 14/7 | 35/18 | 35/18 | |||
440V | 20/10 | 50/25 | 100/75 | 100/75 | |||
415V | 25/13 | 70/70 | 100/75 | 100/75 | |||
380V | 25/13 | 70/70 | 100/75 | 100/75 | |||
230V | 65//33 | 100/100 | 200/150 | 200/150 | |||
DC | 250V | 10/5 | 20/10 | 20/10 | 20/10 | ||
Dimensions(mm)
| a | 77 | 35 | 105 | 140 | 210 | |
b | 124 | 153 | 258 | 275 | |||
c | 67 | 86 | 104 | 111 | |||
ca | 77 | 108 | 138 | 168 | |||
Weight(kg) | 1 | 0.7 | 2.4 | 6.1 | 9.4 | ||
Electrical-operation device |
|
|
|
| |||
Automatic tripping device | Thermal-magnetic | Thermal-magnetic | Thermal-magnetic | Thermal-magnetic | |||
