Новые инструменты для развальцовки конусного типа набор труб или инструмент медной

 HBS flaring tools, copper piper expander, tube expander for refrigeration

Quick description

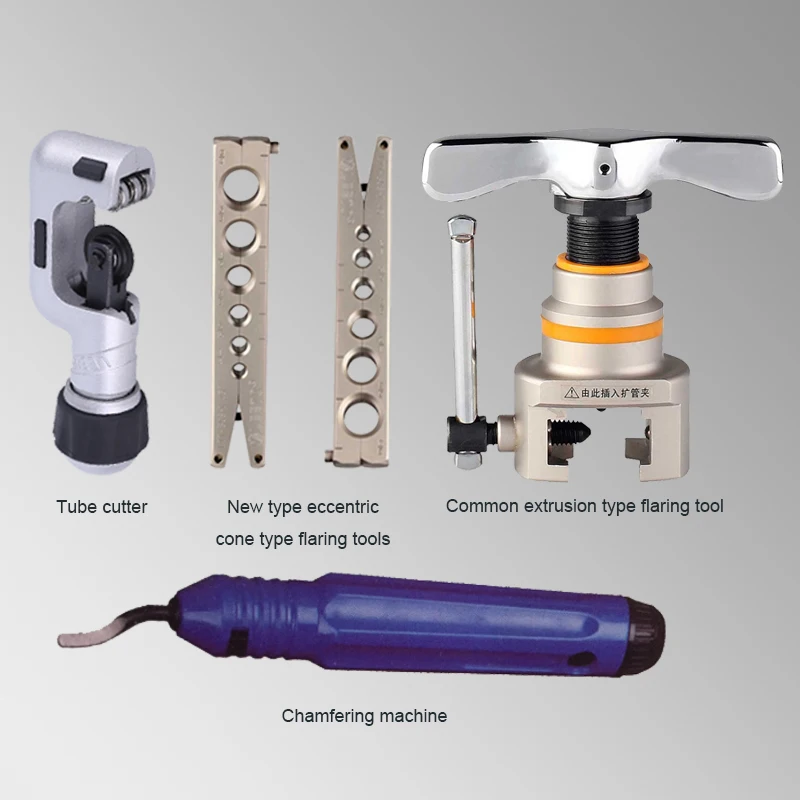

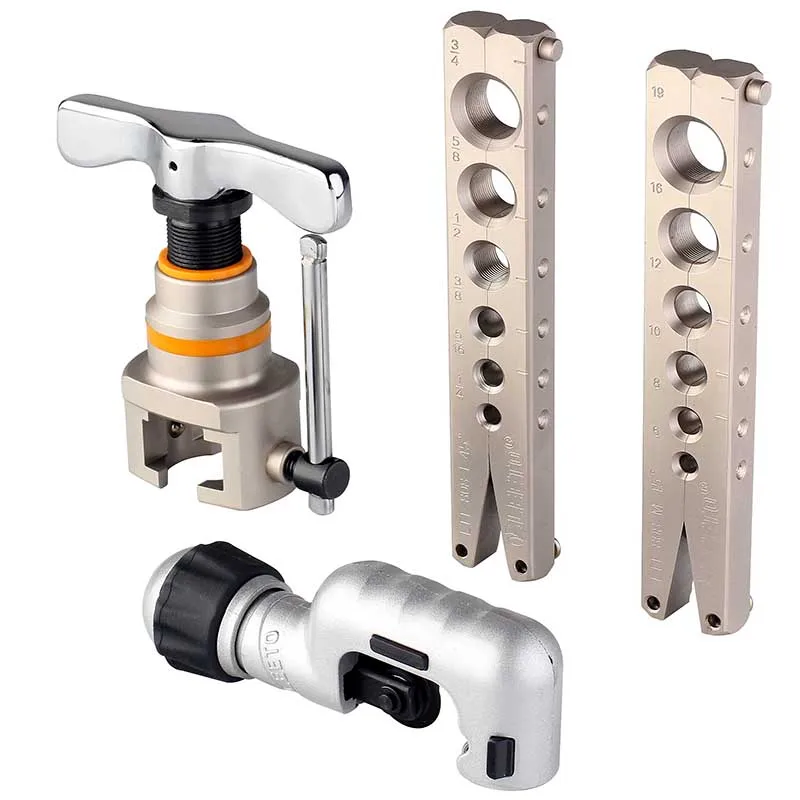

The tube flaring kit is used as tube expander ,brake line bubble flaring tool, and car or air conditioner repairing tools.

Durable material with 6 levers. The combination of tube flaring tool and swaging kit meets all your demand. Portable package design.

Description:

The pipe flaring tool, also known as tube expander,pipe swaging tool, is used for cutting and swaging the copper joint. It is widely applied in the fields including air conditioning installation , car and other machine maintenance.

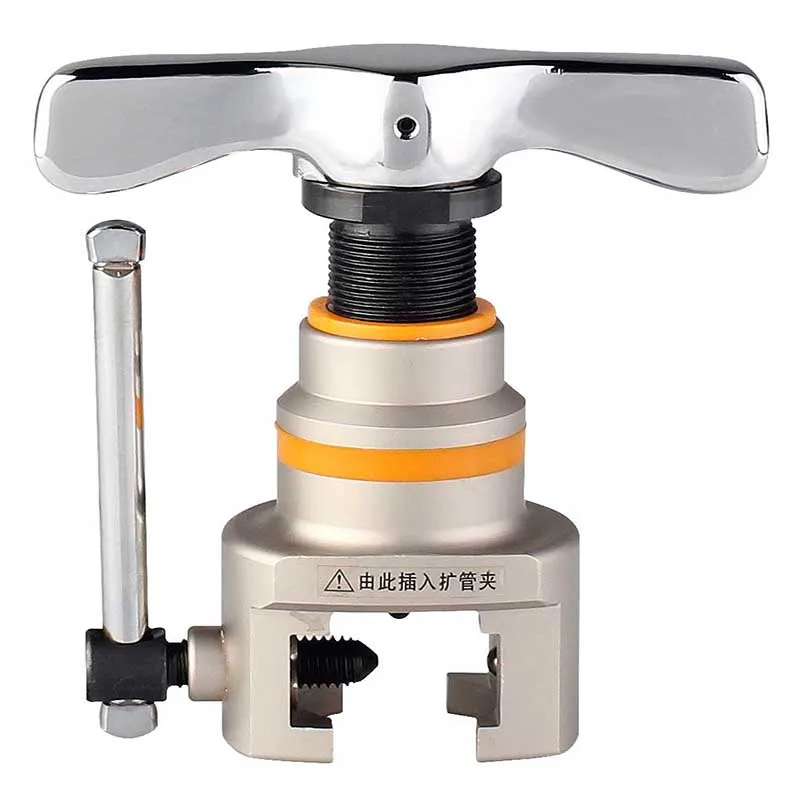

Pipe expander Flaring tools feature:

1. Flaring trip ring riveting process ensures long and reliable use.

2. Circular arc transition of flaring nozzle , makes the copper tube will not be broken  after used long time.

3. Ergonomic design handle, comfort and effort.

4. Ring riveting, accurate flaring tube.

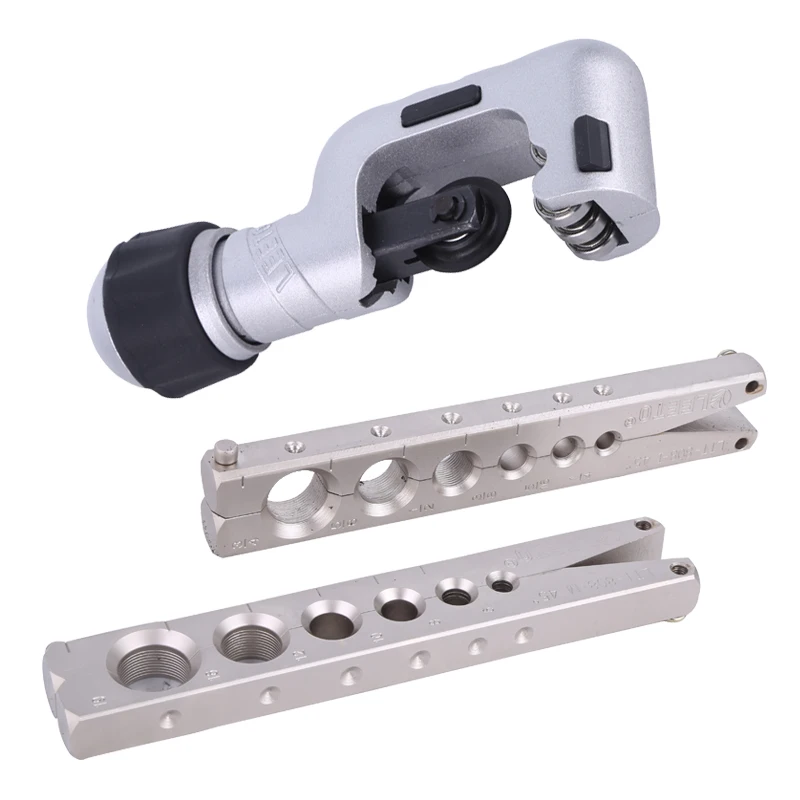

Function of tube cutter:

1. Alloy steel sharp blade and intelligent ball bearing design can cut the pipe more effectively.

2. High precision ball bearing, high quality pipe cutting.

How to use a flaring tool to expand a tube (operation ):

1. Used for copper tube expanding to bell mouth, so that the indoor and outdoor units of the split type air conditioner will be connected through piping.

 2. When flaring, attach the coupling nut to the annealed copper pipe first,

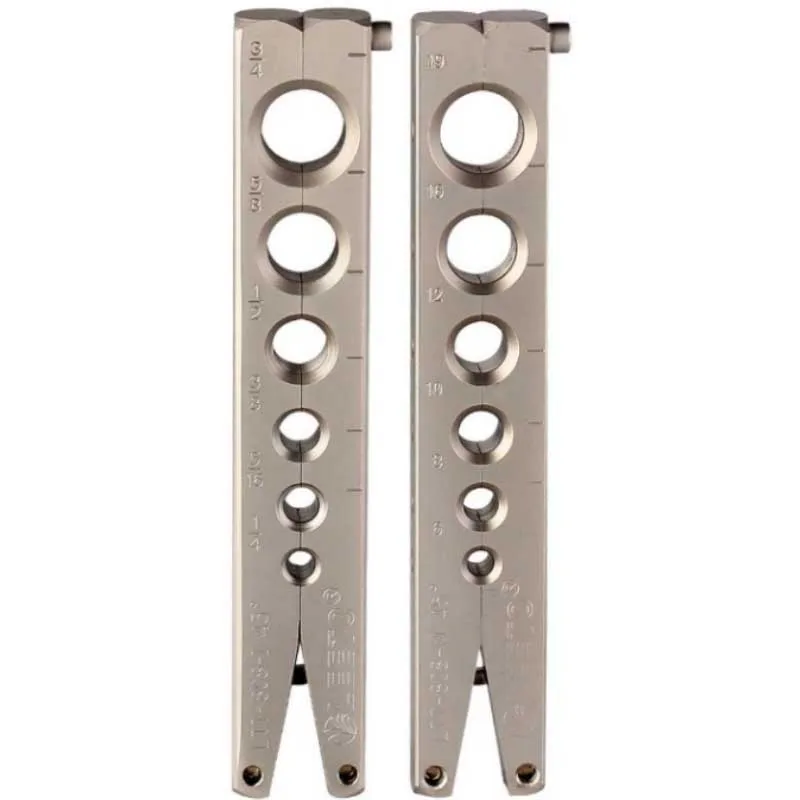

 3. Then place the copper tube into the corresponding aperture of the gripping pliers, the height of the copper tube showed out of the clamp is1/5 of the diameter;

 4. Tighten the nut on both ends of the gripping pliers (clamp);

5.Use the the taper head of the flaring tool to press on the pipe  nozzle ;

6. Slowly rotate the screw clockwise and squeeze the pipe nozzle into the bell-mouth.

Specifications:

 packed in blow case
