Оптоволоконный измеритель мощности и источник

Оптоволоконный измеритель мощности и источник

Категория: Fiber Optic Equipment >>>
Поставщик: Shenzhen,Foclink,Communication,Tech.,Co.,Ltd.

Цена:18,00 $ - 19,50 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	21.13 $*	22.85 $*
Aug-16-2025	21.35 $*	22.21 $*
Jul-16-2025	18.43 $*	19.74 $*
Jun-16-2025	21.34 $*	22.97 $*
May-16-2025	18.15 $*	19.59 $*
Apr-16-2025	21.15 $*	22.56 $*
Mar-16-2025	20.72 $*	21.50 $*
Feb-16-2025	20.12 $*	21.74 $*
Jan-16-2025	20.28 $*	21.87 $*

Характеристики

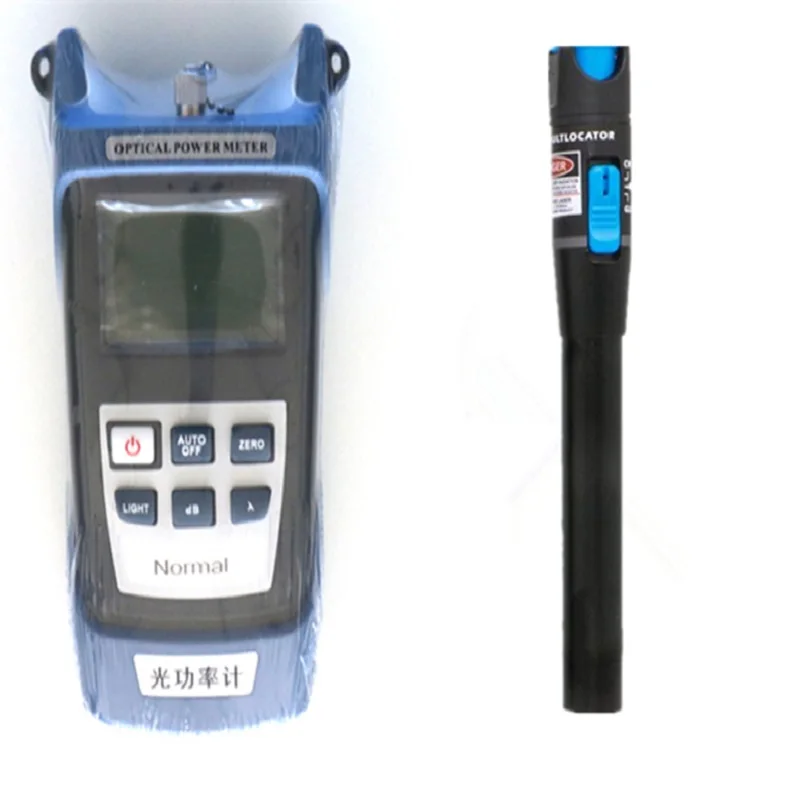

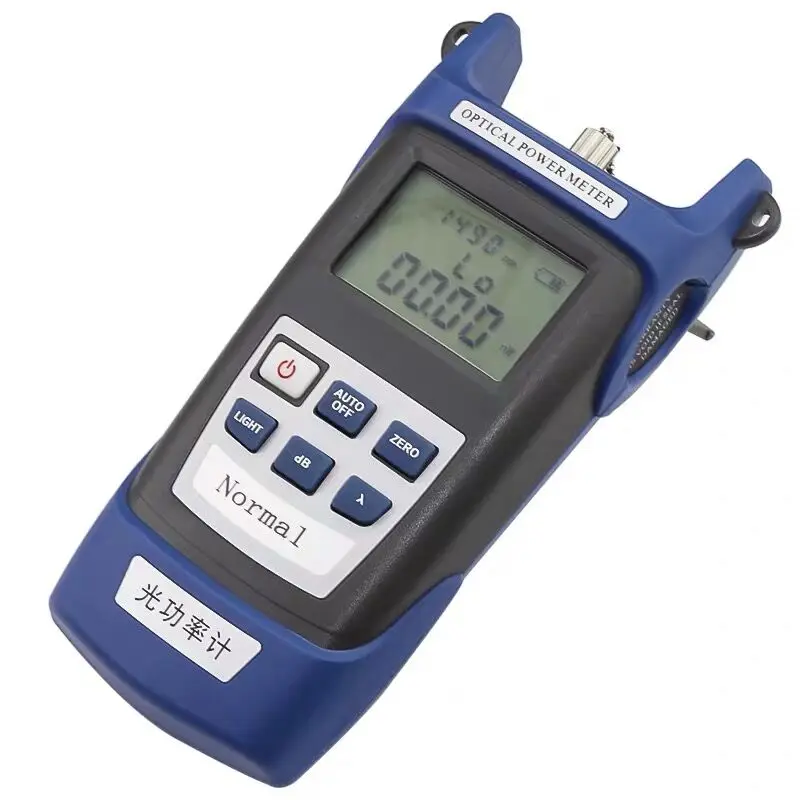

FTTH Tool Fiber Optical SC FC ST Light Source Power Meter

FTTH Tool Fiber Optical SC FC ST Light Source Power Meter is an accurate and durable handheld meter designed for the installation,
operation and maintenance of optical fibre network. It is a compact device with backlight switch and auto power on-off ability.
Besides, it provides ultra-wide measurement range, high accuracy, user self-calibration function and universal port. In addition,
it displays linear indicators (mW) and non-linear indicators (dBm) in one screen at the same

Function:

1.Self calibration by user himself
2.Rechargeable lithium battery supports continuous work for up to 48 hours.
3.Linear indicators (mW) and non-linear indicators (dBm) display in one screen

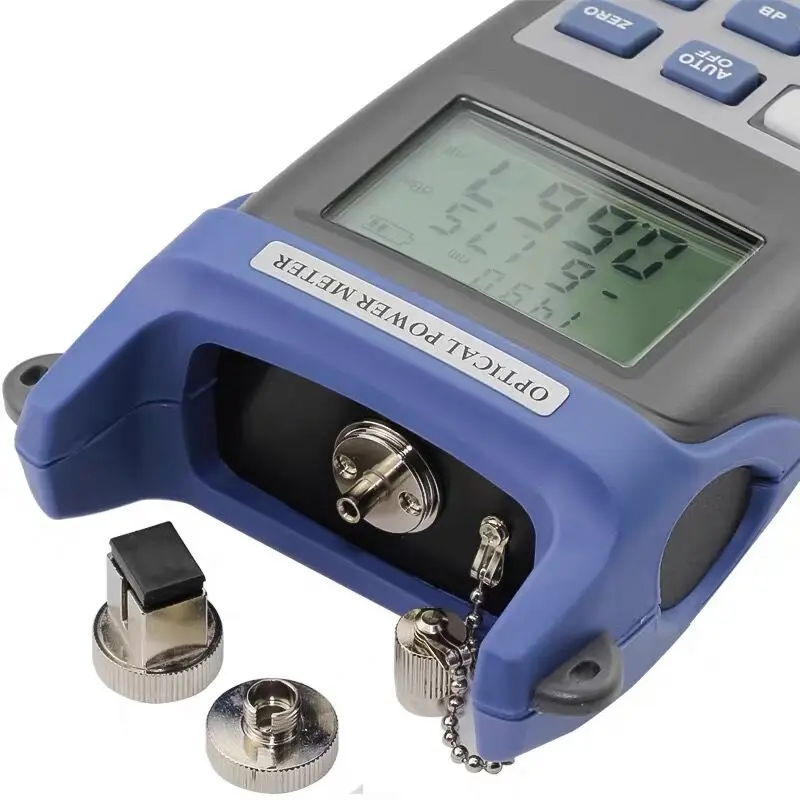

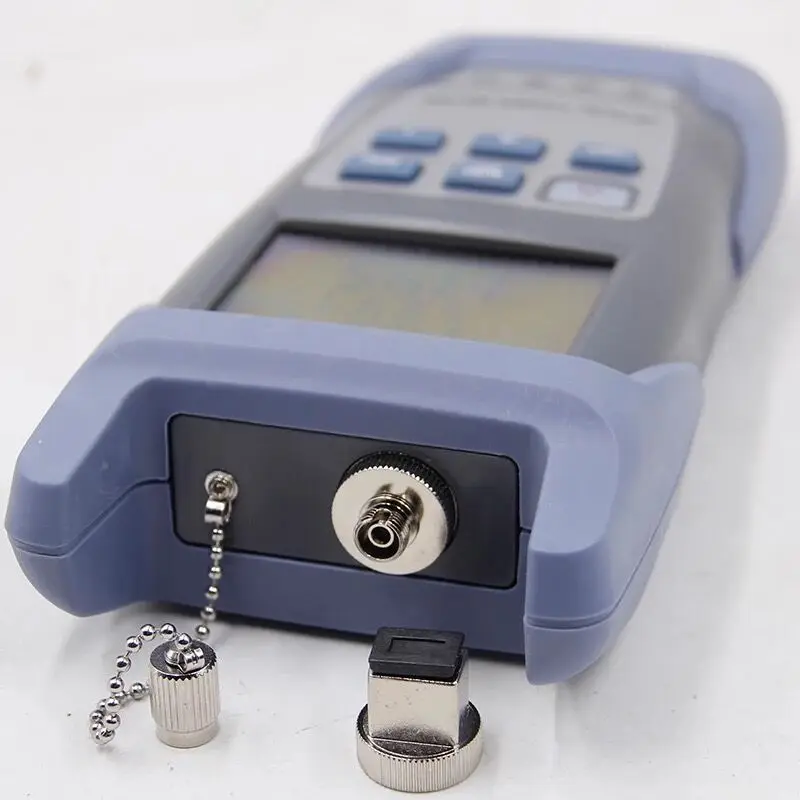

4.UniqueFC/SC/ST universal port (see Figures 1, 2), no complex conversion VFL function
5.4-digit LCD display, supporting three display formats: dB,nw and dBm
6.Automatic range switching
7.Automatic power-off, BacklightON/OFF
8.Multi-wavelength measurement
9.Low power indication

Specification

Model Parameter	Optical Power meter	Optical Power meter With VFL Function
Calibation Wavelenth(nm)	850,1300, 1310,1490,1550,1625
Measurement Range(dBm)	-70~+6	-50~+26
Linearity (dB)	±0.01
Resolution (dB)	±0.1
Uncertainty (dB)	±0.25
Frequency Identification Range	<10K
Connector	FC/SC/ST
