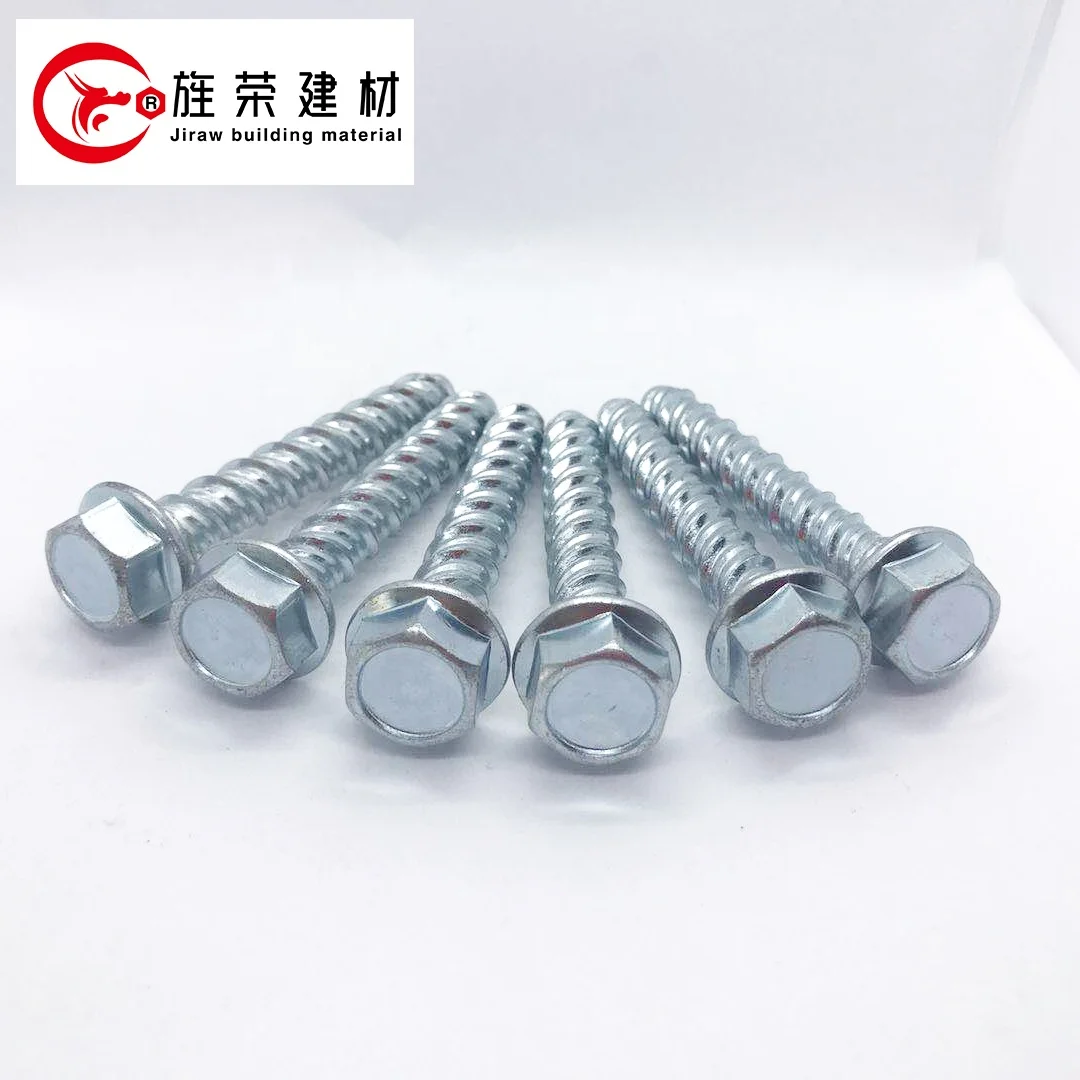

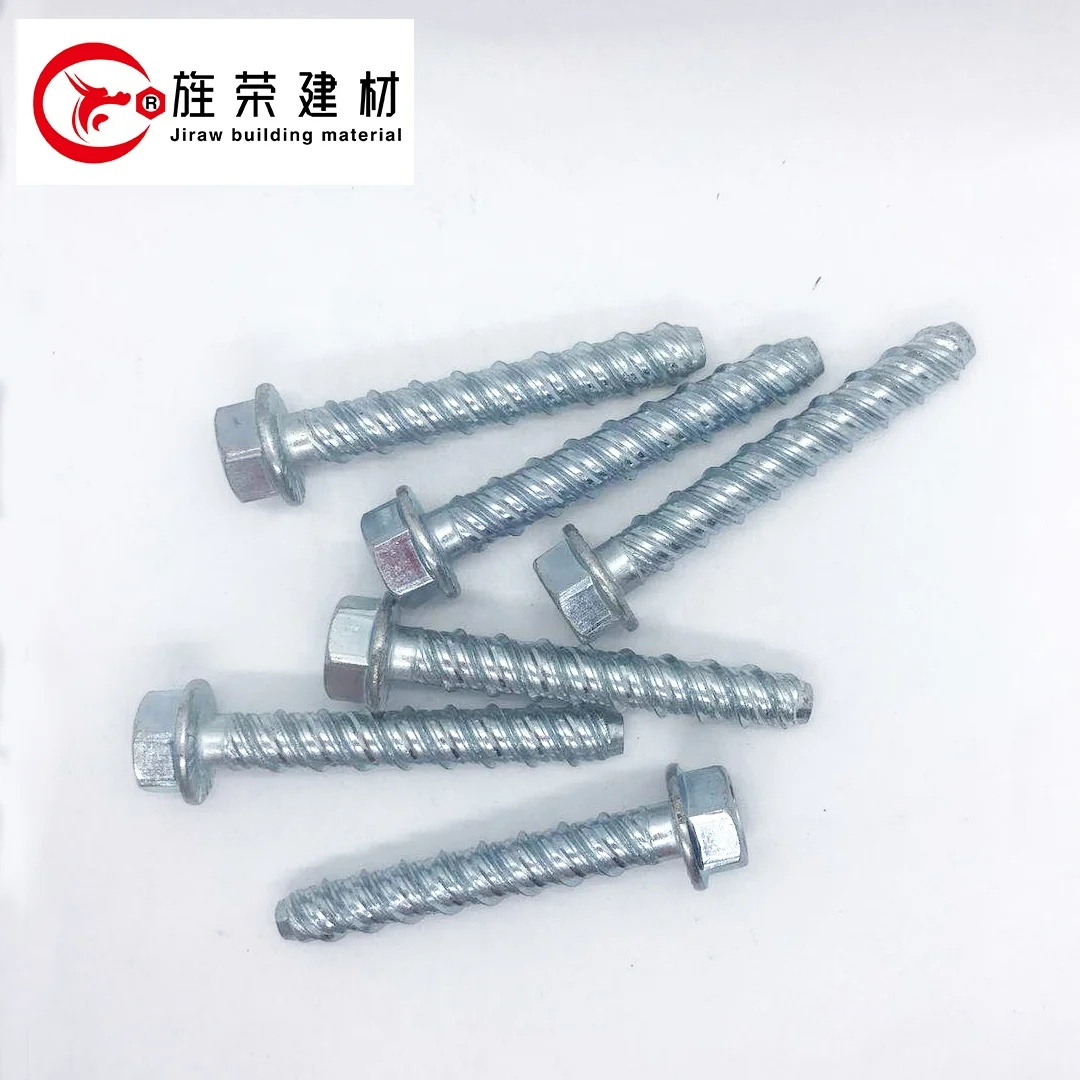

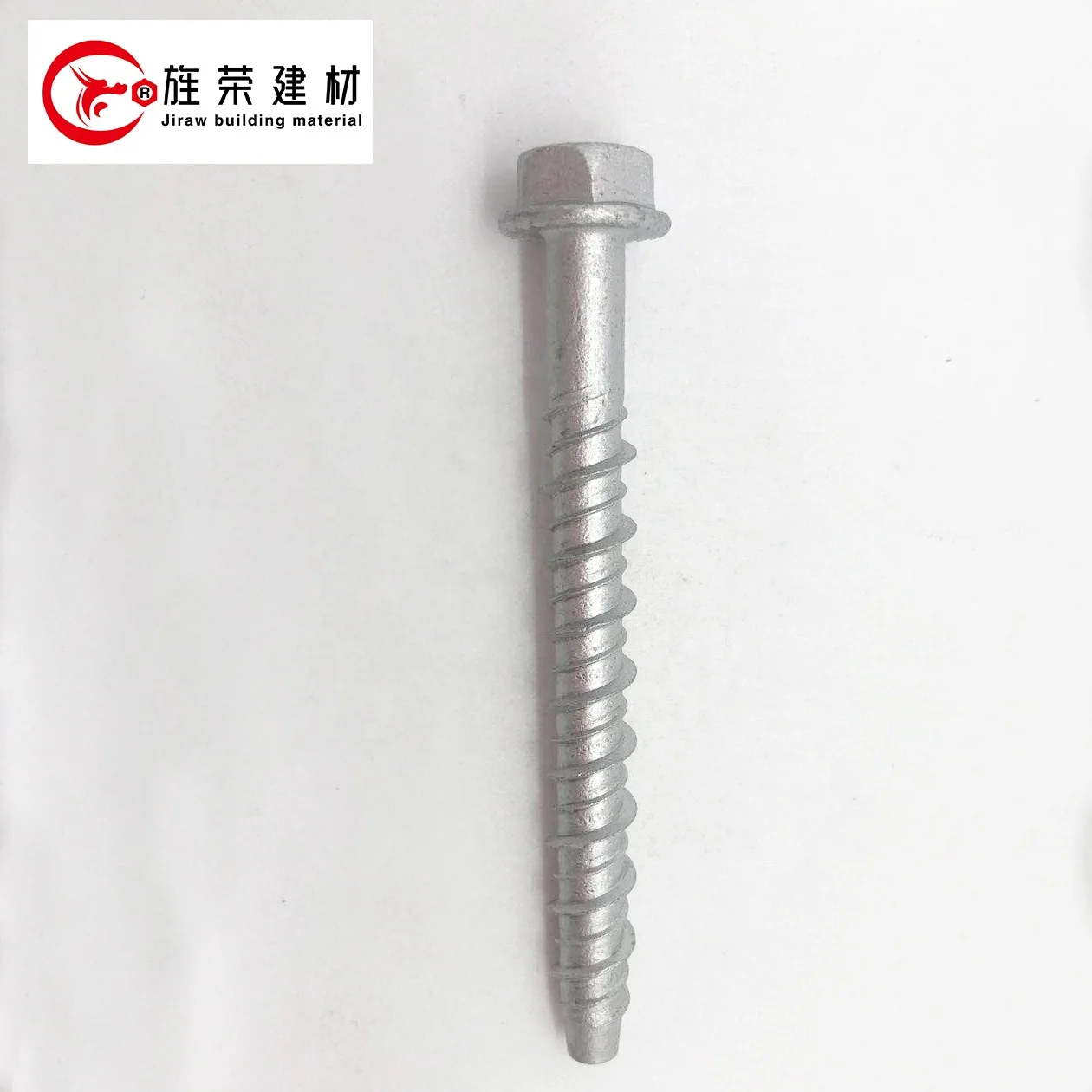

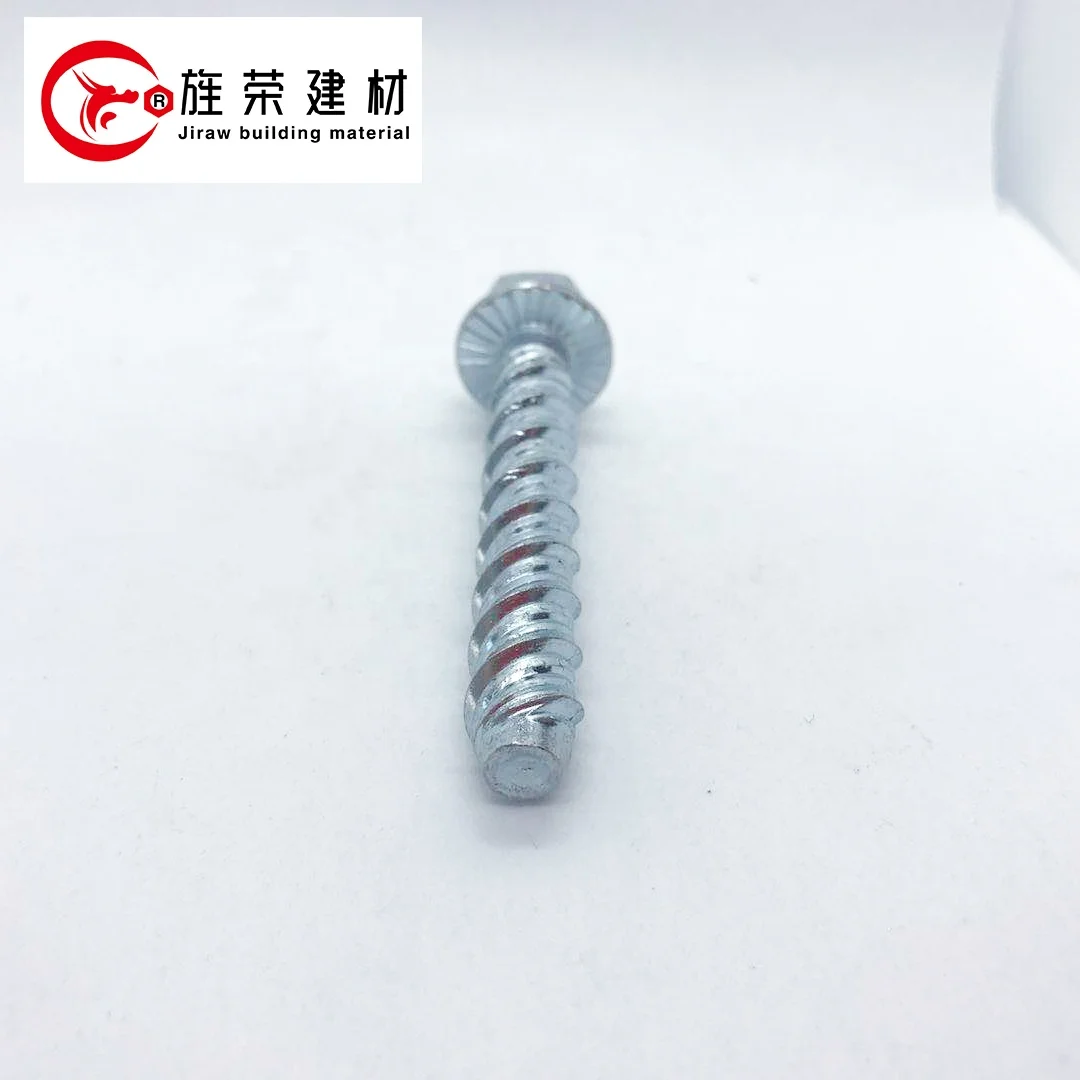

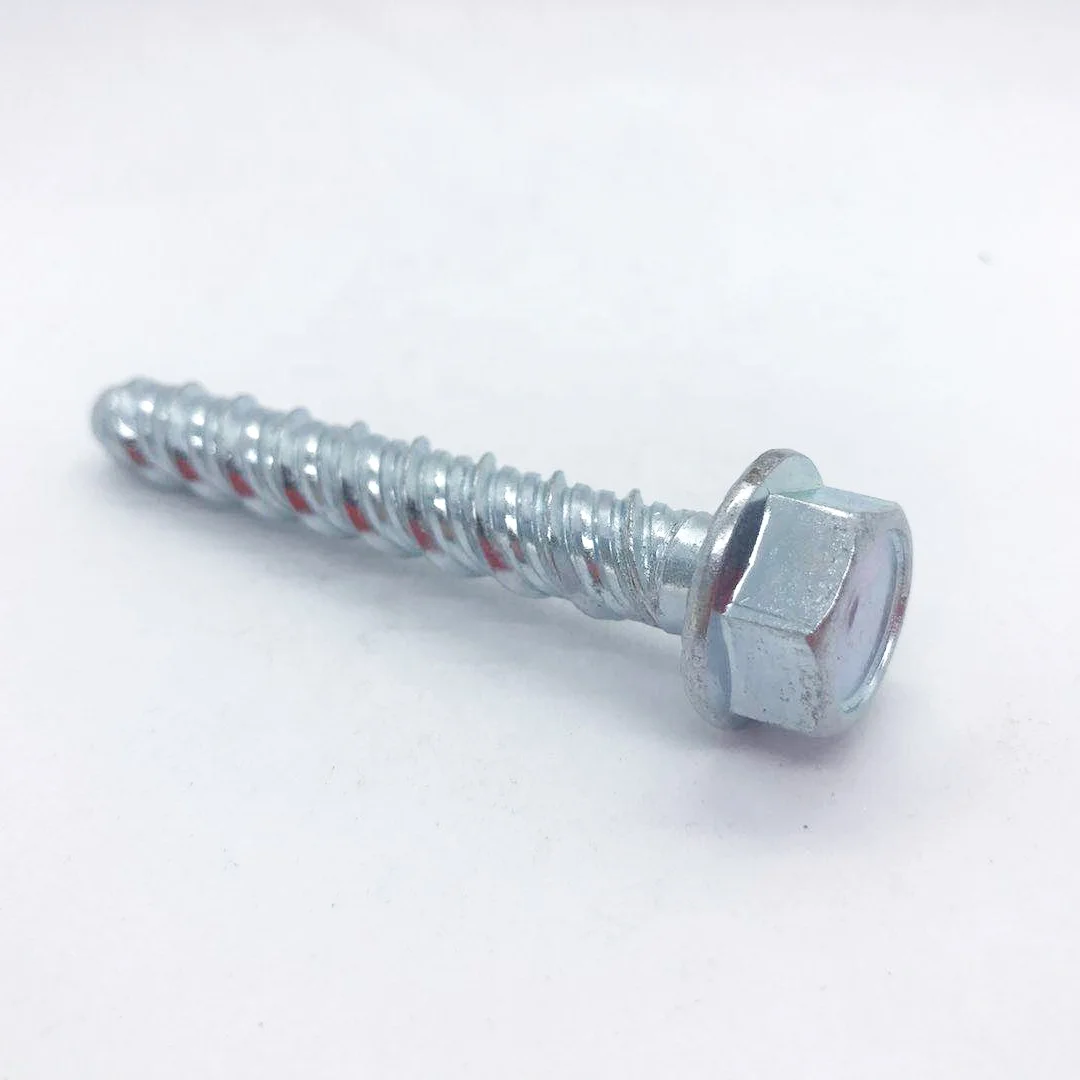

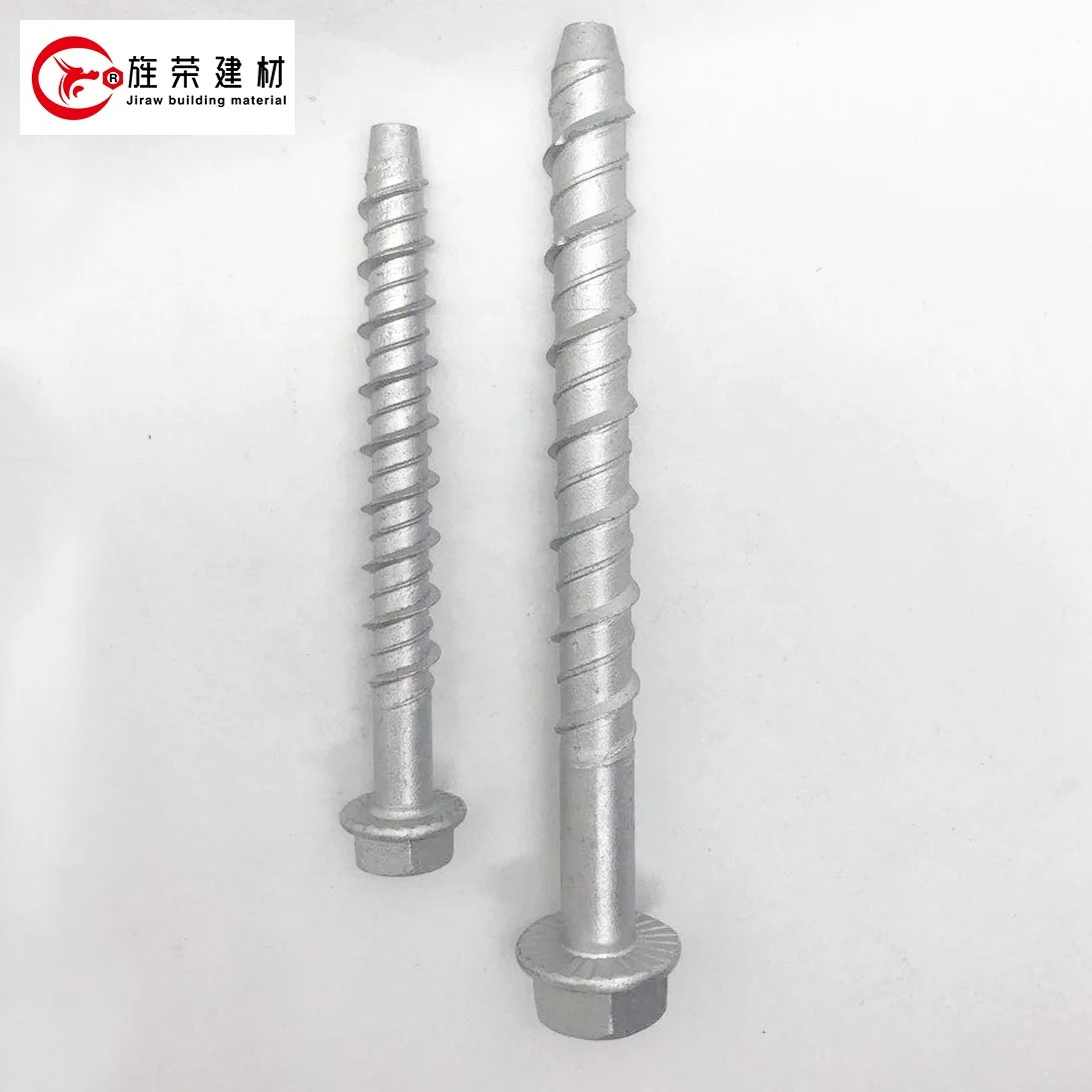

Китайский поставщик Шестигранная головка из углеродистой стали оцинкованный винт анкерные болты бетонный анкер с Заводской
- Категория: Anchors >>>
- Поставщик: Shanghai,Jiraw,Building,Material,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 31.77 $* | 33.37 $* |
| Aug-19-2025 | 31.66 $* | 33.44 $* |
| Jul-19-2025 | 26.89 $* | 27.23 $* |
| Jun-19-2025 | 30.92 $* | 32.14 $* |
| May-19-2025 | 26.91 $* | 27.45 $* |
| Apr-19-2025 | 30.66 $* | 32.91 $* |
| Mar-19-2025 | 29.32 $* | 30.56 $* |
| Feb-19-2025 | 29.38 $* | 30.97 $* |
| Jan-19-2025 | 29.92 $* | 30.29 $* |
Характеристики
Instruction: It can be used for the anchoring of concrete and external wall structural parts. Because its material is carbon steel of grade 8.8 or higher, the thread will not be damaged after installation, it can be pulled out by adjusting the rotation direction of the installation tool and can be used repeatedly.
Material: 8.8 grade carbon steel,10.9 grade carbon steel
Surface treatment: cold galvanized (zinc layer thickness ≥ 5um);
hot galvanized (zinc layer thickness ≥ 45um).
Material: 8.8 grade carbon steel,10.9 grade carbon steel
Surface treatment: cold galvanized (zinc layer thickness ≥ 5um);
hot galvanized (zinc layer thickness ≥ 45um).
Specification![]()
Design Parameters(KN)
Item | Hole Diameter d0(mm) | Hole Depth h1(mm) | Max Anchoring Thickness tfix(mm) | mounting torque (Nm) |
M8*80 | 8 | 80 | 10 | ≤20 |
M10*100 | 10 | 100 | 15 | ≤40 |
M12*120 | 12 | 120 | 20 | ≤60 |
M14*140 | 14 | 140 | 25 | ≤80 |
Design Parameters(KN)
Product model | C30 Non-cracking concrete | C30 Cracked concrete | ||||
Tensile design reference | Shear design reference | Tensile design reference | Shear design reference | |||
M8 | 5.5 | 8.0 | 4.3 | 6.1 | ||
M10 | 12.0 | 15.5 | 7.8 | 15.5 | ||
M12 | 17.1 | 19.5 | 12.0 | 19.5 | ||
M14 | 19.0 | 23.2 | 14.0 | 23.2 | ||
M16 | 21.3 | 29.8 | 17.3 | 29.8 | ||
Installation Instructions![]()
1. Use straight hole drills to drill holes of corresponding diameter and depth;
2. Use the soot blower to sweep ash until the hole has no dust overflow;
3. Screw in concrete screw anchor by using torque drill to achieve anchoring.
2. Use the soot blower to sweep ash until the hole has no dust overflow;
3. Screw in concrete screw anchor by using torque drill to achieve anchoring.
Recommend Products
Packing & Delivery![]()
![]()
![]()
Package: box+carton+pallet+PE plastic
Company Profile![]()
![]()
![]()
Jiraw Building Materials Co., Ltd is a group company dedicated to construction. It is located in Shanghai and have convenient transportation access. The company's hardware system include: undercut anchor system, chemical anchor system, mechanical anchor
bolt system, high-speed railway, rail, subway, bridge, underground corridors, elevator, large scale equipment achoring systems.
bolt system, high-speed railway, rail, subway, bridge, underground corridors, elevator, large scale equipment achoring systems.
Factory Pictures![]()
![]()
![]()
![]()
FAQ
A: How many days will you delivery goods?
Q: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days there's no stock, it is according to order quantity.
A: What's your payment terms？
Q: 30% deposite, and 70% before shipment.
A: Could you provide free samples?
Q: Yes of course, but freight should be paid by customer.
Any other questions or products more details, please contact us freely.
