Аэратор для аквакультуры Средний аквариум рыбок aeratoer китайский поставщик paddlewheel аэратор плавающие на поверхности автоматической коробки

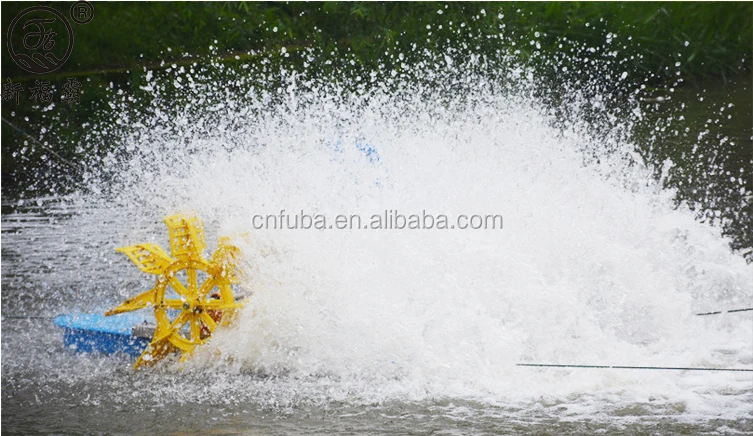

When the motor starts running, impellers will rotate and touche water surface, it will press air into water and therefore increase some oxygen in water.
The most importance is working impellers can make sufficient water splash and strong water current. Large amount of splash will take air into water and enrich obviously dissolved oxygen in water. Meantime, water waves and current will eliminate harmful substances like ammounia, nitrite, hydrogen sulfide, etc out of water and finally clean water.
All brand new materials produced components to make sure our customers receive high quality items. It can be used both on freshwater and seawater.

Main Features

_{1.High efficiency and saving over 20% electric energy than traditional models.
2.Mechanical seal is available to against oil leak pollution.
3.Built-in protector is available to avoid motor being burnt accidentally.
4.The floating boat produced by us is made of good engineering plastic HDPE. It has great buoyancy and high strength.
5.The impeller is made of New PP. The spoke and vane is shaped with plastic only one time.
6.The flexible gearing is fixed by the stainless wheel bolt.
7.High oxygenation rate: 2.6kgs/h.
8.Easy installation and maintenance.
9.Stainless steel frame is sturdy with no deformation and high durability.}

Why choose fuba

1. Supply you top quality products with Competitive Price under the same quality level, different products according to your different market demands.

2. Strictly Control the whole production process and guarantee punctual delivery, Test each of our products one by one before packing to ensure the quality.

3. Supply you a good pre-sale, in-sale and after-sale Service. We're not just working partners, but also Friends and Family.

4. When you come to our Factory, we will try our best to supply you all services to make you feel like at home.

Machine Parts

Name: Motor

Brand: Fuba

Original: China

Material:Cast iron case

Our high-efficiency paddlewheel motor is made of 100% new copper wire. By adopting the automated coil reeler,rotor positioning instrument, and following uncompromised processing and inspection procedures,the consisten quality, longevity, lower amp. and power consumption of the motor and ensured.

Main Parts

_{Name: Gearbox
Brand: Fuba
Original: China
Material:Copper wire motor}

The efficiency of the bevel gear is more superior than a conventional worm gear as the bevel gear can substantially reduce motor amperage by 25% as well as input power by 33%, and thus become the perfect choice to couple with our new generation of paddlewheel aerators. it will save energy and your electricity bill

Machine Parts

_{Name: Impeller
Brand: Fuba
Original: China
Material:PP}

1. Unique one-piece design with forified structure made of non-recycled polyproylene material which makes the paddle sturdy, tough,impact-resistant, and less prone to fracture. 2. 8pcs-vane paddle design is more superior than 6-pcs-design paddle ans allows more frequent splashes ans better DO supply.

Main Parts

_{Name: Float
Brand: Fuba
Original: China
Material:PE(HDPE)}

1. Made from virgin HDPE material with excellent ductility
2. Integral blow molded formation, no water seeping problem
3. Excellent in withstanding larger impact, corrosion free and weathering
4. 100% new materialwith dimensional design for higher stability of the wole machine in operation

Main Parts

_{Name:Connector
Brand: Fuba
Original: China
Material:Cast iron and rubber}

stainless steel movable joint suitable whatever sea water or fresh water , Never rust

Main Parts

_{Name: Bearing bracket
Brand: Fuba
Original: China
Material:PP}

 1. Adjustable 3 in 1 plastic bearing, easy for replacement.  2. No aging or cracking problem for the specially made nylong body.

Main Parts

_{Name: Water shield
Brand: Fuba
Original: China
Material:PE}

1. Using special PE material, Excellent ductillty and can absorb larger impact or force.
2. One-piece molded without any joining for better water prevention.
3. Using virgin PE material, Excellent anti-weathering.

Pre-Sales Service

* Inquiry and cunsulting support

* Sample testing support

* View our factory

After-Sales service

* Training how to instal the machine.

* Training how to use the machine

* Reply the problem in 24hours

How is the directly effective depth and effective water length of the sunshine paddle wheel aerators?

1.Directly effective depth:
A1: SS-1HP-2P paddle wheel aerator is 1M from the water level

        SS-2HP-4P paddle wheel aerator is 1.5M from the water level

2.Effective water length :

A2: SS-1HP-2p:40 Meters

       SS-2HP-4p:70 Meters

During the strong water circulation ,oxygen can be dissolved into the water to 2-3 meters depth.The paddle wheel could also concentrate the waste ,splash out the gas ,adjust the water temperature and help the decomposition of organic matters.

How many units fo paddle wheel aerators to be use in the shrimp ponds?

1.According to the stocking density:
B1: SS-1HP-2P should be used 8 units in one HA pond if the stocking is 30pcs /square meter.

2.According to harvesting tons:
B2: If the harvest expected is 4 Tons per HA should be installed in the pond 4 units of SS-2HP-4P;the other words is 1 Ton/1unit.
