Product Description

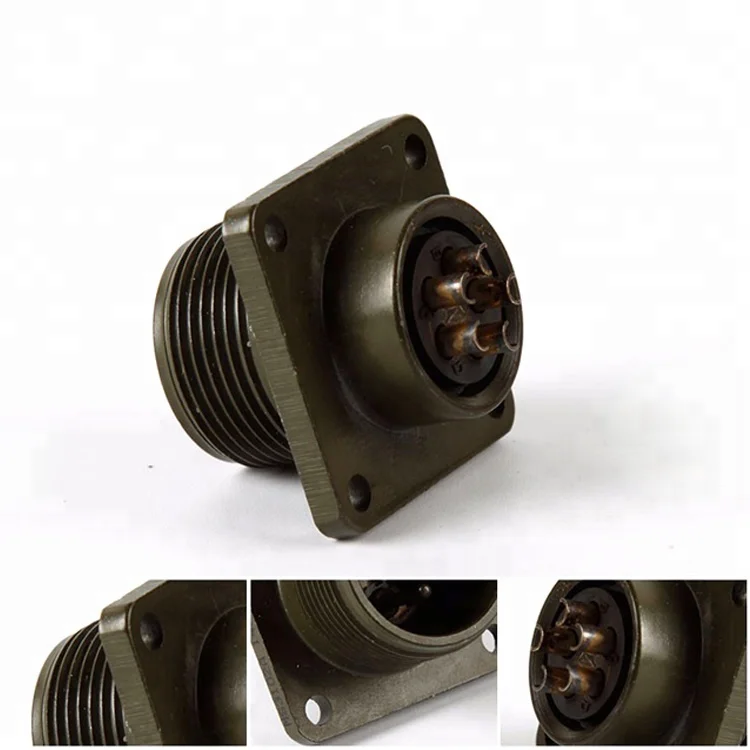

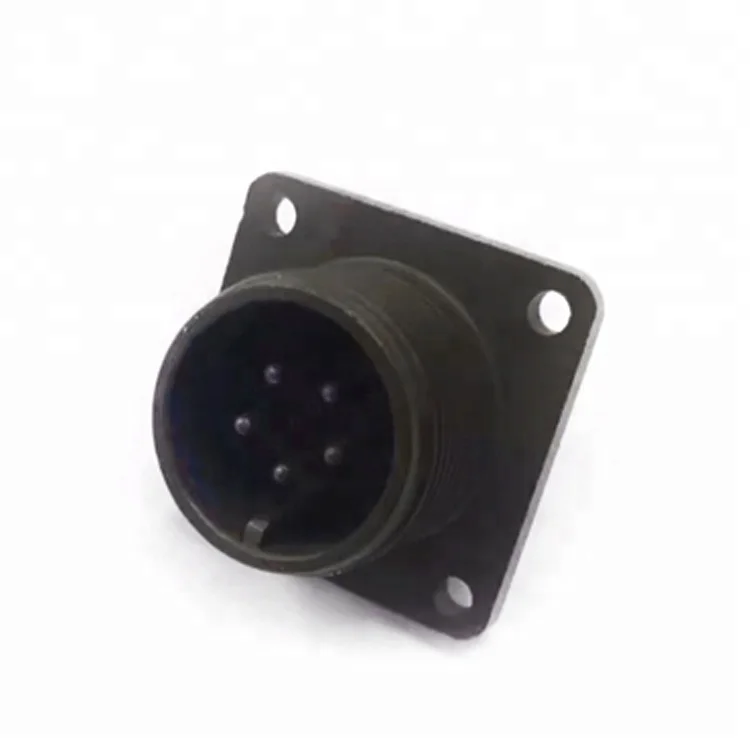

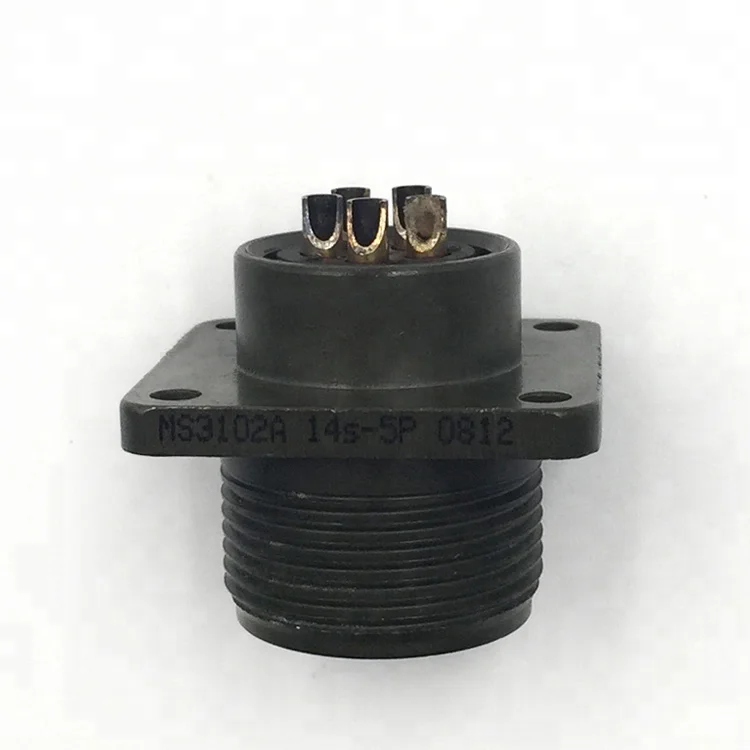

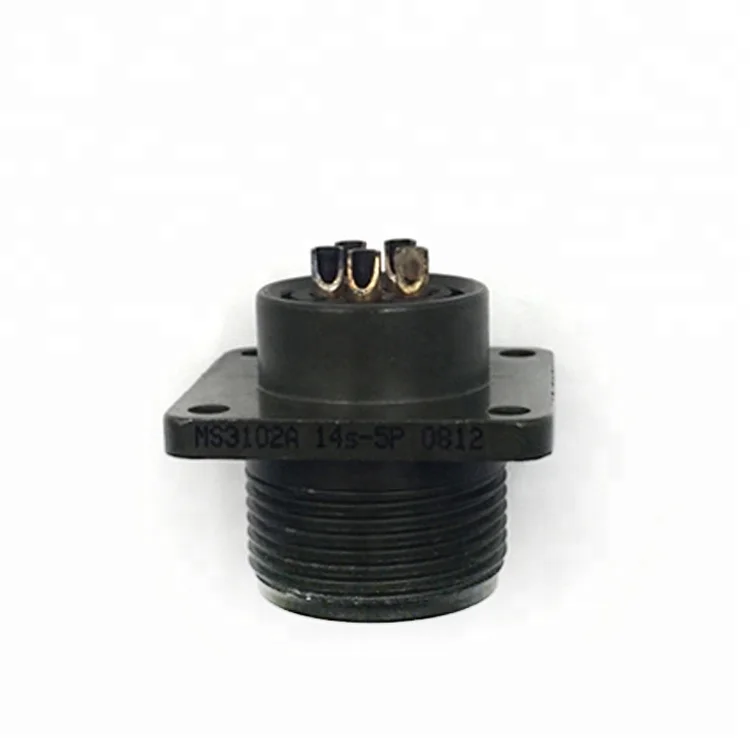

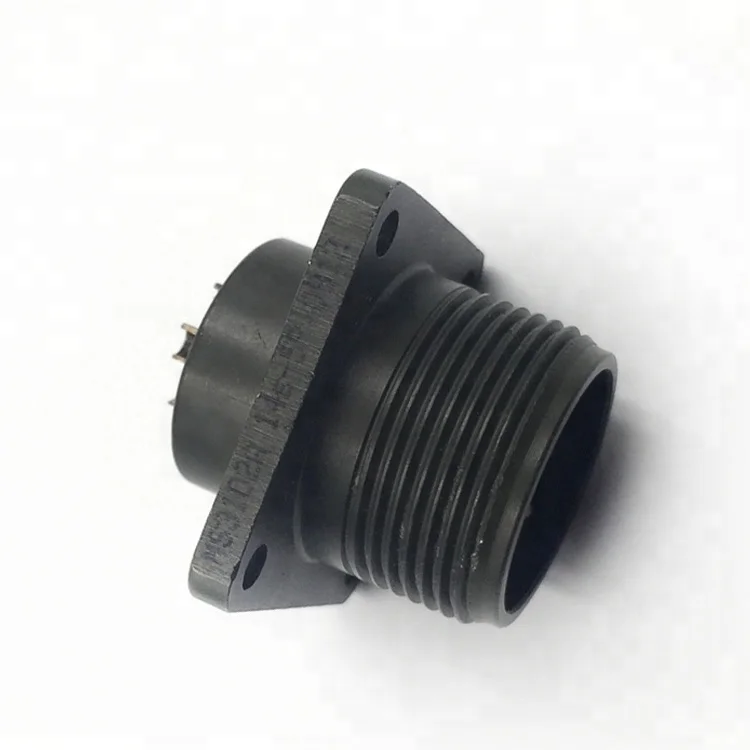

High quality amphenol aircraft mil std circular connectors
Conform to GJB101A standard. With reference to the American MIL-DTL-5015 standards. They are equailvant to JY series, YB series and MS series, MS series. They can cooperate in use with the receptacles which have the same type. This series connectors are quick coupled by bayonets. Their contacts are soldered.
HOW TO ORDER
| Identification Code MS | 3106 | A | 18 | 10 | P | Y | |||||
Shell NO. 3100 = Wall mounting receptacle | |||||||||||
Service Class A = Solid shell, solder contacts and non-pressurized | |||||||||||
| Shell Size 10SL, 12S, 12, 14S, 14, 16S, 16, 18, 20, 22, 24, 28, 32, 36 | |||||||||||
Contact layout (See below)
| |||||||||||
Contact Type P = Pin | |||||||||||
| Alternate positioning NO Mark-N key, (W)-W key, (X)-X key, (Y)-Y key, (Z)-Z key | |||||||||||
Specifications
A. Materials
Shell: Aluminum alloy; Olive drab cadmium or zinc plating
Insulator: Synthetic rubber
Contact: Copper alloy; Sliver plating
Gasket & Grommet: Synthetic rubber
B. Electrical specifications
Operating voltage & Test voltage,
| Service class | Operating voltage | Test voltage | Air Spacing | Cree page | |
| DC (V) | AC (V) | AC (V) | Nominal (Inches) | Nominal (Inches) | |
| Inst. | 250 | 200 | 1000 | - | 1/16 |
| A | 700 | 500 | 2000 | 1/16 | 1/8 |
| D | 1250 | 900 | 2800 | 1/8 | 3/16 |
| E | 1750 | 1250 | 3500 | 3/16 | 1/4 |
| B | 2450 | 1750 | 4500 | 1/4 | 5/16 |
| C | 4200 | 3000 | 7000 | 5/16 | 1 |
Rated current (+20oC),
Contact size | Contact resistance (mΩ) | Test current (A) | Potential drop (mV) |
16 | 16 | 13 | 49 |
12 | 3 | 23 | 42 |
8 | 1 | 46 | 26 |
4 | 0.5 | 80 | 23 |
0 | 0.2 | 150 | 21 |
Insulator resistance: +25oC ≥ 5000MΩ
- C. Mechanical specifications
- Operating temperature: -55oC ~ +125oC
- Sealing: Under water (6 feet in water): 48 hours per MIL-DTL-5015,
- 4.6.19. Meet 20 days extreme humidity testing per.
Contact size | Outside dia. of insulation | |||
Min. | Max. | |||
inches | mm | inches | mm | |
16 | 0.064 | 1.63 | 0.130 | 3.30 |
12 | 0.114 | 2.90 | 0.170 | 4.32 |
8 | 0.164 | 4.17 | 0.255 | 6.48 |
4 | 0.275 | 6.98 | 0.370 | 9.40 |
0 | 0.415 | 10.54 | 0.550 | 13.97 |
Durability: ≥ 100 cycles
Salt spray: MIL-STD-1344 method 1001, condition B, ≥ 48 hours (Cadmium plating)
Heat: at +125oC, 60 hours; at +85oC, 1000 hours
Chemical resistance: in Hydraulic fluid or lubricating oil, 20 hours
Vibration: 10 ~ 2000Hz, acceleration: 10 g’s
Shock: acceleration: 50g
Contact retention & Separation force
Contact size | Retention | Separation force min. | ||
N | Lbs. | N | Lbs. | |
16 | 44 | 10 | 1 | 0.25 |
12 | 67 | 15 | 2 | 0.50 |
8 | 89 | 20 | 3 | 0.75 |
4 | 89 | 20 | 4 | 1.00 |
0 | 111 | 25 | 9 | 2.00 |
Related products
Company Information
Our products are widely used in aviation,aerospace,boat,telecommunication,railway,medical
appar- atus, car, oil survey and so on. Parts of them are sold abroad. Having excellent
characteristics such as small size,high density,suitable for any circumstance,leakage,proof,
nice shielding performance,easy to operate,high reliability and high contents of technological,
our products have received good remarks from our clients all over the world.
1> Q:How to buy your products?
A:You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Connector and Contact Gender
* Confirm Assembly style
* Confirm Mating style( series or parallel)
* Confirm Cable OD size
* Confirm Cable Length and Material.
2> Q:How can I get samples?
A: It's my honor to offer you samples,but we can only give
you one free sample,and the freight should be paied by yourself.
3> Q:How does your factory do regarding quality control?
A:Quality is priority.New era people always attach great importance to
quality controlling from the very beginning to the very end.Our factory
has gained ISO9001,GJB9001,QPL lSO14001,certificates.
