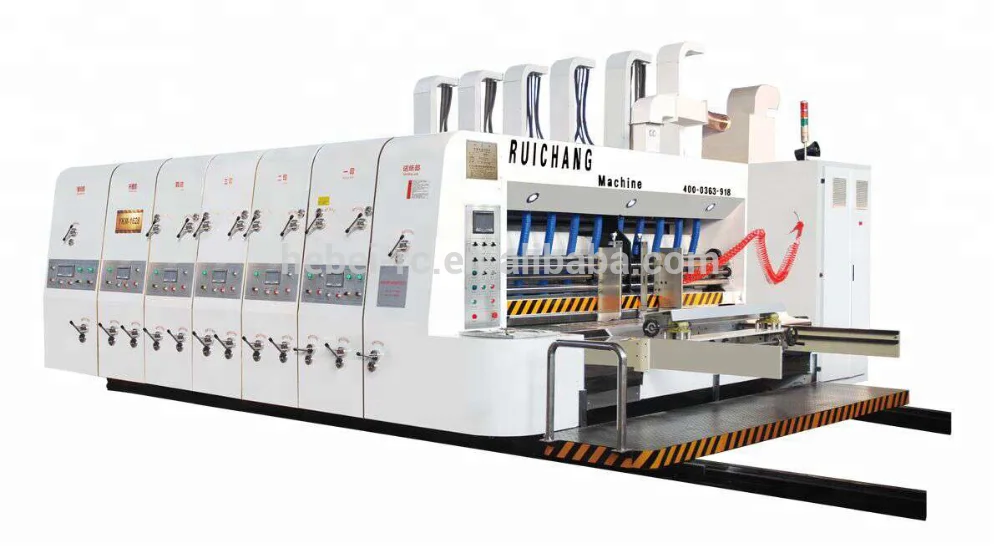

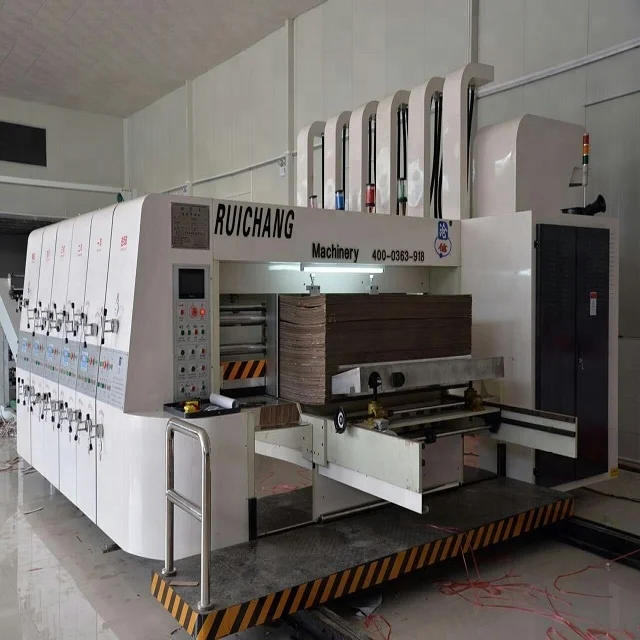

automatic speed printing die cutting with free slotting attachment



Main featrues:

1.cotrol on the main console and each unit console with display adjustment system,store repeated order,easy for operation.

2.motorized printing plate mounting,auto reset,quick change.

3.each unit is equipped with emergency stop switch to ensure safety operation

4.motorized gap adjustment device for ease operation

5.transmissions are using precision high hardness gears with spraying type circulating lubrication system

6.Using international brand-name electrical components, the main bearing, start control components

Technological parameter



Parameter	unit	Model
		MQYKM-920	MQYKM-1224	MQYKM-1228	MQYKM-1428	MQYKM-1628	MQYKM-1632
max.machinery speed	pcs/min	120	120	100	100	100	80
max.size opaperboard	mm	900x2000	1200x2400	1200x2800	1600x2400	1600x2800	1600x3200
min.size paperboard	mm	260x600	350x600	350x600	400x600	450x600	450x600
skip feed size	mm	1200x2000	1500x2400	1500x2900	1600x2400	2000x2800	2000x3200
max.printing area	mm²	900x1960	1200x2360	1200x2760	1600x2360	1600x2760	1600x3160
thickness of standard printing plate	mm	7.2	7.2	7.2	7.2	7.2	7.2
min.slotting(spaced uniaxial)	mm	150x150x150x150	150x150x150x150	150x150x150x150	150x150x150x150	150x150x150x150	150x150x150x150
		270x65x270x65	270x65x270x65	270x65x270x65	270x65x270x65	270x65x270x65	270x65x270x65
min.slotting(interval double row)	mm	150x150x150x150	150x150x150x150	150x150x150x150	150x150x150x150	150x150x150x150	150x150x150x150
		270x65x270x65	270x65x270x65	270x65x270x65	270x65x270x65	270x65x270x65	270x65x270x65
max.slotting	mm	250	300	300	400	400	400

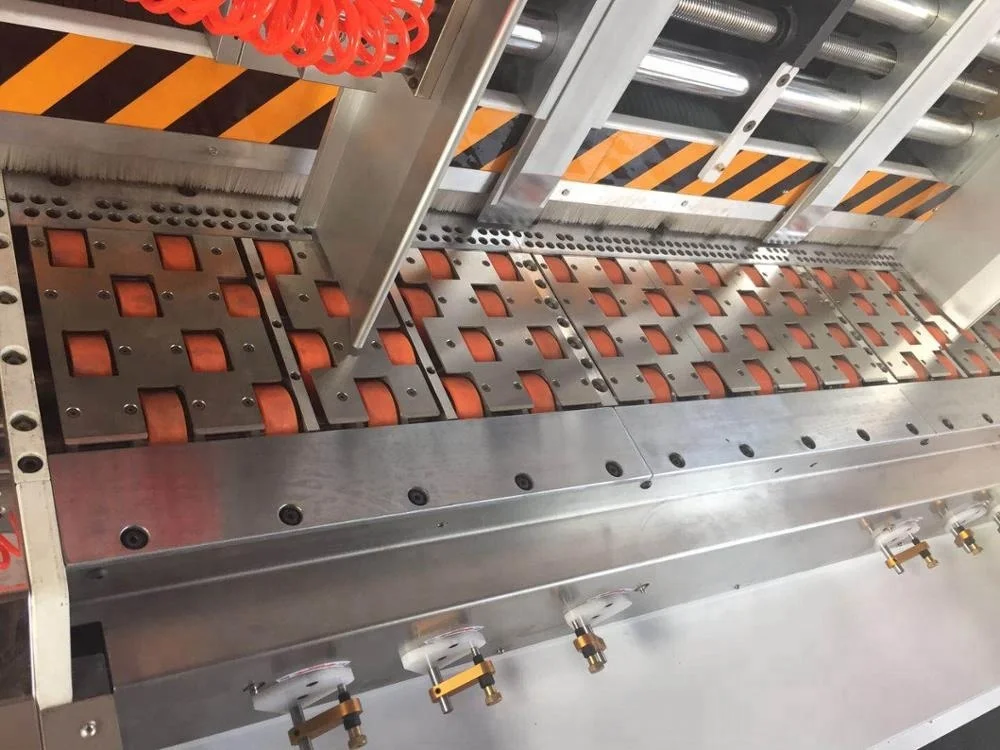

Feeding unit paramenter



1.Roller leading edge feed system, independent electronic shaft, extended feed.The use of international advanced technology, system stability, high precision feeding.

2.Adsorption fan auxiliary feed, air volume size adjustment, to ensure smooth delivery of curved cardboard. Applicable to 3/5/7corrugated boar

3.Left and right side baffle individually adjusted, digital display. Rear baffle electric adjustment, simple and convenient.

4. Double conveyor roller mechanism. The first group of paper feed pulley with floating structure, the pressure can be adjusted by the spring force. Clear the gap manually, the sign display, adjust the range 1-12mm

5. Feeding roller at the entrance of the brush, used to remove impurities on the surface of the cardboard. Between the two groups of paper feed wheel equipped with dust removal equipment, remove the surface of paperboard impurities, improve the printing quality.



Printing unit



1. Steel printing plate roll, surface grinding hard chrome plating. Smooth correction, link smooth.

2. Axial adjustment using manual adjustment, axial adjustment range of 10mm

3. Press the roller gap manually adjust the sign display, adjust the range 4-12mm

4. Rubber roller ink system, scraper ink system.



5. Grinding anilox roller with a separate motor drive idle device to ensure that the ink is not out of the way when the shutdown, the lineline range: 160-500 optional ceramic anilox.



Did cutting unit with free slotting attachment

1. Pad roller mechanical spiral horizontal movement, you can move 40mm

2. Die-cutting roller phase using PLC and electric digital 360 ° adjustment, shutdown and operation can be adjusted under the circumstances.

3. Adhesive roller and die-cutting roll gap adjustment using self-locking structure, and with a large range of rapid adjustment of the cylinder to reduce the damage to the pad to extend the life of the pad.



4. Speed compensation system to ensure wire-speed consistency, security accuracy.
