Usage: personal scale,bathroon scale,weighing scale.
Dimension: W*T*70
Features
planar beam load cells
capacity:30kg,...,300kg
accuracy:0.05%R.O.
very low profile
matched output
aluminum construction with surface anodized
environment protection class:IP65
Applications
retail scales
medical scales
personal scales
bathroom scales
airport baggage scales
postal scales
any weighing environment where space is a limiting factor.
Description LCT Planar beamload cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. They are designed for those who need to produce equipment with minimal overall height. They are usually implemented in sets of three or four per scale. Advantages of LCT Planar beam load cells: Most planar beams are not corner-adjusted. Using 3 or 4 Planar beam load cells is an alternative to a single point load cell configuration with the additional benefit of a practical unlimited platform size. Model LAA-W1 load cells are designed to this “Planar beam”type and manufactured from high quality aluminum alloy of aviation standard. LAA-W1 oad cells can be used to measure loads range from 30kg to 300kg with the measuring accuracy of 0.05% R.O.( R.O.=Rated Output) LAA-W1 load cells are mainly used for retail scales, medical scales,personal scales,bathroom scales,airport baggage scales,postal scales and any weighing environment where space is a limiting factor.

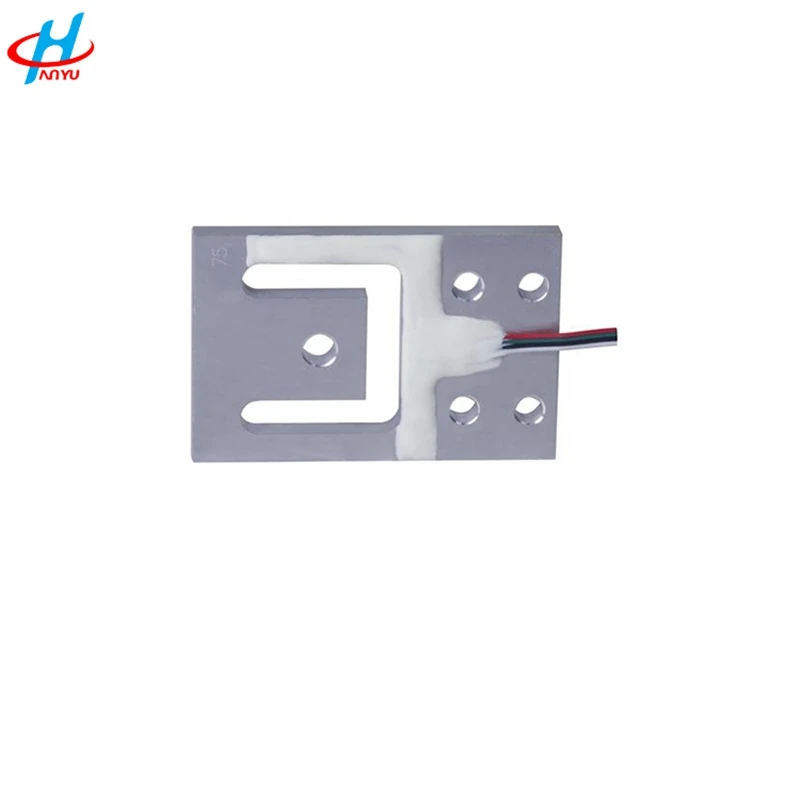

Planar beam load cell
Rated Capacity
30, 75, 150, 300 (kg)
Accuracy Class
S
Rated Output
(1.0-2.0) ± 10%mV/V
Zero Balance
± 0.1 mV/V
Input Resistance
1130±20Ω
Output Resistance
1000±10Ω
Linearlty Error
±0.05%R.O.
Repeatability Error
±0.05%R.O.
Hysteresis Error
±0.05%R.O.
Creep in 2 Min.
±0.05%R.O.
Temp.Effect on Output
±0.05%R.O./10℃
Temp.Effect on Zero
±2%R.O./10℃
Compensated Temp.Range
0-+40℃
Excitation,Recommended
≤ 10VDC
Operating Temp.Range
-10-+40℃
Safe Overload
120%R.C.
Insulation Resistance
≥2000MΩ(50VDC)
Cable,Length
ø0.8mm×0.6m *
Protection Class
IP65

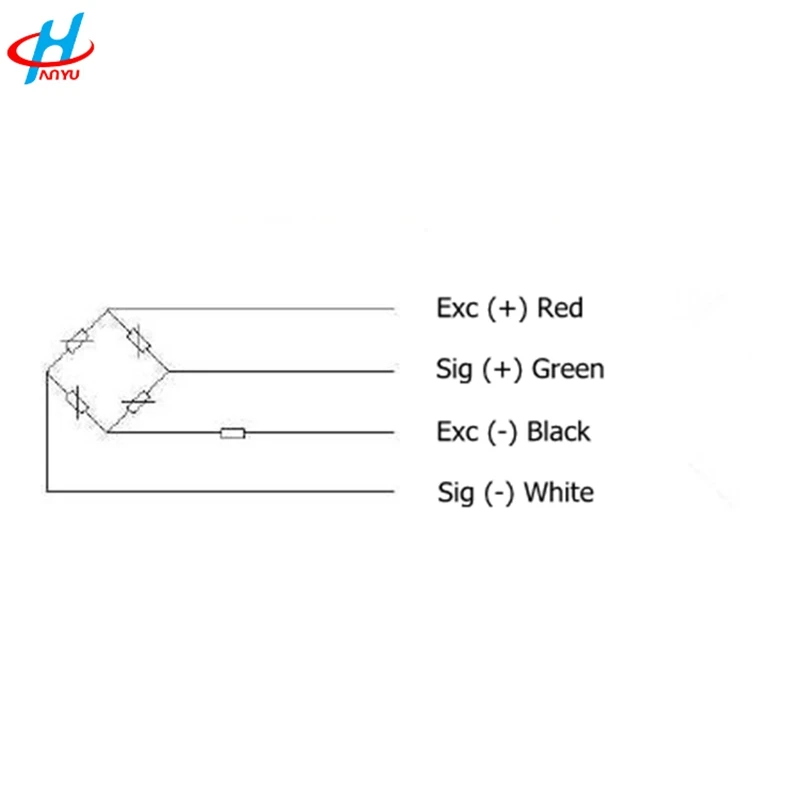

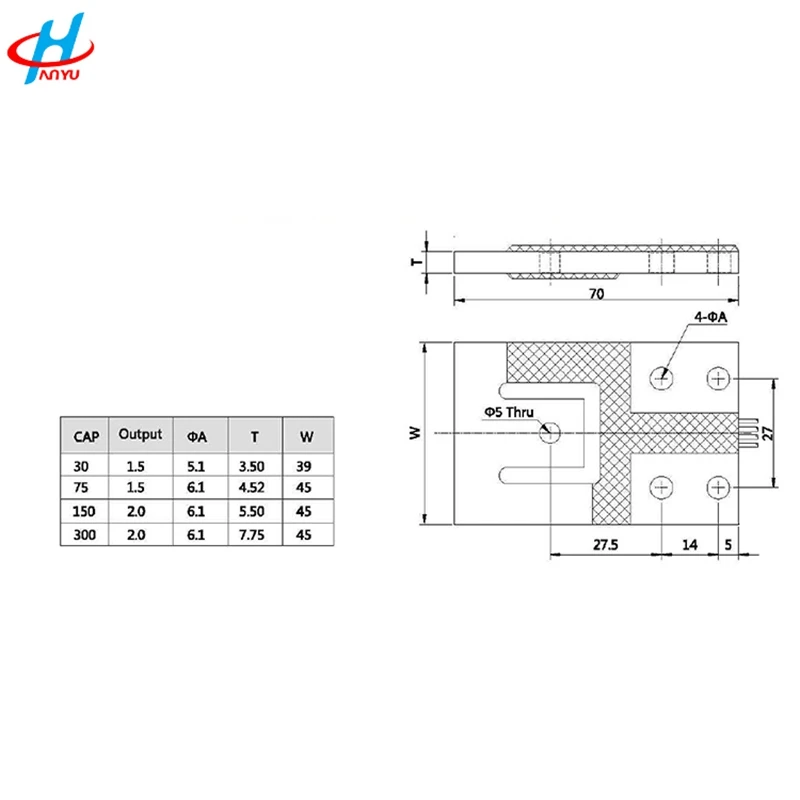

Dimension:
