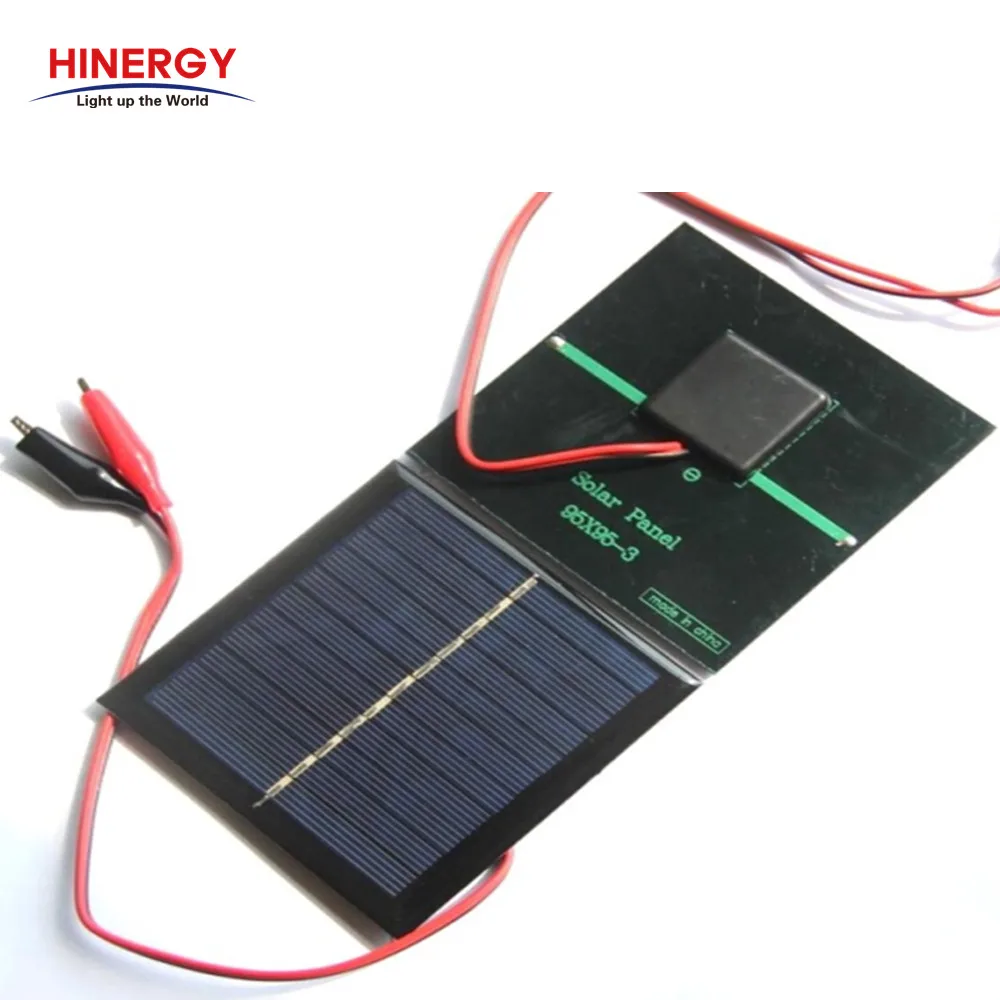

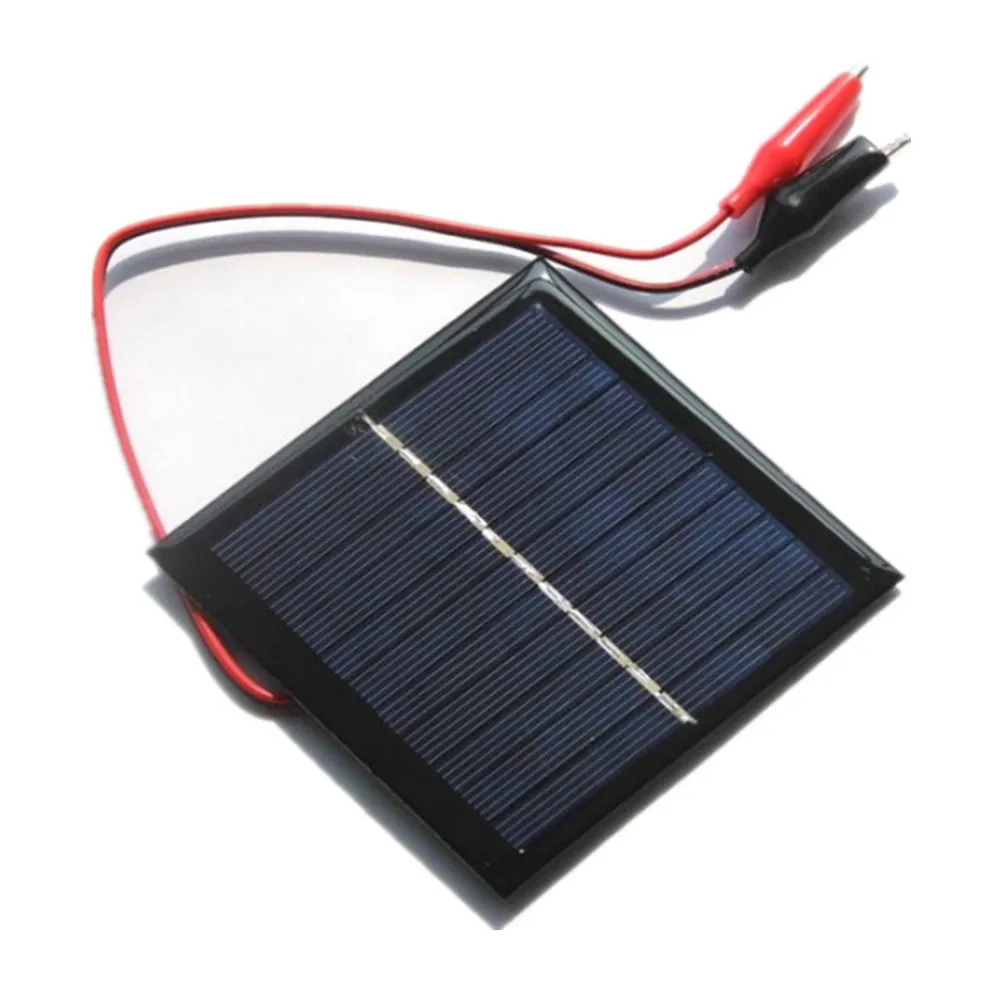

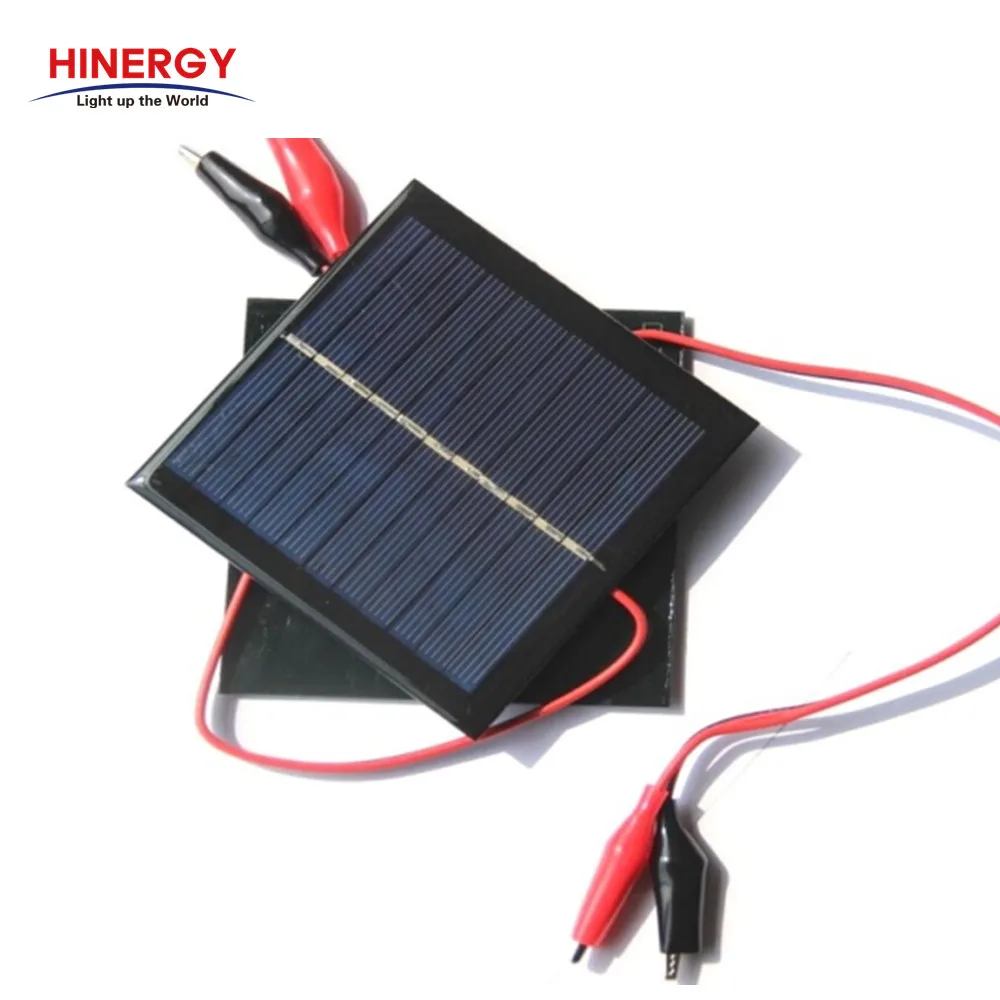

Hinergy зажим крокодил 5V 5 V 6V 9V 12V Индивидуальный Мини комплект солнечных панелей для

Hinergy зажим крокодил 5V 5 V 6V 9V 12V Индивидуальный Мини комплект солнечных панелей для

Категория: Солнечные батареи для сварочного шлема >>>
Поставщик: Qingdao,Hinergy,New,Energy,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.3 $*	0.57 $*
Aug-19-2025	0.28 $*	0.6 $*
Jul-19-2025	0.82 $*	0.32 $*
Jun-19-2025	0.82 $*	0.30 $*
May-19-2025	0.51 $*	0.71 $*
Apr-19-2025	0.91 $*	0.87 $*
Mar-19-2025	0.18 $*	0.20 $*
Feb-19-2025	0.88 $*	0.5 $*
Jan-19-2025	0.46 $*	0.95 $*

Характеристики

Advantages:

* High conversion efficiency, good low hight performance.

* UV treated surface and durable weatherproof PCB board.

* Light weight, thin thickness, shape appropriate to change.

* Encapsulated solar panel ensure long lasting durability and high temperature resistant.

* Tie multiple together in parallel to increase current, in series to increase voltage.

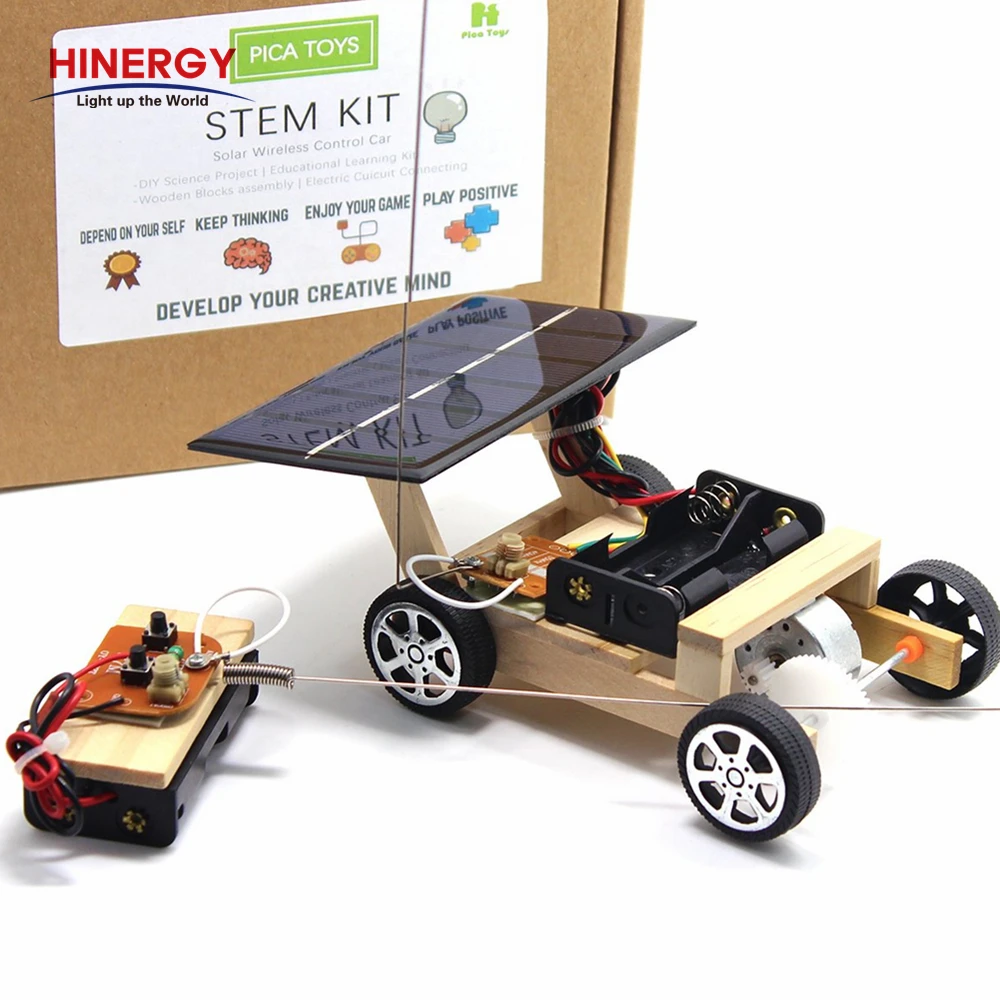

* Ideal for battery charger, small motorized car, LEDs in a Doll House, science projects...

Production & QC Line

PCB Substrate

* FR-4 PCB circuit diagram.

* High strength resistance to deformation.

* Resistance to flame retardant.

* Good electrical properties.

Solar Cell

* Grade A solar cell.

* Excellent low light effect.

* Appearance consistency.

* Mono and polycrystalline is optional.

Full Automatic Welding Line

* High speed production.

* Ensure consistent product performance.

* Reduce wastage and production cost.

* Automatic detection function.

Encapsulation

* Epoxy resin and PET lamination optional.

* Epoxy panel resistance to acid and alkali.

* PET with high conversion rate & long-life.

* Mono and polycrystalline is optional.

Cable & Connector

* Wire Gauge:20/22AWG/24AWG/26AWG

* Connector:JST PH 2.0 2Pin Male Female.

* Cable Length:100-150mm or customized.

* Compatible with the most of application.

Packing & Delivery

Application

FAQ

Q:What's the thickness of Solar Panel?
A:The thickness of epoxy resin solar panel is 2.8mm±0.3mm, PET laminated solar panel is 2.2mm-2.6mm.

Q:Can you drill holes on the solar panel?
A:Sure, we can drill holes according to your requirements without extra cost.

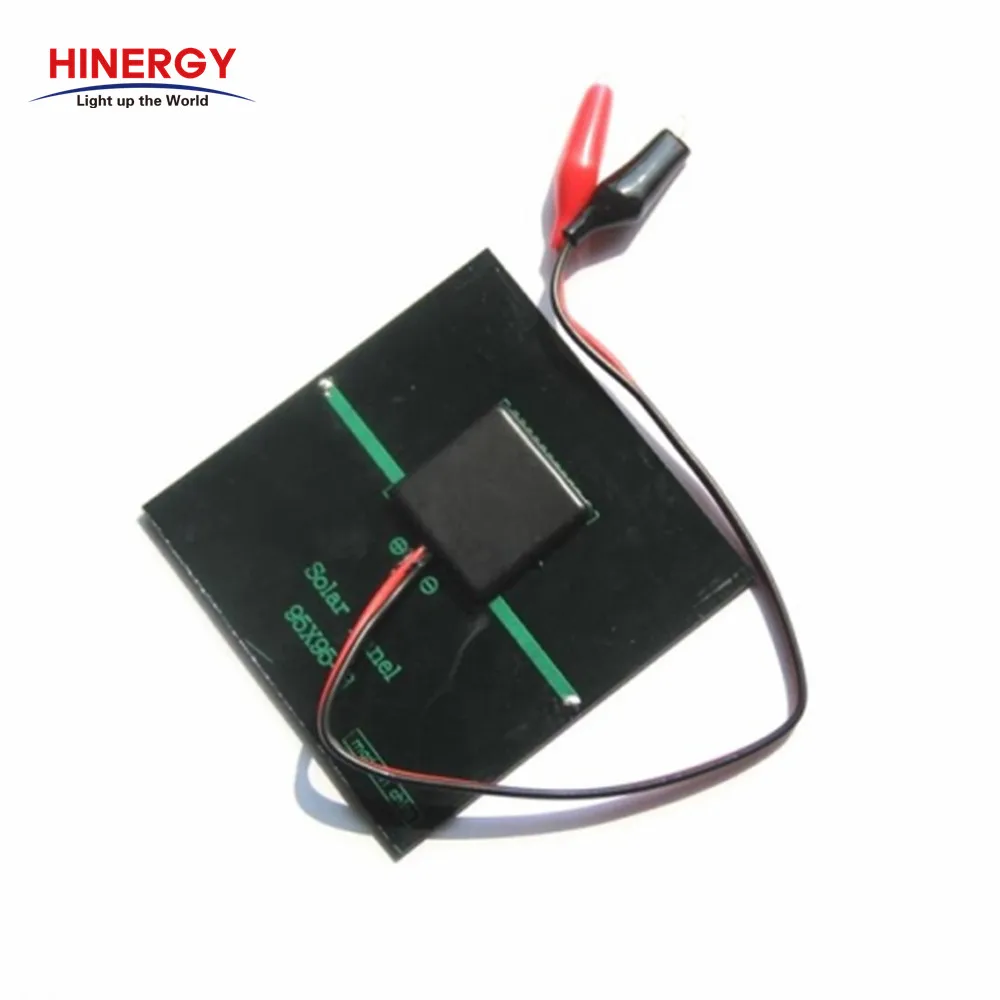

Q:Can you put the cables and connectors on the back of mini solar panel?

A:Yes, we can weld the cables and connectors according to your specification.

Q:What shape of mini solar panels can you make?
A:We can make different shape of solar panel. e.g. Round, Square,Triangle,Trapezoid shape etc.

Q:What's the material structure of Epoxy Resin Solar Panel & PET Laminated Solar Panel?
A:The epoxy resin solar panel is made of 3 layers structure: Epoxy Resin + Solar Cell + PCB Board.
PET laminated solar panel is made of 5 layers structure: PET + EVA + Solar Cell + EVA + PCB Board.

Q:Which one is the long service life between Epoxy Resin Solar Panel and PET Laminated Solar Panel?
A:The lifetime of PET laminated solar panel is longer than Epoxy resin solar panels.The lifetime of PET laminated solar panel is around 5-6 years, epoxy resin solar panel is 2-3 years.

Q:What's the output power range between Epoxy Resin Solar Panel and PET Laminated Solar Panel?

A:Epoxy resin solar panel is only suitable output power below 2W. If output power exceed 2 Watt, epoxy resin solar panel will be very easy distortion under long-time outdoor condition, and the lifetime will be shorted. PET solar panel can work orderly above 2 Watt.

Q:What's the small solar power system configuration relationship between batteries and mini solar panels?

DC Storage Battery Voltage	Mini Solar Panel Voltage
1.2 V	2.0 V-2.5 V
2.4 V	3.5 V-4.0 V
3.6 V	5.0 V-6.0 V
3.7 V	5.5 V-6.0 V
4.0 V	6.0 V-7.0 V
4.8 V	7.0 V-8.0 V
6.0 V	8.0 V-9.0 V
12.0 V	16.0 V-18.0 V

Notes: When the voltage of your solar panel don't satisfy your storage battery, you can take two or more same solar panels together in series. Such as, two 5.5v solar panel take together in series, so its voltage is 11V. when the voltage of solar panel satisfy your storage battery. In order to Speed up the rate of charge, you can take two or more same solar panel together parallel connection.
