Синусоидальная волна фильтр с 3 фазы однофазный EMI 220v и гармонический 380V

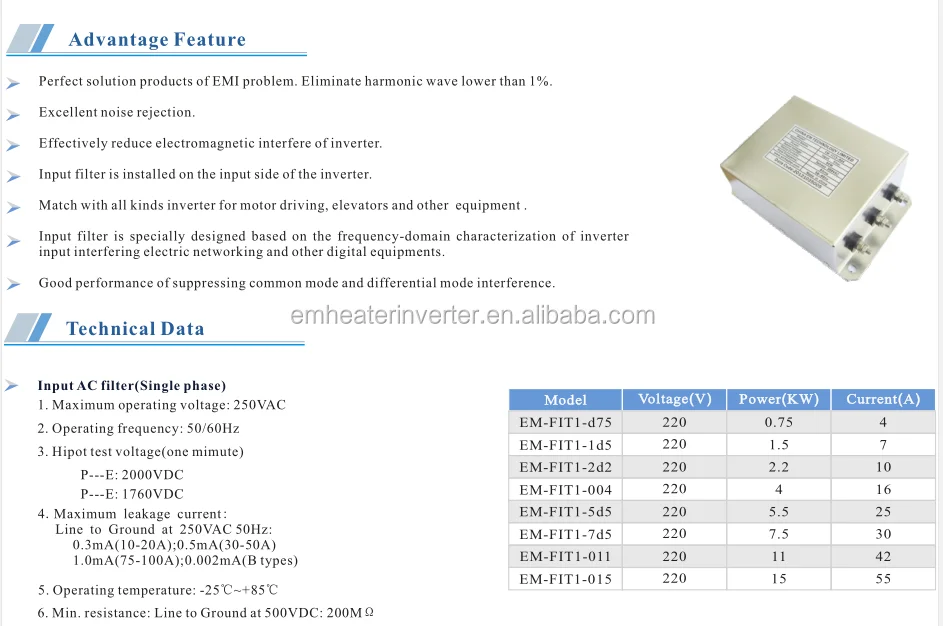

Feature:

• Perfect solution products of EMI problem. Eliminate harmonic wave lower than 1%.
• Insulation resistance:>200MOhm@500VDC.
• Excellent noise rejection 7.Effectively reduce electromagnetic interfere of inverter.
• Input filter is installed on the input side of the inverter.
• Match with all kinds inverter for motor driving, elevators and other equipment.
• Input filter is specially designed based on the frequency-domain characterization of inverter input interfering electric networking and other digital equipments.
• Good performance of suppressing common mode and differential mode interference.
• Suitable for the working place with strict requirement of circumstance. Suitable for the switching power supply, UPS, ATM, bill counter, embroidery machine, fuel dispenser, engraving machine, controller, industrial computer, scientific analysis instrument as well as the other electron equipments and inverter equipments.

Input AC filter(Single phase)

• 1. Maximum operating voltage: 250VAC.
• 2. Operating frequency: 50/60Hz.
• 3. Hipot test voltage(one mimute): P---E: 2000VDC ; P---E: 1760VDC
• 4.Maximum leakage current: Line to Ground at 250VAC 50Hz: 0.3mA(10-20A);0.5mA(30-50A); 1.0mA(75-100A);0.002mA(B types)
• 5. Operating temperature: -25°C~+85°C
• 6. Min. resistance: Line to Ground at 500VDC: 200MΩ

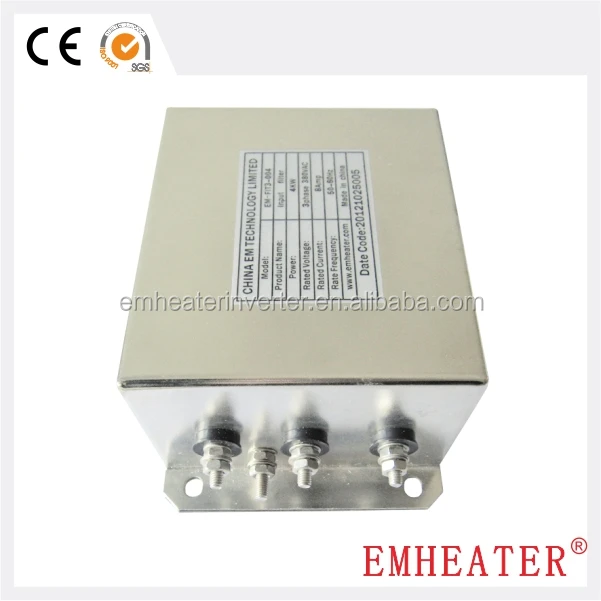

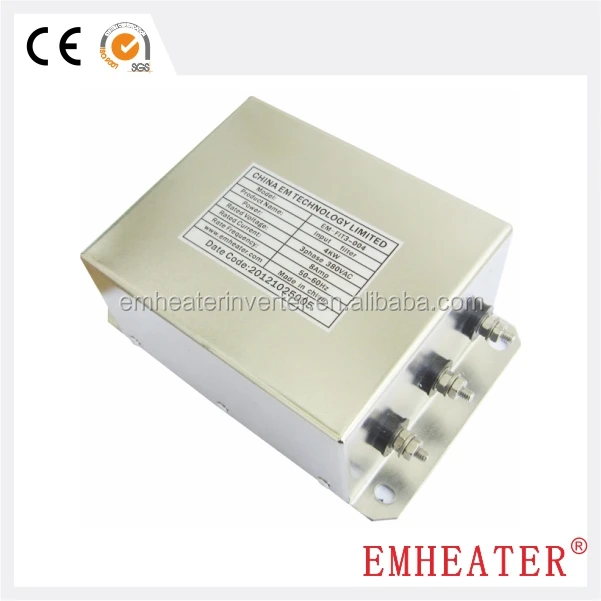

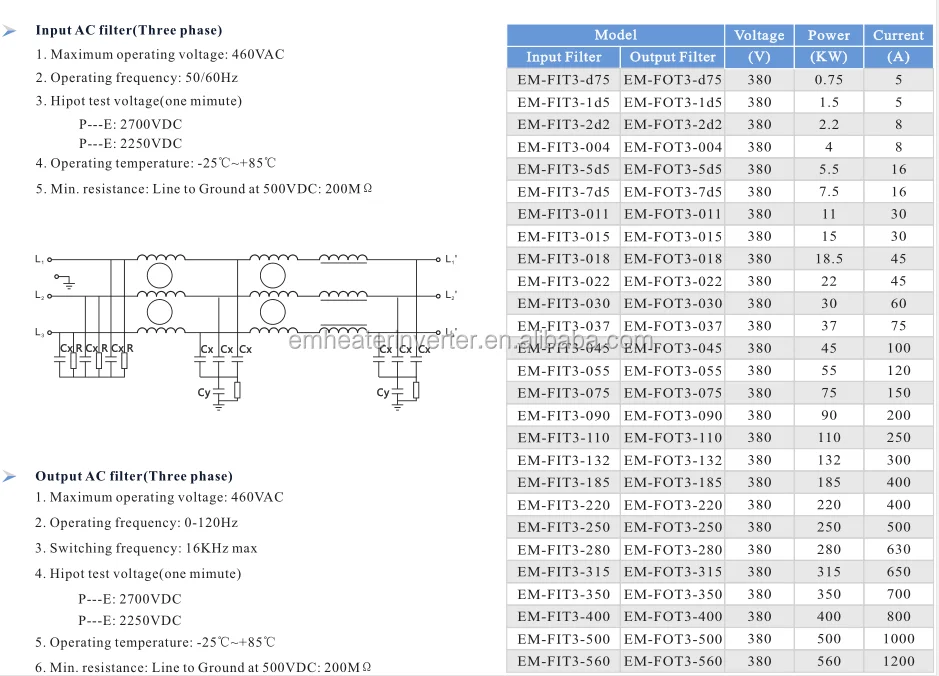

Input AC filter(Three phase)

• Maximum operating voltage: 460VAC.
• Operating frequency: 50/60Hz.
• Hipot test voltage(one mimute): P---E: 2700VDC ; P---E: 2250VDC.
• Operating temperature: -25°C~+85°C.
• Min. resistance: Line to Ground at 500VDC: 200MΩ.

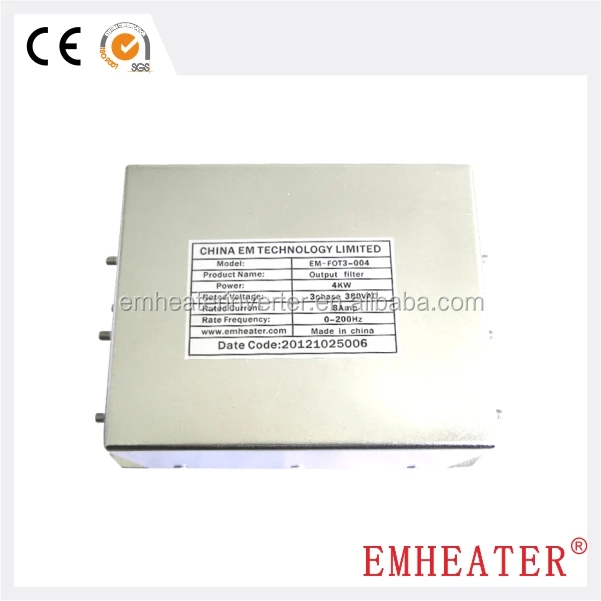

Output AC filter(Three phase)

• Maximum operating voltage: 460VAC.
• Operating frequency: 0-120Hz.
• Switching frequency: 16KHz max.
• Hipot test voltage(one mimute): P---E: 2700VDC ; P---E: 2250VDC.
• Operating temperature: -25°C~+85°C.
• Min. resistance: Line to Ground at 500VDC: 200MΩ.

We have 6 factories and more than 820 staff members. As a professional manufacturer of industrial automation products, we are always dedicated to soft starter, frequency inverter, servo motor and drive, EMI filter, harmonic wave AC choke, sine wave filter and brake unit and resistor. In the year of 2008, we have established "China EM Technology Limited" to cultivate oversea market.
