Умный высокоточный датчик давления воды

Категория: Pressure Sensors >>>
Поставщик: Shaanxi,Qijia,Automation,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	0.86 $*	0.40 $*
Aug-17-2025	0.98 $*	0.35 $*
Jul-17-2025	0.37 $*	0.11 $*
Jun-17-2025	0.52 $*	0.25 $*
May-17-2025	0.13 $*	0.81 $*
Apr-17-2025	0.90 $*	0.94 $*
Mar-17-2025	0.53 $*	0.38 $*
Feb-17-2025	0.4 $*	0.23 $*
Jan-17-2025	0.63 $*	0.82 $*

Характеристики

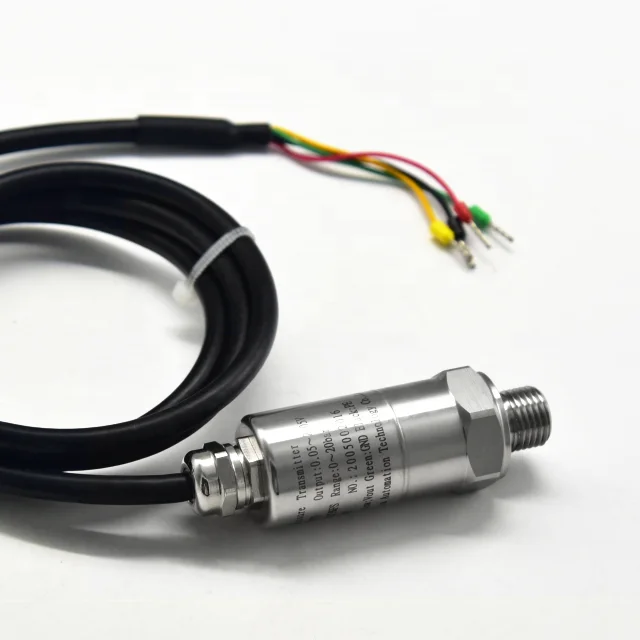

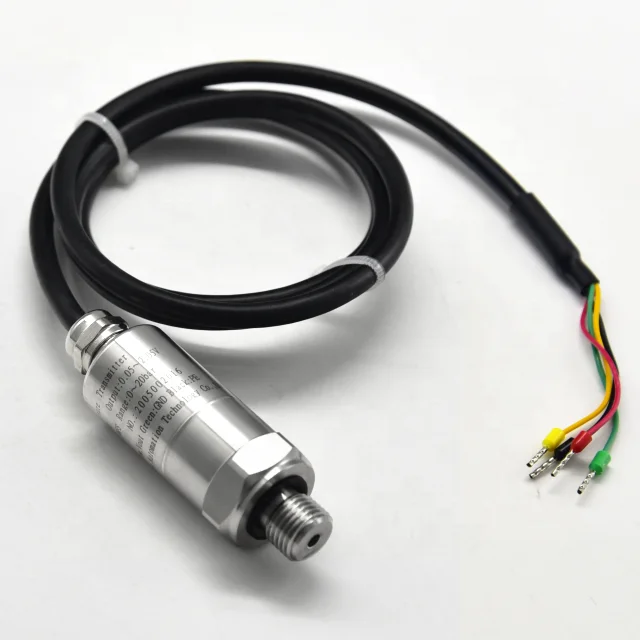

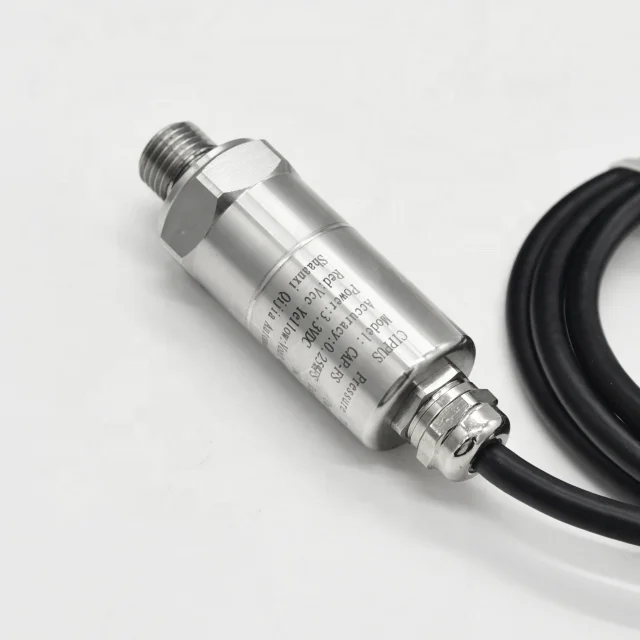

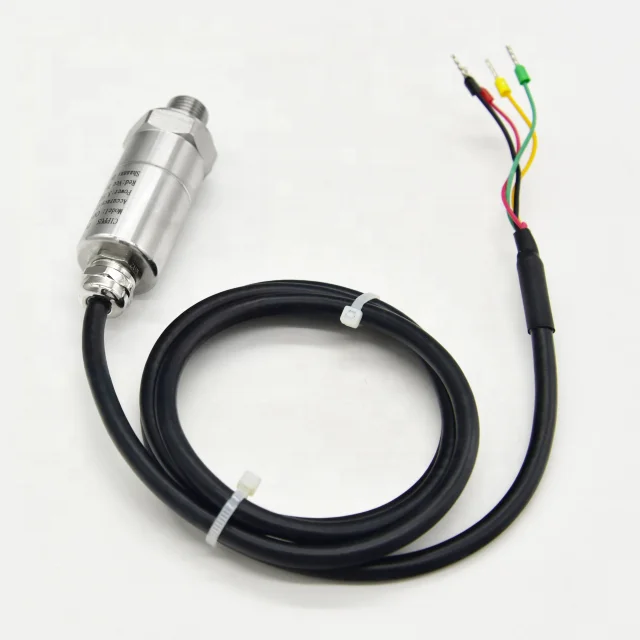

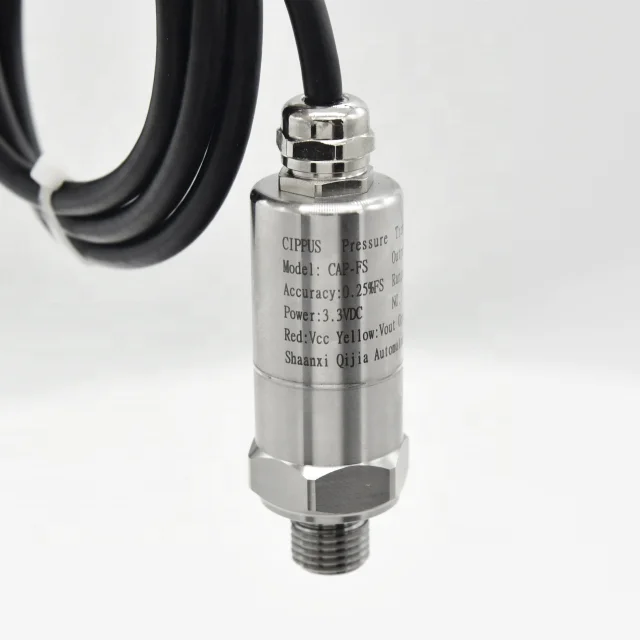

Smart High Accuracy Water USB Pressure Sensor

Product Description

FS 1.jpg

Technical Parameters

Pressure Range	-0.1MPa~0kPa~10KPa~100MPa
Medium	Air, Gas, Steam, Water, Oil, liquid purity medium
Power Supply	5VDC/9VDC~30VDC
Output	4~20mA,0~5V/10V, 0.5~4.5V, RS485, I2C or customized
Accuracy	0.5% F.S 0.25% F.S 0.1% F.S (Customized)
Pressure Type	Gauge (G), absolute (A), sealed gauge (S)
Material	Shell: SS304/SS316L Sensor:SS316L/Ceramic sensor
Thread size	M20×1.5,G1/2,G1/4,NPT1/2 or Customized
Electronic Connection	Hirstman, Packard, Waterproof, M12 aviation plug
Ingress Protection	IP68
Overload Capacity	150%F.S
Compensated Temperature	-10-70℃
Operating Temperature	-20-65℃ (higher temperature can chose CAP-GW)
Zero Temp. Drift	±0.03%FS/℃
Sensitivity Temp. Drift	±0.03%FS/℃
Long Term Stability	≤0.2%FS/year
Response Speed	≤1ms(up to 90%FS)
Recommendation	Indoor use, rainproof, generally applicable to the equipment supporting pipeline pressure measurement.

.jpg

HS specifications 2.jpg

2088

FS applicatiton.jpg

Packaging & Shipping

FS packing.jpg shipping 2

Company Information

FAQ

1. Q: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?

A: Yes , We have. Please contact us online or send an Email for sending the catalogue timely.

2. Q: I need your price list of all your products, do you have a price list ?

A: Really sorry not have a price list of all products. If you want to check any price of our products, please feel free to contact with us. The quotation will send you soon!

3. Q: I can't find the product on your catalogue, can you make this product for me?

A: The catalogue only for reference,but not all. Please inform us the application and specifications, we can communicate on line.

4. Q : Can you make customized products and customized packing?

A: Yes. OEM/ODM service can be offered, MOQ100PCS.

5. Q: Can you provide samples ? Are the samples free ?

A: Yes, the paid sample can be offered. Production time is within 2-7 working days. Shipping time is about 7 days by Express like FedEx, DHL, UPS or EMS etc. door to door service.

6. Q: What kind of payment do you accept ? Can pay by RMB?

A:Payment <=50000USD,100% in advance. Payment>=50000USD,50%T/T in advance,balance before shipment. T/T, Visa, Paypal, Western Union, X-transfer etc. all is supported. Pay money In RMB. No problem.

7. Q : How to ship my order ? Is it safe?

A: For small package, we will send it by Express, such as DHL,FedEx,,UPS,TNT,EMS.That’s a Door to Door service. Large package can chose by railway, by air, or by sea.

8. Q: Do you have a guarantee of your product quality?

A: Yes, we have. Gurantee is 12 months (one year).

9. Q: Can I become an Agent / Dealer of CIPPUS products?

A: Welcome! Please inform us your Country/Area firstly. If you want any other kinds of cooperation,do not hesitate to contact us.
