8 дюймов SE-A200 наборы Гроу тентов для гидропоники встроенный вытяжной воздуховод
- Категория: Осевые вентиляторы >>>
- Поставщик: Shenzhen,Shengshida,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 105.69 $* | 107.1 $* |
| Jul-17-2025 | 85.9 $* | 87.1 $* |
| Jun-17-2025 | 104.68 $* | 106.37 $* |
| May-17-2025 | 103.94 $* | 105.68 $* |
| Apr-17-2025 | 82.8 $* | 84.8 $* |
| Mar-17-2025 | 101.16 $* | 103.42 $* |
| Feb-17-2025 | 100.52 $* | 102.68 $* |
| Jan-17-2025 | 100.49 $* | 102.58 $* |
Характеристики
Product Description

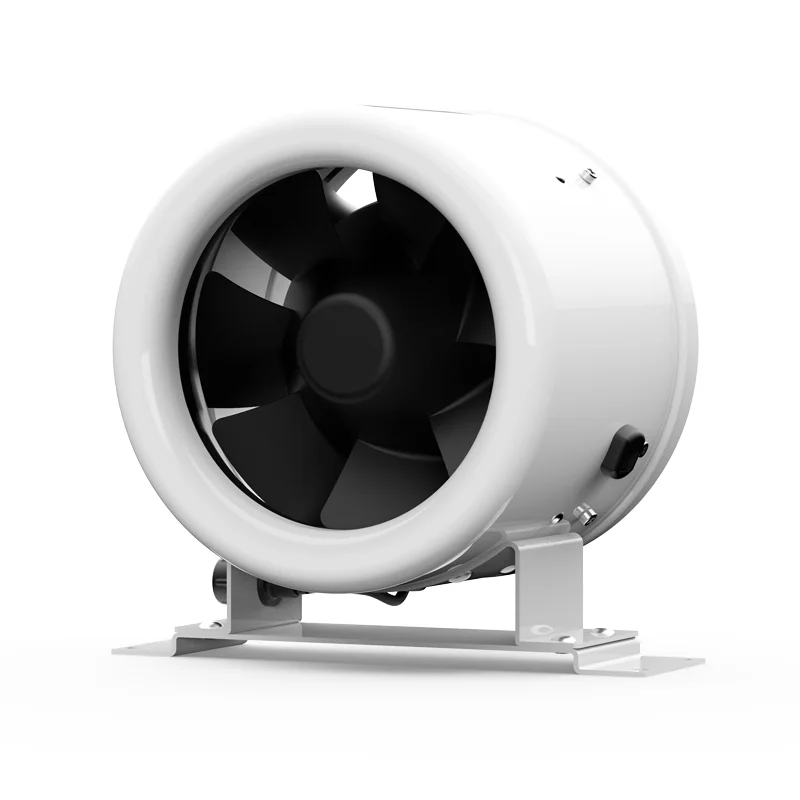

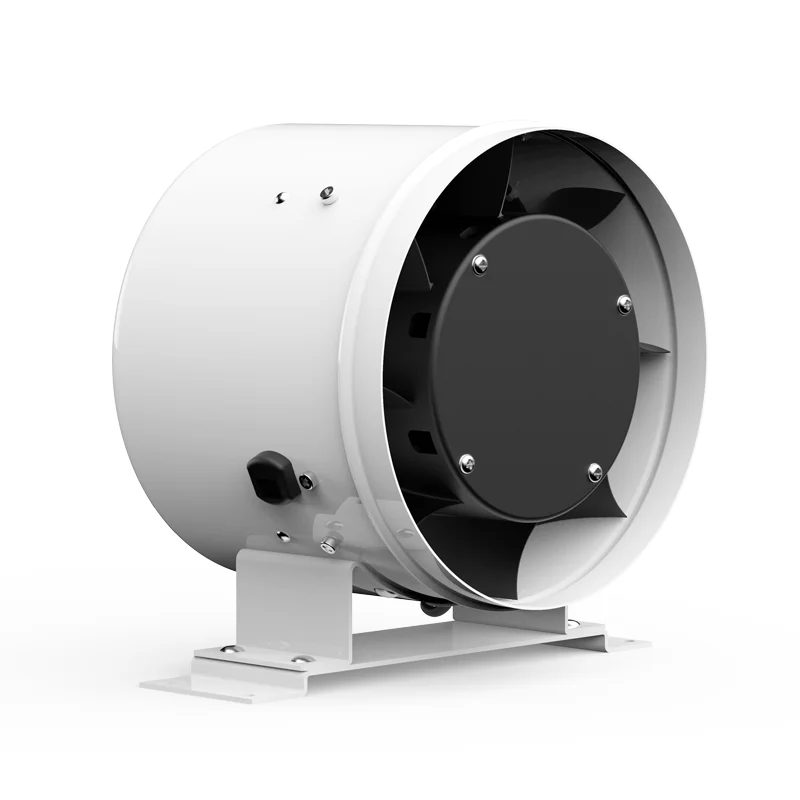

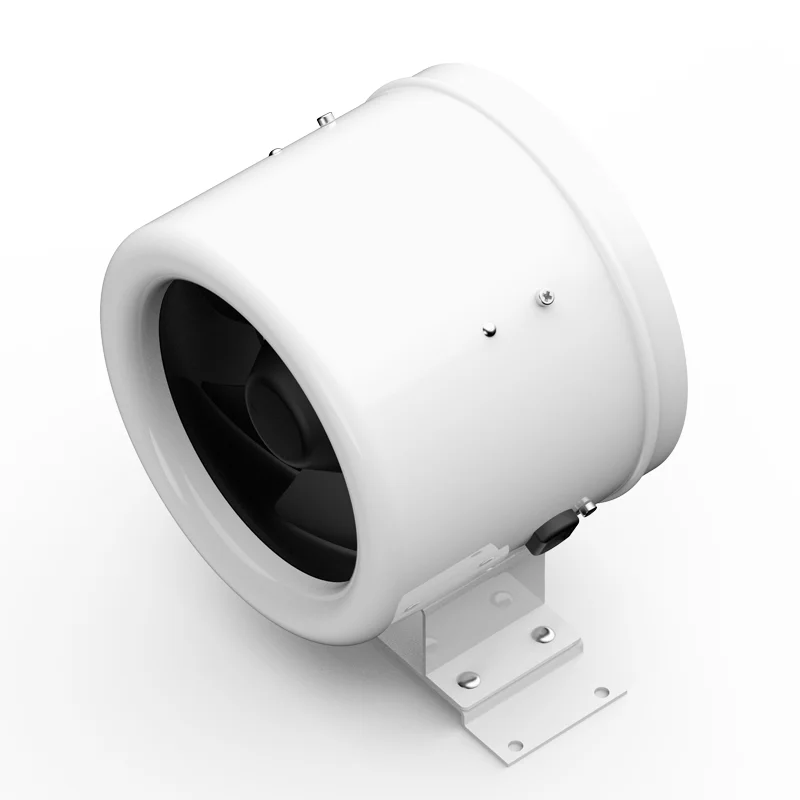

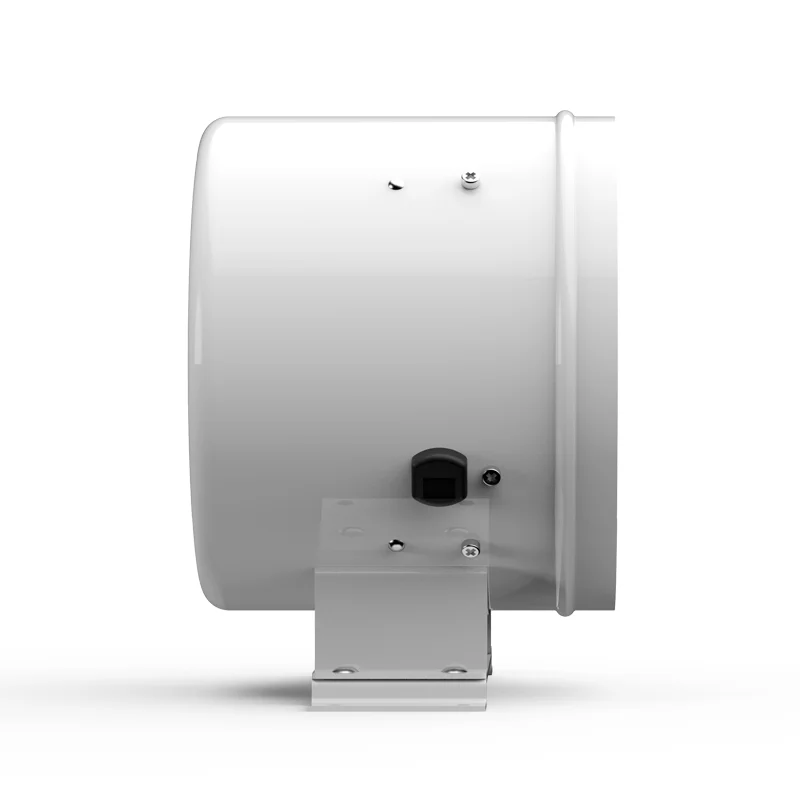

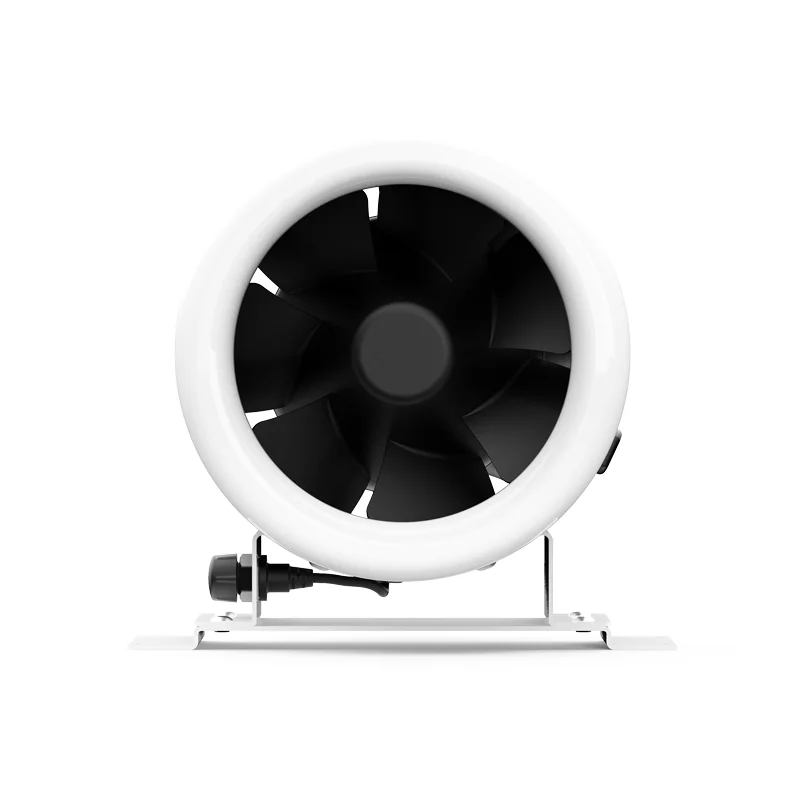

8 inch SE-A200Z hydroponics grow tent kits inline extractor exhaust air duct fan
SE-A200 mixed flow in-line fan is patented product and truly compact unit occupying the least space with very wide applications. The fan is built with cold-rolled steel housing and jet-engine design double impellers, and equipped with the cutting-edge brushless EC motor. Thanks to its up-to-date design in the industry, it can work on much lower power consumption and deliver greater air volume and static air pressure.
Main Features:
1) Saving more than 50% energy cost comparing with normal product.
2) Cold-rolled steel housing; jet-engine design double impellers; cutting-edge brushless EC motor.
3) 6-Poles Brushless Motor with Sine Wave.
4) Double Heavy Duty NMB Ball Bearing, not easy fever, life expectancy up to 85,000 hours.
5) IPX4 protection class, waterproof and dustproof more effective.
6) Locked Motor Protection [ Auto- Restart ] ; Soft- Start Motor; Over-Voltage Lockout Protection
7) Customized Feature: PWM / Controled by 0-10V / Voltage output / Tacho Output / IP68 waterpoof and dustproof.
Specifications
Model | SE-A100 | SE-A125 | SE-A150 | SE-A200 | SE-A250 |
Fan Size | 4 inch / 100mm | 5 inch / 125mm | 6 inch / 150mm | 8 inch / 200mm | 10 inch / 250mm |
Rated Voltage | 110V-240V AC | 110V-240V AC | 110V-240V AC | 110V-240V AC | 110V-240V AC |
Max.Power C. | 18 W | 20 W | 40 W | 75 W | 150 W |
Frenquency | 50 Hz / 60 Hz | 50 Hz / 60 Hz | 50 Hz / 60 Hz | 50 Hz / 60 Hz | 50 Hz / 60 Hz |
Max. Speed | 5000 RPM | 5000 RPM | 5000 RPM | 3800 RPM | 3200 RPM |
Max. Airflow | 160CFM / 275M³H | 166CFM / 280M³H | 350CFM / 594M³H | 710CFM / 1205M³H | 1065CFM / 1808M³H |
Static Pressure | 34mmH²O / 334Pa | 37mmH²O / 363Pa | 51mmH²O / 500Pa | 53mmH²O / 520Pa | 52mmH²O / 510Pa |
Noise Level | 56.8dBA | 54.4dBA | 60.0dBA | 61.6dBA | 65dBA |
Housing Material | Aluminum | Aluminum | Cold Rolled Steel | Cold Rolled Steel | Cold Rolled Steel |
Impeller Design | Mixed Flow | Mixed Flow | Mixed Flow | Mixed Flow | Mixed Flow |
Motor Type | EC Motor | EC Motor | EC Motor | EC Motor | EC Motor |
IP Rating | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 |
Applications
Residential & Commercial & Industry
SENSDAR manufactures an extensive range of ventilation products, beginning with our industry first EC mixed flow fan to a wide range of industrial fans. Our products are second to none in quality, reliability and length of service life and can be installed in a variety of applications, especially popular in the residential, commercial and industrial locations, such as the following places:
Residential Garages, Bathroom , Hydroponics , Hotel, Hot pot restaurant, Factory, Gym Center & Sports Hall, Public Smoking Sites, Changing Room, Toilet & Public Washing Room, Commercial & Industrial Buiding, Convertion Center & Enclosed Room
Our Company
About SENSDAR
SENSDAR established in 1999 as a manufacturer of ventilation fan. Until now , factory cover more than 10,000 square meter .
SENSDAR well managed under ISO09001 certified in 2012 and built to meet the high quality standard of UL / ETL / OCC & CE.
SENSDAR has been dedicated to the development and manufacturing of all kinds of industrial fans and supplying to a diverse national and international OEM/ODM client base, empowering green ventilation systems around the globe.
Certification
FAQ
Q: How to ship the goods ?
A: DHL, UPS, Fedex, EMS, By Air, By Sea, customer forwarder are acceptable
Q: What's the term of payment ?
A: T/T , L / C , Wester Union, Paypal, MoneyGram, Escrow etc are negotiable
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample need extra and do not pay the cost of freight.
Q: How to control our products' quality?How to control our products' quality?
A: We are ISO9001:2008 certificated manufacturer.All products will go through five checks in the whole process.
--Raw Material Inspection
--Plastic Injection Inspection
--Motor production Inspection
--Assembling Line Inspection
--AQL Sampling
Q: What can I do if we can not find the suitable fan model in the fan list? And we'd like to print our LOGO, can you make it?
A: Please contact us and we are welcome for customized fans , We can provide OEM service which including logo printing, gift box design and carton design.
