Шэньчжэнь З-заводная головка Simplex/Duplex SM/мм FC-SC волоконно-оптический патч-корд в сети передачи
- Категория: Telecommunications >>>
- Поставщик: Shenzhen,Z-Crown,Technology,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 2.76 $* | 2.37 $* |
| Aug-17-2025 | 2.58 $* | 2.0 $* |
| Jul-17-2025 | 2.67 $* | 2.56 $* |
| Jun-17-2025 | 2.31 $* | 2.32 $* |
| May-17-2025 | 2.6 $* | 2.58 $* |
| Apr-17-2025 | 2.34 $* | 2.54 $* |
| Mar-17-2025 | 2.44 $* | 2.70 $* |
| Feb-17-2025 | 2.17 $* | 2.7 $* |
| Jan-17-2025 | 2.41 $* | 2.59 $* |
Характеристики
Z-crown Simplex/Duplex SM/MM FC-SC Fiber Patch Cord In Data Communication Network
Product Description
- CATV
- Optical fiber communication systems
- Optical fiber data transmission
- Building network access
- Cabling system, ODF
- FTTX applications
| Model NO. | FC-SC Fiber Patch Cord |
| Style | LC,SC,ST,FC.MU,MPO, SC/APC,FC/APC,LC/APC.MU/APC Duplex MTRJ/Female, MTRJ/Male |
| Fiber Type | 9/125 SMF-28 or equivalent (Singlemode) OS1 50/125, 62.5/125 (Multimode) OM2&OM1 50/125, 10G (Multimode) OM3 |
| Cable Type | Simplex, Duplex (Zipcord) Φ3.0mm, Φ2.0mm, Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH |
| Polishing Manner | UPC,SPC,APC (8°& 6°) |
| Insertion Loss | ≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750 |
| Return Loss (For Singlemode) | UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750 |
| Repeatability | ±0.1dB |
| Operating Temperature | -40C to 85C |
| Geometry Requirement (For Singlemode) | Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 |

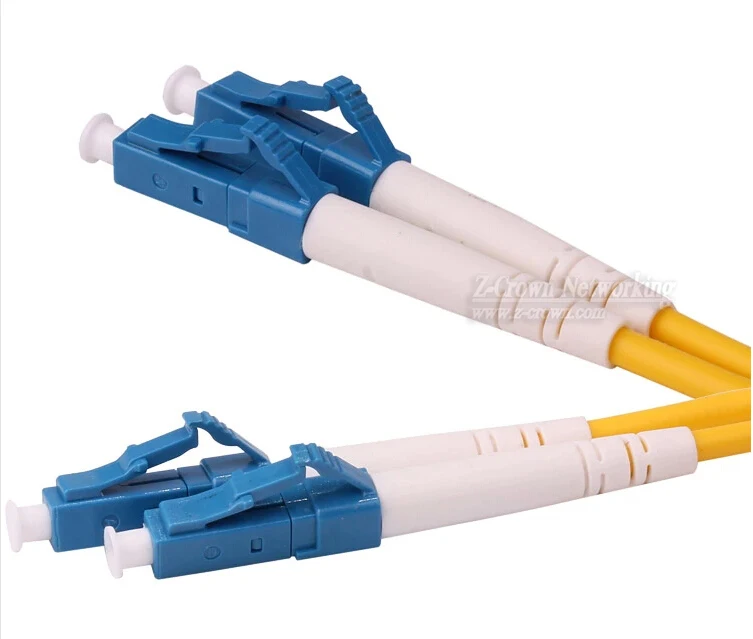

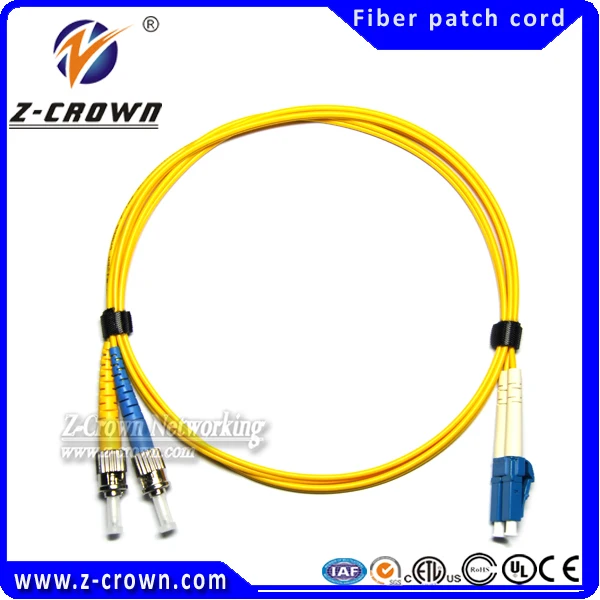

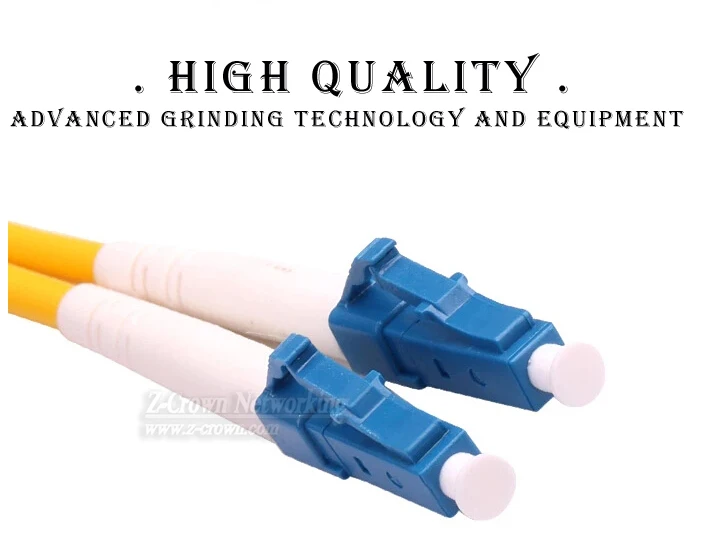

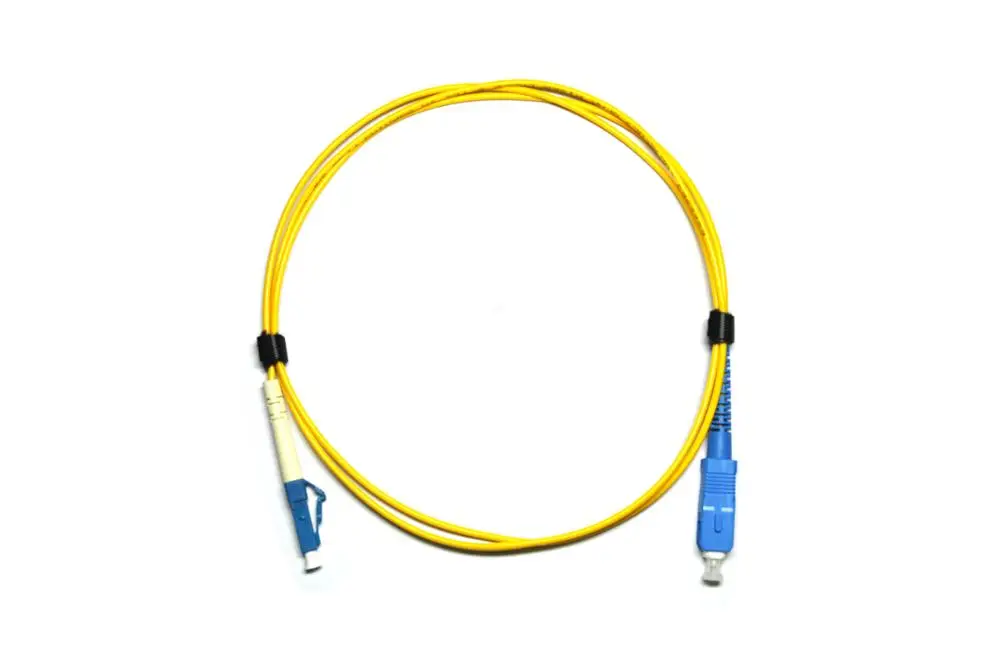

Detailed Images
