Apollo lake серии N4200 процессор Промышленная материнская плата со встроенным 4GB RAM поддержка 5 * RS-232 1
- Категория: Industrial Computer & Accessories >>>
- Поставщик: Shenzhen,Piesia,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.34 $* | 0.18 $* |
| Aug-16-2025 | 0.79 $* | 0.71 $* |
| Jul-16-2025 | 0.28 $* | 0.77 $* |
| Jun-16-2025 | 0.59 $* | 0.78 $* |
| May-16-2025 | 0.91 $* | 0.49 $* |
| Apr-16-2025 | 0.83 $* | 0.50 $* |
| Mar-16-2025 | 0.80 $* | 0.34 $* |
| Feb-16-2025 | 0.13 $* | 0.2 $* |
| Jan-16-2025 | 0.9 $* | 0.64 $* |
Характеристики

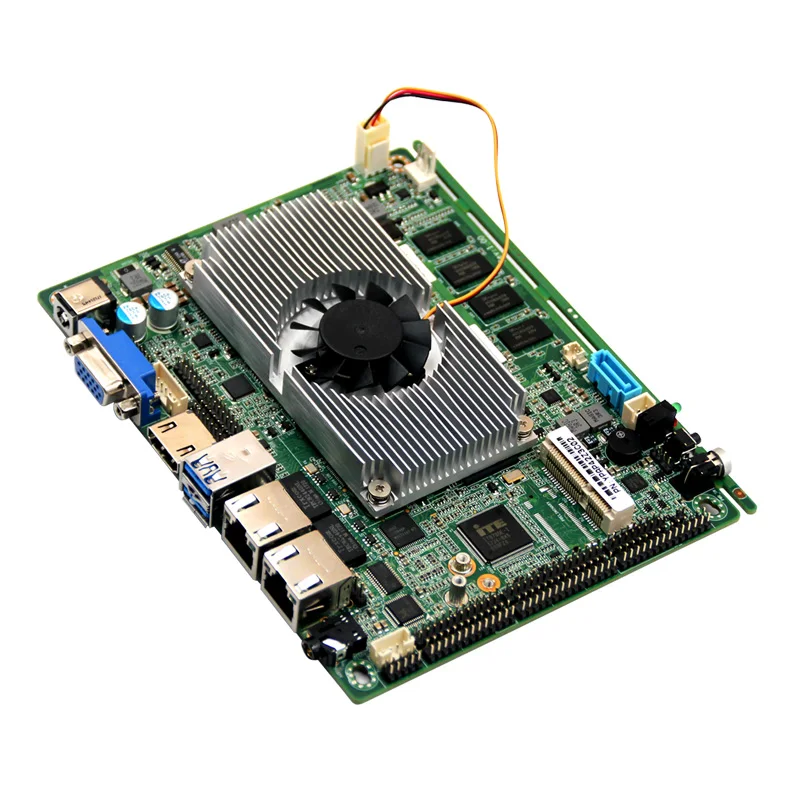

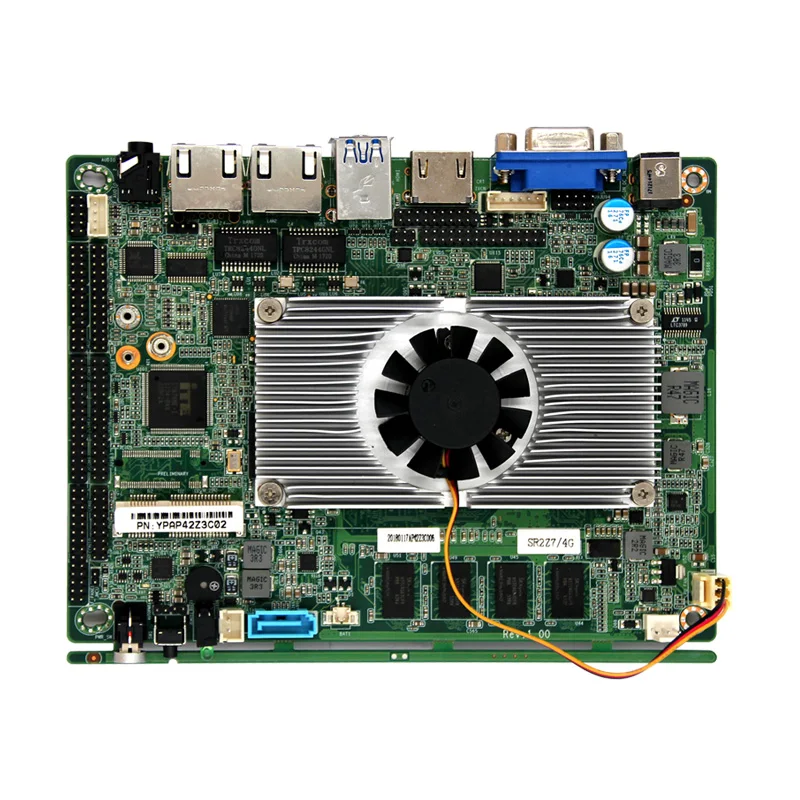

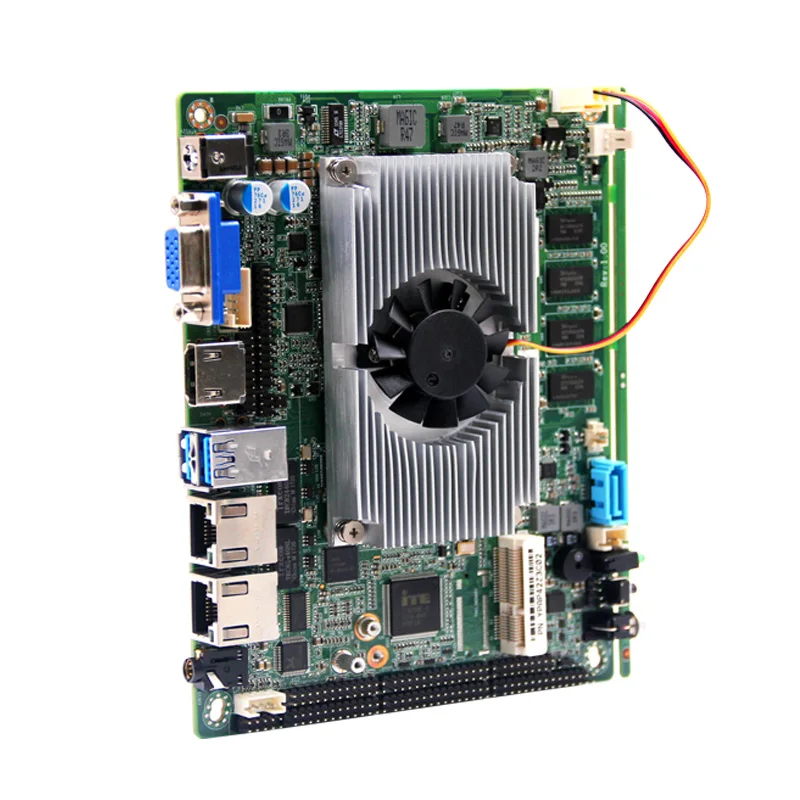

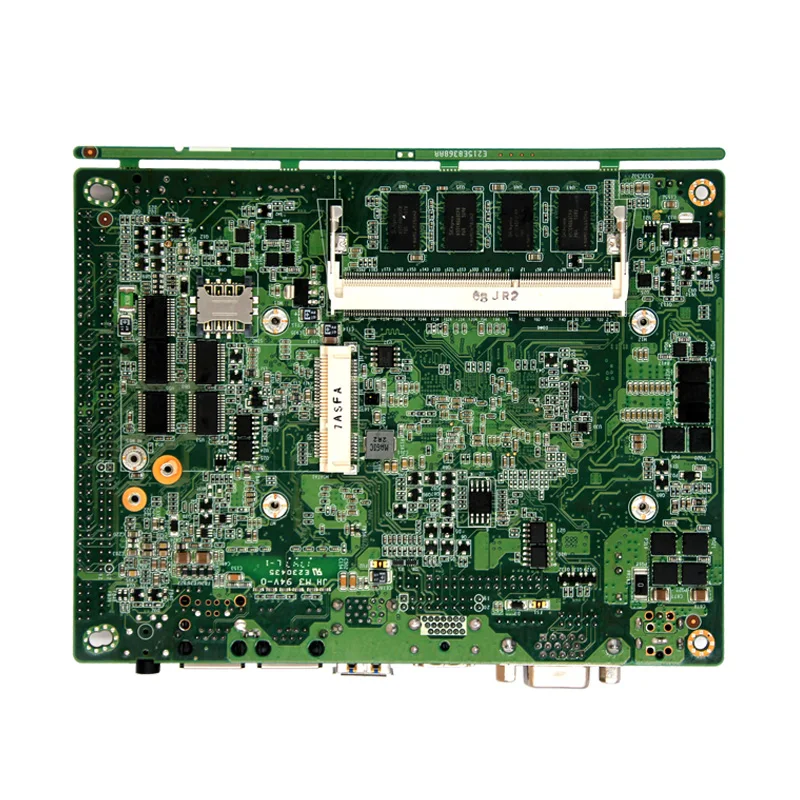

Apollo lake series N4200 processor Industrial Motherboard with onboard 4G RAM support 5*RS-232 1*RS-485/RS-422
Product Description
Processor | CPU | Apollo lake series processor |
| CPU Package | BGA |
| Chipset | Apollo lake Single Chip |
| BIOS | EFI BIOS |
RAM | Technology framework | Single channel DDR3 1066/1333/1600/1866MHz |
| Capacity | Integrated 2GB\\4GB DDR3 |
| RAM Socket | 1x RAM slot ,max. 8GB RAM(Optional) |
Video | Graphic controller | Intel HD Graphics |
| Dual LVDS and EDP | LVDS Support dual channel 24bit LVDS,Resolution maximum:1920*1200, EDP Resolution maximum:4096*2160(LVDS&EDP Display alternatively) |
| VGA | VGA support Resolution maximum:2048x1536 |
| HDMI | Support Resolution maximum:4096*2160 |
| Double display support | VGA+HDMI VGA+LVDS LVDS+HDMI Synchronous or asynchronous display |
| Three Display support | LVDS+VGA+HDMI Synchronous or asynchronous display |

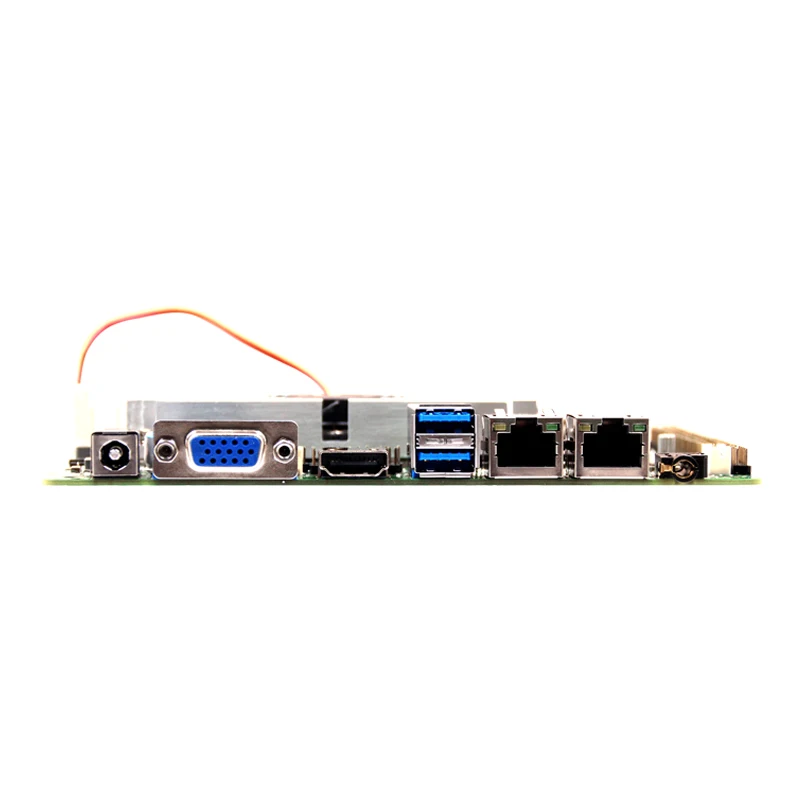

I/O Panel | Ports | 1*VGA 1*HDMI 1*USB3.0 3*USB2.0 1*RJ45 Lan, 1*LINE OUT |
Network | CONTROLLER | 1*Intel I211AT Gigabit Ethernet LAN,RJ45 ports(Rear is 2*USB,Lan also are 2*LAN) |
AUDIO | CONTROLLER | Realtek HD ALC662 Audio((line-in,line-out,Mic) |
Super I/O | CONTROLLER | IT8786E |
HARDWARE MONITORING | Watchdog timer | 0-255sec, sample code optional |
| Cooler | Aluminum+copper heat sink with Fan or Fanless |
Input/Output Interface | USB | 8*USB2.0,Max. Supported +5V/1A |
| Serial ports | 5*RS-232, 1*RS422/485 optional,RS485 supported automatic flow control |
| LPT | 1*LPT pin |
| PS/2 | 1*PS/2 Pin Headers |
| Touch screen | Support Touch Panel(4wire 5wire 8wire ) |
| GPIO | 8bit,sample code, Free defination input or output ,3.3V@24mA |
EXPANSION BUS | Mini-PCle | 1*Mini-PCIe slot,Support PCIe and USB device |
STORAGE | SATA | 1*SATAIII interface(Maximum transmission rate to 6gb/s) |
| M-SATA | 1*M-SATA Socket,support SANDISK protocol(Maximum transmission rate to 6gb/s) |
| NGFF | 1*NGFF interface |
| SSD | 32/64/128G(Optional) |
POWER SUPPLY | Power Type | Wide Voltage 8-36V |
| Power consumption | 20W |
Item advantages
1. Apollo lake series processor;
2. Onboard 2G\\4G Memory;
3. 5*RS-232,1*RS-485/RS-422;
4.24bit dual channel LVDS or EDP(Optional);
5. Onboard 32/64/128G SSD(Optional);
6. Support Touch screen(4wire 5wire 8wire);
7. Support 8-36V wide voltage;
8. Size:154.8 x 117.4 mm;
