Зонд Renishaw машина для измерения
- Категория: Testing Equipment >>>
- Поставщик: Dongguan,Yihui,Optoelectronics,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.26 $* | 0.19 $* |
| Aug-16-2025 | 0.4 $* | 0.42 $* |
| Jul-16-2025 | 0.29 $* | 0.4 $* |
| Jun-16-2025 | 0.55 $* | 0.20 $* |
| May-16-2025 | 0.73 $* | 0.53 $* |
| Apr-16-2025 | 0.71 $* | 0.77 $* |
| Mar-16-2025 | 0.47 $* | 0.89 $* |
| Feb-16-2025 | 0.38 $* | 0.0 $* |
| Jan-16-2025 | 0.26 $* | 0.47 $* |
Характеристики
No Difficult Product To Test In The World

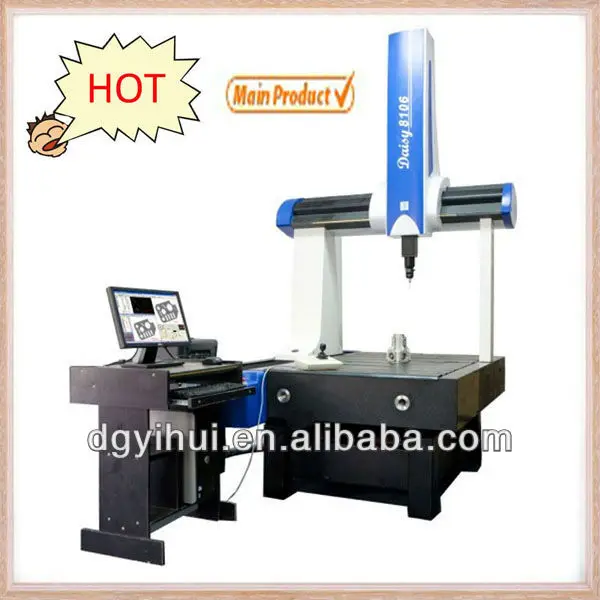

Renishaw Probe Coordinate Measuring Machine
Specification
| Model | YIHUI 575 | YIHUI 7106 | YIHUI 9128 |
| Resolution(um) | 0.5 | 0.5 | 0.5 |
| Indication Error(um) | 1.8+3.3L/1000 | 2.0+3.3L/1000 | 2.3+3.3L/1000 |
| Measurement Error(um) | 1.8 | 2.0 | 2.3 |
| Measuring Range(Dx*Dy*Dz, mm) | 500*700*500 | 700*1000*600 | 900*1200*800 |
| Load Capacity(kg) | 1000 | 1200 | 1500 |
| Dimension(Lx*Ly*Lz, mm) | 1292*1789*2426 | 1492*2089*2626 | 1692*2289*3026 |
| Weight(kg) | approx. 1080 kg | approx. 1800 kg | approx. 2240 kg |
Features
1.Granite fixed worktable, all three axes are made of high performance granite, good temperature characteristic,have the same coefficient of thermal expansion.
2.Granite worktable with integral “dovetail” guide in X axis, eliminate the pitch and yaw,also provides superior motion stability.
3.Z axis air-balance with self-protection,improve motion capability.
4.Advanced synchronous belt drive system with non-slip and high stiffness, ensures high stabilit, lower noise.
5.High precise, rigid, and pre-loaded air bearings on all axes, can ensure the guidance never be damped
6.Transmission system uses high-power DC servo motor and new double level tape reducer to ensure rapid and accurate axes movement.
7.RENISHAW steel scale
8.Famous parts from all over the world are used in every important sub systems
9.RENISHAW0.5um RENISHAW scale and readhead,Resloution: 0.5um
10.Pneumatic system made
11.Synchronous belt drive system
12.Pricision filter
13.Full screen and high soft cable towline
Hot products,Know more,Click the product
Company Information
Dongguan Yihui Optoelectronics Technology Co., Ltd., established in 2003 , is a high-tech enterprise of
measuring instruments owning integrated R&D, production and sales system. our company has more
than 30 design patents, and the software has get the State Copyright Bureau software copyright
registration certificate. At the same time, we have been recognized as High-tech Enterprise in China,
Private Technology Enterprise in Guangdonng Province, private Technology Enterprises in Dongguan
City, the Dongguan City Measurement Association executive director units of Dongguan municipal
quality and Technical Supervision Bureau, the Dongguan City Chamber of Commerce network
governing units. And passed the ISO9001: 2008 international quality management system certification.
Our Services
12 months warranty. Buy with confidence!
1. Within 12 months from the date of assembly and acceptance.During this period, we will take phone
and the internet to provide users with a combinative after-sale advisory service.
2. We provide life-long warranty services of instrument for users by preferential price.
1) If the instrument’s failure caused by our side, we can have engineers for customer site services,
and we will send spare parts to customer for replacement with the cost by our side.
2) We provide free software key replacement during warranty period and free life-long software upgrade
for the user on legal use.
3) If our engineers will be invited to customer side for training, our technical service will be free, except
ticket and accommodation.
3. Our company has spare parts which can be provided for the users with cost.
4. We provide users with after-sales value-added technical service by preferential price for life, such
as technical upgrades and retrofit.
FAQ
Q: We don't know much about the machine but we need it, how to decide which model is the
best?
A: Please send inquiry to our Sales telling what you need the machine to do.And then our team will work
out best solutions for you by sending catalogues, demonstration video or testing of your sample.
Q: We want to protect our payment better, T/T is not accepted.Is there better way for business?
A: L/C, Paypal, Alipay etc. are available, we have many options for safe payment.
Q: After machine arrival, what will be the service for installation and training?
A: If you are close to our local agent, you can contact them directly for spot service.Usually we will send
our engineer for overseas spot service to finish installation of the machine and operation training, which
will take extra cost like air-ticket and accomodation.
Know More about Our Company and Products
Please don't hesitate to contact us!
