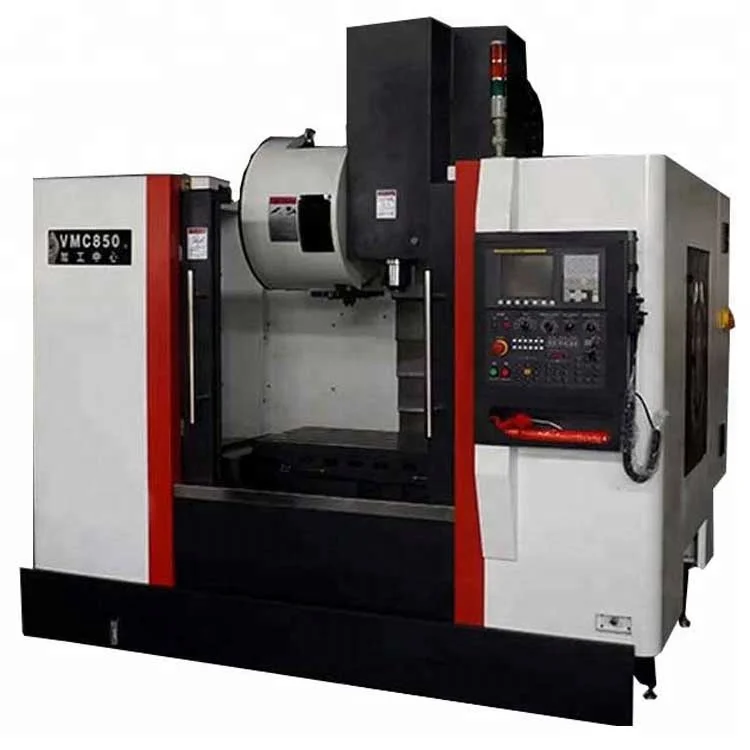

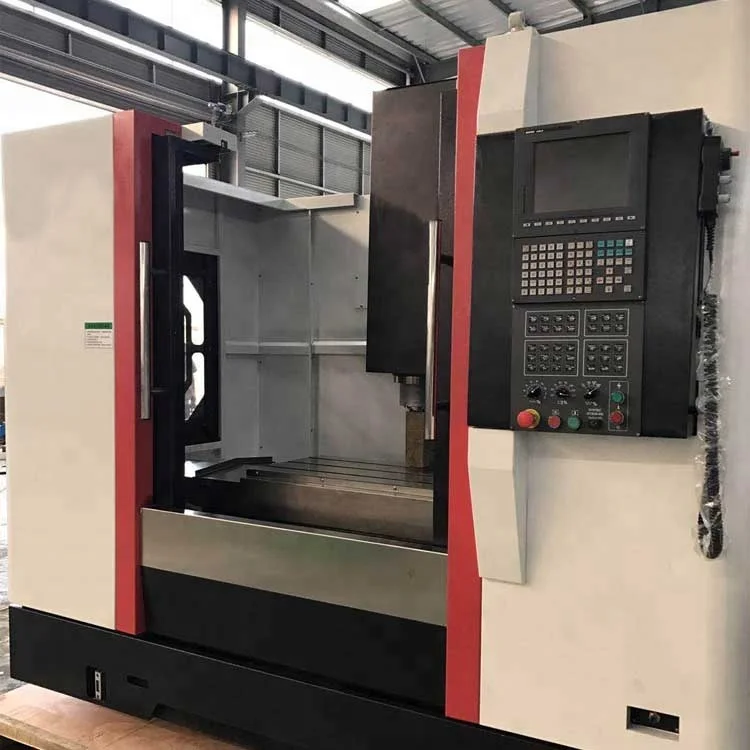

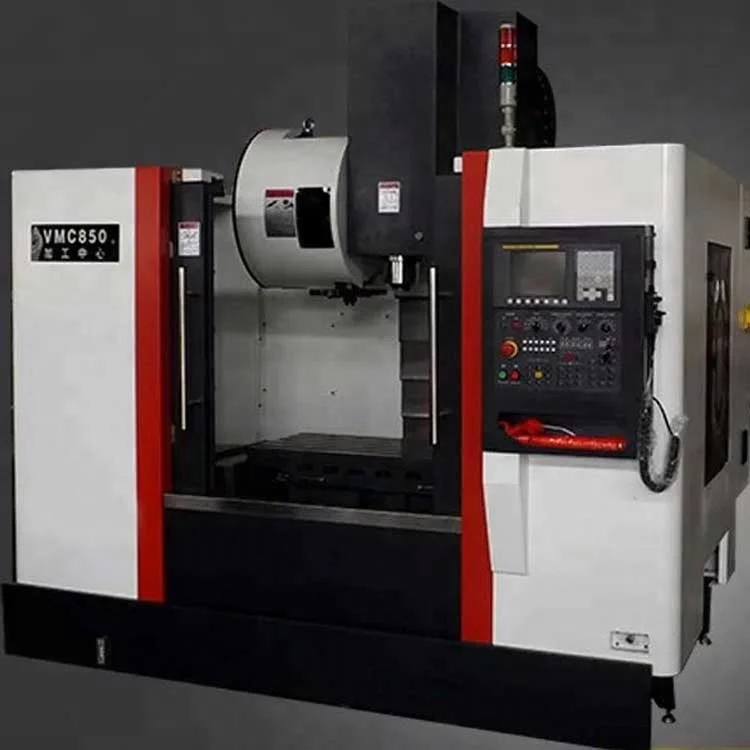

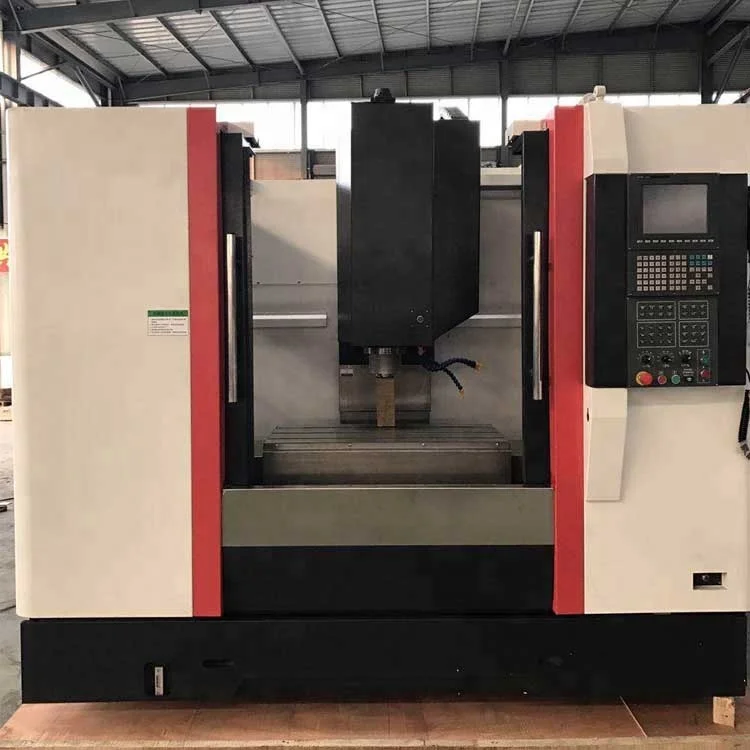

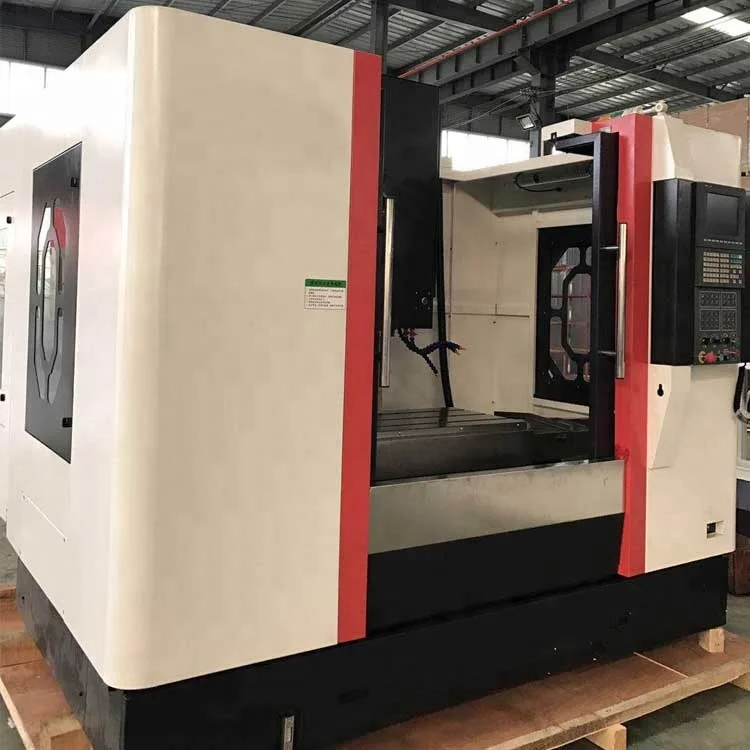

Фрезерный станок с ЧПУ по металлу 5 оси VMC850 вертикальный обрабатывающий

First, the main purpose:
The machining center is a vertical bed structure, the feed axis is X, Y, Z three coordinate control, the maximum rapid traverse speed is up to 20m/min; the main shaft is servo motor power drive, the power is 7.5Kw, the maximum speed is 8000rpm Double nut preloading C3 ball screw screw, pre-stretching mechanism at both ends, greatly eliminating the influence of thermal deformation on machine tool accuracy; optional tool magazine, accurate and reliable tool change, the fastest tool change time is less than 2.5 Second; the machine numerical control operating system has customer choice, the machine tool can realize the clamping of complex parts such as various discs, plates, shells, cams, molds, etc., complete drilling, milling, boring, expanding, reaming, tapping, etc. It is suitable for the production of multi-variety, medium and small batch products, and it can display its superiority for the processing of complex and high-precision parts. The machine tool can be equipped with the fourth and fifth axes to achieve high efficiency and high efficiency for complex rotary parts. Precision automated processing. The machine tool is suitable for high-efficiency and high-precision automatic processing of small and medium-sized parts in aerospace, military and national defense, automobile and motorcycle, engineering machinery, refrigeration and petrochemical, rolling stock and other industries.

Machining Center	VMC850 Specifications
X-axis travel	800 mm
Y axis travel	500 mm
Z axis travel	500 mm
Spindle nose to table	120-650 mm
Spindle center to column	385 mm
Workbench size	1000× 500 mm
T-slot (size × number × pitch)	18 × 3 ×150 mm
Workbench maximum load	600 kg
Spindle taper	BT40
Spindle power	7.5 Kw
Spindle rotation number	8000rpm
Cutting speed	1-10000 mm/min
Fast speed X/Y/Z:	20m/min
Positioning accuracy	0.008/300 mm
Required air pressure	26.5 kgf/cm
Power capacity	12KVA
Machine weight	5000 kg
Machine tool footprint (length × width)	2800 × 2350 mm

Main Features

1. High rigidity: the bed-type machining center structure is adopted. The machine tool is composed of base, sliding seat, work table, column and headstock; the main basic parts are analyzed by finite element structure, the structure is reasonable and the rigidity is large; all machine tool castings are Thermal aging treatment, precision has long-term stability.

2. The machine tool adopts high-speed, high-precision and high-rigidity spindle unit. The spindle material is made of high-performance alloy steel. The P4 high-speed precision bearing for the spindle is used, and the high-speed grease is used. The spindle speed reaches 8000 rpm and the spindle radial runout is less than 0.006/300.

3. The X, Y and Z direction feed adopts the C3 grade double nut preloaded precision ball screw. The servo motor is directly connected with the lead screw through the high torque and low inertia inlet elastic coupling, and the lead screw support adopts the pretensioning structure. It can eliminate the backlash of the transmission and pre-compensate the influence of thermal deformation on the precision of the machine during long-term operation, ensuring the positioning accuracy and repeat positioning accuracy;

Certifications

Taian Haishu Machinery co.,Ltd. specializes in the design, production and sales of CNC machine tools. The leading products are "sea number" brand CNC lathes, turning centers, machining centers, etc. The company was established in March 2001 and covers an area of 12,000 square meters. It was re-registered after the transformation of the company in November 2010. Has passed CE certification and SGS certification, TUV certification, BV certification, ISO9001 certification.we has won many honors such as national level and upgrade. It is a charity and love enterprise in Shandong Province.

Our Service

Pre-Sales Service

* Inquiry and consulting support.
* 24 Hours on services Phone, email and in person support
* View our Factory.
* Electrical & mechanical technical support
* Parts ordering

After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Regular Machine Inspection
* Stay in touch with the customers even after the deal. never ignore their calls.
* Engineers available to service machinery overseas.

Packing & Delivery

Packing

Standard export wooden box packaging
Free fumigation materia

Delivery

Conventional CNC machine tools for 7 to 15 days

Custom CNC lathe products for 15 to 30 days

Related Products

car wheel processing unit

100% Response Rate

CKL35 wheel repair CNC lathe

99.8% Response Rate

CK6160Q diamond cutting wheel lathe machine

99.9% Response Rate

FAQ

1.Q:Can we pay by L/C?

A:Yes, we can do T/T, L/C etc.

2.Q: What is your payment terms?

A:Our payment term is 30% T/T in advance, 70% T/T before shipment.It is negotiable.

3.Q: What is your delivery time?

A:Usually, one machine takes 10-30 days. IF we have in stock, we can arrange

shipment as soon as we receive the payment.

4.Q: Can we go to your factory and learn how to use the machine?

A:We sincerely welcome you come to our beautiful city. The training is free. It would

be great honor to us.

5.Q:Can you arrange training in our place after we bought your machine?

A:We can arrange oversea training. Buyers will be responsible to the costs.

6.Q:How many Voltage ? How many Phases 1 or 3? How many hertz (Hz)? of your

machine?

A:Our standard is 3 phase, 380V, 50/60Hz. All can be customer made.

7.Q: Do you have CE certification?

A: yes, we have CE certification, machine quality is guaranteed.

8.Q: Is your company a factory or trading company?

A: We are factory and have more than 18 years production experience.

9.Q: How can I get the quotation?

A:You can send the inquiry on alibaba.com, or send email to us. It is better if you can

tell what is your detailed requests. We will reply to you within 1 hour.

10.Q:What is the Control of your lathe? Can I change it to other brand?

A:The standard control of our lathe is GSK. You also can change other controls,

such as FANUC,Siemens and so on.
