Brief Introduction of Mineral fiber board

Mineral fiber board generally refers to mineral fiber decorative acoustic board. It is a new type of environmentally-friendly building materials processed by batching, forming, drying, cutting, embossing, and decorative. The raw materials are granular cotton and other additives. Mineral fiber board has a variety of functions such as decoration, sound absorption, heat preservation, heat insulation, fire prevention, and lightness. The surface has effects such as knurling and embossing. Patterned mineral fiber board has gypsophila, caterpillar, cross flower, center flower, walnut pattern, stripe pattern and so on. It is non-asbestos, harmless to the human body, and has anti-sag function. The surface can be painted with a variety of colorants (factory products are generally white).

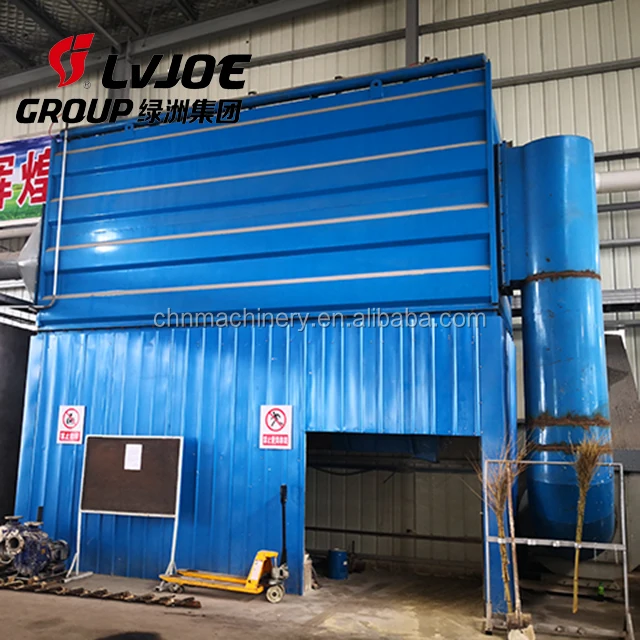

1.The mineral fiber board production line includes raw material mixing system, fourdrinier forming system and vacuum pump system, water cutting system, accelerating conveying system, lifting distribution system, board feeding system, drying system, hot air circulating system, board releasing system, board over-turning system, puttying system, small drying system, coating system, small drying system, embossing system, small drying system, cutting system, dust collecting system, packing stacking system, control system.



2.Technical Parameter for mineral fiber board:

Thickness	8mm, 9mm, 10mm, 12mm, 15mm, 18mm, 19mm
Size	300X300, 595X595mm, 600X600mm, 603X603mm, 605X605mm, 595X1195mm, 600X1200mm,
Material	Wet-Formed Composite Mineral Fiber
Density	250-420KGS/M3
Surface	High Quality Vinyl Latex Paint
Color	White (other colors also available)
Design	Little Star, Pinhole, Punching, Worm, Real Sand, False Sand, Fine Fissured, etc.
Application	Concert Hall, Council Chamber, Office, Theater, Dining Hall, Shopping Mall, Airport, Fitness, Library, Studio, etc.





  Board forming system:

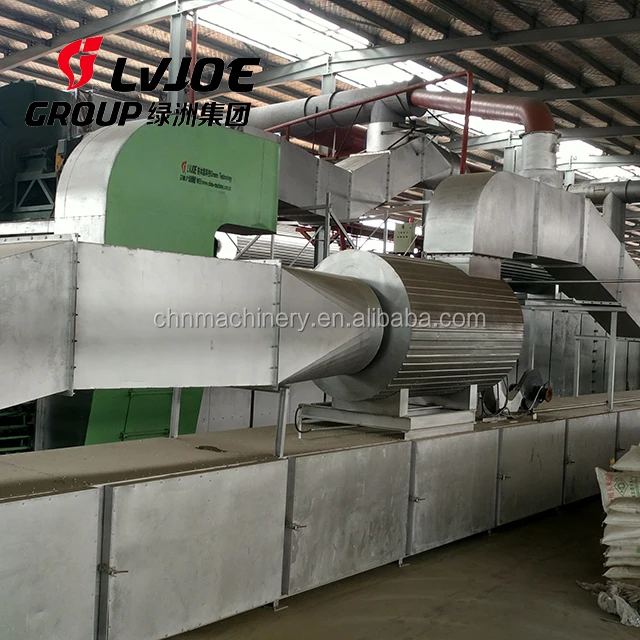

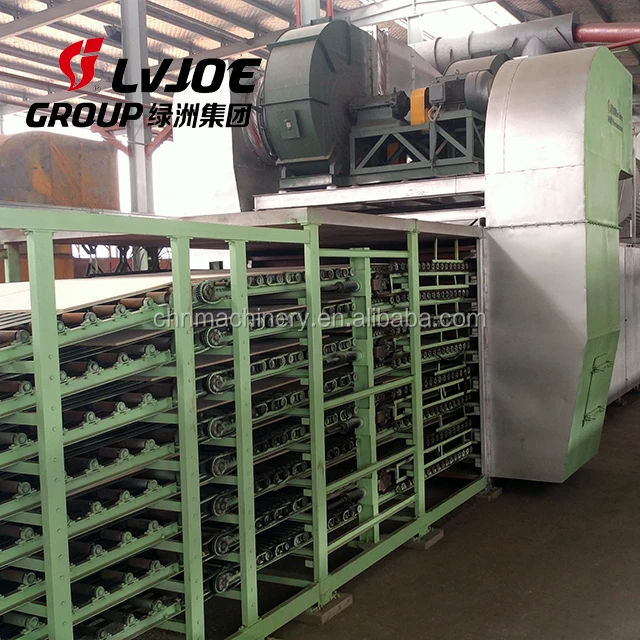

  Drying system:



  Embossing system:

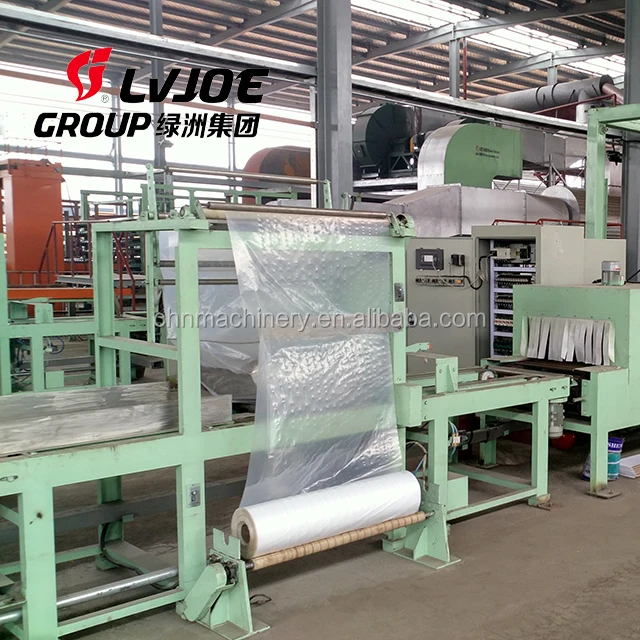

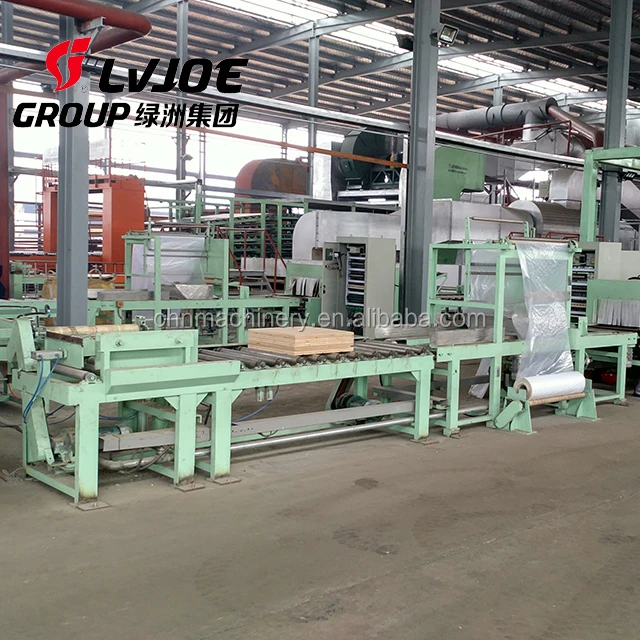

   Packing system:



Use of Mineral Fiber Ceiling Board:



1. Our company has professional installation & debug teams. We will install and debug the production line at the customers' place until the equipment produces the qualified products. 2. We supply the accessories all the year round. The guarantee time of the equipment is one year.
3. We are responsible for the technical consultation and service all the year around and solve all kinds of technical problems at any time.
4. We can help the customer to do the consignment and the relevant procedure for import and export.
5. Our company will supply the information of the seller for all kinds of raw material and relevant information. 6.If the buyer can not run the machine well then we will send the production engineers to help the buyer to run the machine, and we can cooperate for long terms.
