Пневматический компрессор YT28 ручной домкрат пневматическая


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-20-2025 0.57 $* 0.48 $*
Aug-20-2025 0.95 $* 0.70 $*
Jul-20-2025 0.28 $* 0.75 $*
Jun-20-2025 0.9 $* 0.8 $*
May-20-2025 0.2 $* 0.41 $*
Apr-20-2025 0.15 $* 0.23 $*
Mar-20-2025 0.55 $* 0.80 $*
Feb-20-2025 0.72 $* 0.62 $*
Jan-20-2025 0.13 $* 0.86 $*

Характеристики


Product Description

Product Application

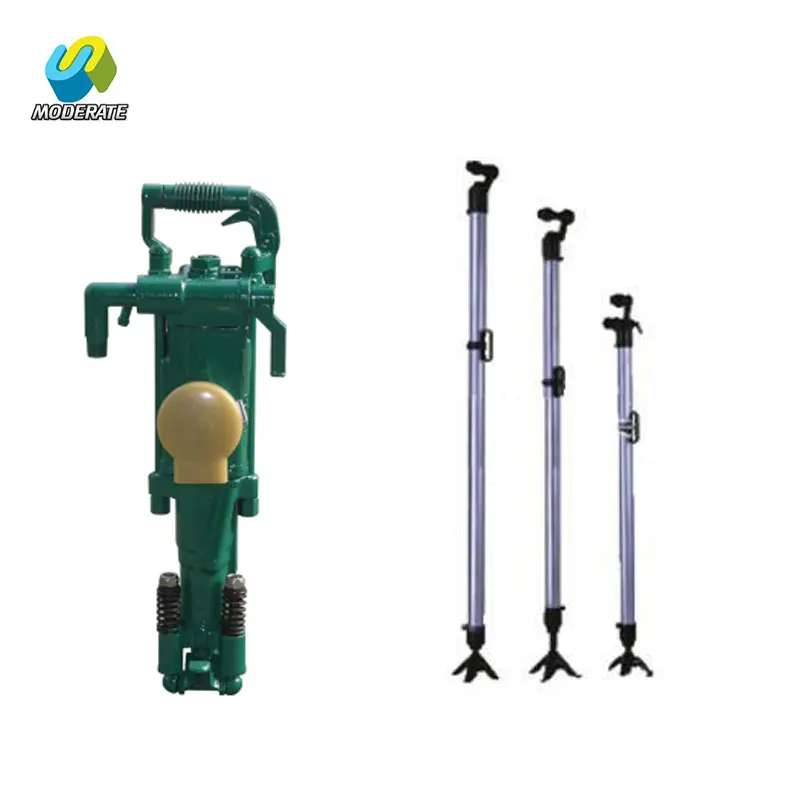

Jack Hammer is a kind of high efficiency handhold rock drill machinery. It's widely used in coal mining, soft rock, digging pits for post brackets, digging slots, breaking concrete, frozen earth in constructionand installation engineering or constructing works in casting industries. It's suitable for operating all around of work, especially in narrow space, upper or climbing direction. It can stop working automatically when the solid object is broken. YT28 can be matched with FT160A air leg drill horizontal and inclined blast holes. It can also be installed on the trolley or carriage operations.

Aavantages: light weight and convinent operation, low consumption and long lift parts, durable with minimal maintenance, high efficiency and fast drilling volcocity.



Spare parts: Integral drill rod, Plug hole drill rods, Tapered/threaded drill rods, Tapered/threaded drill bits (button bits, chisel bits, cross bits)

\t
SPECIFICATIONS FOR PORTABLE  ROCK DRILLING RIG
\t
Rock Hardness
\t
F=6~20
\t
Cylinder Diameter
\t
80mm
\t
Piston Stroke
\t
60mm
\t
Working Pressure
\t
0.5Mpa
\t
Drill Pipe Size
\t
B22*108mm
\t
Air Consumption
\t
3.8m³/min
\t
Weight
\t
29kg
\t
Package Size
\t
740*310*220mm

Main Features

1) Fit for wet drilling in medium-hard or hard rock.
2) Grouped control mechanism,quick to start up, with "air on ,water on, air off,water off" mechanism,convenient to handle and easy to maintain and repair.
3)Energy-saving and efficient, long service life of parts, parts highly interchangeable and reliable performance.
4) YT28 differs form similar products particularly in its high efficiency, strong flushing and powerful torque.

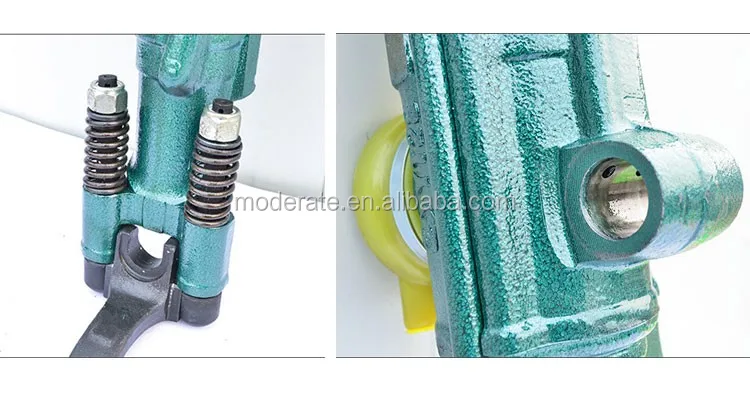

Detailed Images
Our Company

      Quzhou Zhongdu Machinery Technology Co.,Ltd is industry and trade company which modern enterprise integrating scientific research, development, manufacture and trading. Based on integrity, responsibility and cooperation.
      Our company have professional R&D and sales team, providing one-stop service for customers.Our company mainly products is screw Air Compressor , Piston Air Compressor,Drill Machine, Drill Rig Parts ,Jack Hammer , Boring Machine, Tunnel Shotcreting Machine and Other Machinery Hardware Product etc.After many years of production and research and development, we have obtained more than 20 national patents. The products are sold at home and abroad and are well received by customers.

Packing & Delivery
\t
Packaging
\t
Size
\t
590*280*180mm
\t
Weight
\t
25 KG
\t
Packaging Details
\t
The normal package is carton box or wooden box(Size: L*W*H mm). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
