Дешевый дизельный вилочный погрузчик 3 тонны Heli новый бренд

Описание и отзывы

Трекер стоимости

Характеристики

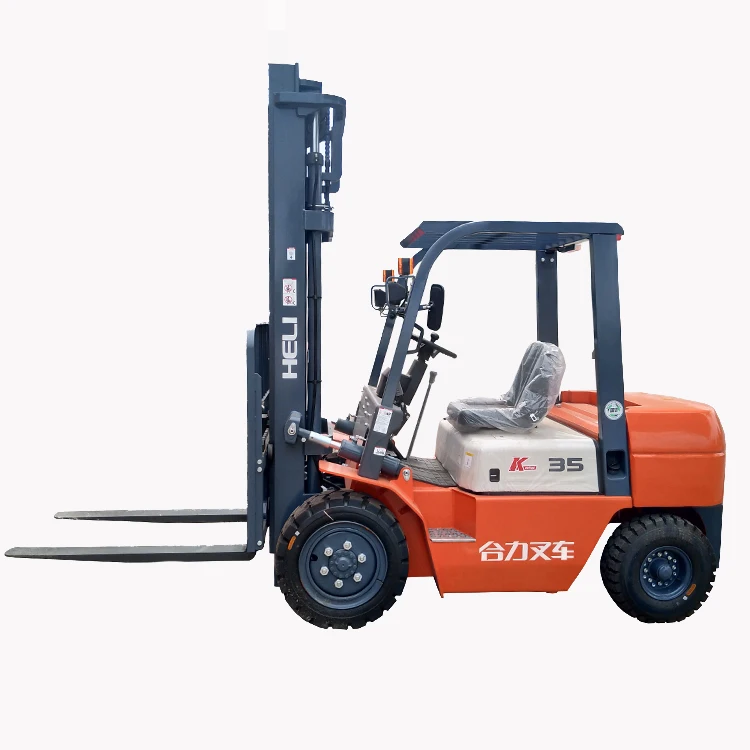

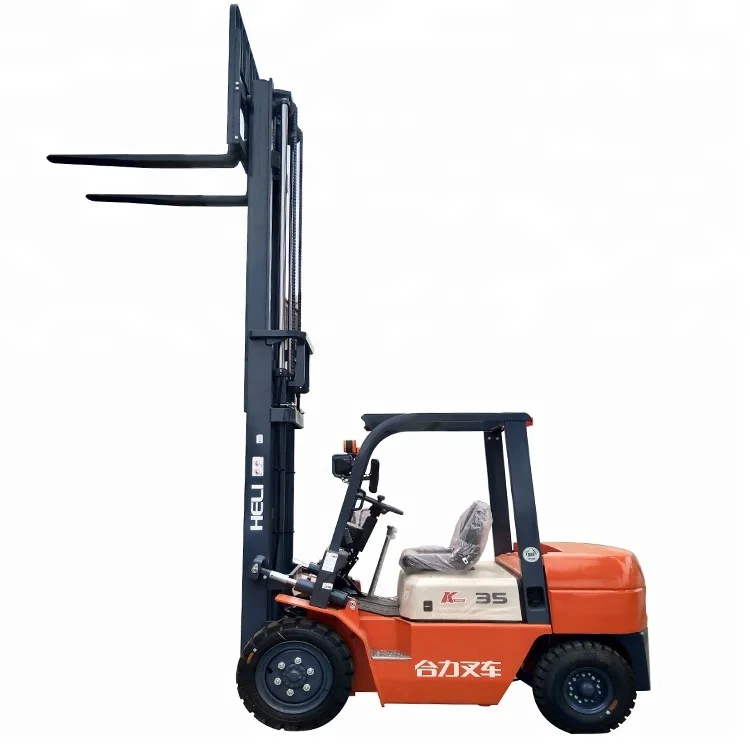

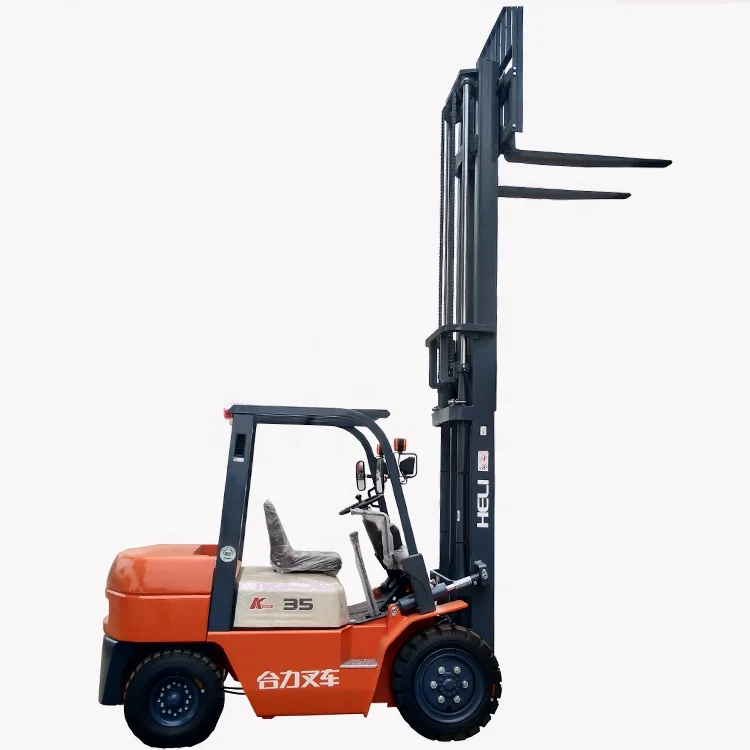

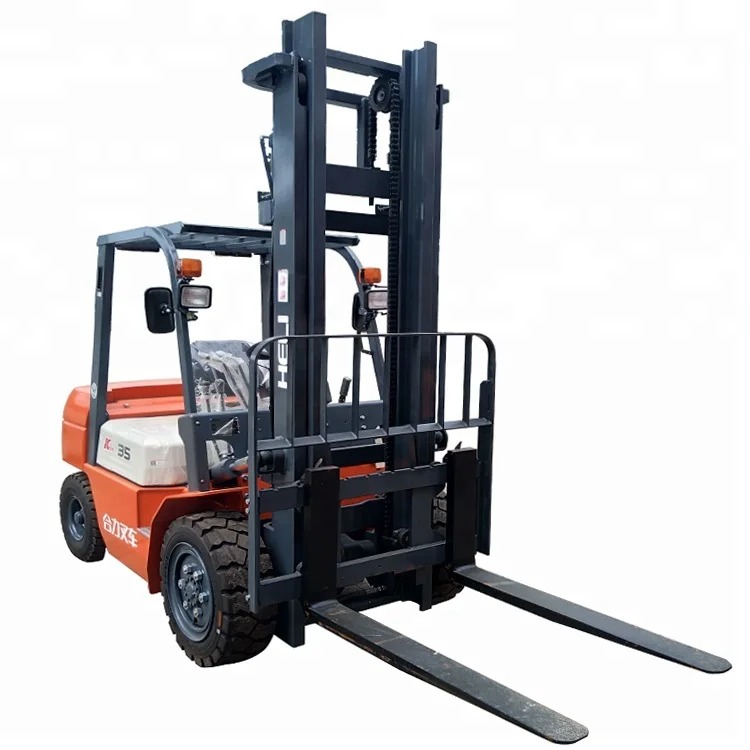

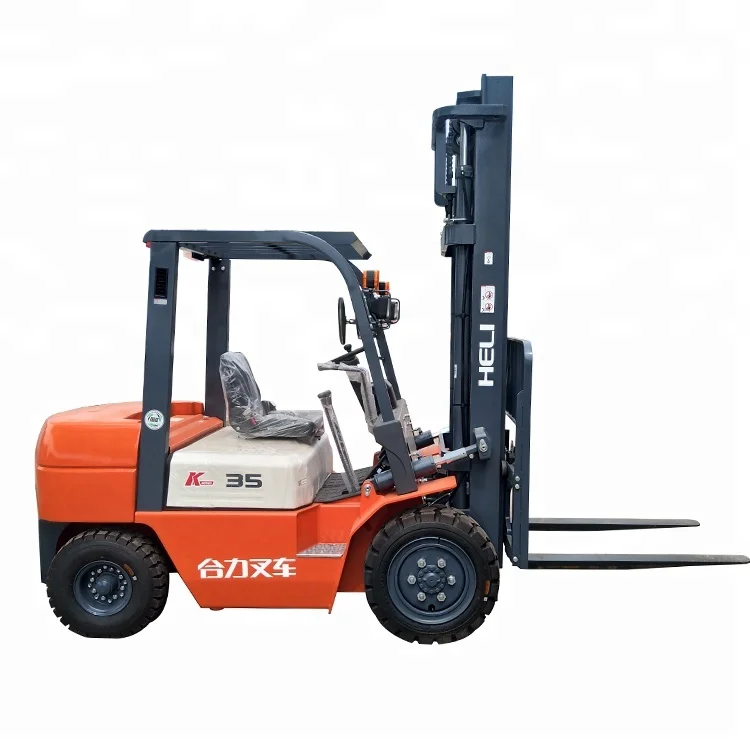

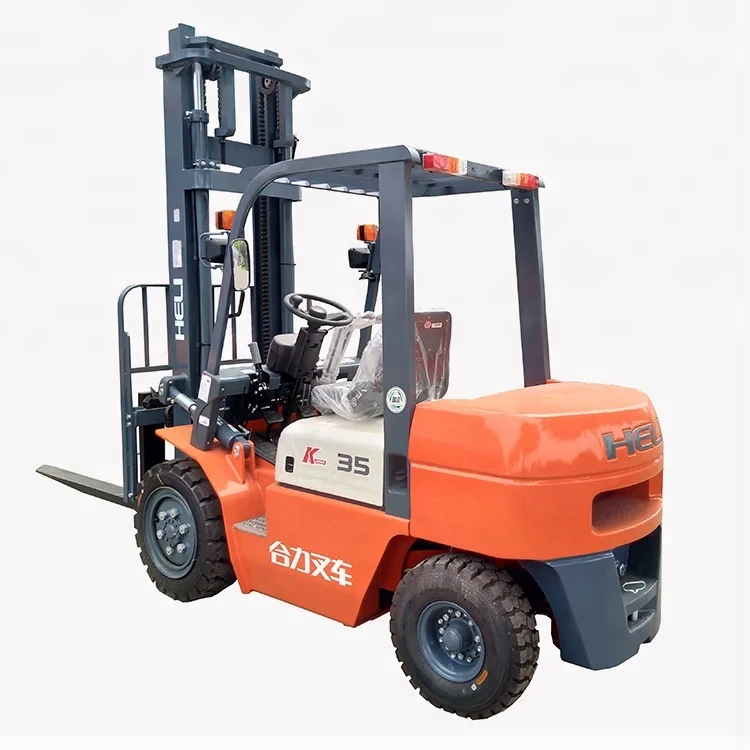

Cheap Diesel Forklift 3 ton Heli Brand New CPC30

General	Model				CPC30
	Power type				Diesel
	Rated capacity			kg	3000
	Load center			mm	500
	Operator type				Seated
	Tyre type		Front/Rear		Pneumatic
	Number of wheels(X=driven))		Front/Rear		2 X /2
Dimensions	Lifting height			mm	3000
	Free lift height			mm	145
	Fork size		LxWxT	mm	1070x125x25
	Mast tilt range		F/R		6/12
	Overall Length(Without fork)			mm	2698
	Overall width			mm	1225
	Mast lowered height			mm	2070
	Mast extended height			mm	4250
	Overhead guard height			mm	2090
	Turning radius(Outside)			mm	2400
	Fork overhang(Wheel center to fork face)			mm	498
	Min.right angle stacking aisle width (Add load length and clearance)			mm	2885
	Wheelbase			mm	1700
	Tread		Front	mm	1000
			Rear	mm	970
	Ground clearance	Lowest		mm	135
		Wheel base center		mm	140
Performance	Speed	Travel	Full load	km/h	18
			No load	km/h	19.5
		Lifting	Full load	mm/s	450
			No load	mm/s	500
		Lowering	Full load	mm/s	450
			No load	mm/s	500
	Max.Drawbar Pull		Full load/No load	kg	1100/1000	1350/1000
	Max.Gradeability		Full load/No load	%	15/18	19/20
Weight	Self weight			kg	4280
	Wheel distribution	Full load	Front	kg	6455
			Rear	kg	825
		No load	Front	kg	1720
			Rear	kg	2560
Wheels	Tyres	Spec	Front		28*9-15-12PR
			Rear		6.50-10-10PR
Brake	Brake type	Driving brake			Hydraulic
		Parking brake			Mechanical hand brake
	Battery	Voltage/Capacity		V/AH	12/100
	Transmission	Model type			Powershift (Manual)
		Stage	FWD/RVS		1/1 (2/2)
	Operating pressure			Mpa	17.5
	Fuel tank capacity			L	70
Power & Transmission	Engine	Model			Quanchai
		Rated output/r.p.m		Kw	36.8
				/rpm	2650
		Rated torque/r.p.m		N.m	156/148
				/rpm	1700-1900
		No.of cylinder			4
		BorexStroke		mm	90x105/90x100
		Displacement		L	2.67/2.54



FAQ
1. Which countries do we export to?

Asia: Vietnam, India, Indonesia, Pakistan, etc.
Europe: Russia, Belarus, Ukraine, Lithuania,etc.

South America: Brazil, Chile, Paraguay, etc.

Africa: South Africa, Ethiopia, Libya, etc.

2.What are our advantages compared with other manufacturers/factories?

1)Reliable Quality: Carefully select regular manufacturers for supporting spare parts, like engines, bridge, transmissions, and many parts designed and produced by ourselves, always adapting the best materials.

2)Competitive Price: Concentration of mechanized production in large quantities reduce production costs to ensure that our price is competitive.

4)Fast Delivery: Generally, we can delivery within 10 working days in factory after receiving pre-payment from customers.

3.Which payment terms can we accept?

Normally we can work on T/T or L/C.

1)On T/T term, 30% payment is required in advance for production, 70% balance shall be paid before delivery or against the copy of original B/L for old long cooperation clients.

2)On L/C term, 100% irrevocable L/C at sight without “soft clauses” can be accepted.

4.What logistics ways we can work for delivery?

1) For most Europe, South America and Africa etc. countries we can go by container or Roro through ocean freight.

2) For neighborhood countries of China, such as Russia, Vietnam, Kazakhstan, Uzbekistan etc. we can delivery by road or railway.
