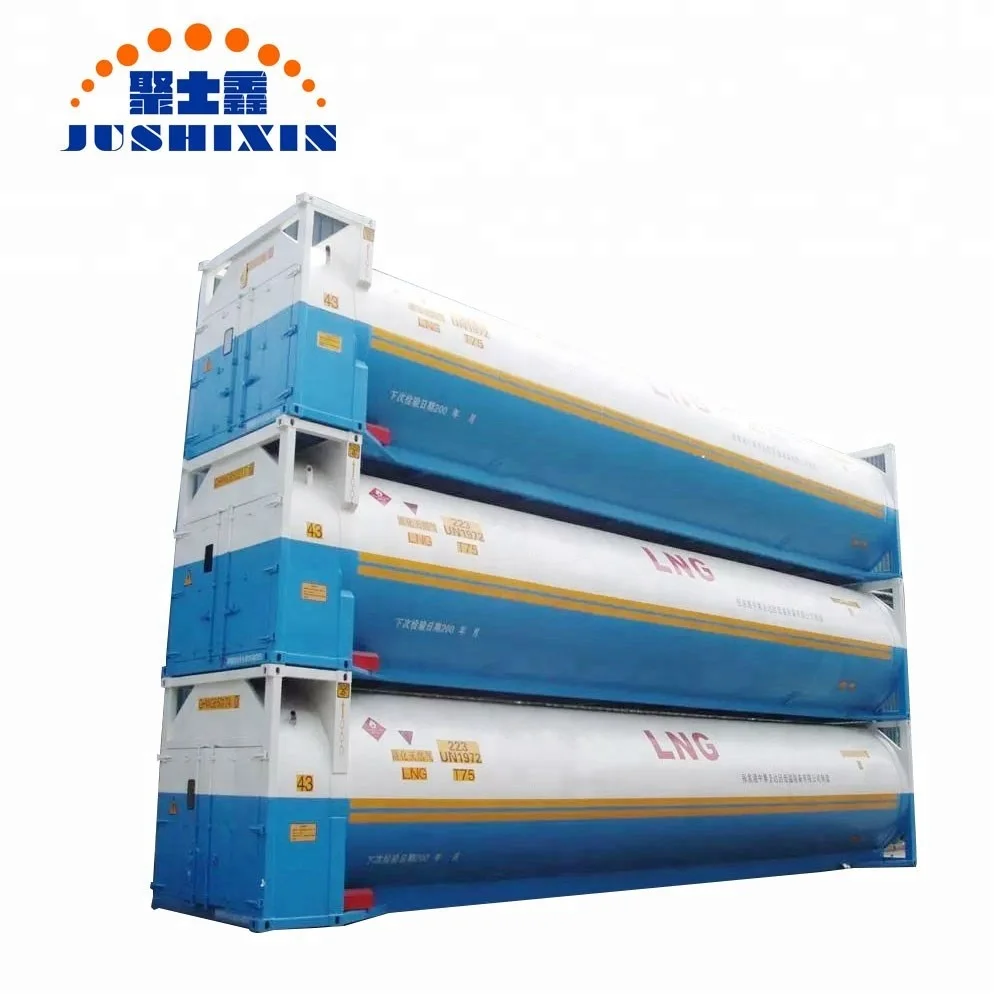

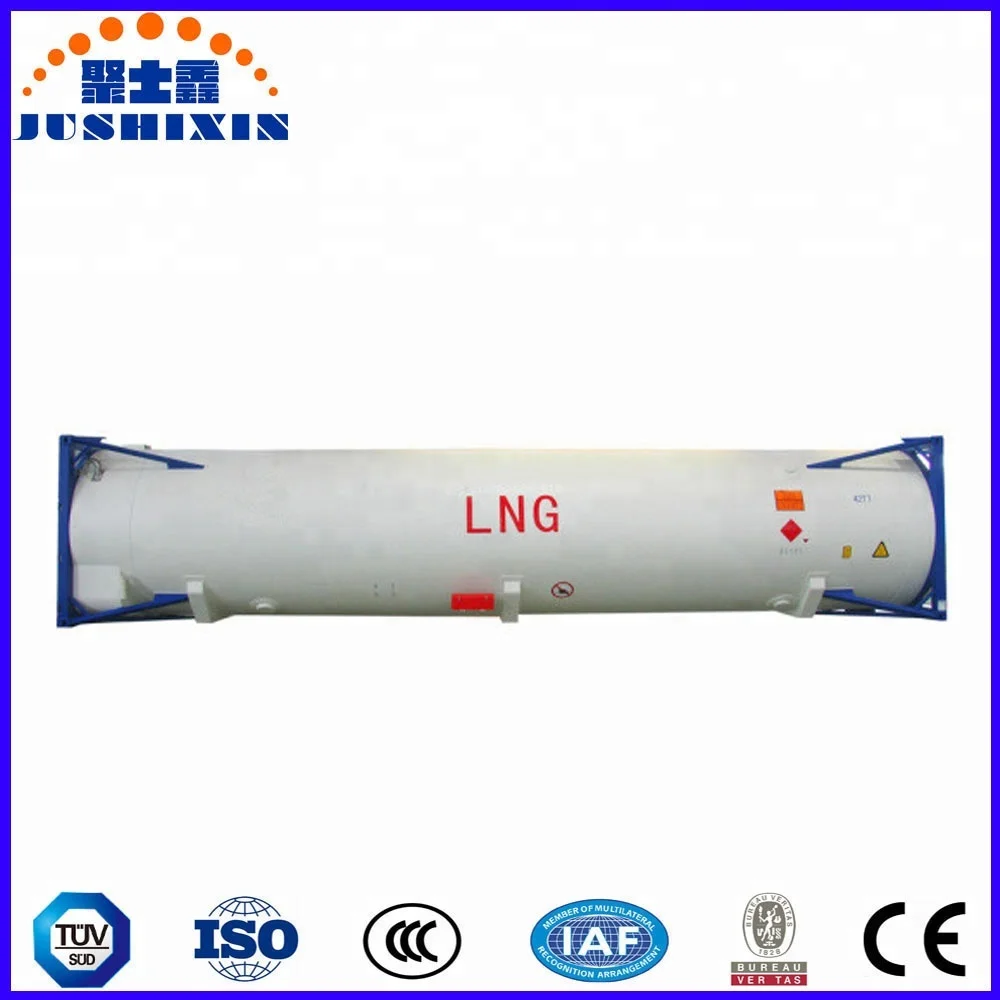

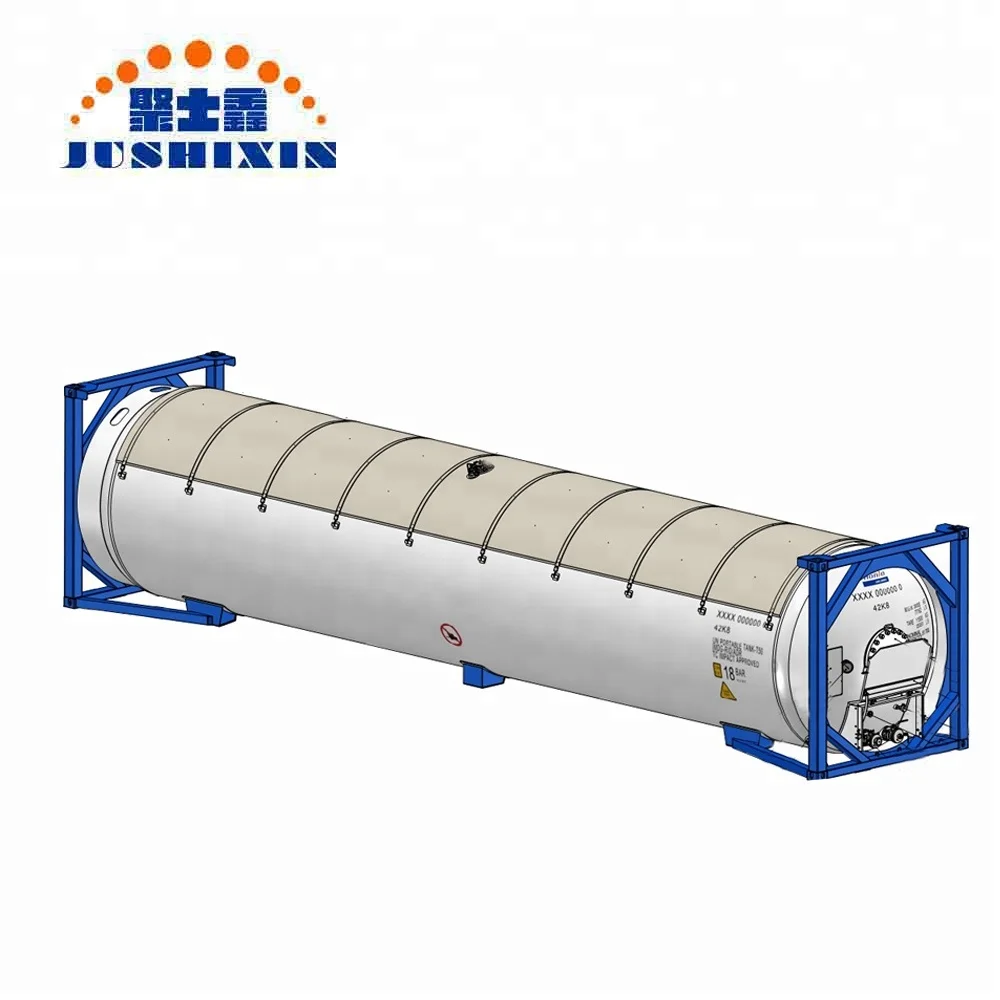

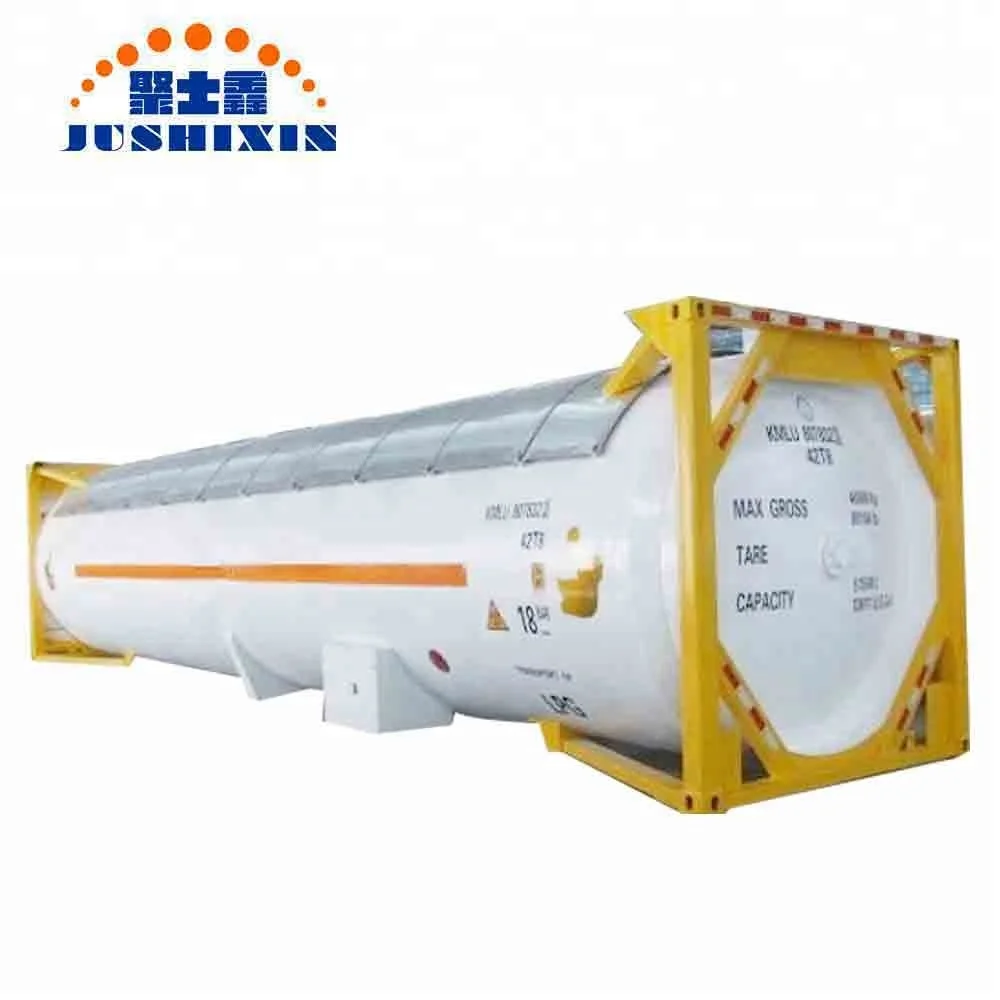

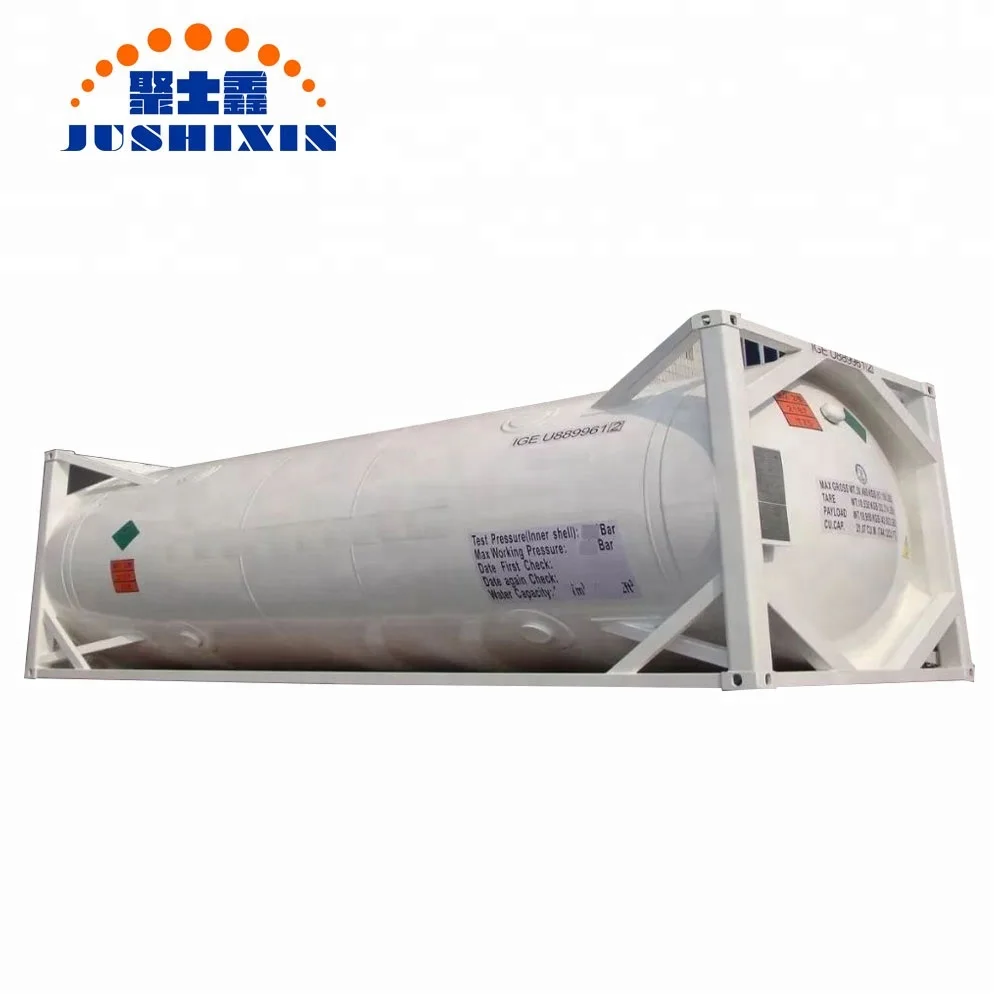

Контейнер Jsxt 40 футов для хранения жидкого природного газа N2 O2 аргон
Контейнер Jsxt 40 футов для хранения жидкого природного газа N2 O2 аргон
Контейнер Jsxt 40 футов для хранения жидкого природного газа N2 O2 аргон
Контейнер Jsxt 40 футов для хранения жидкого природного газа N2 O2 аргон
Контейнер Jsxt 40 футов для хранения жидкого природного газа N2 O2 аргон
Контейнер Jsxt 40 футов для хранения жидкого природного газа N2 O2 аргон
Контейнер Jsxt 40 футов для хранения жидкого природного газа N2 O2 аргон

Контейнер Jsxt 40 футов для хранения жидкого природного газа N2 O2 аргон


Поделиться:


Цена:6 437 623,56 ₽ - 8 287 169,00 ₽*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-16-2025 8175781.81 $* 8339297.40 $*
Jul-16-2025 6630752.88 $* 6763367.98 $*
Jun-16-2025 8047029.65 $* 8207970.53 $*
May-16-2025 7982653.82 $* 8142306.28 $*
Apr-16-2025 6373247.85 $* 6500712.41 $*
Mar-16-2025 7853900.97 $* 8010978.81 $*
Feb-16-2025 7789524.20 $* 7945314.87 $*
Jan-16-2025 7725148.2 $* 7879651.52 $*

Характеристики

40Ft LNG/CNG/LO2/LN2/LCO2/LAR/LIN ISO Cryogenic Tank Container

Product parameters
Jsxt 40FT Liquid Natural Gas,N2,O2,Argon,CO2 Storage LNG LPG Tank Container
China Cheap 20 Ft ISO Standard Lng Storage Tank40Ft LNG/CNG/LO2/LN2/LCO2/LAR/LIN ISO Cryogenic Tank Container
The functions of this series container tanker/Tank Container:
***This series tank semi trailers are suitable for the transportation 1,1,1,2-Tetrafluoroethane,LNG,LPG,CNG,GPL,LN2,LO2,LCO2,Chlorine,Ammonia,Etc. Gas.
*** The volume is under 40.4 cube meters, we can manufacture it according to your needs.
China Cheap 20 Ft ISO Standard Lng Storage Tank
Dimension of the 20FT 20.5CBM T75 Liquified N2 Tank Container with Lloyd's CSC Certificates
Description and Specification of Commodity
Codes and regulationsIMDG-CODE. GB150-98 ASMI-VIII-1 JB/T4781-2005
UN code.1977
Design StandardsCCS,  Basis: IMDG. CSC. TIR. UIC. RID
Approval and inspection orgLloyd's Register(EN standard)
Tank Shape20FT
Tank ShapeColumn Shape,Horizontal
Nominal Medium20500L
Loading MediumLNG,LCO2,LN2,LO2,LAR,LN2O,LC2H4
Gross mass(kg)34000
Tare Weight(kg)11050kg
Payload(kg)22000kg
Maximum Gross Weight34000 KG
Tolerances:on volume 1%,on weight 2%
Stacking192000kgs
Tare7750 KG(Maximum tolerance 3%)
Filling ratio95% / 85%
Max. Allowed Working Pressure16Bar
Design Pressure22Bar
Test Pressure20Bar (Hydraulic Pressure test)
Corrosion Degree0
Max. Outside Pressure(Mpa.)0.1
Baffles of the inner vesselTwo transvers baffles
Surface treatment of the inner vesselPickling
Material of the inner vesselStainless Steel
Material of the out jacket&FrameLow alloy steel
Surface treatment of the out jacketShot blast SA2-1/2"
Outer Vessel
Design Temperature(°C) of the out jacket-20 to 50
Design pressure-1 barg(full vacuum)
Outer Diameter2420mm(not protruding over the frame members)
Overall length6000mm(not protruding over the frame members)
Vacuum Test Pressure(Mpa)0.1
External Tank thickness(mm)6
Inner Vessel
Max. Allowed working pressure16bar
Pressure vessel codeAD2000-Regelwerk
Test and calculation pressure20bar
Design temperature(℃)-196 to 50
Working Temperature(℃)-196 to 50
Outer Diameter2200mm
Inner Tank thickness(mm)16
Number of baffles2
Corrosion Degree0
Gastight Test Pressure14.4Bar
Type of insulationHigh vacuum multi-layer
Static evaporation rateLn2  0.35%/d
Welding Joint Efficiency1
Radiographic Inspection100%X-RAY
Vacuum≤0.1pa(Warm)
Net evaporation rate≤0.33%/d (Ln²)(ambient condition:100kpa and 15°C
Inner End Enclosure(mm)18
External End Enclose(mm)8
Piping materialStainless Steel type 340(L)
Valve types for cryogenic tankscryogenic valves
Safety ValveDN25   PN2.5    DAH-25A1
VaporatorDN25
Hose and Hose boxYES
Top inlet pipeDN40
Bottom inlet/outlet pipeDN40
Reflux tubeDN40
Liquid level gas phase tubeDN10
Liquid level liquid phase tubeDN10
Monitoring tubeDN10
Threaded connection for drain and fill pipes NIT-150
Valve box1
Guardrail of Ladder(mm)W=400
Allowable stacking weight192000
PBC120NM³
DP gauge6 inch dial(Range:0~4000mmH2O)
Pressure gaugeDV-6R Thermocouple probe
Inner tank material:SA-240  ASME Certification
Outer vessel:SA-516M   ASME Certification
Overall Size(Frame)/L*W*H/mm6058*2438*2591
ISO-cornercastings20'x8'x8'6" ISO dimensions
Frame
The frame is of "Beam Type",consisting 8'X8'6"-frame at each end,connected to each end.Handling to be done by means of the corner castings only.The container can be secured by twist locks on rail and road vehicles complying to the relevant requirements of ISO668 Freight containers.
Insulation or Sun ShieldSun Shield
Product display

 China Cheap 20 Ft ISO Standard Lng Storage TankChina Cheap 20 Ft ISO Standard Lng Storage TankChina Cheap 20 Ft ISO Standard Lng Storage TankChina Cheap 20 Ft ISO Standard Lng Storage TankChina Cheap 20 Ft ISO Standard Lng Storage TankChina Cheap 20 Ft ISO Standard Lng Storage Tank

China Cheap 20 Ft ISO Standard Lng Storage Tank

Production workshop

 BRIEF INTRODUCTION TO OUR FACTORY:
He Nan Ju Shi Xin, a special vehicle manufacturing corporation
with the professional experience more than 20 years, certified by the Chinese
government manufacture,Majored in semi trailer, special vehicle manufacturing, our
products are mainly exported to Philippine, Ethiopia, Thailand, Myanmar, Vietnam,Congo, Kenya, Tanzania, etc...More than 20 countries.

China Cheap 20 Ft ISO Standard Lng Storage Tank

Our Services

 FlEXIBLE SERVICE WE PROMISED FOR EACH ITEM FROM OUR FACTORY:
>>>Offering the one-stop full lifecycle services;
>>>Our vehicle users will receive 24-hour uninterruptible "Entire Journey" service;
>>>CCC&ISO Agreement, 1 Year Guarantee Term, Main-beam Lifetime Promise;
>>> Small Order Can Be Accepted;
>>>Any Color & Logo Available;
>>>The Product Dimension + Specifications Can Be Designed As Your Needs.

The tank containers are all tested and inspected by special equipments:

China Cheap 20 Ft ISO Standard Lng Storage Tank

Packaging & Shipping

 China Cheap 20 Ft ISO Standard Lng Storage Tank

FAQ

Q: I want the Liquid Gas Tank Container with Loading&Unloading system,especially the steam heating system,can you supply?

A:Yes,the Loading&Unloading system is the option configuration,you can choose it as you want.

Q: Do you have the certificates to meet us the transportation ways of the land truck,Sea Boat and Railway?

A:Yeah,of course,but the price will be very different by different transportation ways;So kindly please let me know your exact transportation ways before the quoting;And also the certificates will be ready after the tank container passed all kinds of the testing&inspection.

Q: Do you have the stocked tank containers?

A:Yes,but the price will be higher than the normal one.

Q: Can i have the drawings of this ISO Storage tank containers?

A:Yeah,the existing simple similar drawings of the tank container for your reference only for the beginning,will make the more precise drawings after getting the down payment,and will send this drawing to you for your confirmation before production.

Q: Can i make the discharging valves at the bottom?

A:Yes,the discharging valves can be at the bottom or at the top,you can choose as your actual request.

Q: How can i pay the money without risk?

A:You can pay the money to us via Alibaba Trade Assurance,then the alibaba can guarantee your money safe and the delivery on time.

Q: Can i do your agent in our country or some district?

A:Yes,if you quantity is enough,no problem,the 50units for the first time is okay.

Connection

 Contact information for this ISO storage tank container
Maggie Suen
Office.:+86-371-55628659
Mobile:+86-13838278359
www.hnjsx-trailer.com
