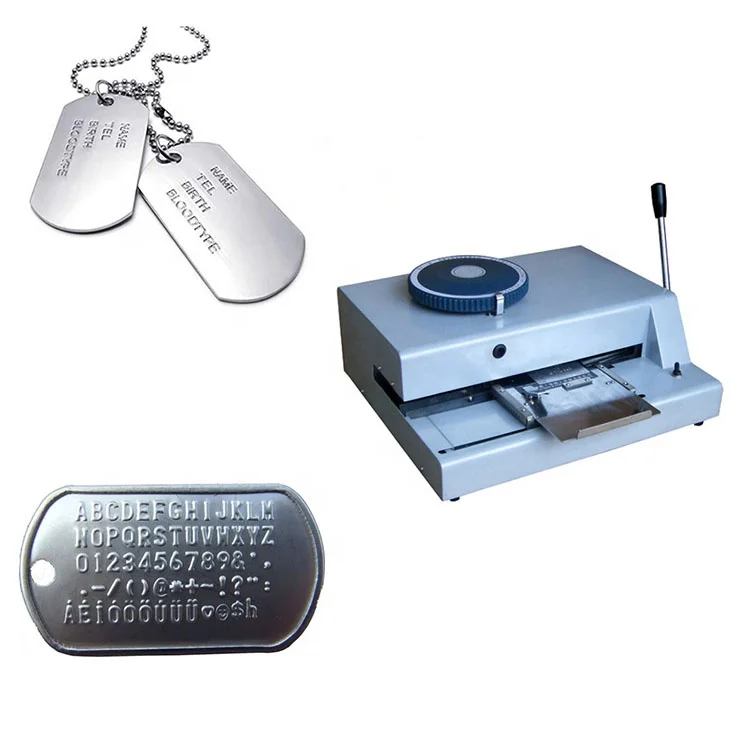

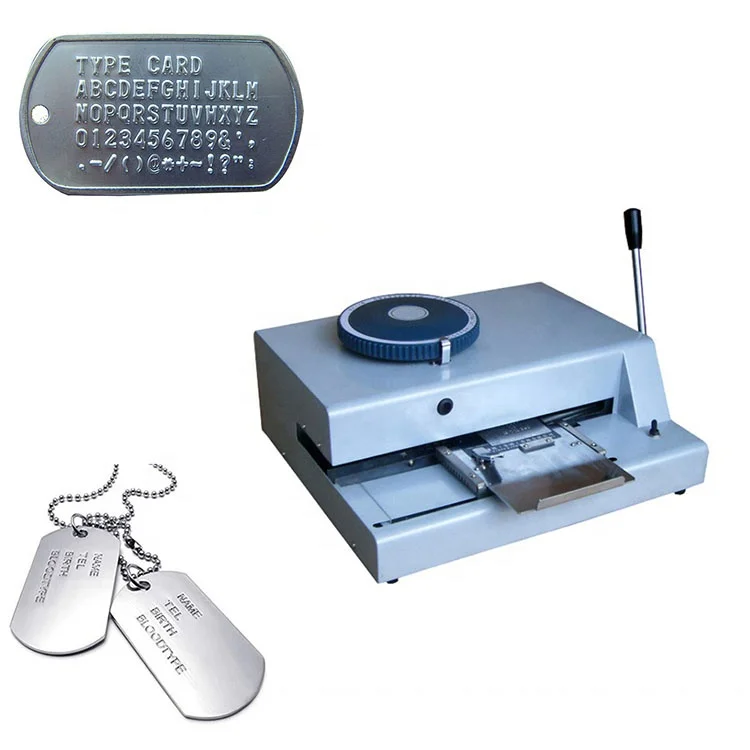

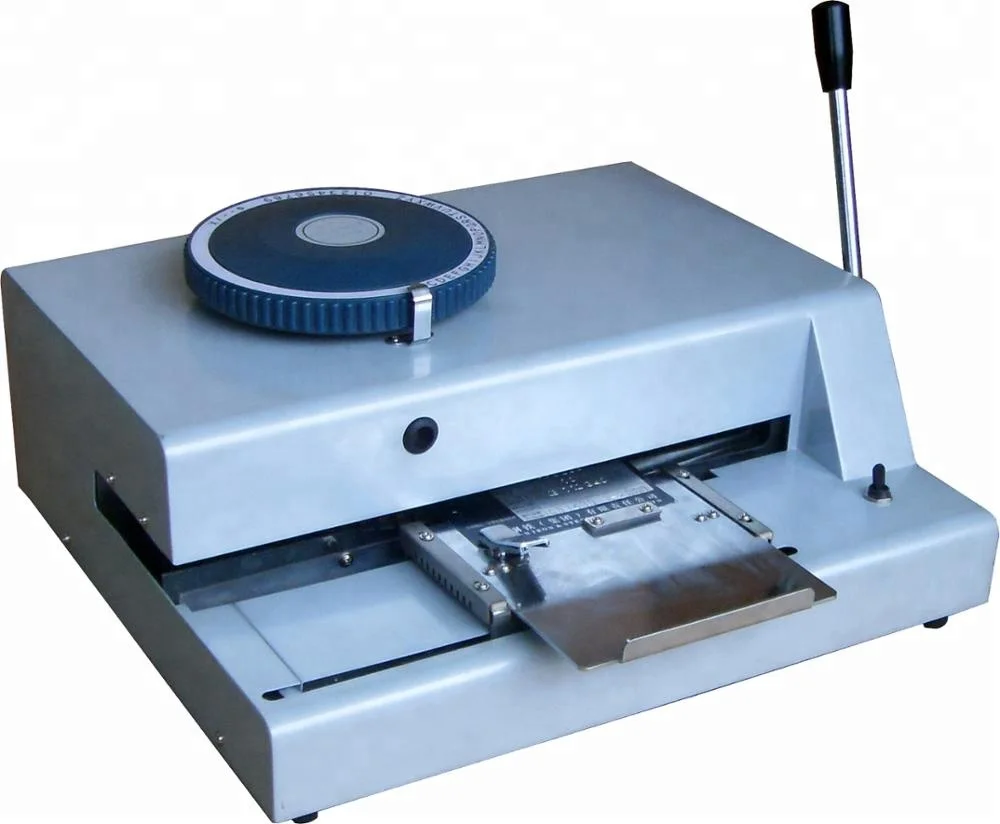

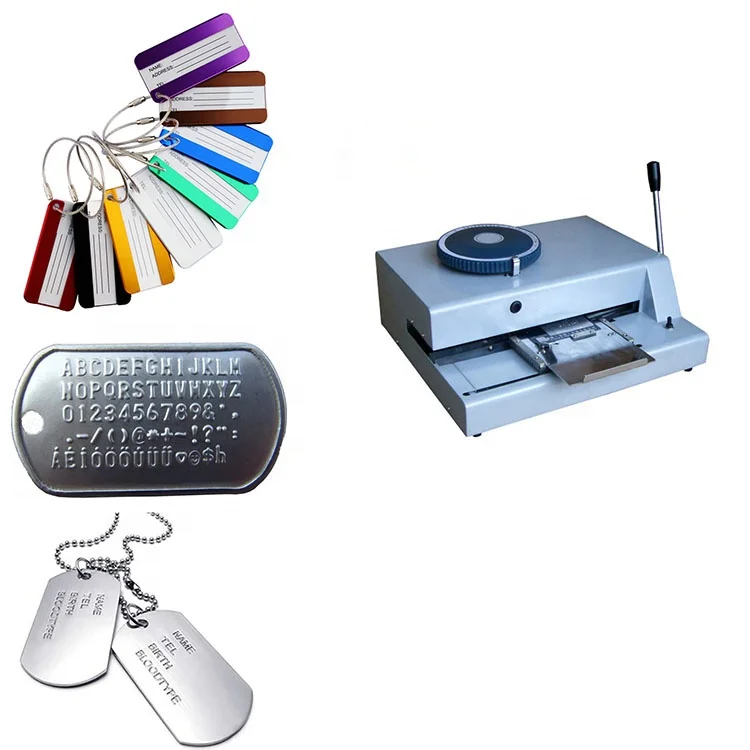

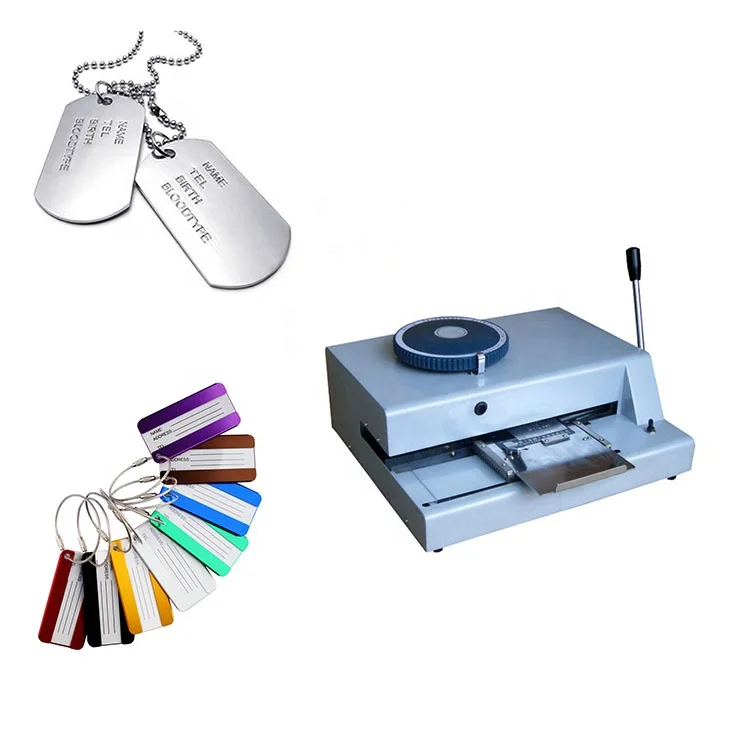

Nameplates embossing machine, metal plate embossing machine  Pvc card embosser , plastic card embosser  ( HD-41d )





 Parameters:

Applies workpiece: Machine scutcheon / Machine nameplate or 200mm × 100mm within 's paillette;



Thickness requests: Aluminum material: 1mm within; Stainless steel and tin: 0.5mm within



1). Character select:  Daisy wheel character

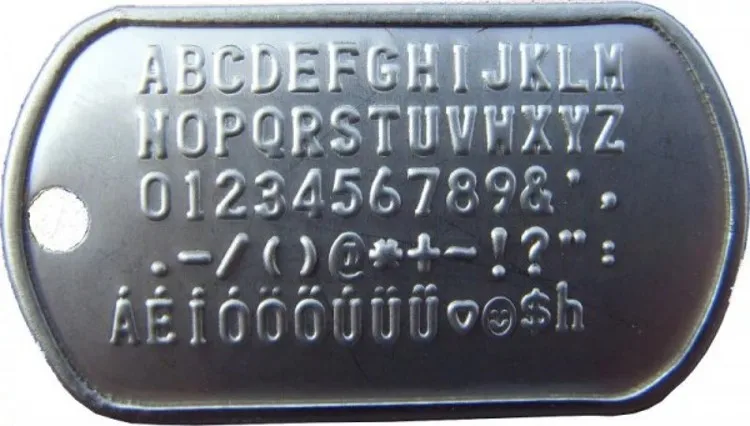

2). Equipped with a total of 41 code:

        uppercase letters (26 ):   A~Z

        small arabian numbers (10):   0 ~9

        symbols ~ (5 ):   Φ × .  - /

        the maximum size of subtracting:   5*3mm;   min. size of subtracting 3*2mm

3). Words interval:   size determines the character.

4). Operation method:   manual

5). The rows of convex character:    identify by the nessessary of nameplates

6). The position indicates of the convex character:   position indicator and sample card

7). Machine dimension(L*W*H):   340*300*185 (mm)

8). Machine net weight:  10.5 kg

9). Machine gross weight: 12 kg





Features:

1). this machine is widely used for small-scale business production, accurate position device for printing,specially suitable for the metal tags such as dog tag, military tags embossing



2). easy-operation,favorable price, portable





Product introduction:

1). Nameplate machine is the necessary equipment which can emboss in the blank metal plates surface out of the characters identifiable and unique.



2). Our machine is reliable, accurate positioning of the structure, small volume, beautiful and easy operation. It applies to all the equipment manufacturing plant, equipment and steel products marketing department, and other business.



About the warranty coverage:
    1).Quality warranty: one year after sale.

    2).We can install and pass on you the printing technology if you need.
    3).We can also match some quick-wear part for you.such as parts of cylinder,power swith ect.
