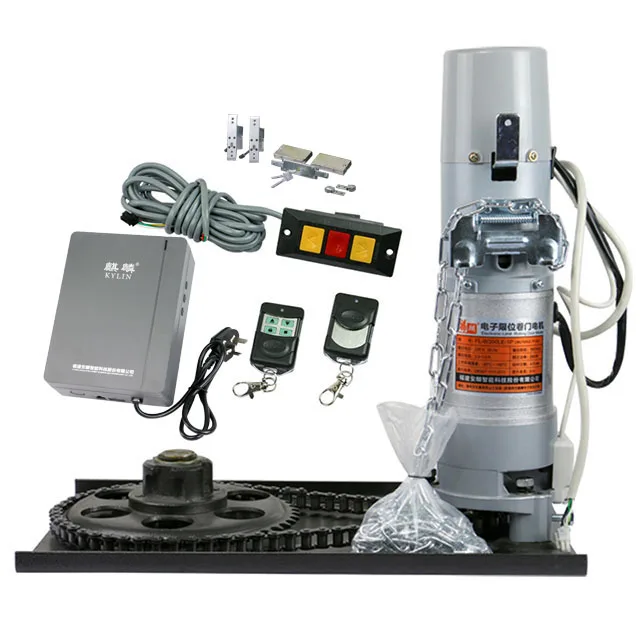

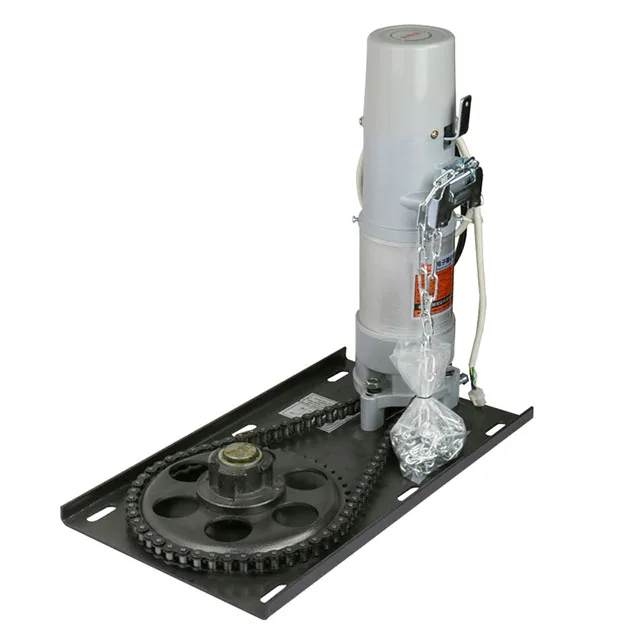

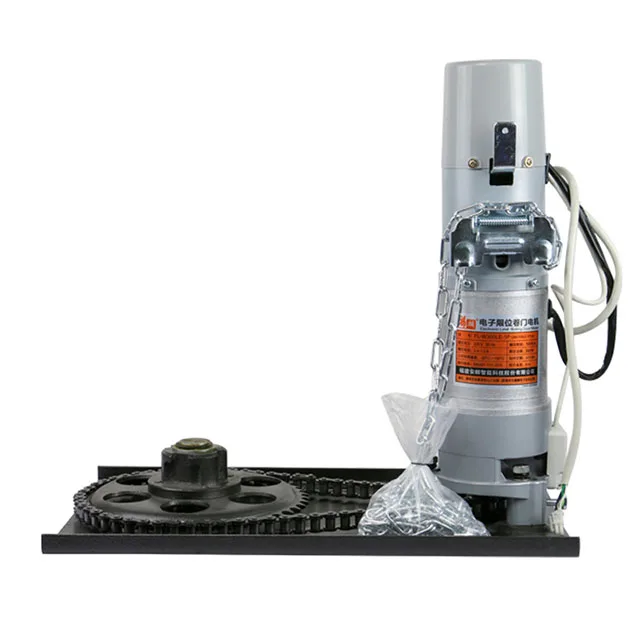

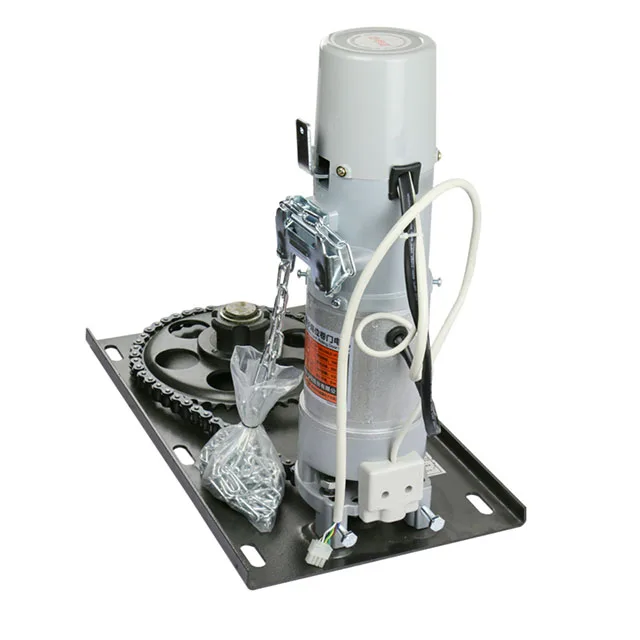

Автоматический роликовый дверной центральный

Категория: Двери, окна и аксессуары >>>
Поставщик: Fujian,Anlin,Intelligent,Science,And,Technology,Co.,Ltd.Fujian,Ltd.

Цена:9 459,56-10 267,08 ₽*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-16-2025	12013.17 $*	12253.20 $*
Jul-16-2025	9743.5 $*	9938.54 $*
Jun-16-2025	11824.85 $*	12060.56 $*
May-16-2025	11729.50 $*	11964.45 $*
Apr-16-2025	9364.78 $*	9551.50 $*
Mar-16-2025	11540.68 $*	11771.17 $*
Feb-16-2025	11445.56 $*	11674.86 $*
Jan-16-2025	11351.28 $*	11578.94 $*

Характеристики

verified Informatio

Anlin changes the traditional shutter door motor and leads the whole industry. We invite you to join the "blue ocean plan" for win-win development.

click for details-3

Automatic Roller Shutter Door Central Operator Motor 400+_01.jpg

Technical Specifications
Model	Rated Voltage	Rated Frequency	Rated Power (W)	Rated Current (A)	Lifting Force (kg.f)	Output Torque (N.m)	Rated Output Speed (r/min)		Max Lifting Height (m)	Continued Working time(min)
QL-200-1P(200kg)	220V/110V	50Hz	180	2.8	200	84	5	4		7
QL-300-1P(300kg)	220V /110V	50Hz	250	1.9	300	168	5.4	6		7
QL-400-1P(400kg)	220V /110V	50Hz	300	3.2	400	225	5.4	6		7
QL-500-1P	220V /110V	50Hz	370	3.3	500	343	5.7	6		7
(500kg)
QL-600-1P(600kg)	220V /110V	50Hz	370	3.3	600	412	5.3	6		7
QL-700-1P(700kg)	220V/110V	50Hz	370	3.9	700	509	5.3	6		7
QL-800-1P(800kg)	220V /110V	50Hz	400	4.5	800	647	4.6	9		7
QL-1000-1P(1000kg)	220V /110V	50Hz	400	4.5	1000	809	4.4	9		7

400+_03.jpg Not need to adjust travel limit on motor of high place 400+_05.jpg Limit box simplifies sealing dustproof
The electronic limit technology is adopted, the limiting box issimplified, and the original mechanical box is replaced, and the sealing and dus proof treatment of the silica gel is used to reduce the fault caused by the humidity, dust, stain andenvironmental influence of the limiting box 400+_07.jpg Absolute value, more precise limit for more safety 400+_09.jpg 400+_10.jpg 400+_11.jpg
