Электрический домкрат для поддонов на 1 5 тонн с
- Категория: Forklifts >>>
- Поставщик: Shanghai,Unico,Industry,&,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 1726.80 $* | 1812.90 $* |
| Aug-17-2025 | 1711.60 $* | 1797.7 $* |
| Jul-17-2025 | 1436.31 $* | 1508.22 $* |
| Jun-17-2025 | 1682.16 $* | 1766.38 $* |
| May-17-2025 | 1465.10 $* | 1538.25 $* |
| Apr-17-2025 | 1653.82 $* | 1736.19 $* |
| Mar-17-2025 | 1639.28 $* | 1721.69 $* |
| Feb-17-2025 | 1624.37 $* | 1705.50 $* |
| Jan-17-2025 | 1610.84 $* | 1691.61 $* |
Характеристики
Product Description

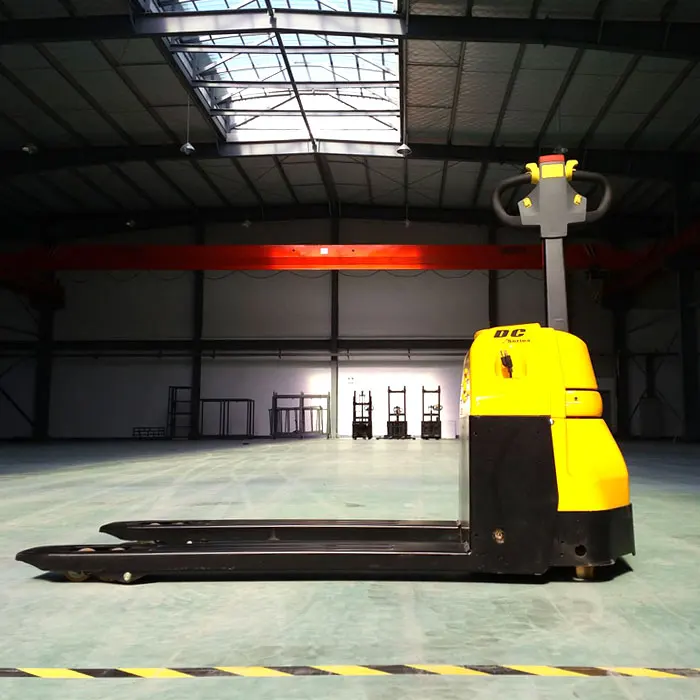

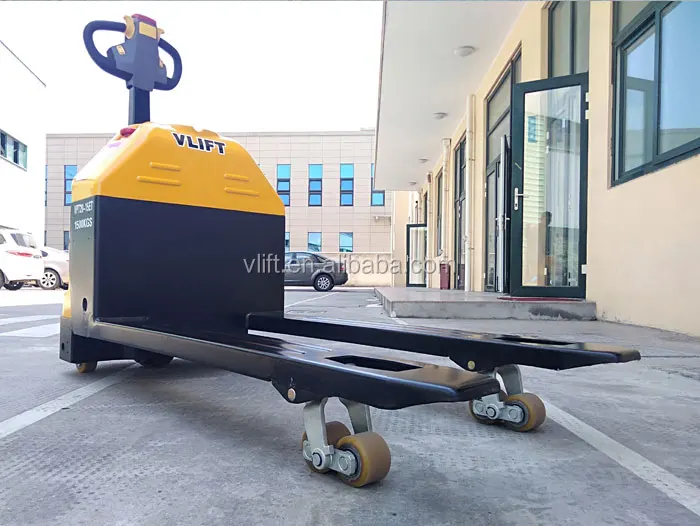

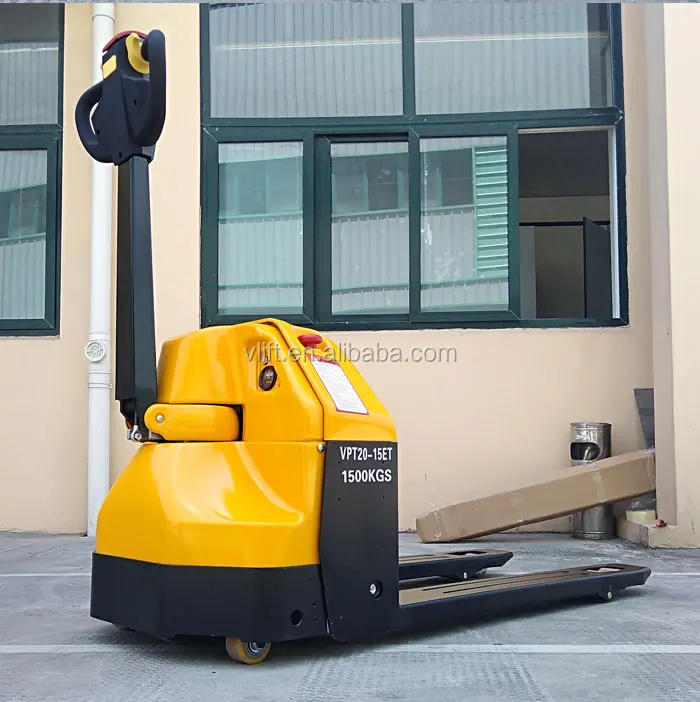

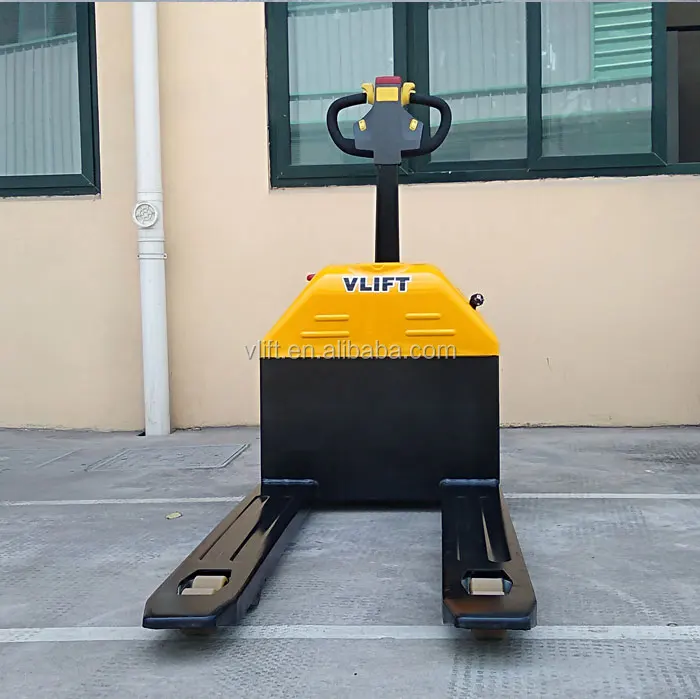

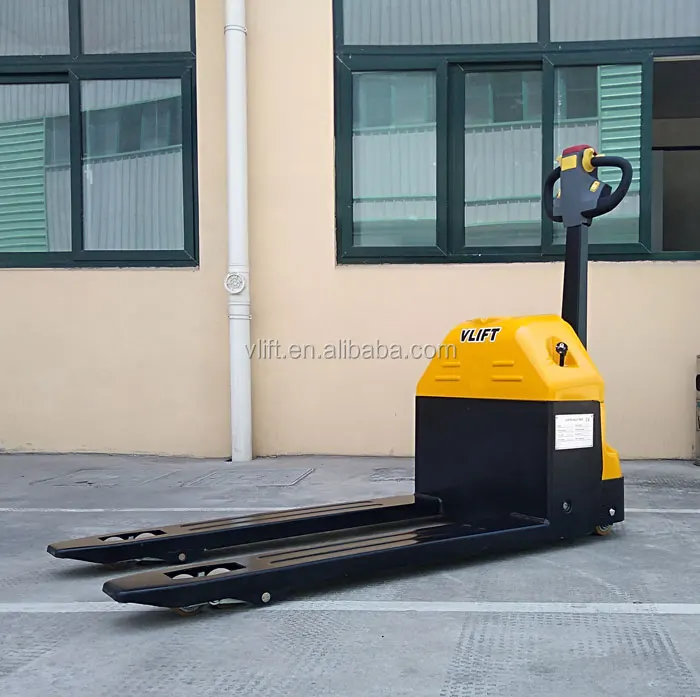

1.5 ton battery operated pallet truck electric pallet jack
1. 0.75 kw big power driving motor to achieve fully loaded grade-ability 8%;
2. 24V 80Ah battery to support 4 hours continuous work;
3. Automatic standby function: if it is not at use for 15 minutes, it will be in automatic standby to save electricity;
4. Pressure alarming function: the smart controller will alarm and short cut at over low or over high pressure and current;
5. With rub resistance balance wheel: the performance is stable even if it is on rough terrain, no turning on one side;
6. Super short turning radius and super short overall length: it can achieve turning around, loading and downloading easily in the container.
| Characteristics | |||
| 1.1 | Model designation | VPT20-15ET | |
| 1.2 | Operator type | Walkie | |
| 1.3 | Load capacity | Q(KG) | 1500 |
| 1.4 | Load center | C(MM) | 600 |
| 1.5 | Wheelbase | Y(MM) | 1320 |
| Weights | |||
| 2.1 | Service weight (Incl. battery) | kg | 290 |
| Wheels, Chassis | |||
| 3.1 | Tyre type | PU | |
| 3.2 | Tyre size, operator side | mm | 230x70 |
| 3.3 | Tyre size, load side | mm | 80x60 |
| 3.4 | balance wheel size | mm | 84x48 |
| 3.5 | Wheels, number operator/load side (x=drive wheels) | 1+2/4 | |
| Dimensions | |||
| 4.1 | Lift height | h3(mm) | 205 |
| 4.2 | Height of tiller arm in operating position, min/ max | h14(mm) | 970/1390 |
| 4.3 | Fork height, lowered | h13(mm) | 85/74 |
| 4.4 | Overall length | i1(mm) | 1620 |
| 4.5 | Overall width | b1/b2(mm) | 680 |
| 4.6 | Fork dimensions | i/e/s(mm) | 1150x160x50 |
| 4.7 | Fork spread, min/ max | b5(mm) | 540/680 |
| 4.8 | Ground clearance, center of wheelbase | m2(mm) | 35 |
| 4.9 | Aisle width, 1000×1200 pallet crossways | ast1(mm) | 1950 |
| 4.10 | Aisle width, 800×1200 pallet lengthways | ast2(mm) | 1720 |
| 4.11 | Outer turning radius | wa(mm) | 1600 |
| Performance | |||
| 5.1 | Travel speed, laden/ unladen | km/h | 5.0/5.5 |
| 5.2 | Lifting speed, laden/ unladen | m/s | 0.04/0.05 |
| 5.3 | Lowering speed, laden/ unladen | m/s | 0.04/0.05 |
| 5.4 | Maximum gradeability, laden/ unladen S2 5 min. | % | 8.0/16.0 |
| Drive | |||
| 6.1 | Drive motor rating S2 60 min. | kw | 0.75DC |
| 6.2 | Lift motor rating at S3 15% | kw | 0.85DC |
| 6.3 | Battery voltage/ rated capacity (5h) | V/Ah | 24/80 |
| Others | |||
| 7.1 | Type of drive control | PG (UK) | |
| 7.2 | Service brake | regenerative braking | |
| 7.3 | parking braking | Electromagnetic | |
Certifications
Company Information
Shanghai Vlift Equipment Co., Ltd. is one of the leading suppliers of diesel forklifts, gasoline/LPG forklifts, electric forklift, electric pallet trucks, electric stackers, manual pallet trucks, manual stackers, oil drum carriers, container ramps, work platforms, and lift tables.
Vlift aims at provide you high quality, high performance material handling equipment.
Everywhere in the world you can see products made in China, and Vlift has the responsibility to offer you the satisfactory equipments at good price.
Our Factory Show
Shanghai Vlift Equipment Co., Ltd. is one of the leading suppliers of diesel forklifts, gasoline/LPG forklifts, electric forklift, electric pallet trucks, electric stackers, manual pallet trucks, manual stackers, oil drum carriers, container ramps, work platforms, and lift tables.
Vlift aims at provide you high quality, high performance material handling equipment.
Everywhere in the world you can see products made in China, and Vlift has the responsibility to offer you the satisfactory equipments at good price.
FAQ
1. How long it will take to deliver the product after I pay for it?
Above price valid time is 25 days.
2. What is the payment term?
Our Payment: T/T, L/C, etc.
3. How long is the warranty period any forklift, pallet truck, stacker, scissor lift etc?
Our equipment quality warranty is 1 year or 2000 hours which comes first.
4. What kinds of engine do you have and any gurantee?
Chinese engine, Japanese ISUZU, Mitsubishi, YANMAR, Nissan K21, Nissan K25 engine as per your request. Absolutely high quality.
5. How many colors of forklift you can supply?
Sliver, Orange, Yellow, Red. As Per Your Request.
6. What is the forklift standard configuration and spare parts?
Wide vision mast,standard fork,standard seat,direction switch,backrest,reversing lights,reversing buzzer,back-up mirror,light switch,light armor rack,klaxon,two pieces of multi-way valve,electric control,rear combination lamp,overhead guard,rain cover,urable tyre,lasso-parking brake,lifting and tilt joystick,rate-limiting valve of lifting,draebar pin,lighting,adjustable steering wheel,lilt line self-lock valve,full hydraulic power steering,handle,tool box,combination instrument,hydraulic return filter,hydraulic oil suction filter,hydraulic vernier,switch,brake,turning indicator.
