Трубогибочная машина из нержавеющей стали для автомобилей и


Поделиться:


Цена:16 000,00 $ - 17 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 19040.31 $* 19992.41 $*
Aug-15-2025 18880.79 $* 19824.48 $*
Jul-15-2025 15840.36 $* 16632.22 $*
Jun-15-2025 18560.25 $* 19488.12 $*
May-15-2025 16160.61 $* 16968.43 $*
Apr-15-2025 18240.73 $* 19152.79 $*
Mar-15-2025 18080.85 $* 18984.69 $*
Feb-15-2025 17920.61 $* 18816.20 $*
Jan-15-2025 17760.5 $* 18648.8 $*

Характеристики


stainless steel pipe bending machine for automobile and motorcycle



Product Description
pipe bending machine for automobile
stainless steel pipe bending machine
bending machine for automobile and motorcycle
Semi-automatic hydraulic mandrel pipe bender. Bending pipe by hydraulic, feeding pipe by hand, rotating pipe by hand (electric as optional), clamping pipe by hydraulic, mandrel shift by hydraulic. High bending accuracy up to +/-0.1. The head of machine is casting.

Microcomputer controller with English or any other language. Fan / water / oil cooling for your choice. SIMENS or ABB motor as optional.



Main Features

1.Interactive PLC touch screen offers easy access to auto and manual operating modes.

2.fault diagnosis and multiple language capability.

3.Standard clockwise bending direction.

4.Fully hydraulic clamping on clamp die and pressure die.

5.Bending speed is adjustable by throttle valve.

6.Maximum 500 sets of program storage,Maximum 16 bends for each program.

7.With Independent programmable  Y, B, and C axes.

8.Automatic release of tube before final bend.

9.Foot Pedal start.

10.With Air Cooling System.

11.One set of Tooling for Draw Bending.

12.Operation and Maintenance Manual.

13.Tool Box with Adjusted Tools.

14.Electric: As required (3 phase 220V or 380V or 415V...)

Technical parameters

Specification/ModelUnitDW115NC
Max bending capabilitymmΦ115.8×7.5t
Max bending radiusmmR550
Min bending radiusmmR50
Max bending angleDegree185
Max effective distance of mandrelmm4200
Control System NC Control
Max elbow bend pipeUnit16
Max storable sectionsUnit16×16
Motor powerKW22
Max. Hydraulic PressureMpa14
Hydraulic System Control Electromagnetic Valve
Oil Tank CapacityL120
SizeCm520×180×140
Weight of MachineKg≈8000

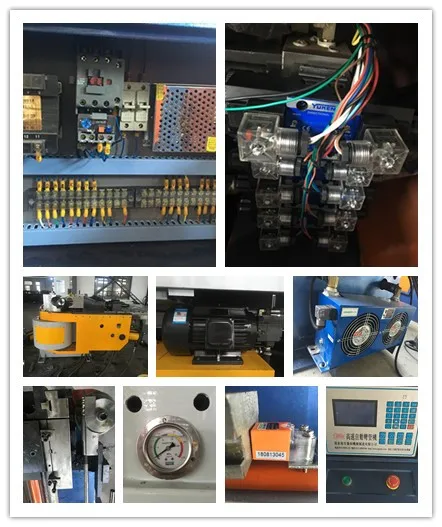

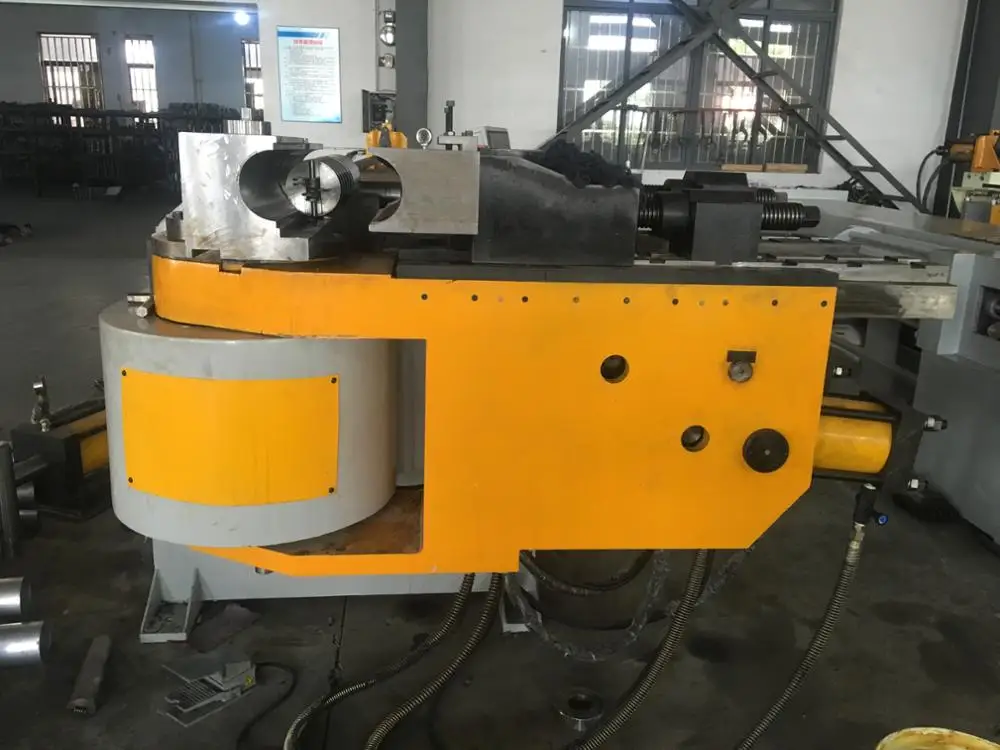

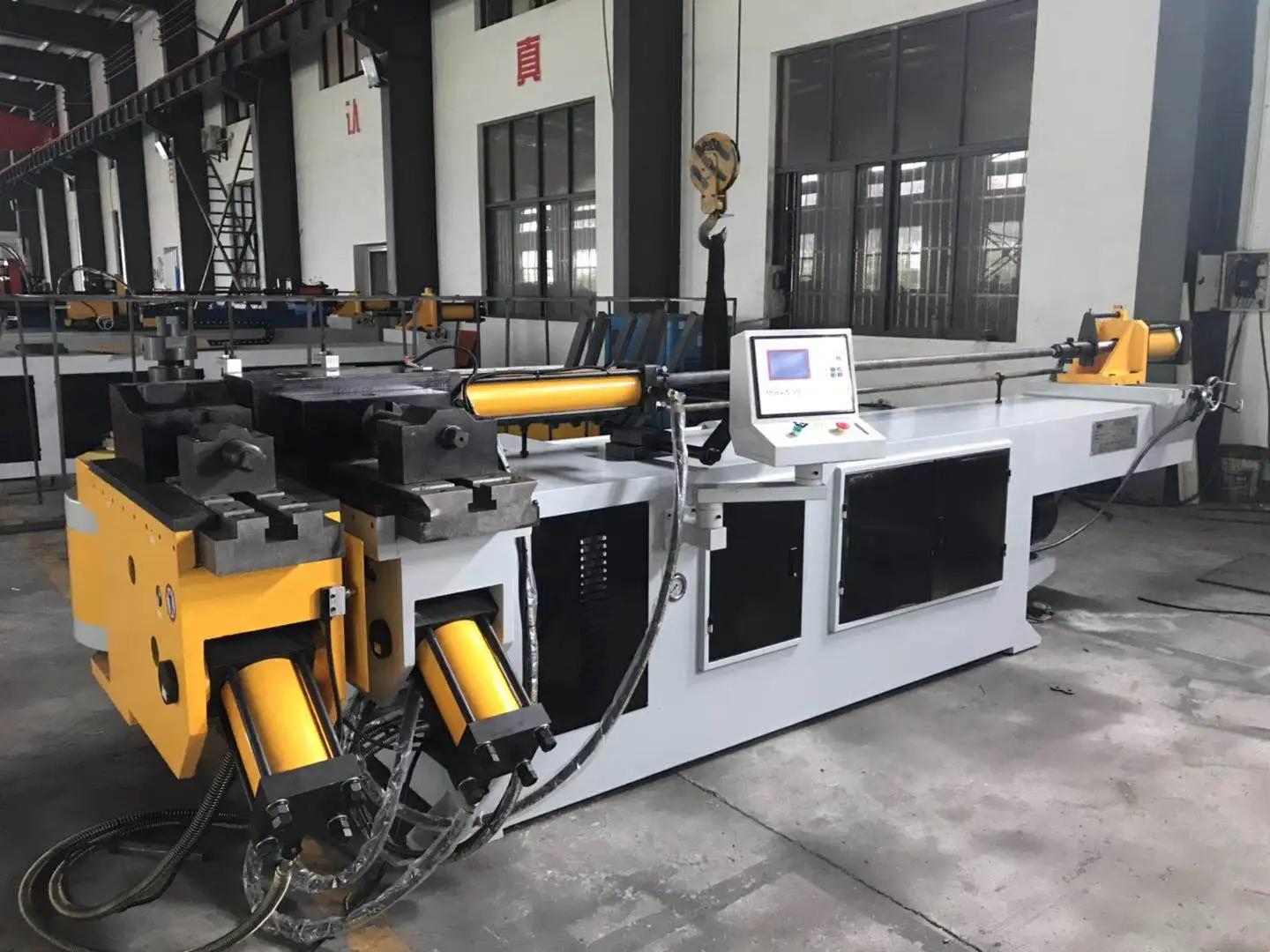

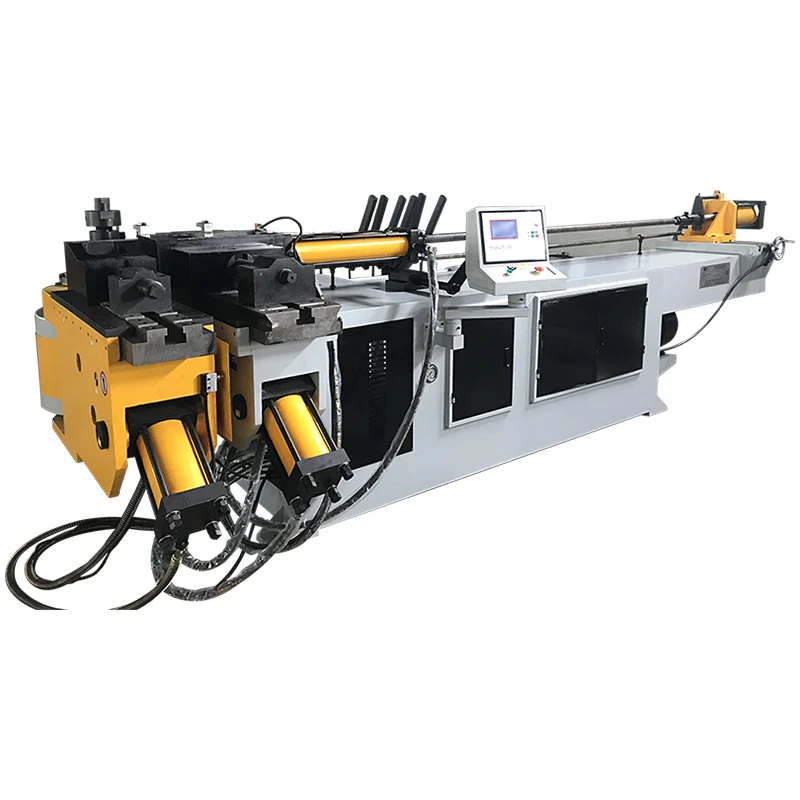

 Machine picture

 115NC.JPGDW115NC (3).jpg

DW130NC  (6).jpg

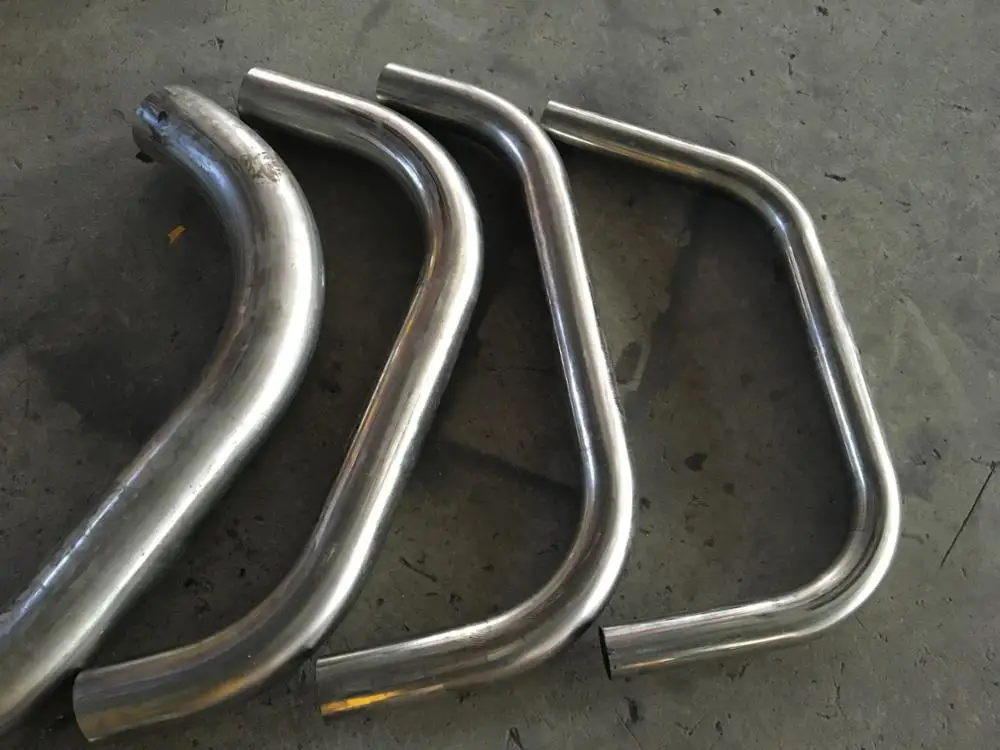

 Pipe samples:

 140mm 6mm .JPGMUESTRA 1.jpg.JPG



Packaging & Shipping

packing.jpg  wrapping film---wooden box

Our Services

1.Warranty period: We guarantee machine quality for one year, during this year, if spare parts of the machine were damaged, we can send the component to the customer by DHL, TNT freely.

2.Our factory can send our engineer to the customer’s factory install, commission and training freely. The customer provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely.

3.Our factory provide the service for the customer forever, if the customer need operation help, can contact us by Skype, Email and Telephone at any time, we provide 24 hours on-line service.



Company Information

1991 The Zhangjiagang government established Qinpeng machinery factory.

1995 Cooperate with Taiwan well-known pipe bending machine factory and set up a new company(Telhoo Machinery-“TLM”).

1999 Buy a series of high-precision processing equipment, and become a partner of a well-known airplane manufacturer.

2002 A famous Taiwan mold designer became the CTO of our company. Also our product Successfully enter China's shipbuilding industry.

Max processing capacity to 325mm tube.

2006 Become well-known car companies`s partner-Honda(china), Toyota(china), Volkswagen(china), changcheng(china).

2008 After many years of development and efforts, CNC pipe bending machine enter the market, Successfully as China's high-speed rail cooperation partner.

2010 Export to at least 65 countries around the world, including the United States, Russia, Poland, Mexico, Canada, Australia, England,southeast Asia,India and so on…

2013 In order to follow up 4.0 industrial trends,The technical department developed “full automatic Robot pipe bending machine”, “automatic loading and feeding pipe cutting machine” such as high efficiency pipe processing equipment.

2015 In order to better expand the overseas market,established “Telhoo holding limited” in Hong Kong.

2017 TLM with mission and responsibility will make our product better...

Our exhibition

2014 india fair.JPG



2014 India exhibition



2015 russia fair.jpg





2015 Russia exhibition



2017 iran fair.jpg



2017 Iran exhibition



Certifications
